Nested Scroll Conflict in Scrollable Components in ArkTS

Nested Scroll Conflict in Scrollable Components

Scrollable Components:

WaterFlow, List, Grid, Scroll, Swiper

Scene Description:

When a Scroll component wraps a WaterFlow component:

• Scrolling Up: If the WaterFlow component hasn't reached the top, the entire Scroll component scrolls first.
• When the WaterFlow reaches the top, the WaterFlow component starts scrolling internally.
• Scrolling Down: If the WaterFlow component hasn’t reached the top, both the Scroll and WaterFlow components scroll smoothly down together.

Code:

@Entry
@ComponentV2
struct Index {
  @Local dataArr: Array<string> = []; // Data source

  aboutToAppear(): void {
    for (let i = 0; i < 40; i++) {
      this.dataArr.push(`data_${i}`); // Adding data to the array
    }
  }

  build() {
    Column() {
      List() { // Outer scroll component
        ListItem() {
          Row()
            .width('100%')
            .height('30%')
            .backgroundColor(Color.Green)
        }

        ListItem() {
          List() { // Inner scroll component
            Repeat<string>(this.dataArr) // Looping through the data
              .each((ri: RepeatItem<string>) => {
                ListItem() {
                  Text('each_' + ri.item).fontSize(30)
                }
              })
          }
          .height('100%')
          .width('100%')
        }
      }
      .height('100%')
      .width('100%')
    }
  }
}

Component Tree

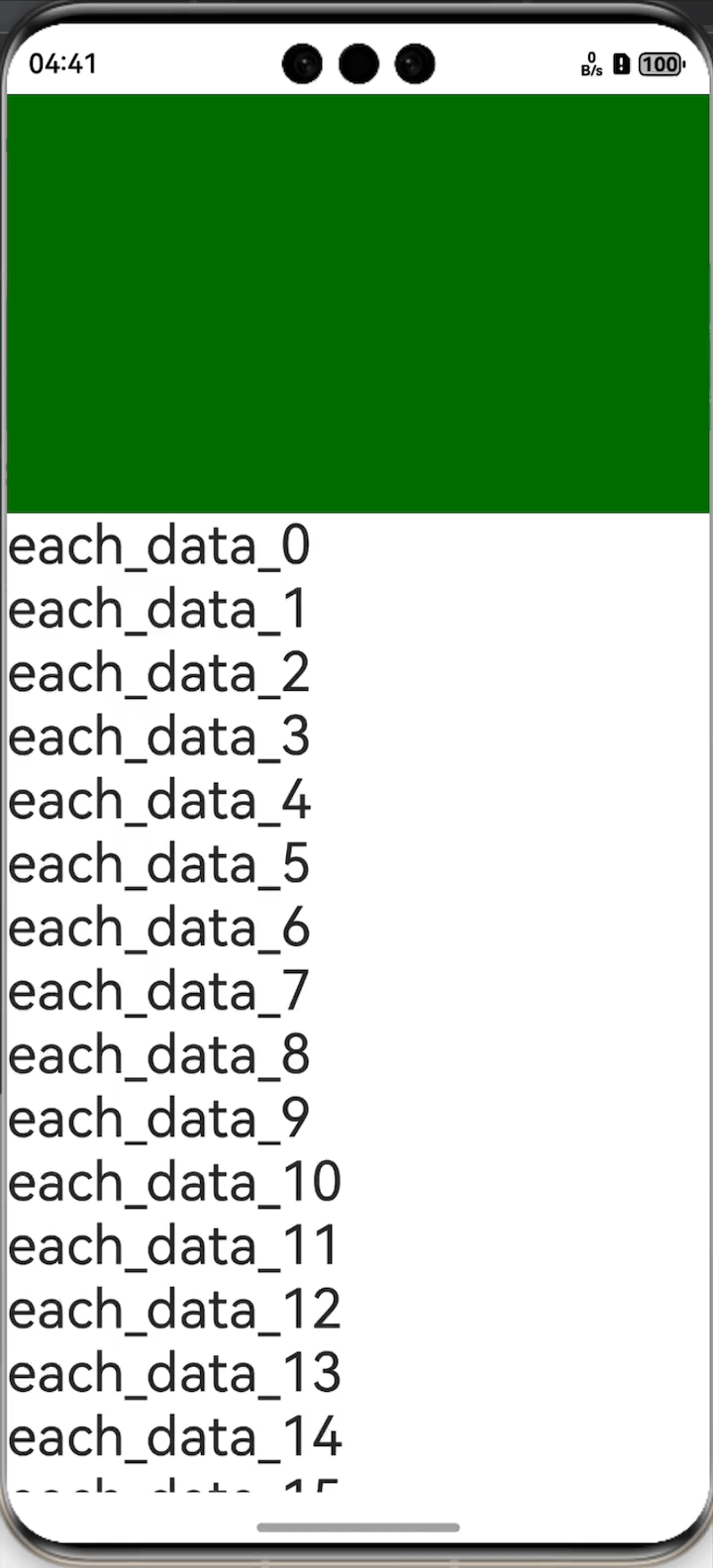

Effect:

Solution:

Setting the nestedScroll mode for the WaterFlow component allows smooth scroll switching when it reaches the top.

Enum Value Name	Description
SELF_FIRST	The component scrolls first. After it reaches the edge, the parent component scrolls. If the parent component has an edge effect, it triggers the parent's edge effect; otherwise, it triggers the child's edge effect.
PARENT_FIRST	The parent component scrolls first. After the parent reaches the edge, the component itself scrolls. If the component reaches the edge, it triggers its own edge effect; otherwise, it triggers the parent's edge effect.

Core Code:

List() {
  //...
}
.nestedScroll({
  scrollForward: NestedScrollMode.PARENT_FIRST, // Scroll Up
  scrollBackward: NestedScrollMode.SELF_FIRST // Scroll Down
})

Full Code:

// Using Repeat inside List container component
@Entry
@ComponentV2
  // It is recommended to use the V2 decorator
struct Index {
  @Local dataArr: Array<string> = []; // Data source

  aboutToAppear(): void {
    for (let i = 0; i < 40; i++) {
      this.dataArr.push(`data_${i}`); // Adding data to the array
    }
  }

  build() {
    Column() {
      List() { // Outer scroll component
        ListItem() {
          Row()
            .width('100%')
            .height('30%')
            .backgroundColor(Color.Green)
        }

        ListItem() {
          List() { // Inner scroll component
            Repeat<string>(this.dataArr)
              .each((ri: RepeatItem<string>) => {
                ListItem() {
                  Text('each_' + ri.item).fontSize(30)
                }
              })
          }
          .nestedScroll({
            scrollForward: NestedScrollMode.PARENT_FIRST,
            scrollBackward: NestedScrollMode.SELF_FIRST
          })
          .height('100%')
          .width('100%')
        }
      }
      .nestedScroll({
        scrollForward: NestedScrollMode.PARENT_FIRST,
        scrollBackward: NestedScrollMode.SELF_FIRST
      })
      .height('100%')
      .width('100%')
    }
  }
}

Effect After Fix:
