TL;DR
If you don’t want to walk through the whole process step-by-step you can simply view the final version here:
I’d like to share with you a simple scroll-based animation built with Framer along with React, TS, and Emotion.
Step 0
Let's start with the bootstrapping project. I chose to use the default stack, which contains React, Typescript, Framer, and Emotion.
You can use create-react-app or just fork the sandbox. If you're not familiar with Typescript, don't worry, I'll mark up the places I'm using it and add a solution for it using plain JS
First, we need to prepare an app where we have our main file called App.tsx (or App.jsx) and our component file called Spinner.tsx (Spinner.jsx).
In the spinner’s file, we need to create a basic wrapper and paste SVG content into it (feel free to copy it from my sandbox).
You'll probably see an eyelid covering the eye. Don't worry, we'll animate it in step 2.
Step 1
The first functionality is to animate the rotation of the text around the eye as the scrolling progresses.
To do this, we'll use the built-in useViewportScroll hook from Framer, which will give us values from 0 to 1, with 0 being the top of the page and 1 being the end of the page.

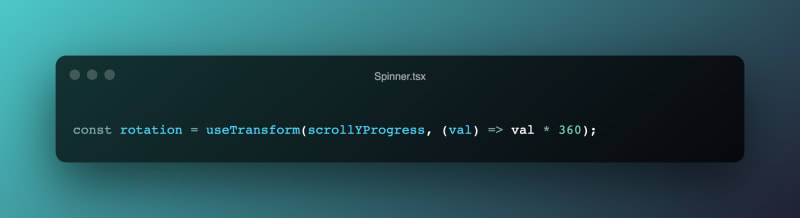

As you can expect we need to multiply this value by 360 because we want to achieve the full turn. We’re using the useTransform hook from Framer.
However, we want to make our animation a bit more fluid. We will use the useSpring hook for this:
We can manipulate this event with stiffness and damping params.
Feel free to experiment with these options.
More info about how it’s working here: https://www.framer.com/docs/motionvalue/###usespring
The only thing left for us to do is to use this value in the element we want to animate:
Remember that every element that we want to animate needs to be a motion element.
<motion.path />
As an additional visual effect, let's apply a 20 degree rotation to the entire wrapper.
Step 2
CodeSandbox
As I mentioned before, let's make the eye blink.
Let's find the eyelid and add the style prop to it, determining the initial behaviour of it:

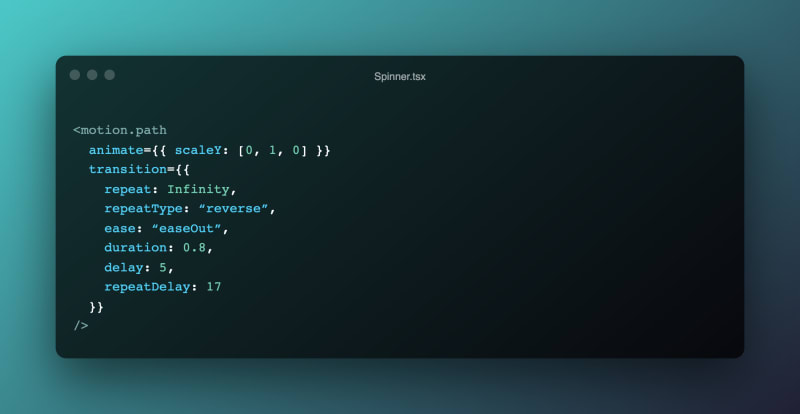

We'd like to have a little bit of movement to it! We're saying that we want to scale it from 0 to 1 on the Y-axis in 5 seconds after loading our page and every 17 seconds after the first iteration:
Step 3
The last and most challenging functionality is cursor tracking eye.
Let’s start by plugging a reference to the SVG group of the eyeball.
and
Now we can take care of storing the value of the position of the cursor.
Let’s use a build-in useMotionValue hook from Framer.
It will give us confidence in storing up-to-date values without redundant re-renders.
Then we need to establish the range of moves of the iris on the Y and X axes.
In this hook, we need to define the size of the eye element and the range. We want the iris to move from -40px to 40px at the center of the X-axis and from -15px to 15px on the Y-axis.
The next thing to do is combine and update this data with a mouse move event:
The next step is to assign these values to SVG elements that represent them:
Summary
And finally, there we have it!
You can see the final results here:
Feel free to experiment and have fun improving these effects and making new ones!
