Android's Locker Screen Using Shared Preferences & Material UI

#android #kotlin #beginners #opensource

App's Overview


In this article, I am going to create a multi-screen yet simple application that will be demonstrating the best way to create lock screens for the apps using shared preferences and some material UI components.

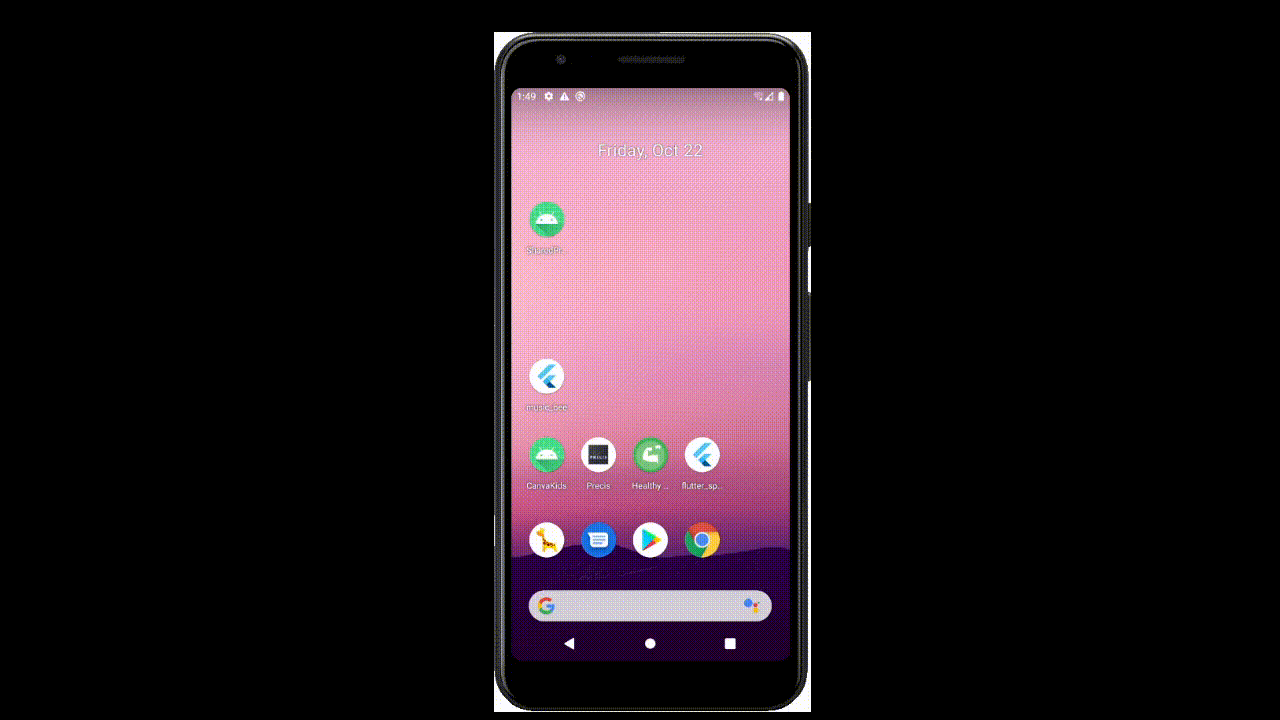

Lock Screen Demo App

Steps to proceed


We will be proceeding in a very beginner-friendly way. All the steps are mentioned below.

Setup

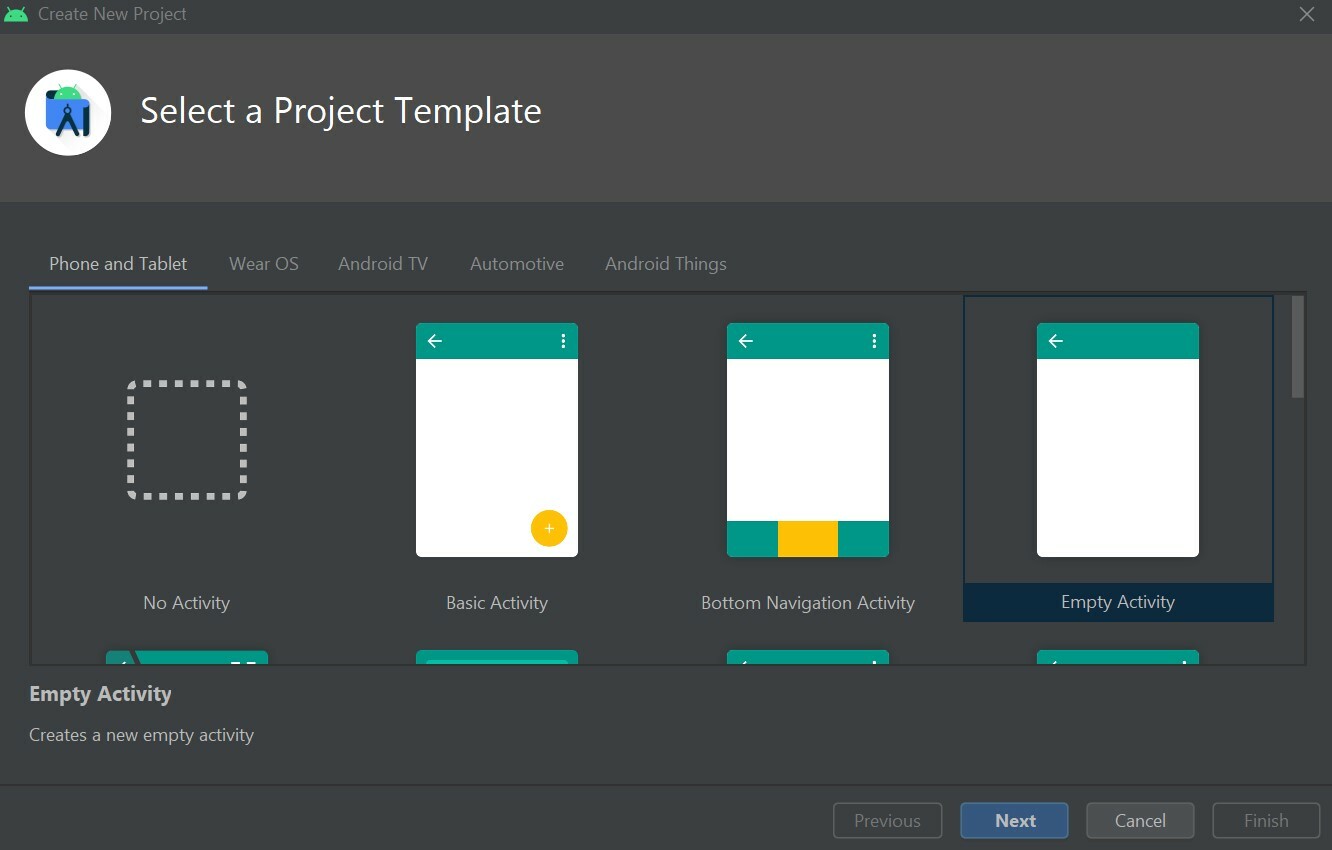

  • First of all, create a brand new project in your android studio. Assuming that it will be an easy part, so not explaining all. Image description
  • Then set up your emulator properly to check the application.

Now we are good to go for next step.

Building the app's UI


App's UI will be built in 4 steps :

App's UI is built with some of the material UI component for giving it a better look.

Simply copy each and every .xml file below and create the same into your project.

activity_main.xml

<?xml version="1.0" encoding="utf-8"?>

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="@drawable/backgroud"
    android:theme="@style/Theme.MaterialComponents.DayNight.NoActionBar"
    >

    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:gravity="center_horizontal"
        android:orientation="vertical"
        android:layout_centerInParent="true"
        tools:context=".MainActivity">

        <ImageView
            android:layout_width="100dp"
            android:layout_height="100dp"
            android:src="@drawable/ic_baseline_android_24"
            android:layout_marginBottom="4dp"
            />
        <TextView
            android:id="@+id/tv_app_name"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="Lock Up !"
            android:gravity="center"
            android:textSize="25sp"
            android:textStyle="bold"
            android:textColor="@color/gradientEnd"
            android:layout_marginBottom="26dp"
            android:letterSpacing="0.3"/>

        <androidx.cardview.widget.CardView
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_marginStart="20dp"
            android:layout_marginEnd="20dp"
            android:background="@color/white"
            app:cardCornerRadius="8dp"
            app:cardElevation="5dp"
            >
            <LinearLayout
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:orientation="vertical"
                android:padding="16dp">

                <TextView
                    android:layout_width="match_parent"
                    android:layout_height="wrap_content"
                    android:text="Welcome"
                    android:gravity="center"
                    android:textSize="30sp"
                    android:textColor="#0091EA"
                    android:textStyle="bold"/>
                <TextView
                    android:layout_width="match_parent"
                    android:layout_height="wrap_content"
                    android:text="Please set the lock screen pin"
                    android:gravity="center"
                    android:textSize="16sp"
                    android:textColor="#7A8089"
                    android:textStyle="bold"/>
                <LinearLayout
                    android:id="@+id/llLaunchScreen"
                    android:layout_width="match_parent"
                    android:layout_height="wrap_content"
                    android:orientation="vertical"
                    tools:visibility="visible"
                    android:padding="8dp"
                    android:layout_centerInParent="true"
                    >

                    <androidx.cardview.widget.CardView
                        android:layout_width="match_parent"
                        android:layout_height="wrap_content"
                        app:cardCornerRadius="50dp"

                        >
                        <LinearLayout
                            android:layout_width="match_parent"
                            android:layout_height="wrap_content"
                            android:orientation="vertical"
                            >
                        <Button
                            android:id="@+id/buttonSetPin"
                            android:layout_width="match_parent"
                            android:layout_height="wrap_content"
                            android:backgroundTint="@color/gradientStart"
                            android:text="Set/Change PIN"
                            android:padding="16dp"
                            android:textColor="#FFFFFF"
                            android:textStyle="bold"
                            />
                        <Button
                            android:id="@+id/buttonTypePin"
                            android:layout_width="match_parent"
                            android:layout_height="wrap_content"
                            android:backgroundTint="@color/gradientStart"
                            android:text="Type Pin To get in"
                            android:padding="16dp"
                            android:textColor="#FFFFFF"
                            android:textStyle="bold"
                            />
                        </LinearLayout>
                    </androidx.cardview.widget.CardView>
                </LinearLayout>

            </LinearLayout>

        </androidx.cardview.widget.CardView>

    </LinearLayout>
</RelativeLayout>
Enter fullscreen mode Exit fullscreen mode

activity_set_password.xml


<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    android:background="@drawable/backgroud"
    android:orientation="vertical"

    >

    <ImageView
        android:id="@+id/imgAnd"
        android:layout_width="170dp"
        android:layout_height="170dp"
        android:layout_marginTop="5dp"
        android:src="@drawable/ic_baseline_android_24"
        android:layout_centerHorizontal="true"
        />
    <com.google.android.material.textfield.TextInputLayout
        android:id="@+id/mtxtName"
        android:padding="18dp"
        style="@style/Widget.MaterialComponents.TextInputLayout.OutlinedBox"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_below="@+id/imgAnd"
        >

        <androidx.appcompat.widget.AppCompatEditText
            android:id="@+id/edtName"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:hint="Enter your Name"
            android:padding="18dp"
            android:textColorHint="@color/white"
            android:inputType="text"
            android:textSize="16sp"

            />
    </com.google.android.material.textfield.TextInputLayout>

    <com.google.android.material.textfield.TextInputLayout
        android:id="@+id/mtxtPass"
        android:padding="18dp"
        style="@style/Widget.MaterialComponents.TextInputLayout.OutlinedBox"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_below="@+id/mtxtName"

        >

        <androidx.appcompat.widget.AppCompatEditText
            android:id="@+id/edtPass"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:hint="Enter your password"
            android:padding="18dp"
            android:textColorHint="@color/white"
            android:inputType="numberPassword"
            android:textSize="16sp"

            />
    </com.google.android.material.textfield.TextInputLayout>

    <Button
        android:id="@+id/btnSave"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:backgroundTint="@color/gradientEnd"
        android:text="Save Pin"
        android:padding="16dp"
        android:layout_margin="25dp"
        android:textColor="#FFFFFF"
        android:textStyle="bold"
        android:layout_below="@+id/mtxtPass"
        />

</RelativeLayout>
Enter fullscreen mode Exit fullscreen mode

activity_password_type.xml


<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="@drawable/backgroud"
    android:orientation="vertical"
    >

    <ImageView
        android:id="@+id/imgAnd"
        android:layout_width="170dp"
        android:layout_height="170dp"
        android:layout_marginTop="5dp"
        android:src="@drawable/ic_baseline_android_24"
        android:layout_centerHorizontal="true"
        />
    <com.google.android.material.textfield.TextInputLayout
        android:id="@+id/mtxtName"
        android:padding="18dp"
        style="@style/Widget.MaterialComponents.TextInputLayout.OutlinedBox"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_below="@+id/imgAnd"
        >
    </com.google.android.material.textfield.TextInputLayout>

    <TextView
        android:id="@+id/txtPass"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_centerInParent="true"
        android:layout_marginTop="215dp"
        android:textColor="#EDE8E8"
        android:textStyle="bold"
        android:letterSpacing="1.5"
        android:textSize="22dp"
        android:maxLength="4"
        android:inputType="numberPassword"
        android:text="1234" />

    <LinearLayout
        android:id="@+id/keyBoard"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:orientation="vertical"
        android:layout_alignParentBottom="true"
        >

        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:orientation="horizontal"
            >

            <Button
                android:id="@+id/btn1"
                style="@style/Widget.MaterialComponents.Button.TextButton"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:padding="15dp"
                android:text="1"
                android:textColor="@color/white"
                android:textSize="18dp"
                android:textStyle="bold" />

            <Button
                android:id="@+id/btn2"
                style="@style/Widget.MaterialComponents.Button.TextButton"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:padding="15dp"
                android:text="2"
                android:textColor="@color/white"
                android:textSize="18dp"
                android:textStyle="bold" />

            <Button
                android:id="@+id/btn3"
                style="@style/Widget.MaterialComponents.Button.TextButton"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:padding="15dp"
                android:text="3"
                android:textColor="@color/white"
                android:textSize="18dp"
                android:textStyle="bold" />
        </LinearLayout>

        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:orientation="horizontal">

            <Button
                android:id="@+id/btn4"
                style="@style/Widget.MaterialComponents.Button.TextButton"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:padding="15dp"
                android:text="4"
                android:textColor="@color/white"
                android:textSize="18dp"
                android:textStyle="bold" />

            <Button
                android:id="@+id/btn5"
                style="@style/Widget.MaterialComponents.Button.TextButton"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:padding="15dp"
                android:text="5"
                android:textColor="@color/white"
                android:textSize="18dp"
                android:textStyle="bold" />

            <Button
                android:id="@+id/btn6"
                style="@style/Widget.MaterialComponents.Button.TextButton"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:padding="15dp"
                android:text="6"
                android:textColor="@color/white"
                android:textSize="18dp"
                android:textStyle="bold" />
        </LinearLayout>

        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:orientation="horizontal">

            <Button
                android:id="@+id/btn7"
                style="@style/Widget.MaterialComponents.Button.TextButton"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:padding="15dp"
                android:text="7"
                android:textColor="@color/white"
                android:textSize="18dp"
                android:textStyle="bold" />

            <Button
                android:id="@+id/btn8"
                style="@style/Widget.MaterialComponents.Button.TextButton"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:padding="15dp"
                android:text="8"
                android:textColor="@color/white"
                android:textSize="18dp"
                android:textStyle="bold" />

            <Button
                android:id="@+id/btn9"
                style="@style/Widget.MaterialComponents.Button.TextButton"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:padding="15dp"
                android:text="9"
                android:textColor="@color/white"
                android:textSize="18dp"
                android:textStyle="bold" />
        </LinearLayout>

        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:orientation="horizontal">

            <ImageButton
                android:id="@+id/btnErase"
                style="@style/Widget.MaterialComponents.Button.TextButton"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:padding="22dp"
                android:src="@drawable/ic_baseline_arrow_back_ios_24"
                android:textColor="@color/white"
                android:textSize="18dp"
                android:textStyle="bold" />

            <Button
                android:id="@+id/btn0"
                style="@style/Widget.MaterialComponents.Button.TextButton"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:padding="15dp"
                android:text="0"
                android:textColor="@color/white"
                android:textSize="18dp"
                android:textStyle="bold" />

            <ImageButton
                android:id="@+id/btnCheck"
                style="@style/Widget.MaterialComponents.Button.TextButton"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:padding="22dp"
                android:src="@drawable/ic_baseline_check_24"
                android:textColor="@color/white"
                android:textSize="18dp"
                android:textStyle="bold" />
        </LinearLayout>


    </LinearLayout>

</RelativeLayout>
Enter fullscreen mode Exit fullscreen mode

activity_welcome.xml


<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".WelcomeActivity"
    android:background="@drawable/backgroud">


    <TextView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="WELCOME !"
        android:textColor="@color/white"
        android:textSize="56sp"
        android:layout_centerInParent="true"
        android:layout_centerHorizontal="true"
        android:textStyle="bold"
        android:letterSpacing="0.1"
        />

</RelativeLayout>
Enter fullscreen mode Exit fullscreen mode

App's Backend

Similar to the UI, the app's backend is also divided into four parts namely :

MainActivity.kt


package com.siddharthsinghbaghel.sharedpreferences

import android.content.Intent
import androidx.appcompat.app.AppCompatActivity
import android.os.Bundle
import android.widget.Button

class MainActivity : AppCompatActivity() {
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_main)

        val buttonTypePin: Button = findViewById(R.id.buttonTypePin)
        val buttonSetPin: Button = findViewById(R.id.buttonSetPin)

        /* buttonSetPin will open the SetPasswordActivity.kt.
        *
        *  In other words the activity opened will
        *  overwrite the default shared preferences or set new values if not present.
        *
        *  You can further create it for reseting passwords or forgotten
        *  password option in your app
        * */

        buttonSetPin.setOnClickListener{
            val intent = Intent(this,SetPasswordActivity::class.java)
            startActivity(intent)
        }


        /*
        *  buttonTypePin will open the PasswordTypeActivit.kt
        *
        * If the user has already set the pin he/she
        * can just enter the pin correctly and can enter the
        * next screen.
        * */

        buttonTypePin.setOnClickListener{
            val intent = Intent(this,PasswordTypeActivity::class.java)
            startActivity(intent)

        }

    }
}
Enter fullscreen mode Exit fullscreen mode

SetPasswordActivity.kt


package com.siddharthsinghbaghel.sharedpreferences

import android.content.Intent
import android.os.Bundle
import android.widget.*
import androidx.appcompat.app.AppCompatActivity

class SetPasswordActivity : AppCompatActivity() {

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_set_password)


        val edtName: EditText = findViewById(R.id.edtName)
        val edtPass: EditText = findViewById(R.id.edtPass)
        val btnSave: Button = findViewById(R.id.btnSave)



        /* Creating the shared preference to store (name, password)
        *  as a key value pair.
        * */

        val sharedPref = getSharedPreferences("passPref", MODE_PRIVATE)
        val editor = sharedPref.edit()


        /*
        * onClick of btnSave the data present in edit texts
        * name and pass in .xml file will be  stored in our
        * shared preference (sharedpref)
        * */

        btnSave.setOnClickListener{

            val name: String = edtName.text.toString()
            val password: String = edtPass.text.toString()

            editor.apply {

                putString("name", name)
                putString("password", password)
                apply() /* can also use commit() here but apply() is the best practice according to google */
            }


            Toast.makeText(this, "PIN successfully set ", Toast.LENGTH_SHORT).show()

            /* On successfully creating the PIN user will
            *  will be directed to the PasswordTypeActivity screen
            *  where user have to enter the correct PIN to enter the WelcomeActivity.kt
            * */

            val intent = Intent(this,PasswordTypeActivity::class.java)
            startActivity(intent)
            finish()

        }
    }
}
Enter fullscreen mode Exit fullscreen mode

PasswordTypeActivity.kt


package com.siddharthsinghbaghel.sharedpreferences

import android.content.Context
import android.content.Intent
import android.os.Bundle
import android.preference.PreferenceManager
import android.view.View
import android.widget.Button
import android.widget.ImageButton
import android.widget.TextView
import android.widget.Toast
import androidx.appcompat.app.AppCompatActivity


class PasswordTypeActivity : AppCompatActivity(), View.OnClickListener {

    /* codeString is the string in which the PIN entered by user is stored.*/
    private var codeString: String = ""

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_password_type)


        /* Since we have to check the whether the entered
        *  password by user is correct or not, we need
        *  shared preference where we stored that.
        *  To retrieve data from shared preference the below code
        *  is executed.
        * */
        val sharedPref = getSharedPreferences("passPref", MODE_PRIVATE)
        val password = sharedPref.getString("password", "1234")


        val txtPass: TextView = findViewById(R.id.txtPass)

        txtPass.text = "" /*Emptied the textview to show the simultaneous
                            entering effect of all 4 digits of PIN */

        val btn0: Button = findViewById(R.id.btn0)
        val btn1:Button = findViewById(R.id.btn1)
        val btn2:Button = findViewById(R.id.btn2)
        val btn3:Button = findViewById(R.id.btn3)
        val btn4:Button = findViewById(R.id.btn4)
        val btn5:Button = findViewById(R.id.btn5)
        val btn6:Button = findViewById(R.id.btn6)
        val btn7:Button = findViewById(R.id.btn7)
        val btn8:Button = findViewById(R.id.btn8)
        val btn9:Button = findViewById(R.id.btn9)
        val btnErase: ImageButton = findViewById(R.id.btnErase)
        val btnCheck: ImageButton = findViewById(R.id.btnCheck)


        btn0.setOnClickListener(this)
        btn1.setOnClickListener(this)
        btn2.setOnClickListener(this)
        btn3.setOnClickListener(this)
        btn4.setOnClickListener(this)
        btn5.setOnClickListener(this)
        btn6.setOnClickListener(this)
        btn7.setOnClickListener(this)
        btn8.setOnClickListener(this)
        btn9.setOnClickListener(this)
        btnErase.setOnClickListener(this)



        btnCheck.setOnClickListener{

            /* btnCheck is called means iuser enter the desired PIN
             * now it's our turn to check it.
            * */

            codeString = txtPass.text.toString()

            if(codeString == password)
            {
                Toast.makeText(this, "Correct PIN Welcome!", Toast.LENGTH_SHORT).show()
                val intent = Intent(this,WelcomeActivity::class.java)
                startActivity(intent)
                finish()
            }else{

                Toast.makeText(this, "Wrong PIN please try again", Toast.LENGTH_SHORT).show()
                txtPass.text = ""
                codeString = txtPass.text.toString()
            }


        }


    }

    private fun setDotView() {

        /* this function will simply set the values
        *  which user is entering one by one as PIN in
        *  textView (txtPass) to give a PIN entering
        *  view.
        * */

        val txtPass: TextView = findViewById(R.id.txtPass)
        txtPass.text = codeString
    }

    override fun onClick(v: View?) {
        when (v!!.id) {
            R.id.btn0 -> codeString += "0"
            R.id.btn1 -> codeString += "1"
            R.id.btn2 -> codeString += "2"
            R.id.btn3 -> codeString += "3"
            R.id.btn4 -> codeString += "4"
            R.id.btn5 -> codeString += "5"
            R.id.btn6 -> codeString += "6"
            R.id.btn7 -> codeString += "7"
            R.id.btn8 -> codeString += "8"
            R.id.btn9 -> codeString += "9"
            R.id.btnErase -> {
                codeString = removeLastChar(codeString).toString()
            }
            else -> {
            }
        }
        setDotView()
    }


    private fun removeLastChar(s: String?): String? {

        /* the erase button will erase the
        *  the last entered value from the keyboard.
        *  The Erase button's working is followed in this function.
        * */
        return if (s == null || s.length == 0) {
            s
        } else s.substring(0, s.length - 1)
    }


}
Enter fullscreen mode Exit fullscreen mode

WelcomeActivity.kt


package com.siddharthsinghbaghel.sharedpreferences

import android.content.Intent
import androidx.appcompat.app.AppCompatActivity
import android.os.Bundle
import android.widget.Toast

class WelcomeActivity : AppCompatActivity() {

   /* Here we used onRestart() callback
   *  because if user pushes the home button
   *  or opened any other application or just closed the app and
   *  restart it again, the first session will expire and the app
   *  will be locked up again. Thus user have to enter the password
   *  always when he/she stops and restart the app.
   * */

    override fun onRestart() {
        super.onRestart()
        val intent = Intent(this,PasswordTypeActivity::class.java)
        startActivity(intent)
    }

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_welcome)
    }
}
Enter fullscreen mode Exit fullscreen mode

GitHub Repository

  • Fork the repository for better and easy understanding and for quick learning.

GitHub logo Siddharth-sing / Material-UI-LockPIN-Demo

Material-UI-LockPIN-Demo

Original Article on Dev.to Click below 👇

App's Overview

In this article, I am going to create a multi-screen yet simple application that will be demonstrating the best way to create lock screens for the apps using shared preferences and some material UI components

Lock Screen Demo App

Steps to proceed

We will be proceeding in a very beginner-friendly way. All the steps are mentioned below

Setup

  • First of all, create a brand new project in your android studio. Assuming that it will be an easy part, so not explaining all. Image description
  • Then set up your emulator properly to check the application.

Now we are good to go for next step.

Building the app's UI

App's UI will be built in 4 steps :

View on GitHub

Writer's Support

  • If you find the article useful show some ❤️ by staring some of my repositories and following me on dev.to and github.

Top comments (0)

Read next

jaloliddin0210 profile image

C# dasturlash tilida kasrlar

Jaloliddin Xolmirzayev -

borysshulyak profile image

High Level requirements and purposes

Boris Shulyak -

prasetyomuhdwi profile image

Setup path aliases in React + Vite + TS Project 🤓

Muhammad_Dwi_Prasetyo -

a_gaoba profile image

Understanding Array Prototypes in JavaScript

Abdulrahman Gaoba -
