RDS Auto Restart Protection

Abstract

  • Customers needing to keep an Amazon Relational Database Service (Amazon RDS) instance stopped for more than 7 days, look for ways to efficiently re-stop the database after being automatically started by Amazon RDS. If the database is started and there is no mechanism to stop it; customers start to pay for the instance’s hourly cost

  • Stopping and starting a DB instance is faster than creating a DB snapshot, and then restoring the snapshot.

  • This blog provides a step-by-step approach to automatically stop an RDS cluster with fully serverless and using Pulumi to create AWS resources

Table Of Contents


πŸš€ Overview of Pulumi

  • Why Pulumi? Pulumi enables developers to write infrastructure as code in their favorite languages, such as TypeScript, JavaScript, Python, and Go.

  • Here is general steps-by-step to create pulumi project and its stack

  1. Create new project
pulumi new aws-typescript
Enter fullscreen mode Exit fullscreen mode
  1. Set up aws profile
  2. When create/init a stack pulumi stack init the Pulumi.<stack-name>.yaml is not created so we have to set config ourselves
pulumi config set aws:region ap-northeast-2
pulumi config set aws:profile myprofile
Enter fullscreen mode Exit fullscreen mode
  1. Pulumi bash completion
  2. Feel lazy for typing? Setup bashcompletion for pulumi
pulumi gen-completion bash > /etc/bash_completion.d/pulumi
Enter fullscreen mode Exit fullscreen mode
  • Update .bashrc for alias
# add Pulumi to the PATH
export PATH=$PATH:$HOME/.pulumi/bin
alias plm='/home/vudao/.pulumi/bin/pulumi'
complete -F __start_pulumi plm
Enter fullscreen mode Exit fullscreen mode
  1. Import existing resources
  2. For creating new RDS cluster to test the flow, we can import existing Security group or anything to the stack
pulumi import aws:ec2/securityGroup:SecurityGroup vpc_sg sg-13a02c7a
Enter fullscreen mode Exit fullscreen mode
  1. Refresh the stack
  2. If we manually delete the resources which are managed by the stack we can run refresh to update stack resource status
pulumi refresh
Enter fullscreen mode Exit fullscreen mode

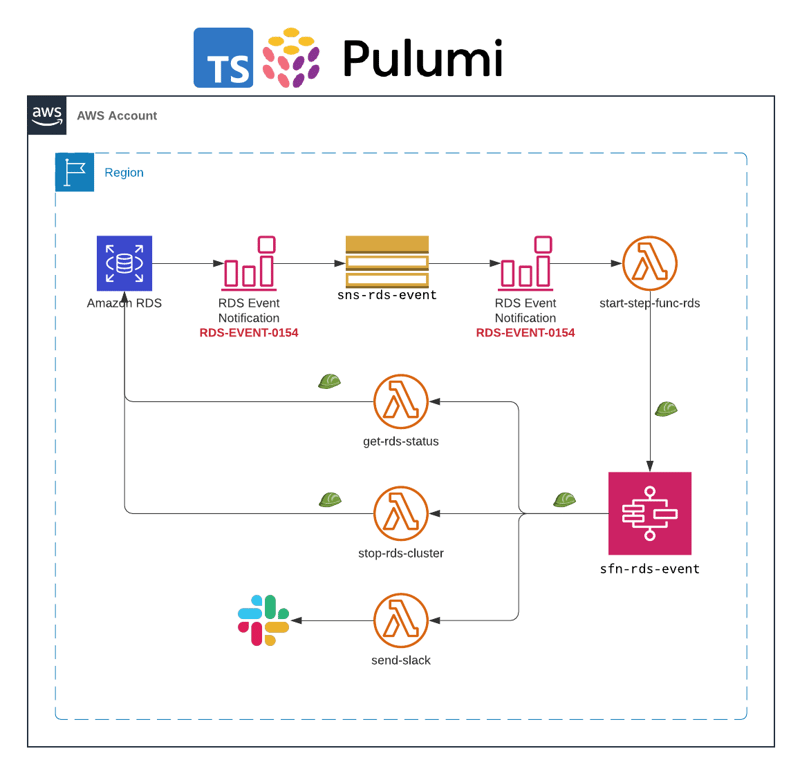

πŸš€ Solution overview

RDS Auto Restart Protection

  • The solution relies on RDS event notifications. Once a stopped RDS instance is started by AWS due to exceeding the maximum time in the stopped state; an event (RDS-EVENT-0154) is generated by RDS.

  • The RDS event is pushed to a dedicated SNS topic sns-rds-event.

  • The Lambda function start-step-func-rds is subscribed to the SNS topic sns-rds-event

    • The function filters messages with event code: RDS-EVENT-0153 (The DB cluster is being started due to it exceeding the maximum allowed time being stopped.), plus the function validates that the RDS instance is tagged with auto-restart-protection and that the tag value is set to yes.
    • Once all conditions are met, the Lambda function starts the AWS Step Functions state machine execution.
  • The AWS Step Functions state machine integrates with two Lambda functions in order to retrieve the instance state, as well as attempt to stop the RDS instance.

    • In case the instance state is not β€˜available’, the state machine waits for 5 minutes and then re-checks the state.
    • Finally, when the Amazon RDS instance state is β€˜available’; the state machine will attempt to stop the Amazon RDS instance.
  • Note: This blog is for handling RDS cluster with multiple intances, for single instance, catch RDS-EVENT-0154: The DB instance is being started due to it exceeding the maximum allowed time being stopped.


Let's start writing IaC using Pulumi and typescript


πŸš€ Create RDS cluster with multiple instances

  • Create RDS cluster with one or more instances
  • Using the imported existing VPC (optional)

rds.ts
import * as aws from "@pulumi/aws";

const vpc_sg = new aws.ec2.SecurityGroup("vpc_sg",
    {
        description: "Allows inbound and outbound traffic for all instances in the VPC",
        name: "vpc-sec",
        revokeRulesOnDelete: false,
        tags: {
            Name: "vpc-sec",
        }
    },
    {
        protect: true,
    }
);

export const rds_cluster = new aws.rds.Cluster('SelTestRdsEventSub', {
    //availabilityZones: ['ap-northeast-2a', 'ap-northeast-2c'],
    clusterIdentifier: 'my-test-rds-sub',
    engine: 'aurora-postgresql',
    masterUsername: 'postgres',
    masterPassword: '*****',
    dbSubnetGroupName: 'aws-test',
    databaseName: "mydb",
    skipFinalSnapshot: true,
    vpcSecurityGroupIds: [vpc_sg.id],
    tags: {
        'Name': 'my-test-rds-sub',
        'stack': 'pulumi-rds',
        'auto-restart-protection': 'yes'
    }
});

export const clusterInstances: aws.rds.ClusterInstance[] = [];

for (const range = {value: 0}; range.value < 1; range.value++) {
    clusterInstances.push(new aws.rds.ClusterInstance(`SelRdsClusterInstance-${range.value}`, {
        identifier: `my-test-rds-sub-${range.value}`,
        clusterIdentifier: rds_cluster.id,
        instanceClass: aws.rds.InstanceType.T3_Medium,
        engine: 'aurora-postgresql',
        engineVersion: rds_cluster.engineVersion,
        dbSubnetGroupName: 'aws-test',
        tags: {
            'Name': `my-test-rds-sub-${range.value}`,
            'stack': 'pulumi-rds-instance',
            'auto-restart-protection': 'yes'
        }
    }))
}
Enter fullscreen mode Exit fullscreen mode

πŸš€ Create SNS topic and subscribe event to the RDS cluster

  • Create a SNS topic to receive events from RDS cluster
  • Create event subscription:
    • Target: the SNS topic
    • Source Type: Clusters (and point to the cluster which created from above step)
    • Specific event categories: notification

index.ts
import * as aws from "@pulumi/aws";
import { state_machine_handler } from "./stepFunc";
import { rds_cluster } from "./rds";


const sns_rds_event = new aws.sns.Topic('SnsRdsEvent', {
    displayName: 'sns-rds-event',
    name: 'sns-rds-event',
    tags: {
        'Name': 'sns-rds-event',
        'stack': 'plumi-sns'
    }
});

const rds_event_sub = new aws.rds.EventSubscription('RdsEventSub', {
    enabled: true,
    name: 'rds-event-sub',
    eventCategories: ['notification'],
    sourceType: 'db-cluster',
    sourceIds: [rds_cluster.id],
    snsTopic: sns_rds_event.arn,
    tags: {
        'Name': 'rds-event-sub',
        'stack': 'pulumi-event'
    }
});

const sns_sub = new aws.sns.TopicSubscription('sns-topic-event-sub', {
    endpoint: state_machine_handler.arn,
    protocol: 'lambda',
    topic: sns_rds_event.arn
});

sns_rds_event.onEvent('sns-lambda-trigger', state_machine_handler, sns_sub)
Enter fullscreen mode Exit fullscreen mode

πŸš€ Create Lambda function which is subscribe to the SNS topic

  • The lambda function will be triggerd by SNS topic whenever there's event
  • The lambda function parses the event message to filter event ID RDS-EVENT-0153 and checks the RDS cluster tag for key:value auto-restart-protection: yes. If all conditions match, then the lambda function execute Step Functions state machine

  • Create IAM role which is consumed by lambda function

iam-role
export const allowRdsClusterRole = new aws.iam.Role("allow-stop-rds-cluster-role", {
    name: 'lambda-stop-rds-cluster',
    description: 'Role to stop rds cluster base on event',
    assumeRolePolicy: JSON.stringify({
        Version: "2012-10-17",
        Statement: [{
            Action: "sts:AssumeRole",
            Effect: "Allow",
            Sid: "",
            Principal: {
                Service: "lambda.amazonaws.com",
            },
        }],
    }),
    tags: {
        'Name': 'lambda-stop-rds-cluster',
        'stack': 'pulumi-iam'
    },
});

const rds_policy = new aws.iam.RolePolicy("allow-stop-rds-cluster", {
    role: allowRdsClusterRole,
    policy: {
        Version: "2012-10-17",
        Statement: [
            {
                Sid: "AllowRdsStatement",
                Effect: "Allow",
                Resource: "*",
                Action: [
                    "rds:AddTagsToResource",
                    "rds:ListTagsForResource",
                    "rds:DescribeDB*",
                    "rds:StopDB*"
                ]
            },
            {
                Sid: "AllowSfnStatement",
                Effect: "Allow",
                Resource: "*",
                Action: "states:StartExecution"
            },
            {
                Sid: 'AllowLog',
                Effect: 'Allow',
                Resource: "arn:aws:logs:*:*:*",
                Action: [
                    "logs:CreateLogGroup",
                    "logs:CreateLogStream",
                    "logs:PutLogEvents"
                ],
            }
        ]
    },
}, {parent: allowRdsClusterRole});
Enter fullscreen mode Exit fullscreen mode

  • Create lambda function which is subscription of the SNS topic

start-step-func-lambda
export const state_machine_handler = new aws.lambda.Function('RdsSNSEvent',
    {
        code: new pulumi.asset.FileArchive('lambda-code/start-statemachine-execution-lambda/handler.tar.gz'),
        description: 'Lambda function listen to RDS SNS event topic to trigger step function',
        name: 'start-step-func-rds',
        handler: 'app.handler',
        runtime: aws.lambda.Runtime.Python3d8,
        role: handler.allowRdsClusterRole.arn,
        environment: {
            variables: {
                'STEPFUNCTION_ARN': stepFunction.arn
            }
        },
        tags: {
            'Name': 'start-step-func-rds',
            'stack': 'pulumi-lambda'
        }
    },
    {
        dependsOn: [handler.allowRdsClusterRole]
    }
);
Enter fullscreen mode Exit fullscreen mode

  • Create step function state machine with flowing definitions

sfn-rds-event

stepFunc.ts
import * as aws from '@pulumi/aws';
import * as pulumi from '@pulumi/pulumi';
import * as handler from './handler';


export const stepFunction = new aws.sfn.StateMachine('SfnRdsEvent', {
    name: 'sfn-rds-event',
    roleArn: handler.sfn_role.arn,
    tags: {
        'Name': 'sfn-rds-event',
        'stack': 'pulumi-sfn'
    },
    definition: pulumi.all([handler.retrieve_rds_status_handler.arn, handler.stop_rds_cluster_handler.arn, handler.send_slack_handler.arn])
        .apply(([retrieveArn, stopRdsArn, sendSlackArn]) => {
        return JSON.stringify({
            "Comment": "RdsAutoRestartWorkFlow: Automatically shutting down RDS instance after a forced Auto-Restart",
            "StartAt": "retrieveRdsClustertate",
            "States": {
                "retrieveRdsClustertate": {
                    "Type": "Task",
                    "Resource": retrieveArn,
                    "TimeoutSeconds": 5,
                    "Retry": [
                        {
                        "ErrorEquals": [
                            "Lambda.Unknown",
                            "States.TaskFailed"
                        ],
                        "IntervalSeconds": 3,
                        "MaxAttempts": 2,
                        "BackoffRate": 1.5
                        }
                    ],
                    "Catch": [
                        {
                        "ErrorEquals": [
                            "States.ALL"
                        ],
                        "Next": "fallback"
                        }
                    ],
                    "Next": "isRdsClusterAvailable"
                },
                "isRdsClusterAvailable": {
                    "Type": "Choice",
                    "Choices": [
                        {
                        "Variable": "$.readyToStop",
                        "StringEquals": "yes",
                        "Next": "stopRdsCluster"
                        }
                    ],
                    "Default": "waitFiveMinutes"
                },
                "waitFiveMinutes": {
                    "Type": "Wait",
                    "Seconds": 300,
                    "Next": "retrieveRdsClustertate"
                },
                "stopRdsCluster": {
                    "Type": "Task",
                    "Resource": stopRdsArn,
                    "TimeoutSeconds": 5,
                    "Retry": [
                        {
                        "ErrorEquals": [
                            "States.Timeout"
                        ],
                        "IntervalSeconds": 3,
                        "MaxAttempts": 2,
                        "BackoffRate": 1.5
                        }
                    ],
                    "Catch": [
                        {
                        "ErrorEquals": [
                            "States.ALL"
                        ],
                        "Next": "fallback"
                        }
                    ],
                    "Next": "retrieveRdsClustertateStopping"
                },
                "retrieveRdsClustertateStopping": {
                    "Type": "Task",
                    "Resource": retrieveArn,
                    "TimeoutSeconds": 5,
                    "Retry": [
                        {
                        "ErrorEquals": [
                            "States.Timeout"
                        ],
                        "IntervalSeconds": 3,
                        "MaxAttempts": 2,
                        "BackoffRate": 1.5
                        }
                    ],
                    "Catch": [
                        {
                        "ErrorEquals": [
                            "States.ALL"
                        ],
                        "Next": "fallback"
                        }
                    ],
                    "Next": "isRdsClusterStopped"
                },
                "isRdsClusterStopped": {
                    "Type": "Choice",
                    "Choices": [
                        {
                        "Variable": "$.rdsClusterStatus",
                        "StringEquals": "stopped",
                        "Next": "sendSlack"
                        }
                    ],
                    "Default": "waitFiveMinutesStopping"
                },
                "waitFiveMinutesStopping": {
                    "Type": "Wait",
                    "Seconds": 300,
                    "Next": "retrieveRdsClustertateStopping"
                },
                "sendSlack": {
                    "Type": "Task",
                    "Resource": sendSlackArn,
                    "TimeoutSeconds": 5,
                    "End": true
                },
                "fallback": {
                    "Type": "Task",
                    "Resource": sendSlackArn,
                    "TimeoutSeconds": 5,
                    "End": true
                }
            }
        });
    })
});
Enter fullscreen mode Exit fullscreen mode

πŸš€ Create lambda function to retrieve RDS cluster and instances status

retrieve-rds-status.ts
export const retrieve_rds_status_handler = new aws.lambda.Function('RetrieveRdsStateFunc', {
    code: new pulumi.asset.FileArchive('lambda-code/retrieve-rds-instance-state-lambda/handler.tar.gz'),
    description: 'Lambda function to retrieve rds instance status',
        name: 'get-rds-status',
        handler: 'app.handler',
        runtime: aws.lambda.Runtime.Python3d8,
        role: allowRdsClusterRole.arn,
        tags: {
            'Name': 'get-rds-status',
            'stack': 'pulumi-lambda'
        }
});
Enter fullscreen mode Exit fullscreen mode

πŸš€ Create lambda function to stop RDS cluster

stop-rds.ts
export const stop_rds_cluster_handler = new aws.lambda.Function('StopRdsClusterFunc', {
    code: new pulumi.asset.FileArchive('lambda-code/stop-rds-instance-lambda/handler.tar.gz'),
    description: 'Lambda function to retrieve rds instance status',
        name: 'stop-rds-cluster',
        handler: 'app.handler',
        runtime: aws.lambda.Runtime.Python3d8,
        role: allowRdsClusterRole.arn,
        tags: {
            'Name': 'stop-rds-cluster',
            'stack': 'pulumi-lambda'
        }
});
Enter fullscreen mode Exit fullscreen mode

πŸš€ Create lambda function to send slack

send-slack.ts
export const send_slack_handler = new aws.lambda.Function('SendSlackFunc', {
    code: new pulumi.asset.FileArchive('lambda-code/send-slack/handler.tar.gz'),
    description: 'Lambda function to send slack',
        name: 'rds-send-slack',
        handler: 'app.handler',
        runtime: aws.lambda.Runtime.Python3d8,
        role: allowRdsClusterRole.arn,
        tags: {
            'Name': 'rds-send-slack',
            'stack': 'pulumi-lambda'
        }
});
Enter fullscreen mode Exit fullscreen mode

πŸš€ SFN IAM role to trigger lambda functions

sfn-role.ts
export const sfn_role = new aws.iam.Role('SfnRdsRole', {
    name: 'sfn-rds',
    description: 'Role to trigger lambda functions',
    assumeRolePolicy: JSON.stringify({
        Version: "2012-10-17",
        Statement: [{
            Action: "sts:AssumeRole",
            Effect: "Allow",
            Sid: "",
            Principal: {
                Service: "states.ap-northeast-2.amazonaws.com",
            },
        }],
    }),
    tags: {
        'Name': 'sfn-rds',
        'stack': 'pulumi-iam'
    }
});
Enter fullscreen mode Exit fullscreen mode

πŸš€ Pulumi deploy stack

πŸš€ Conclusion

  • We now can save time and save money with this solution. Plus, we will receive slack message when there're events

  • Although Pulumi Supports Many Clouds and provisioner and can visulize the resources chart within the stack but there're more options such as AWS Cloud Development Kit (CDK)


Ref: Field Notes: Stopping an Automatically Started Database Instance with Amazon RDS

Top comments (0)
