Automate adding screenshots to GitHub commits and pull requests

My Workflow

This workflow will run puppeteer and capture screenshots of a web application, and then add screenshots to commit comments or pull request comments. This will ease the process of verifying the web app UI state.

comment preview

workflow file

Submission Category:

Maintainer Must-Haves

Yaml File

name: Browser-Testing

on: [push, pull_request]

jobs:
  Browser-Testing:
    runs-on: ubuntu-latest
    # Service containers to run postgres
    services:

      postgres:

        image: postgres

        env:
          POSTGRES_PASSWORD: postgres
          POSTGRES_USER: postgres
          POSTGRES_DB: postgres

        options: >-
          --health-cmd pg_isready
          --health-interval 10s
          --health-timeout 5s
          --health-retries 5
        ports:

          - 5432:5432

    steps:
      - name: Checkout repository
        uses: actions/checkout@v2

      - name: Set up Node.js 14.x
        uses: actions/setup-node@v1
        with:
          node-version: 14.x
      # install puppeteer dependency libraries using apt
      - name: install puppeteer libraries
        run: |
          sudo apt-get update
          sudo apt-get install -y libgbm1
      # since puppeteer is large in size caching will reduce the runtime
      - name: Cache node modules
        uses: actions/cache@v2
        env:
          cache-name: cache-node-modules
        with:
          path: "node_modules"
          key: ${{ runner.os }}-build-${{ env.cache-name }}-${{ hashFiles('**/package-lock.json') }}
          restore-keys: |
            ${{ runner.os }}-build-${{ env.cache-name }}-
            ${{ runner.os }}-build-
            ${{ runner.os }}-

      - name: Install dependencies
        run: npm install

      - name: Install puppeteer
        run: npm install puppeteer

      - name: Migrate database
        run: npm run prismamigrateprod
        env:
          NODE_ENV: production
          DATABASE_URL: "postgres://postgres:postgres@localhost:5432/postgres"

      - name: Seed database
        run: npm run seed
        env:
          NODE_ENV: production
          DATABASE_URL: "postgres://postgres:postgres@localhost:5432/postgres"

      # run a bash script to start the server and then run puppeteer to capture the screenshots
      # after capturing screenshots , they will be uploaded to cloudinary image service and pass the image url to next step using environment variables
      - name: Run browser testing script
        id: browser-testing
        env:
          HASHSALT: 123
          DATABASE_URL: "postgres://postgres:postgres@localhost:5432/postgres"
          CLOUDINARY_CLOUD_NAME: ${{ secrets.CLOUDINARY_CLOUD_NAME }}
          CLOUDINARY_API_KEY: ${{ secrets.CLOUDINARY_API_KEY }}
          CLOUDINARY_API_SECRET: ${{ secrets.CLOUDINARY_API_SECRET }}
        run: |
          chmod +x run-browser-testing.sh
          ./run-browser-testing.sh

      # add comment to commit or pull request
      - name: Add comment
        uses: actions/github-script@v5
        env:
          SHA: ${{ github.sha }}
          commentBody: ${{ env.commentBody }}
        with:
          github-token: ${{ secrets.GITHUB_TOKEN }}
          script: |

            let buffercommentBody = process.env.commentBody
            let utf8commentBody = new Buffer.from(buffercommentBody, "base64").toString("utf8");
            console.log(utf8commentBody);

            github.rest.repos.createCommitComment({
              owner: context.repo.owner,
              repo: context.repo.repo,
              commit_sha: process.env.SHA,
              body: utf8commentBody
            })

Enter fullscreen mode Exit fullscreen mode

Main workflow steps boils down to

  1. Run puppeteer and capture the screenshots.
  2. upload the screenshots to a external image service (in this case cloudinary) and get the image url.
  3. Create markdown file as string using the image urls.
  4. Convert markdown file string into base64 encoded string to ease passing to the environment variables (easier to pass control characters such as newlines).
  5. Use actions/github-script action createCommitComment method to post the comment to commit or pull request.

Additional Info

Used in

GitHub logo RizkyRajitha / linkin

Linkin is a customizable self hosted link tree platform.

Linkin logo

Linkin Β· DeepScan grade codecov license Github Actions

Linkin is a customizable self-hosted link tree application.

Free and Open Source πŸ’―

Self Hosted, you own your data πŸ’½

Customize your link tree with few clicks using a feature-rich dashboard πŸ€–

SEO friendly design built using Next js πŸ•ΈοΈ

Supports one-click deploy using multiple cloud providers πŸš€


View Demo
Demo Admin http://linkindemo.vercel.app/admin

  • Demo username = admin
  • Demo password = linkin123

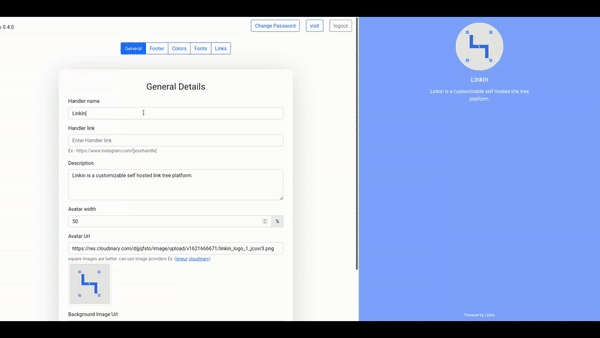

linkin gif


Deploy with Vercel

Deploy with Vercel

Deploy with Heroku

Deploy

Deploy with Railway

Deploy on Railway

Screenshot_2021-05-22 LinkIn's Link tree Page

Screenshot_2021-05-22 Linkin Dashboard

Screenshot_2021-05-22 Linkin Dashboard

Getting started

  • Deploy in Vercel
    • set environment variables
      • DATABASE_URL - Postgres database url
      • HASHSALT - random secret key
      • NODE_ENV - set NODE_ENV to production
    • after successfully deploying visit youdomain/admin to view admin login
    • use default login credentials
      • username = admin
      • password = linkin123
    • after a successfull login you will be able to see above admin dashboard.


  • Deploy in Heroku
    • set environment variables
      • DATABASE_URL - Postgres database url
      • HASHSALT - random secret key
    • after successfully deploying visit youdomain/admin to…

Example commit comment
