How Equipment Management Relates to Visualization?
Any dev in NS field knows that Equipment management deals with automated discovery, configuration, versioning, firmware updates, and health monitoring of routers, switches, firewalls, and other devices while visualization transforms that data into intuitive, graphical representations—such as topology maps, flow charts, and dashboards. But how does one relate to other?
While they might seem like to have nothing in common, they actually work with each other pretty well. If Equipment management is the compass then network security is the map and their collaboration gives us:
1. Faster Troubleshooting: Visualization allows admins to locate a faulty device and its dependent nodes instantly, while management tools let them inspect or roll back configurations on the same console.
2. Improved Visibility: Equipment data (e.g., link status, device type, and firmware version) feeds directly into visual maps, unifying configuration details with topology and connectivity.
3. Proactive Control: If a device reports a failing health metric, the system can highlight it for the operator and offer quick access to updated firmware or configuration settings—all within the graphical interface.
4. Smarter Planning & Compliance: Structured equipment info combined with visual layout helps identify legacy systems, potential configuration drifts, and policy gaps—streamlining maintenance, audits, and expansion planning.
Definition and Core Capabilities
Equipment management and visualization provide unified access and graphical oversight of network devices via a three‑tier hierarchy (project → data center → business domain). Key capabilities include:
**
- Development value:**
Cross‑vendor centralization support for over ten leading domestic and international network equipment manufacturers.
Automated configuration harvesting and version control in continuous collection of device configurations, retaining the most recent 30 snapshots for a 30‑day period.
Intuitive graphical dashboard is clear, visual representation of device status and configuration details.
2. Business Value:
Fragmented device management becomes a thing of the past, as teams gain a single-pane console that dramatically simplifies oversight.
Error‑prone manual configuration is replaced by automated collection, guaranteeing complete and consistent configuration data.
Inconsistent primary/backup policy alignment is eliminated through high‑availability grouping that synchronizes configurations in real time.
Limitations of Traditional Solutions
There are many problems with dated solutions but one of the main issues are that traditional equipment management platforms are often tied to a single vendor, which severely limits their usefulness in mixed-brand environments. Each vendor employs proprietary interfaces and protocols, preventing seamless integration and compatibility with heterogeneous networks. This vendor lock-in restricts scalability and forces organizations to maintain multiple screens and tools just to oversee devices from different manufacturers.
Equally problematic is the reliance on script-based configuration collection, which depends on exact command syntax and firmware versions. Scripts may run flawlessly on one version but fail completely after even minor firmware upgrades, introducing significant maintenance overhead and operational risk.
Example Modern Solutions
So while traditional firewall management faces three major issues like difficulty in multi-vendor compatibility, complex version upgrades and adaptations, and low configuration tracing efficiency modern solutions like Tufin, Jupiter Networks and **SkyCloud iNet **approaches those issues in a more efficient way.
For example SkyCloud iNet solution addresses the issue by letting the user manage more than 10 mainstream brands at home and abroad through a unified interface. It eliminates the dependency on minor version adaptation based on an abstract command model, and achieves full life cycle traceability through automatic version archiving and intelligent difference comparison, significantly reducing operation and maintenance costs by 60% and building an audit-ready agile management foundation.
**
SkyCloud iNet advantages:**
Abstract command model: Eliminates dependence on device‑specific CLI syntax, ensuring seamless upgrades across minor versions.
Full lifecycle traceability: Automatically archives every configuration change and highlights differences, enabling rapid auditing and rollback.
O&M cost reduction: Streamlines workflows to cut operational overhead by up to 60%, while providing an audit‑ready foundation.
Configuration Workflow of SkyCloud iNet
- Select Device Context: In the business‑domain node of the three‑tier structure, right‑click and choose the device type (e.g., Juniper firewall).
2. Specify Vendor and Version
From the dropdown list, pick the manufacturer and software version, then assign a unique device name.
3. Define Connection Parameters
Enter the device IP, protocol (e.g., SSH), and port. The default CLI connection suffices for view‑only access; privilege escalation credentials are required for configuration changes.
4. Schedule Collection Tasks

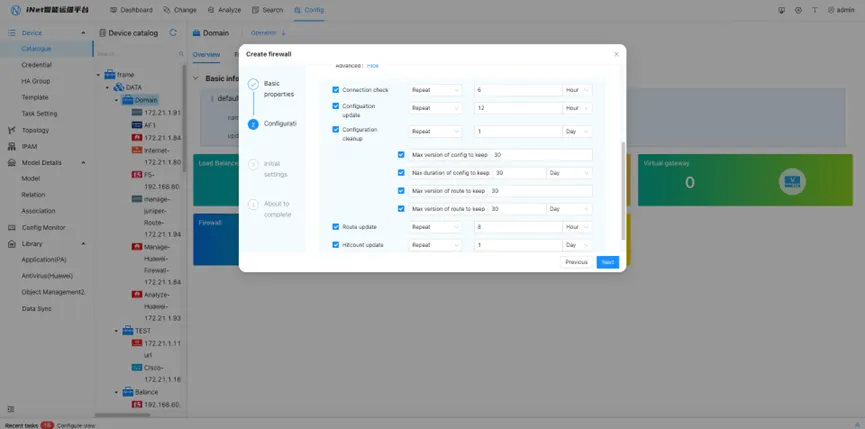

Configure real‑time connectivity checks and schedule execution of standard commands (e.g.,
- Visualization and Ongoing Management Once configured, the device’s configuration, policy rules, object definitions, interface statuses, and more are presented in a dynamic, interactive dashboard—enabling administrators to drill down into any detail at a glance.
Dashboard provides a centralized overview of device metadata and configuration metrics—such as time schedules, policies, objects, addresses, zones, and interfaces—giving administrators quick access to operational details.
You can see detailed list of security policies configured on the device, including source/destination addresses, services, and policy schedules, all structured for easy querying and modification.
Object definitions used in policies, showing their grouping, interface bindings, and member IPs—enabling intuitive object-level management and audit visibility
Conclusion
Effective equipment management and real‑time visualization are the twin pillars of modern network security: one ensures that every router, switch, and firewall is consistently configured and up‑to‑date, while the other transforms raw device data into intuitive topology maps and actionable insights. When these capabilities work in concert, teams can detect misconfigurations before they become vulnerabilities, accelerate troubleshooting with a single pane of glass, and confidently enforce policies across a heterogeneous infrastructure. Modern solutions like SkyCloud iNet, Tufin and Anglosec unlock this full potential by abstracting vendor‑specific commands into a unified interface, automating continuous configuration capture and versioning, and dynamically rendering both device health and policy relationships in an interactive dashboard—empowering organizations to move from reactive firefighting to proactive, audit‑ready network operations.
