User authentication with JWTS in a Django and vue.js multi-tenant app

On the last post of the Django multi-tenant series, we set up a Django project from scratch.
In this part, we'll set up the authentication system using JWTs and connect the API to a vue.js frontend. By the end of the post, you'll hopefully understand:

  1. What JWTs are and how to implement them using Django.
  2. Querying different database schemas using custom Django middleware.
  3. Auto refreshing JWTs on expiry using Axios interceptors.

Overview

The project's source code is open-source and available on Github. We'll be working on different branches and building features on top of these branches until the project is complete.

GitHub logo lewis-kori / budgeting-app

Multi-tenant organizational expense tracker made with Django and vue.js

Multi tenant organizational expense tracker

The project is built with django and django restframework with a vue.js frontend.

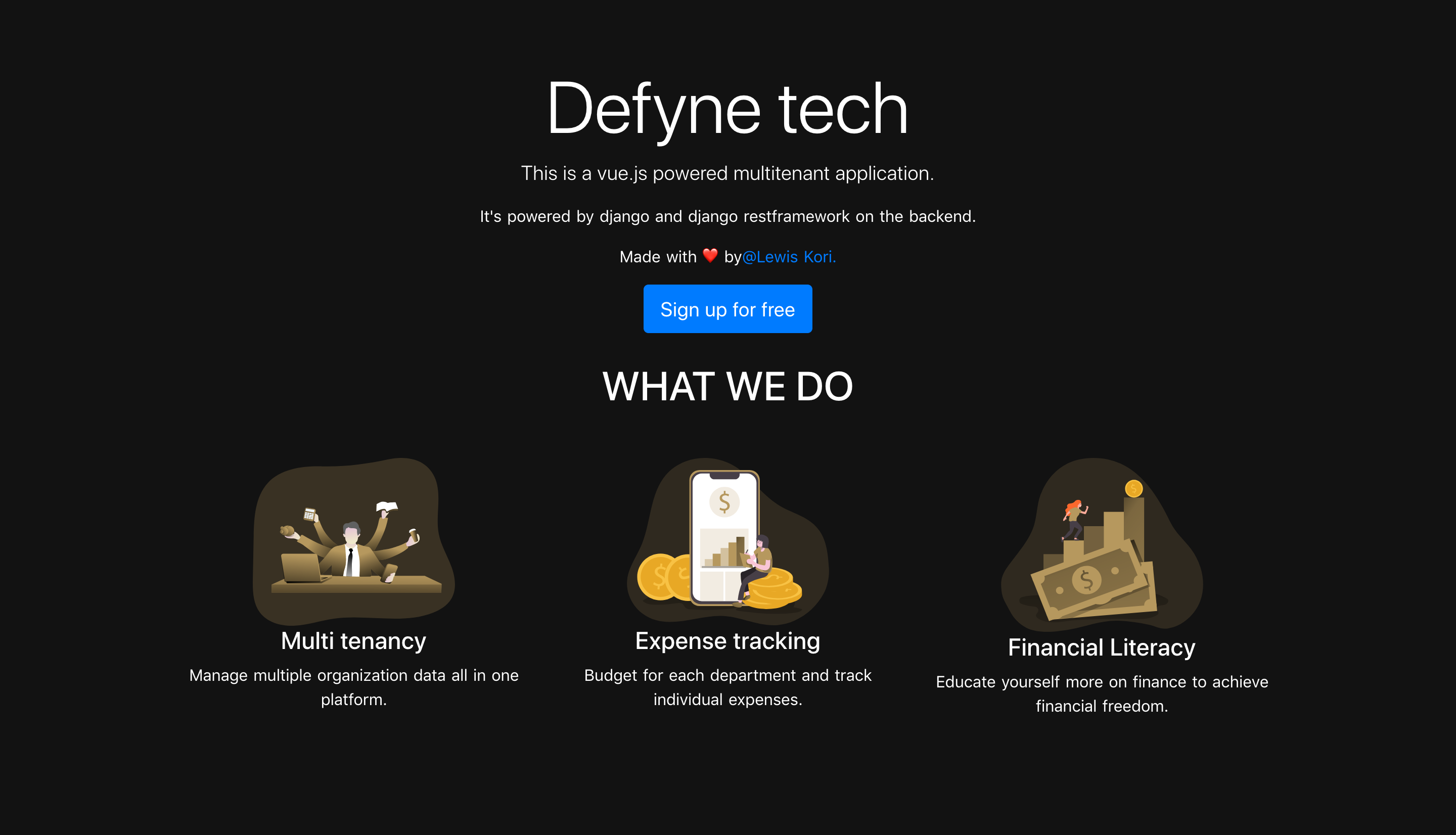

Live demo

django-multitenant

Frontend code can be found here

setup instructions

  1. setup virtual environment using

    virtualenv env_name -p python3.8
    Enter fullscreen mode Exit fullscreen mode
  2. activate the virtual environment by going to env folder location

    source env_name/bin/activate
    Enter fullscreen mode Exit fullscreen mode

    press enter

  3. once the env is activate, go back to the django project directory install all requirements by running

    pip install -r requirements.txt
    Enter fullscreen mode Exit fullscreen mode
  4. set up an env file with your configurations. attached in the project folder is an example to guide you on this. use https://djecrety.ir/ to generate a secret key.

  5. once done run

    python manage.py migrate
    python manage.py runserver
    Enter fullscreen mode Exit fullscreen mode
  6. check individual app folders for instructions on the available endpoints in the README.md




What are JWTs?

JSON Web Token (JWT) is an Internet standard for creating JSON-based access tokens that assert some number of claims. For example, a server could generate a token that has the flag "logged in as admin" or "logged in like this user" and provide that to a client. The client could then use that token to prove that it is logged in as admin. The tokens are signed by one party's private key (usually the server's) so that both parties can verify that the token is legitimate. The tokens are designed to be compact, URL-safe, and usable especially in a web-browser single-sign-on (SSO) context. JWT claims can be typically used to pass the identity of authenticated users between an identity provider and a service provider.
Unlike token-based authentication, JWTs are not stored in the application's database. This is in effect makes them stateless, unlike the popular rest_auth tokens that are also available in Django.

For an in-depth explanation of how these work, check out my previous post on the same topic.

Project set up

We'll start by creating a django app by the name tenants, this will house all the logic involved in creating and maintaining the different our app expects to host.

python manage.py startapp tenant

From this step, we'll structure our database as follows.

from django.db import models


class CommonInfo(models.Model):
    created = models.DateTimeField(auto_now=True)
    updated = models.DateTimeField(auto_now_add=True)

    class Meta:
        ordering = ['-created']
        abstract = True

# table housing the organizations (multiple tenants)
class Tenant(CommonInfo):
    name = models.CharField(max_length=255, unique=True)
    business_phone_number = models.CharField(max_length=250)
    business_email = models.EmailField()
    is_active = models.BooleanField(default=True)
    schema = models.CharField(max_length=255)
    subdomain = models.CharField(max_length=255)
    tenant_id = models.SlugField(blank=True)

    def __str__(self):
        return self.name

# organizational departments db table
class Department(CommonInfo):
    name = models.CharField(max_length=255, unique=True)

    def __str__(self):
        self.name
Enter fullscreen mode Exit fullscreen mode

We'll keep the database as simple as possible and for the purpose of keeping the code DRY(Don't Repeat Yourself), we've initialized a CommonInfo class which is abstract. It's here we define the timestamps to use across our models. This class will then be inherited by all models in our project. We could always override the meta options such as ordering on a need basis.

The tenant table will have some data such as the business name, emails, phone number and so on. We'll get to the subdomain and schemas fields later on.

Next up, we'll create a users app by running python manage.py createapp users using the CLI. This will house all the user logic including authentication.

The user database tables will have the following structure

from django.contrib.auth.models import AbstractUser, UserManager
from django.db import models

from tenants.models import Department, Tenant

USER_ROLES = [('Admin', 'Admin'), ('Staff', 'Staff')]


# Define a custom user manager
class UserAccountManager(UserManager):

    # override create user method to accept email as username
    def create_user(self, email=None, password=None, **extra_fields):
        return super().create_user(email,
                                   email=email,
                                   password=password,
                                   **extra_fields)

    # override createsuperuser method to accept email as username
    def create_superuser(self, email=None, password=None, **extra_fields):
        return super().create_superuser(email,
                                        email=email,
                                        password=password,
                                        **extra_fields)


# define our custom user model
class UserAccount(AbstractUser):
    # link user to a tenant
    organization = models.ForeignKey(Tenant,
                                     related_name='users',
                                     on_delete=models.CASCADE,
                                     null=True,
                                     blank=True)
    # tenants can attach their users to different departments
    department = models.ForeignKey(Department,
                                   related_name='users',
                                   on_delete=models.PROTECT,
                                   null=True,
                                   blank=True)
    email = models.EmailField(unique=True)
    photo = models.ImageField(upload_to='users/photos', null=True, blank=True)
    employee_id = models.CharField(max_length=255)
    role = models.CharField(max_length=40, choices=USER_ROLES, default='Staff')

    USERNAME_FIELD = 'email'


    REQUIRED_FIELDS = ['first_name', 'last_name',]

    objects = UserAccountManager()

    class Meta:
        ordering = ['-date_joined']
Enter fullscreen mode Exit fullscreen mode

Users API

In the last part of the series, we installed a number of libraries. Key among them was Djoser and django-rest-framework-simplejwt. We'll be utilizing these for this phase of the project.

In the project's main urls.py include the following URLs.

from django.conf import settings
from django.conf.urls.static import static
from django.contrib import admin
from django.urls import include, path

urlpatterns = [
    path('admin/', admin.site.urls),

    # third party apps urls
    path('api/v1/auth/', include('djoser.urls')),
    path('api/v1/auth/', include('djoser.urls.jwt')),
]

# enables django to know location of static and media files
urlpatterns += static(settings.STATIC_URL,document_root=settings.STATIC_ROOT)
urlpatterns += static(settings.MEDIA_URL,document_root=settings.MEDIA_ROOT)
Enter fullscreen mode Exit fullscreen mode

This essentially registers Djoser URLs in our app.
The beauty of it all is that the URLs come shipped with Djoser. We'll only modify our serializer to accept some extra custom fields.

Endpoint Description
/auth/users/ Register a new user
/auth/users/me/ retrieve/update the currently logged in user
/auth/jwt/create/ create a JWT by passing a valid user in the post request to this endpoint
/auth/jwt/refresh/ get a new JWT once the lifetime of the previously generated one expires

This is a lot of configuration, but we're almost done.
We'll need to change Django settings.py to reflect the changes.

STATIC_URL = '/static/'
STATIC_ROOT = 'static'

MEDIA_URL = '/media/'
MEDIA_ROOT = 'media'

# api configuration

# disable browsable api in production
DEFAULT_RENDERER_CLASSES = (
    'rest_framework.renderers.JSONRenderer',
)

if DEBUG:
    DEFAULT_RENDERER_CLASSES = DEFAULT_RENDERER_CLASSES + (
        'rest_framework.renderers.BrowsableAPIRenderer',
    )

# REST framework configuration
REST_FRAMEWORK = {
    "DEFAULT_AUTHENTICATION_CLASSES": (
        'rest_framework_simplejwt.authentication.JWTAuthentication',
        "rest_framework.authentication.SessionAuthentication",
    ),
    'DEFAULT_PERMISSION_CLASSES': [
        'rest_framework.permissions.IsAuthenticated',
    ],
    'DEFAULT_RENDERER_CLASSES': DEFAULT_RENDERER_CLASSES
}

DJOSER = {
    "SERIALIZERS": {
        "user_create": "users.apiV1.serializers.users.UserCreateSerializer",
        "user": "users.apiV1.serializers.users.UserSerializer",
        "current_user": "users.apiV1.serializers.users.UserSerializer",
    },
    "LOGIN_FIELD": "email",
    "PASSWORD_RESET_CONFIRM_URL": "auth/password/reset/{uid}/{token}",
}

SIMPLE_JWT = {
    'JWT_ALLOW_REFRESH': True,
    'JWT_EXPIRATION_DELTA': timedelta(minutes=2),
    'JWT_REFRESH_EXPIRATION_DELTA': timedelta(days=7),
}
Enter fullscreen mode Exit fullscreen mode

For context, we're instructing Django restframework to accept jwt authentication as well as session authentication. In SIMPLE_JWT dictionary, we're enabling refreshing of the tokens and setting an expiration period of 7 days for the refresh token and 2 minutes for the main access token.

Djoser is then given a number of instructions such as overriding the login field from username to email as well as overriding the default serializer to ones that custom made by us, the developers. We'll define these serializers shortly.

Defining custom user serializers

In the users Django app, we'll create a folder called apiV1 which will be a python package, so don't forget to add an __init__.py file here. Then a serializers python package within this folder. Finally, a users.py which will have the following data.

from djoser.serializers import UserCreateSerializer, UserSerializer
from django.contrib.auth import get_user_model

User = get_user_model()

# override djoser's user registration serializer
class UserCreateSerializer(UserCreateSerializer):
    class Meta:
        model = User
        fields = (
            'id',
            'email',
            'photo',
            'organization',
            'department',
            'employee_id',
            'role',
            'password',
        )


# override user details serializer
class UserSerializer(UserSerializer):
    class Meta:
        model = User
        fields = (
            'id',
            'email',
            'photo',
            'organization',
            'department',
            'employee_id',
            'role',
            'is_active',
        )
Enter fullscreen mode Exit fullscreen mode

Adding multi-tenant support

From this part of the post, we can switch to the multitenants git branch

We'll be implementing custom middleware. Our approach to multi-tenancy is one of a shared database with multiple schemas. Therefore, we'll be creating new DB schemas for each new tenant. We'll then need a way of querying the correct schema based on the requesting user and host.
This will be achieved by enabling Django to have wildcard domains. This means having URLs like, subdomain1.project.com, subdomain2.project.com etc
For this, we'll set up a number of things.

  1. Custom Django commands to auto migrate new schemas.
  2. Custom middleware to route traffic to the relevant database schema based on request-host.

writing custom Django commands

The post is getting lengthy, we'll pick up from here next time :)
To get you familiar with Django custom commands and how to write them, check out my previous post on the topic.

That's the end of this long post 👀. Thanks for your time.
