fc-whiteboard, Web whiteboard screencasting

fc-whiteboard

Web whiteboard screencasting(both live and playback mode) with background slides, can be used as a graphics tablet for online tutoring or remote collaboration.

Usage

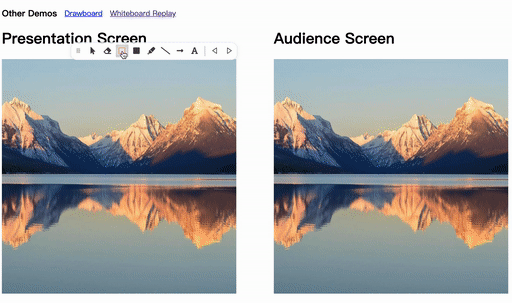

Whiteboard live mode

Source code can be found in Code Sandbox or Demo;

import { EventHub, Whiteboard, MirrorWhiteboard } from 'fc-whiteboard';

const eventHub = new EventHub();

eventHub.on('sync', (changeEv: SyncEvent) => {
  console.log(changeEv);
});

const images = [
  'https://upload-images.jianshu.io/upload_images/1647496-6bede989c09af527.jpg?imageMogr2/auto-orient/strip%7CimageView2/2/w/1240',
  'http://upload-images.jianshu.io/upload_images/1647496-d281090a702045e5.jpg?imageMogr2/auto-orient/strip%7CimageView2/2/w/1240',
  'http://upload-images.jianshu.io/upload_images/1647496-611a416be07d7ca3.jpg?imageMogr2/auto-orient/strip%7CimageView2/2/w/1240'
];

const whiteboard = new Whiteboard(document.getElementById('root') as HTMLDivElement, {
  sources: images,
  eventHub,
  // Enable this option to disable incremental sync, just use full sync
  onlyEmitSnap: false
});

whiteboard.open();

const mirrorWhiteboard = new MirrorWhiteboard(
  document.getElementById('root-mirror') as HTMLDivElement,
  {
    sources: images,
    eventHub
  }
);

mirrorWhiteboard.open();

Whiteboard replay mode

import { ReplayWhiteboard } from 'fc-whiteboard';
import * as events from './events.json';

let hasSend = false;

const whiteboard = new ReplayWhiteboard(document.getElementById('root') as HTMLDivElement);

whiteboard.setContext(events[0].timestamp, async (t1, t2) => {
  if (!hasSend) {
    hasSend = true;
    return events as any;
  }

  return [];
});

whiteboard.open();

The persistent events are listed as follow:

[
  {
    "event": "borderSnap",
    "id": "08e65660-6064-11e9-be21-fb33250b411f",
    "target": "whiteboard",
    "border": {
      "id": "08e65660-6064-11e9-be21-fb33250b411f",
      "sources": [
        "https://upload-images.jianshu.io/upload_images/1647496-6bede989c09af527.jpg?imageMogr2/auto-orient/strip%7CimageView2/2/w/1240",
        "http://upload-images.jianshu.io/upload_images/1647496-d281090a702045e5.jpg?imageMogr2/auto-orient/strip%7CimageView2/2/w/1240",
        "http://upload-images.jianshu.io/upload_images/1647496-611a416be07d7ca3.jpg?imageMogr2/auto-orient/strip%7CimageView2/2/w/1240"
      ],
      "pageIds": [
        "08e65661-6064-11e9-be21-fb33250b411f",
        "08e6a480-6064-11e9-be21-fb33250b411f",
        "08e6cb91-6064-11e9-be21-fb33250b411f"
      ],
      "visiblePageIndex": 0,
      "pages": [
        { "id": "08e65661-6064-11e9-be21-fb33250b411f", "markers": [] },
        { "id": "08e6a480-6064-11e9-be21-fb33250b411f", "markers": [] },
        { "id": "08e6cb91-6064-11e9-be21-fb33250b411f", "markers": [] }
      ]
    },
    "timestamp": 1555431837
  }
  ...
]

Use drawboard alone

<img id="root" src="https://upload-images.jianshu.io/upload_images/1647496-6bede989c09af527.jpg?imageMogr2/auto-orient/strip%7CimageView2/2/w/1240"></img>
import { Drawboard } from 'fc-whiteboard/src';

const d = new Drawboard({
  imgEle: document.getElementById('root') as HTMLImageElement
});

d.open();

Motivation & Credits
