How to avoid the outline being blocked when hovering the pie chart sector?

Question title

How to avoid the outline being blocked when hovering the pie chart sector in VChart?

Problem description

The hover stroke of the pie chart sector is configured, but it will be obscured by other sectors

Image description

You can adjust the level of the element when hover, so that the hover element is always displayed above other sectors, which can avoid the problem of stroke obstruction

 pie: {
    state: {
      hover: {
        stroke: 'black',
        lineWidth: 4,
        zIndex: 1
      }
    }
  },
Enter fullscreen mode Exit fullscreen mode

Code example

const spec = {
  type: 'pie',
  data: [
    {
      id: 'id0',
      values: [
        { type: 'oxygen', value: '46.60' },
        { type: 'silicon', value: '27.72' },
        { type: 'aluminum', value: '8.13' },
        { type: 'iron', value: '5' },
        { type: 'calcium', value: '3.63' },
        { type: 'sodium', value: '2.83' },
        { type: 'potassium', value: '2.59' },
        { type: 'others', value: '3.5' }
      ]
    }
  ],
  outerRadius: 0.8,
  valueField: 'value',
  categoryField: 'type',
  title: {
    visible: true,
    text: 'Statistics of Surface Element Content'
  },
  legends: {
    visible: true,
    orient: 'left'
  },
  label: {
    visible: true
  },
  pie: {
    state: {
      hover: {
        stroke: 'black',
        lineWidth: 4,
        zIndex: 1
      }
    }
  },
  tooltip: {
    mark: {
      content: [
        {
          key: datum => datum['type'],
          value: datum => datum['value'] + '%'
        }
      ]
    }
  }
};

const vchart = new VChart(spec, { dom: CONTAINER_ID });
vchart.renderSync();

// Just for the convenience of console debugging, DO NOT COPY!
window['vchart'] = vchart;
Enter fullscreen mode Exit fullscreen mode

Results show

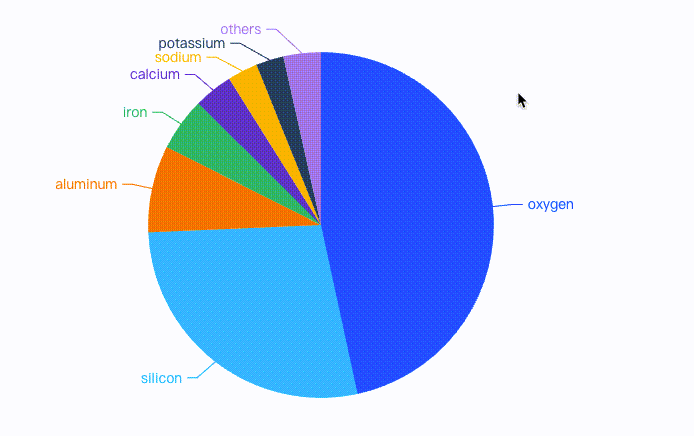

Image description
