Cover image for Automate structured data extraction from PDF / Word by OpenAI and CocoIndex
Linghua Jin
Linghua Jin

Posted on Edited on Originally published at cocoindex.io

Automate structured data extraction from PDF / Word by OpenAI and CocoIndex

This post is also on cocoindex.io, with interactive figures. The code uses CocoIndex v1.

Patient intake forms arrive as PDFs and Word documents, in whatever layout each clinic uses. The CocoIndex v1 pipeline reads those forms from Google Drive, extracts a fully typed Patient record with an LLM, and writes it to Postgres. The interesting part is that a single Python schema does all the instructing: there is no prompt template describing the fields, because the dataclass is the contract the model fills in.

This is the plain-LLM version. If you want the same extraction with a dedicated framework, see the BAML and DSPy variants. The full code is in the CocoIndex v1 repo.

The flow

Each form is its own processing component: convert the document to Markdown, extract the Patient with the LLM, and declare a row in Postgres:

The schema is the prompt

The schema follows the FHIR Patient resource, simplified to a top-level Patient plus eight nested types. It is plain Python: nested objects (address, emergency_contact, pharmacy), optional fields marked | None, and lists for repeated items (past_conditions, current_medications, allergies, surgeries).

The whole schema is a set of Pydantic models. instructor uses these as the response schema, so the model returns data that matches the Python types instead of free-form text:

```python title=models.py
import datetime
from pydantic import BaseModel, Field

class Address(BaseModel):
street: str
city: str
state: str
zip_code: str

class Contact(BaseModel):
name: str
phone: str
relationship: str

class Insurance(BaseModel):
provider: str
policy_number: str
group_number: str | None = None
policyholder_name: str
relationship_to_patient: str

class Pharmacy(BaseModel):
name: str
phone: str
address: Address

class Condition(BaseModel):
name: str
diagnosed: bool

class Medication(BaseModel):
name: str
dosage: str

class Allergy(BaseModel):
name: str

class Surgery(BaseModel):
name: str
date: str

class Patient(BaseModel):
name: str
dob: datetime.date
gender: str
address: Address
phone: str
email: str
preferred_contact_method: str
emergency_contact: Contact
insurance: Insurance | None = None
reason_for_visit: str
symptoms_duration: str
past_conditions: list[Condition] = Field(default_factory=list)
current_medications: list[Medication] = Field(default_factory=list)
allergies: list[Allergy] = Field(default_factory=list)
surgeries: list[Surgery] = Field(default_factory=list)
occupation: str | None = None
pharmacy: Pharmacy | None = None
consent_given: bool
consent_date: str | None = None




One declaration covers the whole intake form. The nested `Address` inside both `Patient` and `Pharmacy` is reused rather than re-described, and the `| None` markers tell the model which fields are allowed to be absent.

## Convert any format to Markdown

An LLM cannot read a raw PDF or DOCX well, so each file is first converted to Markdown with [MarkItDown](https://github.com/microsoft/markitdown), which handles PDF, Word, Excel, images, and more:



```python title=main.py
import os
import tempfile
from markitdown import MarkItDown

_md = MarkItDown()

def to_markdown(content: bytes, filename: str) -> str:
    suffix = os.path.splitext(filename)[1] or ".pdf"
    with tempfile.NamedTemporaryFile(delete=True, suffix=suffix) as tmp:
        tmp.write(content)
        tmp.flush()
        return _md.convert(tmp.name).text_content or ""
Enter fullscreen mode Exit fullscreen mode

Extract the Patient

Extraction is a single CocoIndex function. It calls the model through litellm and instructor, which forces the response to match the Patient schema. memo=True caches the result, so an unchanged form is never sent to the model twice. Swapping gpt-4o for a local Ollama model or another provider is a one-line change of LLM_MODEL:

```python title=main.py
import instructor
import litellm
import cocoindex as coco

from models import Patient

LLM_MODEL = coco.ContextKeystr

@coco.fn(memo=True)
async def extract_patient(markdown: str) -> Patient:
client = instructor.from_litellm(litellm.acompletion, mode=instructor.Mode.JSON)
result = await client.chat.completions.create(
model=coco.use_context(LLM_MODEL),
response_model=Patient,
messages=[
{"role": "system", "content": "Extract patient information from the intake form."},
{"role": "user", "content": markdown},
],
)
return Patient.model_validate(result.model_dump())




## Declare a row per form

The Postgres row keeps a few flat columns for easy querying and stores the full nested record in a `jsonb` column (CocoIndex maps the `dict` to `jsonb` automatically). `process_form` reads one Drive file, converts it, extracts the patient, and declares the row:



```python title=main.py
from dataclasses import dataclass
import datetime

from cocoindex.connectors import google_drive, postgres

@dataclass
class PatientRecord:
    filename: str  # primary key
    name: str
    dob: datetime.date
    reason_for_visit: str
    patient: dict[str, object]  # the full Patient, as jsonb

@coco.fn(memo=True)
async def process_form(
    file: google_drive.DriveFile,
    table: postgres.TableTarget[PatientRecord],
) -> None:
    markdown = to_markdown(await file.read(), file.file_path.path.name)
    patient = await extract_patient(markdown)
    table.declare_row(
        row=PatientRecord(
            filename=file.file_path.path.name,
            name=patient.name,
            dob=patient.dob,
            reason_for_visit=patient.reason_for_visit,
            patient=patient.model_dump(mode="json"),
        )
    )
Enter fullscreen mode Exit fullscreen mode

Wire up the app

Connections are provided once in the lifespan; this is also where CocoIndex's local processing-state file is set. app_main mounts the Postgres table, points the Google Drive source at your folders, and fans out one process_form per file with mount_each:

```python title=main.py
import pathlib
from collections.abc import AsyncIterator

import asyncpg

DATABASE_URL = os.environ["POSTGRES_URL"]
PG_DB = coco.ContextKeyasyncpg.Pool

@coco.lifespan
async def coco_lifespan(builder: coco.EnvironmentBuilder) -> AsyncIterator[None]:
builder.settings.db_path = pathlib.Path("./cocoindex.db")
builder.provide(LLM_MODEL, os.environ.get("LLM_MODEL", "openai/gpt-4o"))
async with asyncpg.create_pool(DATABASE_URL) as pool:
builder.provide(PG_DB, pool)
yield

@coco.fn
async def app_main() -> None:
table = await postgres.mount_table_target(
PG_DB,
table_name="patients_info",
table_schema=await postgres.TableSchema.from_class(
PatientRecord, primary_key=["filename"]
),
pg_schema_name="coco_examples",
)

source = google_drive.GoogleDriveSource(
    service_account_credential_path=os.environ["GOOGLE_SERVICE_ACCOUNT_CREDENTIAL"],
    root_folder_ids=[
        f.strip()
        for f in os.environ["GOOGLE_DRIVE_ROOT_FOLDER_IDS"].split(",")
        if f.strip()
    ],
)
await coco.mount_each(process_form, source.items(), table)
Enter fullscreen mode Exit fullscreen mode

app = coco.App(coco.AppConfig(name="PatientIntakeExtraction"), app_main)




To load from a local folder instead of Google Drive, swap the source for `localfs.walk_dir`; the rest of the flow is unchanged.

## Run and query

Set the environment (a Postgres URL, an OpenAI key, and Google Drive service-account credentials; see [Setup for Google Drive](https://cocoindex.io/docs/connectors/google_drive/)), then build the index:



```sh
pip install "cocoindex[postgres,google_drive]" instructor litellm markitdown asyncpg
cocoindex update main
Enter fullscreen mode Exit fullscreen mode

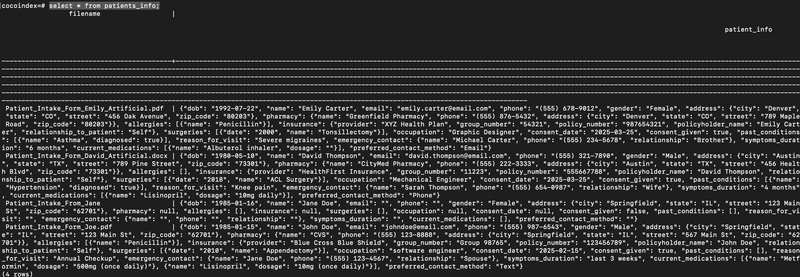

Re-running processes only new or changed forms, since per-form extraction is memoized. Query the result in Postgres, where the flat columns and the jsonb record are both available:

SELECT filename, name, reason_for_visit,
       patient -> 'allergies' AS allergies
FROM coco_examples.patients_info;
Enter fullscreen mode Exit fullscreen mode

Extraction quality

LLM extraction is not perfect, and evaluation is the real work. Structured forms with clear labels are the easy case; a scan with an unusual layout can drop a field or misread a value. When accuracy matters, keep a set of hand-checked golden records and diff each run against them, and try a different model or converter on the forms that miss. Because the schema is a single declaration, tightening a field description or swapping the model is a small change with the same typed output.
