Introduction to AUTOSAR and its Impact on Automotive Software Architecture

Hello Readers,
My name is Sadashiv Balawad, and I work at Luxoft India as a Junior Software Engineer. Luxoft has given me several opportunities to work on various projects, which has inspired me to discuss the importance of Autosar and its impact on Automotive Software Architecture

Introduction
AUTOSAR (Automotive Open System Architecture) is a worldwide development partnership of automobile fascinated parties founded manner again in 2003. Autosar affords a standardized open software structure for automotive ECUs. AUTOSAR is a consortium of automobile giants such as Toyota, BMW, VW, Ford, Daimler, GM, Bosch, and PSA., which objectives to standardize software structure for the automotive industry.
In the absence of a not unusual trendy, like Autosar by means of OEMs, ECU software program improvement was on unique structures. There turned into unique software program architecture that was used by tier 1 providers and their carriers to layout the ECU software program for OEMs. With this technique, every time any OEM desires to exchange to a brand new tier 1 provider or vice-versa, the transition changed into very tough. The new provider used to stand giant challenges in knowledge the existing software architecture, hardware platforms, and standards utilized in ECU software development. The new dealer faces excessive problem to drive an on-going undertaking from the midst of its manufacturing existence cycle.
Some of the listed dreams, major challenges, and the solutions recommended via AUTOSAR together with the blessings done by those answers. Are as follows.

Handling speedy-developing Electrical/Electronic complexity related to the device
Implementation flexibility for product amendment, improve and update
Improve scalability of software solutions and go-compatibility
Improve software pleasant and reliability of the machine
Enable blunders detection at early improvement stages.

AUTOSAR Architecture
AUTOSAR is an open software architecture standardized through the car enterprise. Autosar architecture specifies a wellknown interface between application software and simple vehicle functions. AUTOSAR is supposed to offer inherent advantages to the contributors to manipulate an increasing number of complicated E/E in-automobile environments

Autosar structure is defined by using Layered Software Architecture. Layered architecture describes a top-down method to the hierarchical shape of AUTOSAR software program and maps the Basic Software Modules to software layers and suggests their dating.

Significance of Autosar Architecture
The quantity of digital/ electric systems and the complexity of these structures are increasing in contemporary cars. The increasing complexity of the vehicle community is the motivation at the back of the development of AUTOSAR.

Modern motors have extra than 100 ECUs every. Every certainly one of them has thousands of functions. Without following the same old, software program improvement is maximum probably to be rewritten whilst the ECU hardware layout is modified
Autosar helps software program improvement independent of hardware, with the usual software is more transferable. This approach software program can be effortlessly shared between one-of-a-kind automobile structures in large part independent of the machine’s underlying hardware, which AUTOSAR stepped forward through standardizing issue interplay. In the past, and nonetheless these days, maximum component software is advanced in keeping with the hardware it is going to be programmed on. AUTOSAR reduces this constraint by way of implementing a standardized interface between application software and its hardware to allow for hardware-independent aspect software program. The standardized interface permits software software program to speak by way of making use of a Virtual Function Bus (VFB).

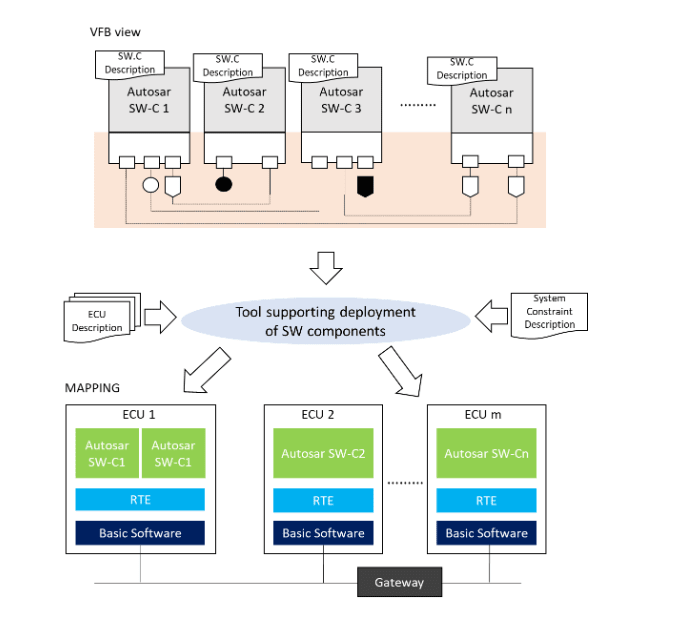

fig: VFB communication with application software

Above fig indicates a totally general view of the AUTOSAR technique. It offers a top view of AUSTOSAR is capable of create automobile-producing software systems used to connect components. For example, the structures used for AUTOSAR improvement are DaVinci Developer and DaVinci Configurator.

The utility scope of AUTOSAR is devoted to Automotive ECUs. Such ECUs have the following homes:

robust interaction with hardware (sensors and actuators),
microcontrollers with restrained assets of computing energy and memory.
Time-critical System and actual-time program execution from internal reminiscence.
NOTE: As in step with AUTOSAR an ECU consists of one microcontroller plus peripherals and for that reason carried out software/configuration. AUTOSAR does not cover the mechanical layout inside the scope.

*Overview of Layered Autosar Architecture *
The AUTOSAR Architecture distinguishes at the topmost abstraction level between 3 software layers:

Application Layer,
Runtime Environment and
Basic Software (which run on a Microcontroller)

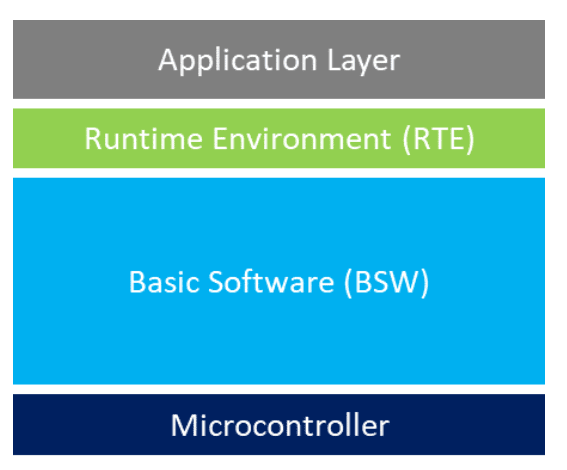

fig a

Application Layer The software layer is the topmost layer of the AUTOSAR software program architecture and helps custom functionalities implementation. This layer includes the particular software program components and many applications, which can be a collection of interconnected AUTOSAR Software Components and perform specific duties as in keeping with instructions.

Each AUTOSAR Software Component encapsulates part of the capability of the whole software software program. AUTOSAR does no longer prescribe how big the AUTOSAR Software Components are. Depending on the requirements of the application an AUTOSAR Software Component might be a small, reusable piece of functionality together with lane-preserving assistance, Wiper manage, Automatic door liberate, and many others.

The communique between software program additives is enabled through unique ports using a virtual Function Bus. These ports also facilitate communique between software program components and AUTOSAR Basic Software (BSW).

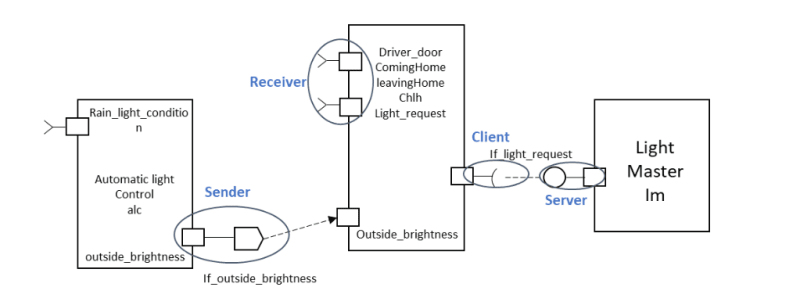

fig b
