Using SVGs in Lightning Web Components

Scalable Vector Graphics (SVG) is a web standard that allows you to define two-dimensional vector graphics using an XML-based markup language. Using SVG images, especially for web development, has a ton of benefits. Luckily, Lightning Web Components (LWC) provide full built-in support for using them. In this post, we’ll cover different options when using SVGs in LWC.

Pixel vs. vector-based graphics

Pixel-based images (also known as raster or bitmap images) are created by defining a color for each individual pixel of the image. This gives an exact representation of a picture for its given size. But they’re difficult to scale or change. Some examples of pixel-based image formats are JPEG, GIF, PNG, TIF, BMP or PSD.

Vector-based graphics, in contrast, are made up by defining lines, curves, basic shapes, and text. These kind of images don’t lose quality when you scale them, can be easily created and modified, and they don’t require too much space on disk. Some vector-based image formats include AI, CDR or SVG.

Scalable Vector Graphics (SVG)

Scalable Vector Graphics (SVG) defines how to create scalable vector-based graphics using XML code. SVGs are well suited for web development, as XML plays nicely with HTML, JavaScript and CSS. SVGs support interactivity and animation, and can be easily modified in JavaScript thanks to the SVG DOM API.

Here is the Salesforce logo in SVG format:

<svg xmlns="http://www.w3.org/2000/svg" width="200" height="140" viewBox="0 0 200 140"> <path fill="#00A1E0" d="M 83.226562 15.273438 C 89.679688 8.554688 98.660156 4.382812 108.589844 4.382812 C 121.792969 4.382812 133.308594 11.746094 139.445312 22.675781 C 144.773438 20.292969 150.675781 18.96875 156.882812 18.96875 C 180.695312 18.96875 200 38.441406 200 62.460938 C 200 86.484375 180.695312 105.957031 156.882812 105.957031 C 154.03125 105.957031 151.1875 105.675781 148.390625 105.109375 C 142.988281 114.746094 132.695312 121.257812 120.878906 121.257812 C 115.933594 121.257812 111.257812 120.113281 107.089844 118.082031 C 101.617188 130.960938 88.859375 139.992188 73.988281 139.992188 C 58.503906 139.992188 45.308594 130.195312 40.242188 116.457031 C 38.027344 116.925781 35.734375 117.171875 33.382812 117.171875 C 14.945312 117.171875 0 102.070312 0 83.441406 C 0 70.957031 6.714844 60.058594 16.691406 54.226562 C 14.636719 49.5 13.496094 44.28125 13.496094 38.796875 C 13.496094 17.375 30.890625 0.00390625 52.34375 0.00390625 C 64.9375 0.00390625 76.132812 5.996094 83.226562 15.273438 "></path> <path fill="#FFF" d="M 28.96875 72.601562 C 28.84375 72.929688 29.015625 72.996094 29.054688 73.054688 C 29.429688 73.328125 29.8125 73.523438 30.195312 73.742188 C 32.234375 74.824219 34.164062 75.140625 36.175781 75.140625 C 40.277344 75.140625 42.824219 72.960938 42.824219 69.445312 L 42.824219 69.378906 C 42.824219 66.128906 39.953125 64.949219 37.253906 64.097656 L 36.902344 63.984375 C 34.867188 63.324219 33.113281 62.753906 33.113281 61.414062 L 33.113281 61.34375 C 33.113281 60.199219 34.140625 59.355469 35.730469 59.355469 C 37.496094 59.355469 39.59375 59.941406 40.941406 60.6875 C 40.941406 60.6875 41.339844 60.945312 41.484375 60.5625 C 41.5625 60.355469 42.246094 58.515625 42.320312 58.316406 C 42.394531 58.097656 42.257812 57.9375 42.121094 57.855469 C 40.578125 56.917969 38.445312 56.277344 36.242188 56.277344 L 35.832031 56.277344 C 32.078125 56.277344 29.457031 58.546875 29.457031 61.796875 L 29.457031 61.867188 C 29.457031 65.292969 32.347656 66.402344 35.058594 67.179688 L 35.492188 67.3125 C 37.46875 67.917969 39.167969 68.441406 39.167969 69.832031 L 39.167969 69.898438 C 39.167969 71.171875 38.0625 72.117188 36.277344 72.117188 C 35.585938 72.117188 33.378906 72.101562 30.996094 70.59375 C 30.707031 70.425781 30.539062 70.304688 30.316406 70.171875 C 30.199219 70.097656 29.90625 69.96875 29.777344 70.355469 Z M 89.027344 72.601562 C 88.902344 72.929688 89.074219 72.996094 89.113281 73.054688 C 89.488281 73.328125 89.871094 73.523438 90.253906 73.742188 C 92.296875 74.824219 94.222656 75.140625 96.234375 75.140625 C 100.339844 75.140625 102.886719 72.960938 102.886719 69.445312 L 102.886719 69.378906 C 102.886719 66.128906 100.011719 64.949219 97.3125 64.097656 L 96.960938 63.984375 C 94.929688 63.324219 93.171875 62.753906 93.171875 61.414062 L 93.171875 61.34375 C 93.171875 60.199219 94.199219 59.355469 95.789062 59.355469 C 97.554688 59.355469 99.652344 59.941406 101.003906 60.6875 C 101.003906 60.6875 101.398438 60.945312 101.542969 60.5625 C 101.621094 60.355469 102.308594 58.515625 102.378906 58.316406 C 102.457031 58.097656 102.316406 57.9375 102.179688 57.855469 C 100.636719 56.917969 98.507812 56.277344 96.300781 56.277344 L 95.890625 56.277344 C 92.136719 56.277344 89.515625 58.546875 89.515625 61.796875 L 89.515625 61.867188 C 89.515625 65.292969 92.40625 66.402344 95.117188 67.179688 L 95.550781 67.3125 C 97.527344 67.917969 99.230469 68.441406 99.230469 69.832031 L 99.230469 69.898438 C 99.230469 71.171875 98.121094 72.117188 96.339844 72.117188 C 95.644531 72.117188 93.4375 72.101562 91.054688 70.59375 C 90.765625 70.425781 90.59375 70.308594 90.378906 70.171875 C 90.304688 70.121094 89.957031 69.988281 89.835938 70.355469 Z M 130.027344 65.71875 C 130.027344 67.707031 129.660156 69.269531 128.929688 70.375 C 128.207031 71.46875 127.117188 72 125.597656 72 C 124.070312 72 122.988281 71.472656 122.277344 70.375 C 121.558594 69.273438 121.195312 67.707031 121.195312 65.71875 C 121.195312 63.738281 121.558594 62.175781 122.277344 61.082031 C 122.988281 60 124.070312 59.472656 125.597656 59.472656 C 127.117188 59.472656 128.207031 60 128.933594 61.082031 C 129.660156 62.175781 130.027344 63.738281 130.027344 65.71875 M 133.453125 62.039062 C 133.117188 60.902344 132.59375 59.898438 131.894531 59.0625 C 131.195312 58.226562 130.3125 57.554688 129.265625 57.0625 C 128.21875 56.578125 126.984375 56.328125 125.597656 56.328125 C 124.207031 56.328125 122.96875 56.578125 121.921875 57.0625 C 120.875 57.554688 119.992188 58.226562 119.292969 59.0625 C 118.597656 59.902344 118.070312 60.90625 117.734375 62.039062 C 117.398438 63.167969 117.230469 64.40625 117.230469 65.71875 C 117.230469 67.03125 117.398438 68.273438 117.734375 69.402344 C 118.070312 70.535156 118.59375 71.539062 119.292969 72.375 C 119.992188 73.210938 120.878906 73.882812 121.925781 74.359375 C 122.972656 74.832031 124.207031 75.074219 125.597656 75.074219 C 126.984375 75.074219 128.21875 74.832031 129.265625 74.359375 C 130.3125 73.882812 131.195312 73.210938 131.894531 72.375 C 132.59375 71.539062 133.117188 70.539062 133.453125 69.402344 C 133.789062 68.269531 133.957031 67.03125 133.957031 65.71875 C 133.957031 64.410156 133.789062 63.167969 133.453125 62.039062 M 161.574219 71.472656 C 161.460938 71.136719 161.140625 71.261719 161.140625 71.261719 C 160.640625 71.453125 160.109375 71.628906 159.546875 71.71875 C 158.972656 71.808594 158.34375 71.851562 157.667969 71.851562 C 156.011719 71.851562 154.695312 71.359375 153.75 70.386719 C 152.804688 69.410156 152.277344 67.835938 152.28125 65.703125 C 152.289062 63.765625 152.753906 62.304688 153.59375 61.195312 C 154.429688 60.089844 155.699219 59.523438 157.394531 59.523438 C 158.808594 59.523438 159.886719 59.683594 161.015625 60.042969 C 161.015625 60.042969 161.285156 60.15625 161.414062 59.804688 C 161.710938 58.972656 161.933594 58.378906 162.253906 57.460938 C 162.34375 57.203125 162.121094 57.09375 162.042969 57.0625 C 161.597656 56.886719 160.550781 56.605469 159.757812 56.484375 C 159.015625 56.371094 158.152344 56.3125 157.1875 56.3125 C 155.75 56.3125 154.464844 56.558594 153.371094 57.046875 C 152.277344 57.535156 151.347656 58.207031 150.613281 59.042969 C 149.878906 59.882812 149.320312 60.882812 148.945312 62.019531 C 148.574219 63.148438 148.386719 64.390625 148.386719 65.703125 C 148.386719 68.546875 149.152344 70.839844 150.667969 72.523438 C 152.183594 74.210938 154.457031 75.066406 157.425781 75.066406 C 159.183594 75.066406 160.984375 74.710938 162.277344 74.199219 C 162.277344 74.199219 162.523438 74.082031 162.414062 73.792969 Z M 167.566406 63.816406 C 167.730469 62.714844 168.035156 61.796875 168.503906 61.082031 C 169.214844 59.996094 170.296875 59.402344 171.816406 59.402344 C 173.339844 59.402344 174.34375 60 175.066406 61.082031 C 175.542969 61.796875 175.753906 62.753906 175.835938 63.816406 Z M 179.097656 61.394531 C 178.804688 60.296875 178.085938 59.1875 177.613281 58.679688 C 176.867188 57.875 176.136719 57.316406 175.414062 57.003906 C 174.46875 56.597656 173.332031 56.328125 172.089844 56.328125 C 170.644531 56.328125 169.332031 56.570312 168.265625 57.074219 C 167.195312 57.574219 166.300781 58.257812 165.59375 59.109375 C 164.890625 59.960938 164.363281 60.972656 164.027344 62.117188 C 163.6875 63.261719 163.515625 64.507812 163.515625 65.820312 C 163.515625 67.15625 163.691406 68.402344 164.042969 69.519531 C 164.394531 70.648438 164.960938 71.644531 165.722656 72.464844 C 166.484375 73.296875 167.464844 73.945312 168.636719 74.398438 C 169.804688 74.847656 171.21875 75.082031 172.847656 75.078125 C 176.195312 75.066406 177.957031 74.320312 178.683594 73.917969 C 178.8125 73.847656 178.933594 73.722656 178.78125 73.363281 L 178.023438 71.242188 C 177.910156 70.925781 177.585938 71.042969 177.585938 71.042969 C 176.757812 71.347656 175.578125 71.902344 172.828125 71.898438 C 171.03125 71.894531 169.699219 71.363281 168.863281 70.535156 C 168.003906 69.6875 167.585938 68.4375 167.511719 66.675781 L 179.105469 66.6875 C 179.105469 66.6875 179.410156 66.683594 179.441406 66.386719 C 179.453125 66.261719 179.839844 64.003906 179.097656 61.394531 M 74.726562 63.816406 C 74.890625 62.714844 75.195312 61.796875 75.664062 61.082031 C 76.375 59.996094 77.457031 59.402344 78.976562 59.402344 C 80.5 59.402344 81.503906 60 82.226562 61.082031 C 82.703125 61.796875 82.914062 62.753906 82.996094 63.816406 Z M 86.253906 61.394531 C 85.964844 60.296875 85.246094 59.1875 84.773438 58.679688 C 84.027344 57.875 83.296875 57.316406 82.574219 57.003906 C 81.628906 56.597656 80.492188 56.328125 79.25 56.328125 C 77.808594 56.328125 76.492188 56.570312 75.425781 57.074219 C 74.355469 57.574219 73.460938 58.257812 72.753906 59.109375 C 72.050781 59.960938 71.523438 60.972656 71.1875 62.117188 C 70.851562 63.261719 70.675781 64.507812 70.675781 65.820312 C 70.675781 67.15625 70.851562 68.402344 71.203125 69.519531 C 71.554688 70.648438 72.121094 71.644531 72.882812 72.464844 C 73.644531 73.296875 74.625 73.945312 75.796875 74.398438 C 76.964844 74.847656 78.378906 75.082031 80.007812 75.078125 C 83.355469 75.066406 85.117188 74.320312 85.84375 73.917969 C 85.972656 73.847656 86.09375 73.722656 85.941406 73.363281 L 85.1875 71.242188 C 85.070312 70.925781 84.746094 71.042969 84.746094 71.042969 C 83.917969 71.347656 82.742188 71.902344 79.988281 71.898438 C 78.191406 71.894531 76.859375 71.363281 76.023438 70.535156 C 75.167969 69.6875 74.746094 68.4375 74.671875 66.675781 L 86.265625 66.6875 C 86.265625 66.6875 86.570312 66.683594 86.601562 66.386719 C 86.613281 66.261719 87 64.003906 86.253906 61.394531 M 49.667969 71.40625 C 49.21875 71.046875 49.152344 70.953125 49 70.722656 C 48.773438 70.363281 48.65625 69.859375 48.65625 69.214844 C 48.65625 68.195312 48.992188 67.460938 49.691406 66.96875 C 49.679688 66.972656 50.6875 66.101562 53.050781 66.132812 C 54.710938 66.152344 56.195312 66.398438 56.195312 66.398438 L 56.195312 71.667969 L 56.199219 71.667969 C 56.199219 71.667969 54.726562 71.984375 53.070312 72.085938 C 50.710938 72.226562 49.660156 71.40625 49.667969 71.40625 M 54.28125 63.261719 C 53.8125 63.226562 53.203125 63.207031 52.472656 63.207031 C 51.480469 63.207031 50.519531 63.332031 49.617188 63.574219 C 48.710938 63.816406 47.898438 64.195312 47.195312 64.699219 C 46.496094 65.199219 45.921875 65.851562 45.515625 66.609375 C 45.105469 67.375 44.898438 68.273438 44.898438 69.28125 C 44.898438 70.308594 45.074219 71.199219 45.425781 71.929688 C 45.78125 72.660156 46.289062 73.269531 46.941406 73.742188 C 47.585938 74.210938 48.378906 74.554688 49.300781 74.765625 C 50.210938 74.972656 51.242188 75.078125 52.371094 75.078125 C 53.558594 75.078125 54.742188 74.980469 55.890625 74.785156 C 57.027344 74.589844 58.425781 74.308594 58.8125 74.21875 C 59.082031 74.152344 59.355469 74.085938 59.625 74.011719 C 59.910156 73.941406 59.890625 73.632812 59.890625 73.632812 L 59.882812 63.03125 C 59.882812 60.707031 59.261719 58.984375 58.039062 57.914062 C 56.824219 56.847656 55.03125 56.308594 52.714844 56.308594 C 51.847656 56.308594 50.449219 56.429688 49.609375 56.597656 C 49.609375 56.597656 47.078125 57.089844 46.035156 57.902344 C 46.035156 57.902344 45.804688 58.046875 45.933594 58.363281 L 46.753906 60.570312 C 46.855469 60.855469 47.132812 60.757812 47.132812 60.757812 C 47.132812 60.757812 47.21875 60.722656 47.324219 60.664062 C 49.554688 59.449219 52.375 59.488281 52.375 59.488281 C 53.628906 59.488281 54.589844 59.738281 55.238281 60.238281 C 55.871094 60.722656 56.195312 61.453125 56.195312 62.996094 L 56.195312 63.488281 C 55.195312 63.34375 54.28125 63.261719 54.28125 63.261719 M 147.78125 57.289062 C 147.871094 57.027344 147.683594 56.902344 147.609375 56.875 C 147.410156 56.796875 146.425781 56.589844 145.664062 56.539062 C 144.210938 56.453125 143.398438 56.695312 142.675781 57.019531 C 141.957031 57.347656 141.160156 57.871094 140.714844 58.464844 L 140.714844 57.054688 C 140.714844 56.859375 140.578125 56.703125 140.382812 56.703125 L 137.410156 56.703125 C 137.21875 56.703125 137.078125 56.859375 137.078125 57.054688 L 137.078125 74.347656 C 137.078125 74.539062 137.238281 74.699219 137.429688 74.699219 L 140.476562 74.699219 C 140.671875 74.699219 140.828125 74.539062 140.828125 74.347656 L 140.828125 65.707031 C 140.828125 64.546875 140.957031 63.390625 141.210938 62.664062 C 141.460938 61.949219 141.804688 61.371094 142.226562 60.957031 C 142.652344 60.546875 143.132812 60.261719 143.660156 60.097656 C 144.199219 59.933594 144.792969 59.878906 145.214844 59.878906 C 145.820312 59.878906 146.488281 60.035156 146.488281 60.035156 C 146.710938 60.0625 146.835938 59.925781 146.910156 59.722656 C 147.109375 59.191406 147.671875 57.605469 147.78125 57.289062 "></path> <path fill="#FFF" d="M 119.195312 49.277344 C 118.824219 49.160156 118.488281 49.085938 118.046875 49.003906 C 117.605469 48.921875 117.074219 48.882812 116.472656 48.882812 C 114.375 48.882812 112.722656 49.476562 111.5625 50.644531 C 110.410156 51.804688 109.625 53.574219 109.234375 55.902344 L 109.089844 56.6875 L 106.457031 56.6875 C 106.457031 56.6875 106.140625 56.675781 106.070312 57.023438 L 105.640625 59.433594 C 105.609375 59.664062 105.710938 59.808594 106.015625 59.808594 L 108.578125 59.808594 L 105.980469 74.316406 C 105.777344 75.484375 105.542969 76.445312 105.285156 77.171875 C 105.03125 77.890625 104.785156 78.429688 104.476562 78.824219 C 104.179688 79.199219 103.898438 79.476562 103.414062 79.640625 C 103.015625 79.773438 102.554688 79.835938 102.050781 79.835938 C 101.773438 79.835938 101.398438 79.789062 101.121094 79.734375 C 100.847656 79.679688 100.703125 79.621094 100.496094 79.53125 C 100.496094 79.53125 100.195312 79.417969 100.078125 79.71875 C 99.984375 79.964844 99.300781 81.84375 99.214844 82.074219 C 99.136719 82.304688 99.25 82.484375 99.394531 82.539062 C 99.738281 82.65625 99.992188 82.738281 100.457031 82.847656 C 101.101562 83 101.644531 83.007812 102.152344 83.007812 C 103.21875 83.007812 104.195312 82.855469 105 82.566406 C 105.808594 82.273438 106.515625 81.761719 107.140625 81.074219 C 107.816406 80.328125 108.242188 79.546875 108.648438 78.476562 C 109.046875 77.421875 109.394531 76.113281 109.667969 74.585938 L 112.277344 59.808594 L 116.097656 59.808594 C 116.097656 59.808594 116.417969 59.820312 116.484375 59.46875 L 116.917969 57.058594 C 116.945312 56.828125 116.847656 56.6875 116.539062 56.6875 L 112.832031 56.6875 C 112.851562 56.605469 113.019531 55.296875 113.445312 54.070312 C 113.625 53.550781 113.96875 53.125 114.257812 52.835938 C 114.542969 52.550781 114.867188 52.347656 115.226562 52.230469 C 115.59375 52.109375 116.015625 52.054688 116.472656 52.054688 C 116.820312 52.054688 117.164062 52.09375 117.425781 52.148438 C 117.785156 52.226562 117.921875 52.265625 118.015625 52.292969 C 118.394531 52.40625 118.445312 52.296875 118.523438 52.113281 L 119.40625 49.679688 C 119.5 49.417969 119.273438 49.308594 119.195312 49.277344 M 67.40625 74.347656 C 67.40625 74.539062 67.265625 74.699219 67.074219 74.699219 L 64 74.699219 C 63.804688 74.699219 63.667969 74.539062 63.667969 74.347656 L 63.667969 49.605469 C 63.667969 49.414062 63.804688 49.253906 64 49.253906 L 67.074219 49.253906 C 67.265625 49.253906 67.40625 49.414062 67.40625 49.605469 Z M 67.40625 74.347656 "></path></svg>

If you’re not familiar with XML, you may be wondering what the meaning of the xmlns attribute is on the svg tag. This is the way we tell the user agent which namespace, or XML specification, the svg element and all its child element names (path in this case) belong to. Concretely, the SVG namespace is called http://www.w3.org/2000/svg

Styling SVGs with CSS is a common thing. For example, we could change the CSS fill attribute of our Salesforce logo background on hover state to reflect a different color:

svg:hover path:first-of-type{ fill: yellow;}

Let’s explain what that CSS selector does. First, :hover selects the svg element when you mouse over it. In that case, we’ll select the first path child element found thanks to :first-of-type.

If you take a look at the Salesforce logo XML, you’ll see a fill attribute on each of the paths defined. This is a presentation attribute. Presentation attributes are equivalent to CSS properties applied through stylesheets or inline. However, CSS properties always override presentation attributes. This is exactly what is happening here. The CSS property provided in the stylesheets (fill:yellow) is overriding the path fill attribute on hover.

Ways to use SVGs in Lightning Web Components

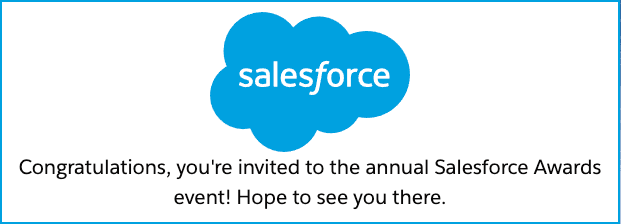

Let’s explore the different ways in which you can use an SVG in Lightning Web Components. To exemplify the different alternatives, we’ll create a component that is an invitation to our fictitious annual Salesforce Awards event. The component will include the Salesforce logo SVG.

You will be able to check the complete code examples in this github repo afterwards.

Use the SVG inside an HTML template

This approach is as simple as it sounds. You can directly copy the SVG XML code into the HTML template of your component, and it will render as the image that you expect. Something like:

salesforceAwardsInvitation1.html

<template> <div> <svg xmlns="http://www.w3.org/2000/svg" width="200" height="140" viewBox="0 0 200 140"> <path fill="#00A1E0" d="M 83.226562 15.273438 C 89.679688 8.554688 98.660156 4.382812 108.589844 4.382812 C 121.792969 4.382812 133.308594 11.746094 139.445312 22.675781 C 144.773438 20.292969 150.675781 18.96875 156.882812 18.96875 C 180.695312 18.96875 200 38.441406 200 62.460938 C 200 86.484375 180.695312 105.957031 156.882812 105.957031 C 154.03125 105.957031 151.1875 105.675781 148.390625 105.109375 C 142.988281 114.746094 132.695312 121.257812 120.878906 121.257812 C 115.933594 121.257812 111.257812 120.113281 107.089844 118.082031 C 101.617188 130.960938 88.859375 139.992188 73.988281 139.992188 C 58.503906 139.992188 45.308594 130.195312 40.242188 116.457031 C 38.027344 116.925781 35.734375 117.171875 33.382812 117.171875 C 14.945312 117.171875 0 102.070312 0 83.441406 C 0 70.957031 6.714844 60.058594 16.691406 54.226562 C 14.636719 49.5 13.496094 44.28125 13.496094 38.796875 C 13.496094 17.375 30.890625 0.00390625 52.34375 0.00390625 C 64.9375 0.00390625 76.132812 5.996094 83.226562 15.273438 "></path> <path fill="#FFF" d="M 28.96875 72.601562 C 28.84375 72.929688 29.015625 72.996094 29.054688 73.054688 C 29.429688 73.328125 29.8125 73.523438 30.195312 73.742188 C 32.234375 74.824219 34.164062 75.140625 36.175781 75.140625 C 40.277344 75.140625 42.824219 72.960938 42.824219 69.445312 L 42.824219 69.378906 C 42.824219 66.128906 39.953125 64.949219 37.253906 64.097656 L 36.902344 63.984375 C 34.867188 63.324219 33.113281 62.753906 33.113281 61.414062 L 33.113281 61.34375 C 33.113281 60.199219 34.140625 59.355469 35.730469 59.355469 C 37.496094 59.355469 39.59375 59.941406 40.941406 60.6875 C 40.941406 60.6875 41.339844 60.945312 41.484375 60.5625 C 41.5625 60.355469 42.246094 58.515625 42.320312 58.316406 C 42.394531 58.097656 42.257812 57.9375 42.121094 57.855469 C 40.578125 56.917969 38.445312 56.277344 36.242188 56.277344 L 35.832031 56.277344 C 32.078125 56.277344 29.457031 58.546875 29.457031 61.796875 L 29.457031 61.867188 C 29.457031 65.292969 32.347656 66.402344 35.058594 67.179688 L 35.492188 67.3125 C 37.46875 67.917969 39.167969 68.441406 39.167969 69.832031 L 39.167969 69.898438 C 39.167969 71.171875 38.0625 72.117188 36.277344 72.117188 C 35.585938 72.117188 33.378906 72.101562 30.996094 70.59375 C 30.707031 70.425781 30.539062 70.304688 30.316406 70.171875 C 30.199219 70.097656 29.90625 69.96875 29.777344 70.355469 Z M 89.027344 72.601562 C 88.902344 72.929688 89.074219 72.996094 89.113281 73.054688 C 89.488281 73.328125 89.871094 73.523438 90.253906 73.742188 C 92.296875 74.824219 94.222656 75.140625 96.234375 75.140625 C 100.339844 75.140625 102.886719 72.960938 102.886719 69.445312 L 102.886719 69.378906 C 102.886719 66.128906 100.011719 64.949219 97.3125 64.097656 L 96.960938 63.984375 C 94.929688 63.324219 93.171875 62.753906 93.171875 61.414062 L 93.171875 61.34375 C 93.171875 60.199219 94.199219 59.355469 95.789062 59.355469 C 97.554688 59.355469 99.652344 59.941406 101.003906 60.6875 C 101.003906 60.6875 101.398438 60.945312 101.542969 60.5625 C 101.621094 60.355469 102.308594 58.515625 102.378906 58.316406 C 102.457031 58.097656 102.316406 57.9375 102.179688 57.855469 C 100.636719 56.917969 98.507812 56.277344 96.300781 56.277344 L 95.890625 56.277344 C 92.136719 56.277344 89.515625 58.546875 89.515625 61.796875 L 89.515625 61.867188 C 89.515625 65.292969 92.40625 66.402344 95.117188 67.179688 L 95.550781 67.3125 C 97.527344 67.917969 99.230469 68.441406 99.230469 69.832031 L 99.230469 69.898438 C 99.230469 71.171875 98.121094 72.117188 96.339844 72.117188 C 95.644531 72.117188 93.4375 72.101562 91.054688 70.59375 C 90.765625 70.425781 90.59375 70.308594 90.378906 70.171875 C 90.304688 70.121094 89.957031 69.988281 89.835938 70.355469 Z M 130.027344 65.71875 C 130.027344 67.707031 129.660156 69.269531 128.929688 70.375 C 128.207031 71.46875 127.117188 72 125.597656 72 C 124.070312 72 122.988281 71.472656 122.277344 70.375 C 121.558594 69.273438 121.195312 67.707031 121.195312 65.71875 C 121.195312 63.738281 121.558594 62.175781 122.277344 61.082031 C 122.988281 60 124.070312 59.472656 125.597656 59.472656 C 127.117188 59.472656 128.207031 60 128.933594 61.082031 C 129.660156 62.175781 130.027344 63.738281 130.027344 65.71875 M 133.453125 62.039062 C 133.117188 60.902344 132.59375 59.898438 131.894531 59.0625 C 131.195312 58.226562 130.3125 57.554688 129.265625 57.0625 C 128.21875 56.578125 126.984375 56.328125 125.597656 56.328125 C 124.207031 56.328125 122.96875 56.578125 121.921875 57.0625 C 120.875 57.554688 119.992188 58.226562 119.292969 59.0625 C 118.597656 59.902344 118.070312 60.90625 117.734375 62.039062 C 117.398438 63.167969 117.230469 64.40625 117.230469 65.71875 C 117.230469 67.03125 117.398438 68.273438 117.734375 69.402344 C 118.070312 70.535156 118.59375 71.539062 119.292969 72.375 C 119.992188 73.210938 120.878906 73.882812 121.925781 74.359375 C 122.972656 74.832031 124.207031 75.074219 125.597656 75.074219 C 126.984375 75.074219 128.21875 74.832031 129.265625 74.359375 C 130.3125 73.882812 131.195312 73.210938 131.894531 72.375 C 132.59375 71.539062 133.117188 70.539062 133.453125 69.402344 C 133.789062 68.269531 133.957031 67.03125 133.957031 65.71875 C 133.957031 64.410156 133.789062 63.167969 133.453125 62.039062 M 161.574219 71.472656 C 161.460938 71.136719 161.140625 71.261719 161.140625 71.261719 C 160.640625 71.453125 160.109375 71.628906 159.546875 71.71875 C 158.972656 71.808594 158.34375 71.851562 157.667969 71.851562 C 156.011719 71.851562 154.695312 71.359375 153.75 70.386719 C 152.804688 69.410156 152.277344 67.835938 152.28125 65.703125 C 152.289062 63.765625 152.753906 62.304688 153.59375 61.195312 C 154.429688 60.089844 155.699219 59.523438 157.394531 59.523438 C 158.808594 59.523438 159.886719 59.683594 161.015625 60.042969 C 161.015625 60.042969 161.285156 60.15625 161.414062 59.804688 C 161.710938 58.972656 161.933594 58.378906 162.253906 57.460938 C 162.34375 57.203125 162.121094 57.09375 162.042969 57.0625 C 161.597656 56.886719 160.550781 56.605469 159.757812 56.484375 C 159.015625 56.371094 158.152344 56.3125 157.1875 56.3125 C 155.75 56.3125 154.464844 56.558594 153.371094 57.046875 C 152.277344 57.535156 151.347656 58.207031 150.613281 59.042969 C 149.878906 59.882812 149.320312 60.882812 148.945312 62.019531 C 148.574219 63.148438 148.386719 64.390625 148.386719 65.703125 C 148.386719 68.546875 149.152344 70.839844 150.667969 72.523438 C 152.183594 74.210938 154.457031 75.066406 157.425781 75.066406 C 159.183594 75.066406 160.984375 74.710938 162.277344 74.199219 C 162.277344 74.199219 162.523438 74.082031 162.414062 73.792969 Z M 167.566406 63.816406 C 167.730469 62.714844 168.035156 61.796875 168.503906 61.082031 C 169.214844 59.996094 170.296875 59.402344 171.816406 59.402344 C 173.339844 59.402344 174.34375 60 175.066406 61.082031 C 175.542969 61.796875 175.753906 62.753906 175.835938 63.816406 Z M 179.097656 61.394531 C 178.804688 60.296875 178.085938 59.1875 177.613281 58.679688 C 176.867188 57.875 176.136719 57.316406 175.414062 57.003906 C 174.46875 56.597656 173.332031 56.328125 172.089844 56.328125 C 170.644531 56.328125 169.332031 56.570312 168.265625 57.074219 C 167.195312 57.574219 166.300781 58.257812 165.59375 59.109375 C 164.890625 59.960938 164.363281 60.972656 164.027344 62.117188 C 163.6875 63.261719 163.515625 64.507812 163.515625 65.820312 C 163.515625 67.15625 163.691406 68.402344 164.042969 69.519531 C 164.394531 70.648438 164.960938 71.644531 165.722656 72.464844 C 166.484375 73.296875 167.464844 73.945312 168.636719 74.398438 C 169.804688 74.847656 171.21875 75.082031 172.847656 75.078125 C 176.195312 75.066406 177.957031 74.320312 178.683594 73.917969 C 178.8125 73.847656 178.933594 73.722656 178.78125 73.363281 L 178.023438 71.242188 C 177.910156 70.925781 177.585938 71.042969 177.585938 71.042969 C 176.757812 71.347656 175.578125 71.902344 172.828125 71.898438 C 171.03125 71.894531 169.699219 71.363281 168.863281 70.535156 C 168.003906 69.6875 167.585938 68.4375 167.511719 66.675781 L 179.105469 66.6875 C 179.105469 66.6875 179.410156 66.683594 179.441406 66.386719 C 179.453125 66.261719 179.839844 64.003906 179.097656 61.394531 M 74.726562 63.816406 C 74.890625 62.714844 75.195312 61.796875 75.664062 61.082031 C 76.375 59.996094 77.457031 59.402344 78.976562 59.402344 C 80.5 59.402344 81.503906 60 82.226562 61.082031 C 82.703125 61.796875 82.914062 62.753906 82.996094 63.816406 Z M 86.253906 61.394531 C 85.964844 60.296875 85.246094 59.1875 84.773438 58.679688 C 84.027344 57.875 83.296875 57.316406 82.574219 57.003906 C 81.628906 56.597656 80.492188 56.328125 79.25 56.328125 C 77.808594 56.328125 76.492188 56.570312 75.425781 57.074219 C 74.355469 57.574219 73.460938 58.257812 72.753906 59.109375 C 72.050781 59.960938 71.523438 60.972656 71.1875 62.117188 C 70.851562 63.261719 70.675781 64.507812 70.675781 65.820312 C 70.675781 67.15625 70.851562 68.402344 71.203125 69.519531 C 71.554688 70.648438 72.121094 71.644531 72.882812 72.464844 C 73.644531 73.296875 74.625 73.945312 75.796875 74.398438 C 76.964844 74.847656 78.378906 75.082031 80.007812 75.078125 C 83.355469 75.066406 85.117188 74.320312 85.84375 73.917969 C 85.972656 73.847656 86.09375 73.722656 85.941406 73.363281 L 85.1875 71.242188 C 85.070312 70.925781 84.746094 71.042969 84.746094 71.042969 C 83.917969 71.347656 82.742188 71.902344 79.988281 71.898438 C 78.191406 71.894531 76.859375 71.363281 76.023438 70.535156 C 75.167969 69.6875 74.746094 68.4375 74.671875 66.675781 L 86.265625 66.6875 C 86.265625 66.6875 86.570312 66.683594 86.601562 66.386719 C 86.613281 66.261719 87 64.003906 86.253906 61.394531 M 49.667969 71.40625 C 49.21875 71.046875 49.152344 70.953125 49 70.722656 C 48.773438 70.363281 48.65625 69.859375 48.65625 69.214844 C 48.65625 68.195312 48.992188 67.460938 49.691406 66.96875 C 49.679688 66.972656 50.6875 66.101562 53.050781 66.132812 C 54.710938 66.152344 56.195312 66.398438 56.195312 66.398438 L 56.195312 71.667969 L 56.199219 71.667969 C 56.199219 71.667969 54.726562 71.984375 53.070312 72.085938 C 50.710938 72.226562 49.660156 71.40625 49.667969 71.40625 M 54.28125 63.261719 C 53.8125 63.226562 53.203125 63.207031 52.472656 63.207031 C 51.480469 63.207031 50.519531 63.332031 49.617188 63.574219 C 48.710938 63.816406 47.898438 64.195312 47.195312 64.699219 C 46.496094 65.199219 45.921875 65.851562 45.515625 66.609375 C 45.105469 67.375 44.898438 68.273438 44.898438 69.28125 C 44.898438 70.308594 45.074219 71.199219 45.425781 71.929688 C 45.78125 72.660156 46.289062 73.269531 46.941406 73.742188 C 47.585938 74.210938 48.378906 74.554688 49.300781 74.765625 C 50.210938 74.972656 51.242188 75.078125 52.371094 75.078125 C 53.558594 75.078125 54.742188 74.980469 55.890625 74.785156 C 57.027344 74.589844 58.425781 74.308594 58.8125 74.21875 C 59.082031 74.152344 59.355469 74.085938 59.625 74.011719 C 59.910156 73.941406 59.890625 73.632812 59.890625 73.632812 L 59.882812 63.03125 C 59.882812 60.707031 59.261719 58.984375 58.039062 57.914062 C 56.824219 56.847656 55.03125 56.308594 52.714844 56.308594 C 51.847656 56.308594 50.449219 56.429688 49.609375 56.597656 C 49.609375 56.597656 47.078125 57.089844 46.035156 57.902344 C 46.035156 57.902344 45.804688 58.046875 45.933594 58.363281 L 46.753906 60.570312 C 46.855469 60.855469 47.132812 60.757812 47.132812 60.757812 C 47.132812 60.757812 47.21875 60.722656 47.324219 60.664062 C 49.554688 59.449219 52.375 59.488281 52.375 59.488281 C 53.628906 59.488281 54.589844 59.738281 55.238281 60.238281 C 55.871094 60.722656 56.195312 61.453125 56.195312 62.996094 L 56.195312 63.488281 C 55.195312 63.34375 54.28125 63.261719 54.28125 63.261719 M 147.78125 57.289062 C 147.871094 57.027344 147.683594 56.902344 147.609375 56.875 C 147.410156 56.796875 146.425781 56.589844 145.664062 56.539062 C 144.210938 56.453125 143.398438 56.695312 142.675781 57.019531 C 141.957031 57.347656 141.160156 57.871094 140.714844 58.464844 L 140.714844 57.054688 C 140.714844 56.859375 140.578125 56.703125 140.382812 56.703125 L 137.410156 56.703125 C 137.21875 56.703125 137.078125 56.859375 137.078125 57.054688 L 137.078125 74.347656 C 137.078125 74.539062 137.238281 74.699219 137.429688 74.699219 L 140.476562 74.699219 C 140.671875 74.699219 140.828125 74.539062 140.828125 74.347656 L 140.828125 65.707031 C 140.828125 64.546875 140.957031 63.390625 141.210938 62.664062 C 141.460938 61.949219 141.804688 61.371094 142.226562 60.957031 C 142.652344 60.546875 143.132812 60.261719 143.660156 60.097656 C 144.199219 59.933594 144.792969 59.878906 145.214844 59.878906 C 145.820312 59.878906 146.488281 60.035156 146.488281 60.035156 C 146.710938 60.0625 146.835938 59.925781 146.910156 59.722656 C 147.109375 59.191406 147.671875 57.605469 147.78125 57.289062 "></path> <path fill="#FFF" d="M 119.195312 49.277344 C 118.824219 49.160156 118.488281 49.085938 118.046875 49.003906 C 117.605469 48.921875 117.074219 48.882812 116.472656 48.882812 C 114.375 48.882812 112.722656 49.476562 111.5625 50.644531 C 110.410156 51.804688 109.625 53.574219 109.234375 55.902344 L 109.089844 56.6875 L 106.457031 56.6875 C 106.457031 56.6875 106.140625 56.675781 106.070312 57.023438 L 105.640625 59.433594 C 105.609375 59.664062 105.710938 59.808594 106.015625 59.808594 L 108.578125 59.808594 L 105.980469 74.316406 C 105.777344 75.484375 105.542969 76.445312 105.285156 77.171875 C 105.03125 77.890625 104.785156 78.429688 104.476562 78.824219 C 104.179688 79.199219 103.898438 79.476562 103.414062 79.640625 C 103.015625 79.773438 102.554688 79.835938 102.050781 79.835938 C 101.773438 79.835938 101.398438 79.789062 101.121094 79.734375 C 100.847656 79.679688 100.703125 79.621094 100.496094 79.53125 C 100.496094 79.53125 100.195312 79.417969 100.078125 79.71875 C 99.984375 79.964844 99.300781 81.84375 99.214844 82.074219 C 99.136719 82.304688 99.25 82.484375 99.394531 82.539062 C 99.738281 82.65625 99.992188 82.738281 100.457031 82.847656 C 101.101562 83 101.644531 83.007812 102.152344 83.007812 C 103.21875 83.007812 104.195312 82.855469 105 82.566406 C 105.808594 82.273438 106.515625 81.761719 107.140625 81.074219 C 107.816406 80.328125 108.242188 79.546875 108.648438 78.476562 C 109.046875 77.421875 109.394531 76.113281 109.667969 74.585938 L 112.277344 59.808594 L 116.097656 59.808594 C 116.097656 59.808594 116.417969 59.820312 116.484375 59.46875 L 116.917969 57.058594 C 116.945312 56.828125 116.847656 56.6875 116.539062 56.6875 L 112.832031 56.6875 C 112.851562 56.605469 113.019531 55.296875 113.445312 54.070312 C 113.625 53.550781 113.96875 53.125 114.257812 52.835938 C 114.542969 52.550781 114.867188 52.347656 115.226562 52.230469 C 115.59375 52.109375 116.015625 52.054688 116.472656 52.054688 C 116.820312 52.054688 117.164062 52.09375 117.425781 52.148438 C 117.785156 52.226562 117.921875 52.265625 118.015625 52.292969 C 118.394531 52.40625 118.445312 52.296875 118.523438 52.113281 L 119.40625 49.679688 C 119.5 49.417969 119.273438 49.308594 119.195312 49.277344 M 67.40625 74.347656 C 67.40625 74.539062 67.265625 74.699219 67.074219 74.699219 L 64 74.699219 C 63.804688 74.699219 63.667969 74.539062 63.667969 74.347656 L 63.667969 49.605469 C 63.667969 49.414062 63.804688 49.253906 64 49.253906 L 67.074219 49.253906 C 67.265625 49.253906 67.40625 49.414062 67.40625 49.605469 Z M 67.40625 74.347656 "></path> </svg> <p> Congratulations, you're invited to the annual Salesforce Awards event! Hope to see you there. </p> </div></template>

Although this option will have great performance — as no extra-network request is needed — it has poor reusability.

Create a dedicated component for loading your SVGs

An interesting option is to create a dedicated component to serve different SVGs. Each SVG can be stored in an independent template, and the component can be configured to serve the correct template depending on an @api property.

For this, we’ve created a component called logo and included two templates in it. One includes the SVG code for the Salesforce logo, and another one for the Google logo:

templates/salesforceLogo.html

<template> <svg xmlns="http://www.w3.org/2000/svg" width="200" height="140" viewBox="0 0 200 140"> <path fill="#00A1E0" d="M 83.226562 15.273438 C 89.679688 8.554688 98.660156 4.382812 108.589844 4.382812 C 121.792969 4.382812 133.308594 11.746094 139.445312 22.675781 C 144.773438 20.292969 150.675781 18.96875 156.882812 18.96875 C 180.695312 18.96875 200 38.441406 200 62.460938 C 200 86.484375 180.695312 105.957031 156.882812 105.957031 C 154.03125 105.957031 151.1875 105.675781 148.390625 105.109375 C 142.988281 114.746094 132.695312 121.257812 120.878906 121.257812 C 115.933594 121.257812 111.257812 120.113281 107.089844 118.082031 C 101.617188 130.960938 88.859375 139.992188 73.988281 139.992188 C 58.503906 139.992188 45.308594 130.195312 40.242188 116.457031 C 38.027344 116.925781 35.734375 117.171875 33.382812 117.171875 C 14.945312 117.171875 0 102.070312 0 83.441406 C 0 70.957031 6.714844 60.058594 16.691406 54.226562 C 14.636719 49.5 13.496094 44.28125 13.496094 38.796875 C 13.496094 17.375 30.890625 0.00390625 52.34375 0.00390625 C 64.9375 0.00390625 76.132812 5.996094 83.226562 15.273438 "></path> <path fill="#FFF" d="M 28.96875 72.601562 C 28.84375 72.929688 29.015625 72.996094 29.054688 73.054688 C 29.429688 73.328125 29.8125 73.523438 30.195312 73.742188 C 32.234375 74.824219 34.164062 75.140625 36.175781 75.140625 C 40.277344 75.140625 42.824219 72.960938 42.824219 69.445312 L 42.824219 69.378906 C 42.824219 66.128906 39.953125 64.949219 37.253906 64.097656 L 36.902344 63.984375 C 34.867188 63.324219 33.113281 62.753906 33.113281 61.414062 L 33.113281 61.34375 C 33.113281 60.199219 34.140625 59.355469 35.730469 59.355469 C 37.496094 59.355469 39.59375 59.941406 40.941406 60.6875 C 40.941406 60.6875 41.339844 60.945312 41.484375 60.5625 C 41.5625 60.355469 42.246094 58.515625 42.320312 58.316406 C 42.394531 58.097656 42.257812 57.9375 42.121094 57.855469 C 40.578125 56.917969 38.445312 56.277344 36.242188 56.277344 L 35.832031 56.277344 C 32.078125 56.277344 29.457031 58.546875 29.457031 61.796875 L 29.457031 61.867188 C 29.457031 65.292969 32.347656 66.402344 35.058594 67.179688 L 35.492188 67.3125 C 37.46875 67.917969 39.167969 68.441406 39.167969 69.832031 L 39.167969 69.898438 C 39.167969 71.171875 38.0625 72.117188 36.277344 72.117188 C 35.585938 72.117188 33.378906 72.101562 30.996094 70.59375 C 30.707031 70.425781 30.539062 70.304688 30.316406 70.171875 C 30.199219 70.097656 29.90625 69.96875 29.777344 70.355469 Z M 89.027344 72.601562 C 88.902344 72.929688 89.074219 72.996094 89.113281 73.054688 C 89.488281 73.328125 89.871094 73.523438 90.253906 73.742188 C 92.296875 74.824219 94.222656 75.140625 96.234375 75.140625 C 100.339844 75.140625 102.886719 72.960938 102.886719 69.445312 L 102.886719 69.378906 C 102.886719 66.128906 100.011719 64.949219 97.3125 64.097656 L 96.960938 63.984375 C 94.929688 63.324219 93.171875 62.753906 93.171875 61.414062 L 93.171875 61.34375 C 93.171875 60.199219 94.199219 59.355469 95.789062 59.355469 C 97.554688 59.355469 99.652344 59.941406 101.003906 60.6875 C 101.003906 60.6875 101.398438 60.945312 101.542969 60.5625 C 101.621094 60.355469 102.308594 58.515625 102.378906 58.316406 C 102.457031 58.097656 102.316406 57.9375 102.179688 57.855469 C 100.636719 56.917969 98.507812 56.277344 96.300781 56.277344 L 95.890625 56.277344 C 92.136719 56.277344 89.515625 58.546875 89.515625 61.796875 L 89.515625 61.867188 C 89.515625 65.292969 92.40625 66.402344 95.117188 67.179688 L 95.550781 67.3125 C 97.527344 67.917969 99.230469 68.441406 99.230469 69.832031 L 99.230469 69.898438 C 99.230469 71.171875 98.121094 72.117188 96.339844 72.117188 C 95.644531 72.117188 93.4375 72.101562 91.054688 70.59375 C 90.765625 70.425781 90.59375 70.308594 90.378906 70.171875 C 90.304688 70.121094 89.957031 69.988281 89.835938 70.355469 Z M 130.027344 65.71875 C 130.027344 67.707031 129.660156 69.269531 128.929688 70.375 C 128.207031 71.46875 127.117188 72 125.597656 72 C 124.070312 72 122.988281 71.472656 122.277344 70.375 C 121.558594 69.273438 121.195312 67.707031 121.195312 65.71875 C 121.195312 63.738281 121.558594 62.175781 122.277344 61.082031 C 122.988281 60 124.070312 59.472656 125.597656 59.472656 C 127.117188 59.472656 128.207031 60 128.933594 61.082031 C 129.660156 62.175781 130.027344 63.738281 130.027344 65.71875 M 133.453125 62.039062 C 133.117188 60.902344 132.59375 59.898438 131.894531 59.0625 C 131.195312 58.226562 130.3125 57.554688 129.265625 57.0625 C 128.21875 56.578125 126.984375 56.328125 125.597656 56.328125 C 124.207031 56.328125 122.96875 56.578125 121.921875 57.0625 C 120.875 57.554688 119.992188 58.226562 119.292969 59.0625 C 118.597656 59.902344 118.070312 60.90625 117.734375 62.039062 C 117.398438 63.167969 117.230469 64.40625 117.230469 65.71875 C 117.230469 67.03125 117.398438 68.273438 117.734375 69.402344 C 118.070312 70.535156 118.59375 71.539062 119.292969 72.375 C 119.992188 73.210938 120.878906 73.882812 121.925781 74.359375 C 122.972656 74.832031 124.207031 75.074219 125.597656 75.074219 C 126.984375 75.074219 128.21875 74.832031 129.265625 74.359375 C 130.3125 73.882812 131.195312 73.210938 131.894531 72.375 C 132.59375 71.539062 133.117188 70.539062 133.453125 69.402344 C 133.789062 68.269531 133.957031 67.03125 133.957031 65.71875 C 133.957031 64.410156 133.789062 63.167969 133.453125 62.039062 M 161.574219 71.472656 C 161.460938 71.136719 161.140625 71.261719 161.140625 71.261719 C 160.640625 71.453125 160.109375 71.628906 159.546875 71.71875 C 158.972656 71.808594 158.34375 71.851562 157.667969 71.851562 C 156.011719 71.851562 154.695312 71.359375 153.75 70.386719 C 152.804688 69.410156 152.277344 67.835938 152.28125 65.703125 C 152.289062 63.765625 152.753906 62.304688 153.59375 61.195312 C 154.429688 60.089844 155.699219 59.523438 157.394531 59.523438 C 158.808594 59.523438 159.886719 59.683594 161.015625 60.042969 C 161.015625 60.042969 161.285156 60.15625 161.414062 59.804688 C 161.710938 58.972656 161.933594 58.378906 162.253906 57.460938 C 162.34375 57.203125 162.121094 57.09375 162.042969 57.0625 C 161.597656 56.886719 160.550781 56.605469 159.757812 56.484375 C 159.015625 56.371094 158.152344 56.3125 157.1875 56.3125 C 155.75 56.3125 154.464844 56.558594 153.371094 57.046875 C 152.277344 57.535156 151.347656 58.207031 150.613281 59.042969 C 149.878906 59.882812 149.320312 60.882812 148.945312 62.019531 C 148.574219 63.148438 148.386719 64.390625 148.386719 65.703125 C 148.386719 68.546875 149.152344 70.839844 150.667969 72.523438 C 152.183594 74.210938 154.457031 75.066406 157.425781 75.066406 C 159.183594 75.066406 160.984375 74.710938 162.277344 74.199219 C 162.277344 74.199219 162.523438 74.082031 162.414062 73.792969 Z M 167.566406 63.816406 C 167.730469 62.714844 168.035156 61.796875 168.503906 61.082031 C 169.214844 59.996094 170.296875 59.402344 171.816406 59.402344 C 173.339844 59.402344 174.34375 60 175.066406 61.082031 C 175.542969 61.796875 175.753906 62.753906 175.835938 63.816406 Z M 179.097656 61.394531 C 178.804688 60.296875 178.085938 59.1875 177.613281 58.679688 C 176.867188 57.875 176.136719 57.316406 175.414062 57.003906 C 174.46875 56.597656 173.332031 56.328125 172.089844 56.328125 C 170.644531 56.328125 169.332031 56.570312 168.265625 57.074219 C 167.195312 57.574219 166.300781 58.257812 165.59375 59.109375 C 164.890625 59.960938 164.363281 60.972656 164.027344 62.117188 C 163.6875 63.261719 163.515625 64.507812 163.515625 65.820312 C 163.515625 67.15625 163.691406 68.402344 164.042969 69.519531 C 164.394531 70.648438 164.960938 71.644531 165.722656 72.464844 C 166.484375 73.296875 167.464844 73.945312 168.636719 74.398438 C 169.804688 74.847656 171.21875 75.082031 172.847656 75.078125 C 176.195312 75.066406 177.957031 74.320312 178.683594 73.917969 C 178.8125 73.847656 178.933594 73.722656 178.78125 73.363281 L 178.023438 71.242188 C 177.910156 70.925781 177.585938 71.042969 177.585938 71.042969 C 176.757812 71.347656 175.578125 71.902344 172.828125 71.898438 C 171.03125 71.894531 169.699219 71.363281 168.863281 70.535156 C 168.003906 69.6875 167.585938 68.4375 167.511719 66.675781 L 179.105469 66.6875 C 179.105469 66.6875 179.410156 66.683594 179.441406 66.386719 C 179.453125 66.261719 179.839844 64.003906 179.097656 61.394531 M 74.726562 63.816406 C 74.890625 62.714844 75.195312 61.796875 75.664062 61.082031 C 76.375 59.996094 77.457031 59.402344 78.976562 59.402344 C 80.5 59.402344 81.503906 60 82.226562 61.082031 C 82.703125 61.796875 82.914062 62.753906 82.996094 63.816406 Z M 86.253906 61.394531 C 85.964844 60.296875 85.246094 59.1875 84.773438 58.679688 C 84.027344 57.875 83.296875 57.316406 82.574219 57.003906 C 81.628906 56.597656 80.492188 56.328125 79.25 56.328125 C 77.808594 56.328125 76.492188 56.570312 75.425781 57.074219 C 74.355469 57.574219 73.460938 58.257812 72.753906 59.109375 C 72.050781 59.960938 71.523438 60.972656 71.1875 62.117188 C 70.851562 63.261719 70.675781 64.507812 70.675781 65.820312 C 70.675781 67.15625 70.851562 68.402344 71.203125 69.519531 C 71.554688 70.648438 72.121094 71.644531 72.882812 72.464844 C 73.644531 73.296875 74.625 73.945312 75.796875 74.398438 C 76.964844 74.847656 78.378906 75.082031 80.007812 75.078125 C 83.355469 75.066406 85.117188 74.320312 85.84375 73.917969 C 85.972656 73.847656 86.09375 73.722656 85.941406 73.363281 L 85.1875 71.242188 C 85.070312 70.925781 84.746094 71.042969 84.746094 71.042969 C 83.917969 71.347656 82.742188 71.902344 79.988281 71.898438 C 78.191406 71.894531 76.859375 71.363281 76.023438 70.535156 C 75.167969 69.6875 74.746094 68.4375 74.671875 66.675781 L 86.265625 66.6875 C 86.265625 66.6875 86.570312 66.683594 86.601562 66.386719 C 86.613281 66.261719 87 64.003906 86.253906 61.394531 M 49.667969 71.40625 C 49.21875 71.046875 49.152344 70.953125 49 70.722656 C 48.773438 70.363281 48.65625 69.859375 48.65625 69.214844 C 48.65625 68.195312 48.992188 67.460938 49.691406 66.96875 C 49.679688 66.972656 50.6875 66.101562 53.050781 66.132812 C 54.710938 66.152344 56.195312 66.398438 56.195312 66.398438 L 56.195312 71.667969 L 56.199219 71.667969 C 56.199219 71.667969 54.726562 71.984375 53.070312 72.085938 C 50.710938 72.226562 49.660156 71.40625 49.667969 71.40625 M 54.28125 63.261719 C 53.8125 63.226562 53.203125 63.207031 52.472656 63.207031 C 51.480469 63.207031 50.519531 63.332031 49.617188 63.574219 C 48.710938 63.816406 47.898438 64.195312 47.195312 64.699219 C 46.496094 65.199219 45.921875 65.851562 45.515625 66.609375 C 45.105469 67.375 44.898438 68.273438 44.898438 69.28125 C 44.898438 70.308594 45.074219 71.199219 45.425781 71.929688 C 45.78125 72.660156 46.289062 73.269531 46.941406 73.742188 C 47.585938 74.210938 48.378906 74.554688 49.300781 74.765625 C 50.210938 74.972656 51.242188 75.078125 52.371094 75.078125 C 53.558594 75.078125 54.742188 74.980469 55.890625 74.785156 C 57.027344 74.589844 58.425781 74.308594 58.8125 74.21875 C 59.082031 74.152344 59.355469 74.085938 59.625 74.011719 C 59.910156 73.941406 59.890625 73.632812 59.890625 73.632812 L 59.882812 63.03125 C 59.882812 60.707031 59.261719 58.984375 58.039062 57.914062 C 56.824219 56.847656 55.03125 56.308594 52.714844 56.308594 C 51.847656 56.308594 50.449219 56.429688 49.609375 56.597656 C 49.609375 56.597656 47.078125 57.089844 46.035156 57.902344 C 46.035156 57.902344 45.804688 58.046875 45.933594 58.363281 L 46.753906 60.570312 C 46.855469 60.855469 47.132812 60.757812 47.132812 60.757812 C 47.132812 60.757812 47.21875 60.722656 47.324219 60.664062 C 49.554688 59.449219 52.375 59.488281 52.375 59.488281 C 53.628906 59.488281 54.589844 59.738281 55.238281 60.238281 C 55.871094 60.722656 56.195312 61.453125 56.195312 62.996094 L 56.195312 63.488281 C 55.195312 63.34375 54.28125 63.261719 54.28125 63.261719 M 147.78125 57.289062 C 147.871094 57.027344 147.683594 56.902344 147.609375 56.875 C 147.410156 56.796875 146.425781 56.589844 145.664062 56.539062 C 144.210938 56.453125 143.398438 56.695312 142.675781 57.019531 C 141.957031 57.347656 141.160156 57.871094 140.714844 58.464844 L 140.714844 57.054688 C 140.714844 56.859375 140.578125 56.703125 140.382812 56.703125 L 137.410156 56.703125 C 137.21875 56.703125 137.078125 56.859375 137.078125 57.054688 L 137.078125 74.347656 C 137.078125 74.539062 137.238281 74.699219 137.429688 74.699219 L 140.476562 74.699219 C 140.671875 74.699219 140.828125 74.539062 140.828125 74.347656 L 140.828125 65.707031 C 140.828125 64.546875 140.957031 63.390625 141.210938 62.664062 C 141.460938 61.949219 141.804688 61.371094 142.226562 60.957031 C 142.652344 60.546875 143.132812 60.261719 143.660156 60.097656 C 144.199219 59.933594 144.792969 59.878906 145.214844 59.878906 C 145.820312 59.878906 146.488281 60.035156 146.488281 60.035156 C 146.710938 60.0625 146.835938 59.925781 146.910156 59.722656 C 147.109375 59.191406 147.671875 57.605469 147.78125 57.289062 "></path> <path fill="#FFF" d="M 119.195312 49.277344 C 118.824219 49.160156 118.488281 49.085938 118.046875 49.003906 C 117.605469 48.921875 117.074219 48.882812 116.472656 48.882812 C 114.375 48.882812 112.722656 49.476562 111.5625 50.644531 C 110.410156 51.804688 109.625 53.574219 109.234375 55.902344 L 109.089844 56.6875 L 106.457031 56.6875 C 106.457031 56.6875 106.140625 56.675781 106.070312 57.023438 L 105.640625 59.433594 C 105.609375 59.664062 105.710938 59.808594 106.015625 59.808594 L 108.578125 59.808594 L 105.980469 74.316406 C 105.777344 75.484375 105.542969 76.445312 105.285156 77.171875 C 105.03125 77.890625 104.785156 78.429688 104.476562 78.824219 C 104.179688 79.199219 103.898438 79.476562 103.414062 79.640625 C 103.015625 79.773438 102.554688 79.835938 102.050781 79.835938 C 101.773438 79.835938 101.398438 79.789062 101.121094 79.734375 C 100.847656 79.679688 100.703125 79.621094 100.496094 79.53125 C 100.496094 79.53125 100.195312 79.417969 100.078125 79.71875 C 99.984375 79.964844 99.300781 81.84375 99.214844 82.074219 C 99.136719 82.304688 99.25 82.484375 99.394531 82.539062 C 99.738281 82.65625 99.992188 82.738281 100.457031 82.847656 C 101.101562 83 101.644531 83.007812 102.152344 83.007812 C 103.21875 83.007812 104.195312 82.855469 105 82.566406 C 105.808594 82.273438 106.515625 81.761719 107.140625 81.074219 C 107.816406 80.328125 108.242188 79.546875 108.648438 78.476562 C 109.046875 77.421875 109.394531 76.113281 109.667969 74.585938 L 112.277344 59.808594 L 116.097656 59.808594 C 116.097656 59.808594 116.417969 59.820312 116.484375 59.46875 L 116.917969 57.058594 C 116.945312 56.828125 116.847656 56.6875 116.539062 56.6875 L 112.832031 56.6875 C 112.851562 56.605469 113.019531 55.296875 113.445312 54.070312 C 113.625 53.550781 113.96875 53.125 114.257812 52.835938 C 114.542969 52.550781 114.867188 52.347656 115.226562 52.230469 C 115.59375 52.109375 116.015625 52.054688 116.472656 52.054688 C 116.820312 52.054688 117.164062 52.09375 117.425781 52.148438 C 117.785156 52.226562 117.921875 52.265625 118.015625 52.292969 C 118.394531 52.40625 118.445312 52.296875 118.523438 52.113281 L 119.40625 49.679688 C 119.5 49.417969 119.273438 49.308594 119.195312 49.277344 M 67.40625 74.347656 C 67.40625 74.539062 67.265625 74.699219 67.074219 74.699219 L 64 74.699219 C 63.804688 74.699219 63.667969 74.539062 63.667969 74.347656 L 63.667969 49.605469 C 63.667969 49.414062 63.804688 49.253906 64 49.253906 L 67.074219 49.253906 C 67.265625 49.253906 67.40625 49.414062 67.40625 49.605469 Z M 67.40625 74.347656 "></path> </svg></template>

templates/googleLogo.html

<template> <svg xmlns="http://www.w3.org/2000/svg" width="140" height="140" viewBox="0 0 140 140"> <path fill="#4285F4" d="M 138.316406 72.179688 C 138.316406 67.382812 137.925781 62.558594 137.097656 57.839844 L 70.542969 57.839844 L 70.542969 85.011719 L 108.65625 85.011719 C 107.074219 93.773438 101.992188 101.527344 94.550781 106.453125 L 94.550781 124.082031 L 117.289062 124.082031 C 130.640625 111.792969 138.316406 93.644531 138.316406 72.179688 Z M 138.316406 72.179688 "></path> <path fill="#34A853" d="M 70.542969 141.113281 C 89.574219 141.113281 105.621094 134.867188 117.316406 124.082031 L 94.578125 106.453125 C 88.25 110.753906 80.085938 113.191406 70.570312 113.191406 C 52.164062 113.191406 36.554688 100.773438 30.957031 84.078125 L 7.492188 84.078125 L 7.492188 102.25 C 19.46875 126.078125 43.867188 141.113281 70.542969 141.113281 Z M 70.542969 141.113281 "></path> <path fill="#FBBC04" d="M 30.929688 84.078125 C 27.972656 75.316406 27.972656 65.824219 30.929688 57.0625 L 30.929688 38.890625 L 7.492188 38.890625 C -2.515625 58.824219 -2.515625 82.316406 7.492188 102.25 Z M 30.929688 84.078125 "></path> <path fill="#EA4335" d="M 70.542969 27.921875 C 80.605469 27.765625 90.324219 31.550781 97.609375 38.5 L 117.753906 18.355469 C 105 6.378906 88.070312 -0.207031 70.542969 0 C 43.867188 0 19.46875 15.035156 7.492188 38.890625 L 30.929688 57.0625 C 36.503906 40.339844 52.136719 27.921875 70.542969 27.921875 Z M 70.542969 27.921875 "></path> </svg></template>

Now, we’ve implemented the logic to serve one template or the other based on an @api property called name. We’ll use the Salesforce logo as the default template.

logo.js

import { LightningElement, api } from 'lwc';import googleLogo from './templates/googleLogo.html';import salesforceLogo from './templates/salesforceLogo.html';export default class Logo extends LightningElement { @api name; render() { if (this.name === 'googleLogo') return googleLogo; return salesforceLogo; }}

Finally, we can reference the logo component into our invitation, and configure it to return one of the templates:

salesforceAwardsInvitation2.html

<template> <div> <c-logo name="googleLogo"></c-logo> <p> Congratulations, you're invited to the annual Google Awards event! Hope to see you there. </p> </div></template>

This option needs to do an extra server trip to retrieve the component, but the component will serve all our SVGs, so it’s a good compromise between performance and reusability.

Store the SVG in a static resource

SVGs can be uploaded as static resources. Salesforce acts as a content distribution network (CDN) for static resources, handling automatic caching and distribution. Additionally, if you’re using SVGs to create an icon system, you can improve performance even more by combining the different icons into a single SVG sprite. This removes the need to do multiple round-trips to retrieve different icons.

Let’s take a look at two options to include an SVG static resource in your component.

Include the static resource SVG with use

If you need to configure the CSS of the SVG, as we did above, pick this solution. To follow this approach, you must add an id to the svg tag in your SVG file. This step is important, as without the id, the SVG won’t be loaded correctly:

salesforceLogo.svg

<svg id="sflogo" xmlns="http://www.w3.org/2000/svg" width="200" height="140" viewBox="0 0 200 140"> <path fill="#00A1E0" d="M 83.226562 15.273438 C 89.679688 8.554688 98.660156 4.382812 108.589844 4.382812 C 121.792969 4.382812 133.308594 11.746094 139.445312 22.675781 C 144.773438 20.292969 150.675781 18.96875 156.882812 18.96875 C 180.695312 18.96875 200 38.441406 200 62.460938 C 200 86.484375 180.695312 105.957031 156.882812 105.957031 C 154.03125 105.957031 151.1875 105.675781 148.390625 105.109375 C 142.988281 114.746094 132.695312 121.257812 120.878906 121.257812 C 115.933594 121.257812 111.257812 120.113281 107.089844 118.082031 C 101.617188 130.960938 88.859375 139.992188 73.988281 139.992188 C 58.503906 139.992188 45.308594 130.195312 40.242188 116.457031 C 38.027344 116.925781 35.734375 117.171875 33.382812 117.171875 C 14.945312 117.171875 0 102.070312 0 83.441406 C 0 70.957031 6.714844 60.058594 16.691406 54.226562 C 14.636719 49.5 13.496094 44.28125 13.496094 38.796875 C 13.496094 17.375 30.890625 0.00390625 52.34375 0.00390625 C 64.9375 0.00390625 76.132812 5.996094 83.226562 15.273438 "/> <path fill="#FFF" d="M 28.96875 72.601562 C 28.84375 72.929688 29.015625 72.996094 29.054688 73.054688 C 29.429688 73.328125 29.8125 73.523438 30.195312 73.742188 C 32.234375 74.824219 34.164062 75.140625 36.175781 75.140625 C 40.277344 75.140625 42.824219 72.960938 42.824219 69.445312 L 42.824219 69.378906 C 42.824219 66.128906 39.953125 64.949219 37.253906 64.097656 L 36.902344 63.984375 C 34.867188 63.324219 33.113281 62.753906 33.113281 61.414062 L 33.113281 61.34375 C 33.113281 60.199219 34.140625 59.355469 35.730469 59.355469 C 37.496094 59.355469 39.59375 59.941406 40.941406 60.6875 C 40.941406 60.6875 41.339844 60.945312 41.484375 60.5625 C 41.5625 60.355469 42.246094 58.515625 42.320312 58.316406 C 42.394531 58.097656 42.257812 57.9375 42.121094 57.855469 C 40.578125 56.917969 38.445312 56.277344 36.242188 56.277344 L 35.832031 56.277344 C 32.078125 56.277344 29.457031 58.546875 29.457031 61.796875 L 29.457031 61.867188 C 29.457031 65.292969 32.347656 66.402344 35.058594 67.179688 L 35.492188 67.3125 C 37.46875 67.917969 39.167969 68.441406 39.167969 69.832031 L 39.167969 69.898438 C 39.167969 71.171875 38.0625 72.117188 36.277344 72.117188 C 35.585938 72.117188 33.378906 72.101562 30.996094 70.59375 C 30.707031 70.425781 30.539062 70.304688 30.316406 70.171875 C 30.199219 70.097656 29.90625 69.96875 29.777344 70.355469 Z M 89.027344 72.601562 C 88.902344 72.929688 89.074219 72.996094 89.113281 73.054688 C 89.488281 73.328125 89.871094 73.523438 90.253906 73.742188 C 92.296875 74.824219 94.222656 75.140625 96.234375 75.140625 C 100.339844 75.140625 102.886719 72.960938 102.886719 69.445312 L 102.886719 69.378906 C 102.886719 66.128906 100.011719 64.949219 97.3125 64.097656 L 96.960938 63.984375 C 94.929688 63.324219 93.171875 62.753906 93.171875 61.414062 L 93.171875 61.34375 C 93.171875 60.199219 94.199219 59.355469 95.789062 59.355469 C 97.554688 59.355469 99.652344 59.941406 101.003906 60.6875 C 101.003906 60.6875 101.398438 60.945312 101.542969 60.5625 C 101.621094 60.355469 102.308594 58.515625 102.378906 58.316406 C 102.457031 58.097656 102.316406 57.9375 102.179688 57.855469 C 100.636719 56.917969 98.507812 56.277344 96.300781 56.277344 L 95.890625 56.277344 C 92.136719 56.277344 89.515625 58.546875 89.515625 61.796875 L 89.515625 61.867188 C 89.515625 65.292969 92.40625 66.402344 95.117188 67.179688 L 95.550781 67.3125 C 97.527344 67.917969 99.230469 68.441406 99.230469 69.832031 L 99.230469 69.898438 C 99.230469 71.171875 98.121094 72.117188 96.339844 72.117188 C 95.644531 72.117188 93.4375 72.101562 91.054688 70.59375 C 90.765625 70.425781 90.59375 70.308594 90.378906 70.171875 C 90.304688 70.121094 89.957031 69.988281 89.835938 70.355469 Z M 130.027344 65.71875 C 130.027344 67.707031 129.660156 69.269531 128.929688 70.375 C 128.207031 71.46875 127.117188 72 125.597656 72 C 124.070312 72 122.988281 71.472656 122.277344 70.375 C 121.558594 69.273438 121.195312 67.707031 121.195312 65.71875 C 121.195312 63.738281 121.558594 62.175781 122.277344 61.082031 C 122.988281 60 124.070312 59.472656 125.597656 59.472656 C 127.117188 59.472656 128.207031 60 128.933594 61.082031 C 129.660156 62.175781 130.027344 63.738281 130.027344 65.71875 M 133.453125 62.039062 C 133.117188 60.902344 132.59375 59.898438 131.894531 59.0625 C 131.195312 58.226562 130.3125 57.554688 129.265625 57.0625 C 128.21875 56.578125 126.984375 56.328125 125.597656 56.328125 C 124.207031 56.328125 122.96875 56.578125 121.921875 57.0625 C 120.875 57.554688 119.992188 58.226562 119.292969 59.0625 C 118.597656 59.902344 118.070312 60.90625 117.734375 62.039062 C 117.398438 63.167969 117.230469 64.40625 117.230469 65.71875 C 117.230469 67.03125 117.398438 68.273438 117.734375 69.402344 C 118.070312 70.535156 118.59375 71.539062 119.292969 72.375 C 119.992188 73.210938 120.878906 73.882812 121.925781 74.359375 C 122.972656 74.832031 124.207031 75.074219 125.597656 75.074219 C 126.984375 75.074219 128.21875 74.832031 129.265625 74.359375 C 130.3125 73.882812 131.195312 73.210938 131.894531 72.375 C 132.59375 71.539062 133.117188 70.539062 133.453125 69.402344 C 133.789062 68.269531 133.957031 67.03125 133.957031 65.71875 C 133.957031 64.410156 133.789062 63.167969 133.453125 62.039062 M 161.574219 71.472656 C 161.460938 71.136719 161.140625 71.261719 161.140625 71.261719 C 160.640625 71.453125 160.109375 71.628906 159.546875 71.71875 C 158.972656 71.808594 158.34375 71.851562 157.667969 71.851562 C 156.011719 71.851562 154.695312 71.359375 153.75 70.386719 C 152.804688 69.410156 152.277344 67.835938 152.28125 65.703125 C 152.289062 63.765625 152.753906 62.304688 153.59375 61.195312 C 154.429688 60.089844 155.699219 59.523438 157.394531 59.523438 C 158.808594 59.523438 159.886719 59.683594 161.015625 60.042969 C 161.015625 60.042969 161.285156 60.15625 161.414062 59.804688 C 161.710938 58.972656 161.933594 58.378906 162.253906 57.460938 C 162.34375 57.203125 162.121094 57.09375 162.042969 57.0625 C 161.597656 56.886719 160.550781 56.605469 159.757812 56.484375 C 159.015625 56.371094 158.152344 56.3125 157.1875 56.3125 C 155.75 56.3125 154.464844 56.558594 153.371094 57.046875 C 152.277344 57.535156 151.347656 58.207031 150.613281 59.042969 C 149.878906 59.882812 149.320312 60.882812 148.945312 62.019531 C 148.574219 63.148438 148.386719 64.390625 148.386719 65.703125 C 148.386719 68.546875 149.152344 70.839844 150.667969 72.523438 C 152.183594 74.210938 154.457031 75.066406 157.425781 75.066406 C 159.183594 75.066406 160.984375 74.710938 162.277344 74.199219 C 162.277344 74.199219 162.523438 74.082031 162.414062 73.792969 Z M 167.566406 63.816406 C 167.730469 62.714844 168.035156 61.796875 168.503906 61.082031 C 169.214844 59.996094 170.296875 59.402344 171.816406 59.402344 C 173.339844 59.402344 174.34375 60 175.066406 61.082031 C 175.542969 61.796875 175.753906 62.753906 175.835938 63.816406 Z M 179.097656 61.394531 C 178.804688 60.296875 178.085938 59.1875 177.613281 58.679688 C 176.867188 57.875 176.136719 57.316406 175.414062 57.003906 C 174.46875 56.597656 173.332031 56.328125 172.089844 56.328125 C 170.644531 56.328125 169.332031 56.570312 168.265625 57.074219 C 167.195312 57.574219 166.300781 58.257812 165.59375 59.109375 C 164.890625 59.960938 164.363281 60.972656 164.027344 62.117188 C 163.6875 63.261719 163.515625 64.507812 163.515625 65.820312 C 163.515625 67.15625 163.691406 68.402344 164.042969 69.519531 C 164.394531 70.648438 164.960938 71.644531 165.722656 72.464844 C 166.484375 73.296875 167.464844 73.945312 168.636719 74.398438 C 169.804688 74.847656 171.21875 75.082031 172.847656 75.078125 C 176.195312 75.066406 177.957031 74.320312 178.683594 73.917969 C 178.8125 73.847656 178.933594 73.722656 178.78125 73.363281 L 178.023438 71.242188 C 177.910156 70.925781 177.585938 71.042969 177.585938 71.042969 C 176.757812 71.347656 175.578125 71.902344 172.828125 71.898438 C 171.03125 71.894531 169.699219 71.363281 168.863281 70.535156 C 168.003906 69.6875 167.585938 68.4375 167.511719 66.675781 L 179.105469 66.6875 C 179.105469 66.6875 179.410156 66.683594 179.441406 66.386719 C 179.453125 66.261719 179.839844 64.003906 179.097656 61.394531 M 74.726562 63.816406 C 74.890625 62.714844 75.195312 61.796875 75.664062 61.082031 C 76.375 59.996094 77.457031 59.402344 78.976562 59.402344 C 80.5 59.402344 81.503906 60 82.226562 61.082031 C 82.703125 61.796875 82.914062 62.753906 82.996094 63.816406 Z M 86.253906 61.394531 C 85.964844 60.296875 85.246094 59.1875 84.773438 58.679688 C 84.027344 57.875 83.296875 57.316406 82.574219 57.003906 C 81.628906 56.597656 80.492188 56.328125 79.25 56.328125 C 77.808594 56.328125 76.492188 56.570312 75.425781 57.074219 C 74.355469 57.574219 73.460938 58.257812 72.753906 59.109375 C 72.050781 59.960938 71.523438 60.972656 71.1875 62.117188 C 70.851562 63.261719 70.675781 64.507812 70.675781 65.820312 C 70.675781 67.15625 70.851562 68.402344 71.203125 69.519531 C 71.554688 70.648438 72.121094 71.644531 72.882812 72.464844 C 73.644531 73.296875 74.625 73.945312 75.796875 74.398438 C 76.964844 74.847656 78.378906 75.082031 80.007812 75.078125 C 83.355469 75.066406 85.117188 74.320312 85.84375 73.917969 C 85.972656 73.847656 86.09375 73.722656 85.941406 73.363281 L 85.1875 71.242188 C 85.070312 70.925781 84.746094 71.042969 84.746094 71.042969 C 83.917969 71.347656 82.742188 71.902344 79.988281 71.898438 C 78.191406 71.894531 76.859375 71.363281 76.023438 70.535156 C 75.167969 69.6875 74.746094 68.4375 74.671875 66.675781 L 86.265625 66.6875 C 86.265625 66.6875 86.570312 66.683594 86.601562 66.386719 C 86.613281 66.261719 87 64.003906 86.253906 61.394531 M 49.667969 71.40625 C 49.21875 71.046875 49.152344 70.953125 49 70.722656 C 48.773438 70.363281 48.65625 69.859375 48.65625 69.214844 C 48.65625 68.195312 48.992188 67.460938 49.691406 66.96875 C 49.679688 66.972656 50.6875 66.101562 53.050781 66.132812 C 54.710938 66.152344 56.195312 66.398438 56.195312 66.398438 L 56.195312 71.667969 L 56.199219 71.667969 C 56.199219 71.667969 54.726562 71.984375 53.070312 72.085938 C 50.710938 72.226562 49.660156 71.40625 49.667969 71.40625 M 54.28125 63.261719 C 53.8125 63.226562 53.203125 63.207031 52.472656 63.207031 C 51.480469 63.207031 50.519531 63.332031 49.617188 63.574219 C 48.710938 63.816406 47.898438 64.195312 47.195312 64.699219 C 46.496094 65.199219 45.921875 65.851562 45.515625 66.609375 C 45.105469 67.375 44.898438 68.273438 44.898438 69.28125 C 44.898438 70.308594 45.074219 71.199219 45.425781 71.929688 C 45.78125 72.660156 46.289062 73.269531 46.941406 73.742188 C 47.585938 74.210938 48.378906 74.554688 49.300781 74.765625 C 50.210938 74.972656 51.242188 75.078125 52.371094 75.078125 C 53.558594 75.078125 54.742188 74.980469 55.890625 74.785156 C 57.027344 74.589844 58.425781 74.308594 58.8125 74.21875 C 59.082031 74.152344 59.355469 74.085938 59.625 74.011719 C 59.910156 73.941406 59.890625 73.632812 59.890625 73.632812 L 59.882812 63.03125 C 59.882812 60.707031 59.261719 58.984375 58.039062 57.914062 C 56.824219 56.847656 55.03125 56.308594 52.714844 56.308594 C 51.847656 56.308594 50.449219 56.429688 49.609375 56.597656 C 49.609375 56.597656 47.078125 57.089844 46.035156 57.902344 C 46.035156 57.902344 45.804688 58.046875 45.933594 58.363281 L 46.753906 60.570312 C 46.855469 60.855469 47.132812 60.757812 47.132812 60.757812 C 47.132812 60.757812 47.21875 60.722656 47.324219 60.664062 C 49.554688 59.449219 52.375 59.488281 52.375 59.488281 C 53.628906 59.488281 54.589844 59.738281 55.238281 60.238281 C 55.871094 60.722656 56.195312 61.453125 56.195312 62.996094 L 56.195312 63.488281 C 55.195312 63.34375 54.28125 63.261719 54.28125 63.261719 M 147.78125 57.289062 C 147.871094 57.027344 147.683594 56.902344 147.609375 56.875 C 147.410156 56.796875 146.425781 56.589844 145.664062 56.539062 C 144.210938 56.453125 143.398438 56.695312 142.675781 57.019531 C 141.957031 57.347656 141.160156 57.871094 140.714844 58.464844 L 140.714844 57.054688 C 140.714844 56.859375 140.578125 56.703125 140.382812 56.703125 L 137.410156 56.703125 C 137.21875 56.703125 137.078125 56.859375 137.078125 57.054688 L 137.078125 74.347656 C 137.078125 74.539062 137.238281 74.699219 137.429688 74.699219 L 140.476562 74.699219 C 140.671875 74.699219 140.828125 74.539062 140.828125 74.347656 L 140.828125 65.707031 C 140.828125 64.546875 140.957031 63.390625 141.210938 62.664062 C 141.460938 61.949219 141.804688 61.371094 142.226562 60.957031 C 142.652344 60.546875 143.132812 60.261719 143.660156 60.097656 C 144.199219 59.933594 144.792969 59.878906 145.214844 59.878906 C 145.820312 59.878906 146.488281 60.035156 146.488281 60.035156 C 146.710938 60.0625 146.835938 59.925781 146.910156 59.722656 C 147.109375 59.191406 147.671875 57.605469 147.78125 57.289062 "/> <path fill="#FFF" d="M 119.195312 49.277344 C 118.824219 49.160156 118.488281 49.085938 118.046875 49.003906 C 117.605469 48.921875 117.074219 48.882812 116.472656 48.882812 C 114.375 48.882812 112.722656 49.476562 111.5625 50.644531 C 110.410156 51.804688 109.625 53.574219 109.234375 55.902344 L 109.089844 56.6875 L 106.457031 56.6875 C 106.457031 56.6875 106.140625 56.675781 106.070312 57.023438 L 105.640625 59.433594 C 105.609375 59.664062 105.710938 59.808594 106.015625 59.808594 L 108.578125 59.808594 L 105.980469 74.316406 C 105.777344 75.484375 105.542969 76.445312 105.285156 77.171875 C 105.03125 77.890625 104.785156 78.429688 104.476562 78.824219 C 104.179688 79.199219 103.898438 79.476562 103.414062 79.640625 C 103.015625 79.773438 102.554688 79.835938 102.050781 79.835938 C 101.773438 79.835938 101.398438 79.789062 101.121094 79.734375 C 100.847656 79.679688 100.703125 79.621094 100.496094 79.53125 C 100.496094 79.53125 100.195312 79.417969 100.078125 79.71875 C 99.984375 79.964844 99.300781 81.84375 99.214844 82.074219 C 99.136719 82.304688 99.25 82.484375 99.394531 82.539062 C 99.738281 82.65625 99.992188 82.738281 100.457031 82.847656 C 101.101562 83 101.644531 83.007812 102.152344 83.007812 C 103.21875 83.007812 104.195312 82.855469 105 82.566406 C 105.808594 82.273438 106.515625 81.761719 107.140625 81.074219 C 107.816406 80.328125 108.242188 79.546875 108.648438 78.476562 C 109.046875 77.421875 109.394531 76.113281 109.667969 74.585938 L 112.277344 59.808594 L 116.097656 59.808594 C 116.097656 59.808594 116.417969 59.820312 116.484375 59.46875 L 116.917969 57.058594 C 116.945312 56.828125 116.847656 56.6875 116.539062 56.6875 L 112.832031 56.6875 C 112.851562 56.605469 113.019531 55.296875 113.445312 54.070312 C 113.625 53.550781 113.96875 53.125 114.257812 52.835938 C 114.542969 52.550781 114.867188 52.347656 115.226562 52.230469 C 115.59375 52.109375 116.015625 52.054688 116.472656 52.054688 C 116.820312 52.054688 117.164062 52.09375 117.425781 52.148438 C 117.785156 52.226562 117.921875 52.265625 118.015625 52.292969 C 118.394531 52.40625 118.445312 52.296875 118.523438 52.113281 L 119.40625 49.679688 C 119.5 49.417969 119.273438 49.308594 119.195312 49.277344 M 67.40625 74.347656 C 67.40625 74.539062 67.265625 74.699219 67.074219 74.699219 L 64 74.699219 C 63.804688 74.699219 63.667969 74.539062 63.667969 74.347656 L 63.667969 49.605469 C 63.667969 49.414062 63.804688 49.253906 64 49.253906 L 67.074219 49.253906 C 67.265625 49.253906 67.40625 49.414062 67.40625 49.605469 Z M 67.40625 74.347656 "/></svg>

Next, you’ll have to import the static resource in your component, in the same way as with other static resources. Note that you’ll have to concatenate the resource URL with the id that you set in the svg tag, as follows:

salesforceAwardsInvitation3.js

import { LightningElement } from 'lwc';import SVG\_LOGO from '@salesforce/resourceUrl/salesforceLogo';export default class SalesforceAwardsInvitation3 extends LightningElement { svgURL = `${SVG_LOGO}#sflogo`}

Having done that, you can reference the SVG passing the static resource computed URL (svgURL) to the href attribute of the use element. The use element clones the referenced node and its children into the place where it’s used, in this case the component markup. The href element needs to include the node id, this is the reason why we added an id to the static resource.

salesforceAwardsInvitation3.html

<template> <div> <svg xmlns="http://www.w3.org/2000/svg"> <use href={svgURL}></use> </svg> <p> Congratulations, you're invited to the annual Salesforce Awards event! Hope to see you there. </p> </div></template>

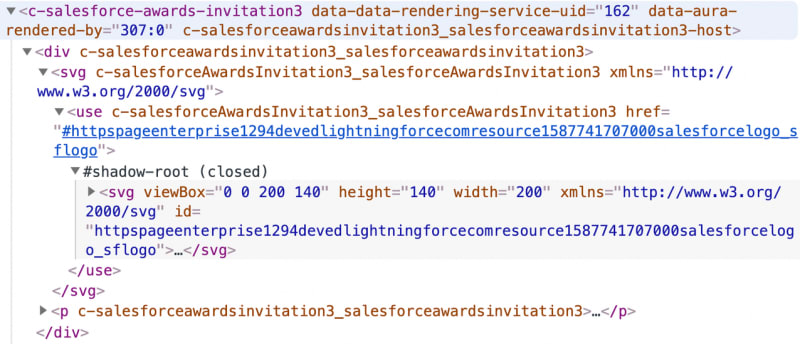

If we take a look at the nodes that are generated by the use element, we’ll see that the SVG nodes have been copied as part of the invitation component DOM, but they are enclosed in a shadow DOM:

Note: you need to activate “Show user agent shadow DOM” in Chrome Developer Tools settings to be able to see Shadow DOM contents.

Shadow DOM elements cannot be accessed using regular CSS selectors. If we try to style the image in the same way that we did at the beginning of the blog post, it won’t work. However, we can set the fill attribute as inherit in the SVG path and control it from the parent.

salesforceLogo.svg

<svg id="sflogo" xmlns="http://www.w3.org/2000/svg" width="200" height="140" viewBox="0 0 200 140"> <path fill="inherit" d="M 83.226562 15.273438 C 89.679688 8.554688 98.660156 4.382812 108.589844 4.382812 C 121.792969 4.382812 133.308594 11.746094 139.445312 22.675781 C 144.773438 20.292969 150.675781 18.96875 156.882812 18.96875 C 180.695312 18.96875 200 38.441406 200 62.460938 C 200 86.484375 180.695312 105.957031 156.882812 105.957031 C 154.03125 105.957031 151.1875 105.675781 148.390625 105.109375 C 142.988281 114.746094 132.695312 121.257812 120.878906 121.257812 C 115.933594 121.257812 111.257812 120.113281 107.089844 118.082031 C 101.617188 130.960938 88.859375 139.992188 73.988281 139.992188 C 58.503906 139.992188 45.308594 130.195312 40.242188 116.457031 C 38.027344 116.925781 35.734375 117.171875 33.382812 117.171875 C 14.945312 117.171875 0 102.070312 0 83.441406 C 0 70.957031 6.714844 60.058594 16.691406 54.226562 C 14.636719 49.5 13.496094 44.28125 13.496094 38.796875 C 13.496094 17.375 30.890625 0.00390625 52.34375 0.00390625 C 64.9375 0.00390625 76.132812 5.996094 83.226562 15.273438 "/> <path fill="#FFF" d="M 28.96875 72.601562 C 28.84375 72.929688 29.015625 72.996094 29.054688 73.054688 C 29.429688 73.328125 29.8125 73.523438 30.195312 73.742188 C 32.234375 74.824219 34.164062 75.140625 36.175781 75.140625 C 40.277344 75.140625 42.824219 72.960938 42.824219 69.445312 L 42.824219 69.378906 C 42.824219 66.128906 39.953125 64.949219 37.253906 64.097656 L 36.902344 63.984375 C 34.867188 63.324219 33.113281 62.753906 33.113281 61.414062 L 33.113281 61.34375 C 33.113281 60.199219 34.140625 59.355469 35.730469 59.355469 C 37.496094 59.355469 39.59375 59.941406 40.941406 60.6875 C 40.941406 60.6875 41.339844 60.945312 41.484375 60.5625 C 41.5625 60.355469 42.246094 58.515625 42.320312 58.316406 C 42.394531 58.097656 42.257812 57.9375 42.121094 57.855469 C 40.578125 56.917969 38.445312 56.277344 36.242188 56.277344 L 35.832031 56.277344 C 32.078125 56.277344 29.457031 58.546875 29.457031 61.796875 L 29.457031 61.867188 C 29.457031 65.292969 32.347656 66.402344 35.058594 67.179688 L 35.492188 67.3125 C 37.46875 67.917969 39.167969 68.441406 39.167969 69.832031 L 39.167969 69.898438 C 39.167969 71.171875 38.0625 72.117188 36.277344 72.117188 C 35.585938 72.117188 33.378906 72.101562 30.996094 70.59375 C 30.707031 70.425781 30.539062 70.304688 30.316406 70.171875 C 30.199219 70.097656 29.90625 69.96875 29.777344 70.355469 Z M 89.027344 72.601562 C 88.902344 72.929688 89.074219 72.996094 89.113281 73.054688 C 89.488281 73.328125 89.871094 73.523438 90.253906 73.742188 C 92.296875 74.824219 94.222656 75.140625 96.234375 75.140625 C 100.339844 75.140625 102.886719 72.960938 102.886719 69.445312 L 102.886719 69.378906 C 102.886719 66.128906 100.011719 64.949219 97.3125 64.097656 L 96.960938 63.984375 C 94.929688 63.324219 93.171875 62.753906 93.171875 61.414062 L 93.171875 61.34375 C 93.171875 60.199219 94.199219 59.355469 95.789062 59.355469 C 97.554688 59.355469 99.652344 59.941406 101.003906 60.6875 C 101.003906 60.6875 101.398438 60.945312 101.542969 60.5625 C 101.621094 60.355469 102.308594 58.515625 102.378906 58.316406 C 102.457031 58.097656 102.316406 57.9375 102.179688 57.855469 C 100.636719 56.917969 98.507812 56.277344 96.300781 56.277344 L 95.890625 56.277344 C 92.136719 56.277344 89.515625 58.546875 89.515625 61.796875 L 89.515625 61.867188 C 89.515625 65.292969 92.40625 66.402344 95.117188 67.179688 L 95.550781 67.3125 C 97.527344 67.917969 99.230469 68.441406 99.230469 69.832031 L 99.230469 69.898438 C 99.230469 71.171875 98.121094 72.117188 96.339844 72.117188 C 95.644531 72.117188 93.4375 72.101562 91.054688 70.59375 C 90.765625 70.425781 90.59375 70.308594 90.378906 70.171875 C 90.304688 70.121094 89.957031 69.988281 89.835938 70.355469 Z M 130.027344 65.71875 C 130.027344 67.707031 129.660156 69.269531 128.929688 70.375 C 128.207031 71.46875 127.117188 72 125.597656 72 C 124.070312 72 122.988281 71.472656 122.277344 70.375 C 121.558594 69.273438 121.195312 67.707031 121.195312 65.71875 C 121.195312 63.738281 121.558594 62.175781 122.277344 61.082031 C 122.988281 60 124.070312 59.472656 125.597656 59.472656 C 127.117188 59.472656 128.207031 60 128.933594 61.082031 C 129.660156 62.175781 130.027344 63.738281 130.027344 65.71875 M 133.453125 62.039062 C 133.117188 60.902344 132.59375 59.898438 131.894531 59.0625 C 131.195312 58.226562 130.3125 57.554688 129.265625 57.0625 C 128.21875 56.578125 126.984375 56.328125 125.597656 56.328125 C 124.207031 56.328125 122.96875 56.578125 121.921875 57.0625 C 120.875 57.554688 119.992188 58.226562 119.292969 59.0625 C 118.597656 59.902344 118.070312 60.90625 117.734375 62.039062 C 117.398438 63.167969 117.230469 64.40625 117.230469 65.71875 C 117.230469 67.03125 117.398438 68.273438 117.734375 69.402344 C 118.070312 70.535156 118.59375 71.539062 119.292969 72.375 C 119.992188 73.210938 120.878906 73.882812 121.925781 74.359375 C 122.972656 74.832031 124.207031 75.074219 125.597656 75.074219 C 126.984375 75.074219 128.21875 74.832031 129.265625 74.359375 C 130.3125 73.882812 131.195312 73.210938 131.894531 72.375 C 132.59375 71.539062 133.117188 70.539062 133.453125 69.402344 C 133.789062 68.269531 133.957031 67.03125 133.957031 65.71875 C 133.957031 64.410156 133.789062 63.167969 133.453125 62.039062 M 161.574219 71.472656 C 161.460938 71.136719 161.140625 71.261719 161.140625 71.261719 C 160.640625 71.453125 160.109375 71.628906 159.546875 71.71875 C 158.972656 71.808594 158.34375 71.851562 157.667969 71.851562 C 156.011719 71.851562 154.695312 71.359375 153.75 70.386719 C 152.804688 69.410156 152.277344 67.835938 152.28125 65.703125 C 152.289062 63.765625 152.753906 62.304688 153.59375 61.195312 C 154.429688 60.089844 155.699219 59.523438 157.394531 59.523438 C 158.808594 59.523438 159.886719 59.683594 161.015625 60.042969 C 161.015625 60.042969 161.285156 60.15625 161.414062 59.804688 C 161.710938 58.972656 161.933594 58.378906 162.253906 57.460938 C 162.34375 57.203125 162.121094 57.09375 162.042969 57.0625 C 161.597656 56.886719 160.550781 56.605469 159.757812 56.484375 C 159.015625 56.371094 158.152344 56.3125 157.1875 56.3125 C 155.75 56.3125 154.464844 56.558594 153.371094 57.046875 C 152.277344 57.535156 151.347656 58.207031 150.613281 59.042969 C 149.878906 59.882812 149.320312 60.882812 148.945312 62.019531 C 148.574219 63.148438 148.386719 64.390625 148.386719 65.703125 C 148.386719 68.546875 149.152344 70.839844 150.667969 72.523438 C 152.183594 74.210938 154.457031 75.066406 157.425781 75.066406 C 159.183594 75.066406 160.984375 74.710938 162.277344 74.199219 C 162.277344 74.199219 162.523438 74.082031 162.414062 73.792969 Z M 167.566406 63.816406 C 167.730469 62.714844 168.035156 61.796875 168.503906 61.082031 C 169.214844 59.996094 170.296875 59.402344 171.816406 59.402344 C 173.339844 59.402344 174.34375 60 175.066406 61.082031 C 175.542969 61.796875 175.753906 62.753906 175.835938 63.816406 Z M 179.097656 61.394531 C 178.804688 60.296875 178.085938 59.1875 177.613281 58.679688 C 176.867188 57.875 176.136719 57.316406 175.414062 57.003906 C 174.46875 56.597656 173.332031 56.328125 172.089844 56.328125 C 170.644531 56.328125 169.332031 56.570312 168.265625 57.074219 C 167.195312 57.574219 166.300781 58.257812 165.59375 59.109375 C 164.890625 59.960938 164.363281 60.972656 164.027344 62.117188 C 163.6875 63.261719 163.515625 64.507812 163.515625 65.820312 C 163.515625 67.15625 163.691406 68.402344 164.042969 69.519531 C 164.394531 70.648438 164.960938 71.644531 165.722656 72.464844 C 166.484375 73.296875 167.464844 73.945312 168.636719 74.398438 C 169.804688 74.847656 171.21875 75.082031 172.847656 75.078125 C 176.195312 75.066406 177.957031 74.320312 178.683594 73.917969 C 178.8125 73.847656 178.933594 73.722656 178.78125 73.363281 L 178.023438 71.242188 C 177.910156 70.925781 177.585938 71.042969 177.585938 71.042969 C 176.757812 71.347656 175.578125 71.902344 172.828125 71.898438 C 171.03125 71.894531 169.699219 71.363281 168.863281 70.535156 C 168.003906 69.6875 167.585938 68.4375 167.511719 66.675781 L 179.105469 66.6875 C 179.105469 66.6875 179.410156 66.683594 179.441406 66.386719 C 179.453125 66.261719 179.839844 64.003906 179.097656 61.394531 M 74.726562 63.816406 C 74.890625 62.714844 75.195312 61.796875 75.664062 61.082031 C 76.375 59.996094 77.457031 59.402344 78.976562 59.402344 C 80.5 59.402344 81.503906 60 82.226562 61.082031 C 82.703125 61.796875 82.914062 62.753906 82.996094 63.816406 Z M 86.253906 61.394531 C 85.964844 60.296875 85.246094 59.1875 84.773438 58.679688 C 84.027344 57.875 83.296875 57.316406 82.574219 57.003906 C 81.628906 56.597656 80.492188 56.328125 79.25 56.328125 C 77.808594 56.328125 76.492188 56.570312 75.425781 57.074219 C 74.355469 57.574219 73.460938 58.257812 72.753906 59.109375 C 72.050781 59.960938 71.523438 60.972656 71.1875 62.117188 C 70.851562 63.261719 70.675781 64.507812 70.675781 65.820312 C 70.675781 67.15625 70.851562 68.402344 71.203125 69.519531 C 71.554688 70.648438 72.121094 71.644531 72.882812 72.464844 C 73.644531 73.296875 74.625 73.945312 75.796875 74.398438 C 76.964844 74.847656 78.378906 75.082031 80.007812 75.078125 C 83.355469 75.066406 85.117188 74.320312 85.84375 73.917969 C 85.972656 73.847656 86.09375 73.722656 85.941406 73.363281 L 85.1875 71.242188 C 85.070312 70.925781 84.746094 71.042969 84.746094 71.042969 C 83.917969 71.347656 82.742188 71.902344 79.988281 71.898438 C 78.191406 71.894531 76.859375 71.363281 76.023438 70.535156 C 75.167969 69.6875 74.746094 68.4375 74.671875 66.675781 L 86.265625 66.6875 C 86.265625 66.6875 86.570312 66.683594 86.601562 66.386719 C 86.613281 66.261719 87 64.003906 86.253906 61.394531 M 49.667969 71.40625 C 49.21875 71.046875 49.152344 70.953125 49 70.722656 C 48.773438 70.363281 48.65625 69.859375 48.65625 69.214844 C 48.65625 68.195312 48.992188 67.460938 49.691406 66.96875 C 49.679688 66.972656 50.6875 66.101562 53.050781 66.132812 C 54.710938 66.152344 56.195312 66.398438 56.195312 66.398438 L 56.195312 71.667969 L 56.199219 71.667969 C 56.199219 71.667969 54.726562 71.984375 53.070312 72.085938 C 50.710938 72.226562 49.660156 71.40625 49.667969 71.40625 M 54.28125 63.261719 C 53.8125 63.226562 53.203125 63.207031 52.472656 63.207031 C 51.480469 63.207031 50.519531 63.332031 49.617188 63.574219 C 48.710938 63.816406 47.898438 64.195312 47.195312 64.699219 C 46.496094 65.199219 45.921875 65.851562 45.515625 66.609375 C 45.105469 67.375 44.898438 68.273438 44.898438 69.28125 C 44.898438 70.308594 45.074219 71.199219 45.425781 71.929688 C 45.78125 72.660156 46.289062 73.269531 46.941406 73.742188 C 47.585938 74.210938 48.378906 74.554688 49.300781 74.765625 C 50.210938 74.972656 51.242188 75.078125 52.371094 75.078125 C 53.558594 75.078125 54.742188 74.980469 55.890625 74.785156 C 57.027344 74.589844 58.425781 74.308594 58.8125 74.21875 C 59.082031 74.152344 59.355469 74.085938 59.625 74.011719 C 59.910156 73.941406 59.890625 73.632812 59.890625 73.632812 L 59.882812 63.03125 C 59.882812 60.707031 59.261719 58.984375 58.039062 57.914062 C 56.824219 56.847656 55.03125 56.308594 52.714844 56.308594 C 51.847656 56.308594 50.449219 56.429688 49.609375 56.597656 C 49.609375 56.597656 47.078125 57.089844 46.035156 57.902344 C 46.035156 57.902344 45.804688 58.046875 45.933594 58.363281 L 46.753906 60.570312 C 46.855469 60.855469 47.132812 60.757812 47.132812 60.757812 C 47.132812 60.757812 47.21875 60.722656 47.324219 60.664062 C 49.554688 59.449219 52.375 59.488281 52.375 59.488281 C 53.628906 59.488281 54.589844 59.738281 55.238281 60.238281 C 55.871094 60.722656 56.195312 61.453125 56.195312 62.996094 L 56.195312 63.488281 C 55.195312 63.34375 54.28125 63.261719 54.28125 63.261719 M 147.78125 57.289062 C 147.871094 57.027344 147.683594 56.902344 147.609375 56.875 C 147.410156 56.796875 146.425781 56.589844 145.664062 56.539062 C 144.210938 56.453125 143.398438 56.695312 142.675781 57.019531 C 141.957031 57.347656 141.160156 57.871094 140.714844 58.464844 L 140.714844 57.054688 C 140.714844 56.859375 140.578125 56.703125 140.382812 56.703125 L 137.410156 56.703125 C 137.21875 56.703125 137.078125 56.859375 137.078125 57.054688 L 137.078125 74.347656 C 137.078125 74.539062 137.238281 74.699219 137.429688 74.699219 L 140.476562 74.699219 C 140.671875 74.699219 140.828125 74.539062 140.828125 74.347656 L 140.828125 65.707031 C 140.828125 64.546875 140.957031 63.390625 141.210938 62.664062 C 141.460938 61.949219 141.804688 61.371094 142.226562 60.957031 C 142.652344 60.546875 143.132812 60.261719 143.660156 60.097656 C 144.199219 59.933594 144.792969 59.878906 145.214844 59.878906 C 145.820312 59.878906 146.488281 60.035156 146.488281 60.035156 C 146.710938 60.0625 146.835938 59.925781 146.910156 59.722656 C 147.109375 59.191406 147.671875 57.605469 147.78125 57.289062 "/> <path fill="#FFF" d="M 119.195312 49.277344 C 118.824219 49.160156 118.488281 49.085938 118.046875 49.003906 C 117.605469 48.921875 117.074219 48.882812 116.472656 48.882812 C 114.375 48.882812 112.722656 49.476562 111.5625 50.644531 C 110.410156 51.804688 109.625 53.574219 109.234375 55.902344 L 109.089844 56.6875 L 106.457031 56.6875 C 106.457031 56.6875 106.140625 56.675781 106.070312 57.023438 L 105.640625 59.433594 C 105.609375 59.664062 105.710938 59.808594 106.015625 59.808594 L 108.578125 59.808594 L 105.980469 74.316406 C 105.777344 75.484375 105.542969 76.445312 105.285156 77.171875 C 105.03125 77.890625 104.785156 78.429688 104.476562 78.824219 C 104.179688 79.199219 103.898438 79.476562 103.414062 79.640625 C 103.015625 79.773438 102.554688 79.835938 102.050781 79.835938 C 101.773438 79.835938 101.398438 79.789062 101.121094 79.734375 C 100.847656 79.679688 100.703125 79.621094 100.496094 79.53125 C 100.496094 79.53125 100.195312 79.417969 100.078125 79.71875 C 99.984375 79.964844 99.300781 81.84375 99.214844 82.074219 C 99.136719 82.304688 99.25 82.484375 99.394531 82.539062 C 99.738281 82.65625 99.992188 82.738281 100.457031 82.847656 C 101.101562 83 101.644531 83.007812 102.152344 83.007812 C 103.21875 83.007812 104.195312 82.855469 105 82.566406 C 105.808594 82.273438 106.515625 81.761719 107.140625 81.074219 C 107.816406 80.328125 108.242188 79.546875 108.648438 78.476562 C 109.046875 77.421875 109.394531 76.113281 109.667969 74.585938 L 112.277344 59.808594 L 116.097656 59.808594 C 116.097656 59.808594 116.417969 59.820312 116.484375 59.46875 L 116.917969 57.058594 C 116.945312 56.828125 116.847656 56.6875 116.539062 56.6875 L 112.832031 56.6875 C 112.851562 56.605469 113.019531 55.296875 113.445312 54.070312 C 113.625 53.550781 113.96875 53.125 114.257812 52.835938 C 114.542969 52.550781 114.867188 52.347656 115.226562 52.230469 C 115.59375 52.109375 116.015625 52.054688 116.472656 52.054688 C 116.820312 52.054688 117.164062 52.09375 117.425781 52.148438 C 117.785156 52.226562 117.921875 52.265625 118.015625 52.292969 C 118.394531 52.40625 118.445312 52.296875 118.523438 52.113281 L 119.40625 49.679688 C 119.5 49.417969 119.273438 49.308594 119.195312 49.277344 M 67.40625 74.347656 C 67.40625 74.539062 67.265625 74.699219 67.074219 74.699219 L 64 74.699219 C 63.804688 74.699219 63.667969 74.539062 63.667969 74.347656 L 63.667969 49.605469 C 63.667969 49.414062 63.804688 49.253906 64 49.253906 L 67.074219 49.253906 C 67.265625 49.253906 67.40625 49.414062 67.40625 49.605469 Z M 67.40625 74.347656 "/></svg>

salesforceAwardsInvitation3.css

svg use { fill: #00A1E0;}svg use:hover { fill: yellow;}

Note that we are not using the path element in CSS anymore. We cannot use it, because of Shadow DOM. But luckily, there is something we can leverage to overcome this. By definition, the styles you apply to use will be inherited by all its descendants. This works the same for other SVG tags that allow grouping, as g, defs or symbol. Therefore, we can style the use element, and the inner path elements will inherit that value.

Reference the static resource SVG with the image tag

This approach won’t copy the SVG nodes, but instead include them as an image. It’s a simpler approach, but it won’t allow you to modify the SVG CSS as we did above. In this case, you can upload it in a static resource as is. You don’t need to specify an id:

salesforceLogo.svg

<svg xmlns="http://www.w3.org/2000/svg" width="200" height="140" viewBox="0 0 200 140"> <path fill="#00A1E0" d="M 83.226562 15.273438 C 89.679688 8.554688 98.660156 4.382812 108.589844 4.382812 C 121.792969 4.382812 133.308594 11.746094 139.445312 22.675781 C 144.773438 20.292969 150.675781 18.96875 156.882812 18.96875 C 180.695312 18.96875 200 38.441406 200 62.460938 C 200 86.484375 180.695312 105.957031 156.882812 105.957031 C 154.03125 105.957031 151.1875 105.675781 148.390625 105.109375 C 142.988281 114.746094 132.695312 121.257812 120.878906 121.257812 C 115.933594 121.257812 111.257812 120.113281 107.089844 118.082031 C 101.617188 130.960938 88.859375 139.992188 73.988281 139.992188 C 58.503906 139.992188 45.308594 130.195312 40.242188 116.457031 C 38.027344 116.925781 35.734375 117.171875 33.382812 117.171875 C 14.945312 117.171875 0 102.070312 0 83.441406 C 0 70.957031 6.714844 60.058594 16.691406 54.226562 C 14.636719 49.5 13.496094 44.28125 13.496094 38.796875 C 13.496094 17.375 30.890625 0.00390625 52.34375 0.00390625 C 64.9375 0.00390625 76.132812 5.996094 83.226562 15.273438 "/> <path fill="#FFF" d="M 28.96875 72.601562 C 28.84375 72.929688 29.015625 72.996094 29.054688 73.054688 C 29.429688 73.328125 29.8125 73.523438 30.195312 73.742188 C 32.234375 74.824219 34.164062 75.140625 36.175781 75.140625 C 40.277344 75.140625 42.824219 72.960938 42.824219 69.445312 L 42.824219 69.378906 C 42.824219 66.128906 39.953125 64.949219 37.253906 64.097656 L 36.902344 63.984375 C 34.867188 63.324219 33.113281 62.753906 33.113281 61.414062 L 33.113281 61.34375 C 33.113281 60.199219 34.140625 59.355469 35.730469 59.355469 C 37.496094 59.355469 39.59375 59.941406 40.941406 60.6875 C 40.941406 60.6875 41.339844 60.945312 41.484375 60.5625 C 41.5625 60.355469 42.246094 58.515625 42.320312 58.316406 C 42.394531 58.097656 42.257812 57.9375 42.121094 57.855469 C 40.578125 56.917969 38.445312 56.277344 36.242188 56.277344 L 35.832031 56.277344 C 32.078125 56.277344 29.457031 58.546875 29.457031 61.796875 L 29.457031 61.867188 C 29.457031 65.292969 32.347656 66.402344 35.058594 67.179688 L 35.492188 67.3125 C 37.46875 67.917969 39.167969 68.441406 39.167969 69.832031 L 39.167969 69.898438 C 39.167969 71.171875 38.0625 72.117188 36.277344 72.117188 C 35.585938 72.117188 33.378906 72.101562 30.996094 70.59375 C 30.707031 70.425781 30.539062 70.304688 30.316406 70.171875 C 30.199219 70.097656 29.90625 69.96875 29.777344 70.355469 Z M 89.027344 72.601562 C 88.902344 72.929688 89.074219 72.996094 89.113281 73.054688 C 89.488281 73.328125 89.871094 73.523438 90.253906 73.742188 C 92.296875 74.824219 94.222656 75.140625 96.234375 75.140625 C 100.339844 75.140625 102.886719 72.960938 102.886719 69.445312 L 102.886719 69.378906 C 102.886719 66.128906 100.011719 64.949219 97.3125 64.097656 L 96.960938 63.984375 C 94.929688 63.324219 93.171875 62.753906 93.171875 61.414062 L 93.171875 61.34375 C 93.171875 60.199219 94.199219 59.355469 95.789062 59.355469 C 97.554688 59.355469 99.652344 59.941406 101.003906 60.6875 C 101.003906 60.6875 101.398438 60.945312 101.542969 60.5625 C 101.621094 60.355469 102.308594 58.515625 102.378906 58.316406 C 102.457031 58.097656 102.316406 57.9375 102.179688 57.855469 C 100.636719 56.917969 98.507812 56.277344 96.300781 56.277344 L 95.890625 56.277344 C 92.136719 56.277344 89.515625 58.546875 89.515625 61.796875 L 89.515625 61.867188 C 89.515625 65.292969 92.40625 66.402344 95.117188 67.179688 L 95.550781 67.3125 C 97.527344 67.917969 99.230469 68.441406 99.230469 69.832031 L 99.230469 69.898438 C 99.230469 71.171875 98.121094 72.117188 96.339844 72.117188 C 95.644531 72.117188 93.4375 72.101562 91.054688 70.59375 C 90.765625 70.425781 90.59375 70.308594 90.378906 70.171875 C 90.304688 70.121094 89.957031 69.988281 89.835938 70.355469 Z M 130.027344 65.71875 C 130.027344 67.707031 129.660156 69.269531 128.929688 70.375 C 128.207031 71.46875 127.117188 72 125.597656 72 C 124.070312 72 122.988281 71.472656 122.277344 70.375 C 121.558594 69.273438 121.195312 67.707031 121.195312 65.71875 C 121.195312 63.738281 121.558594 62.175781 122.277344 61.082031 C 122.988281 60 124.070312 59.472656 125.597656 59.472656 C 127.117188 59.472656 128.207031 60 128.933594 61.082031 C 129.660156 62.175781 130.027344 63.738281 130.027344 65.71875 M 133.453125 62.039062 C 133.117188 60.902344 132.59375 59.898438 131.894531 59.0625 C 131.195312 58.226562 130.3125 57.554688 129.265625 57.0625 C 128.21875 56.578125 126.984375 56.328125 125.597656 56.328125 C 124.207031 56.328125 122.96875 56.578125 121.921875 57.0625 C 120.875 57.554688 119.992188 58.226562 119.292969 59.0625 C 118.597656 59.902344 118.070312 60.90625 117.734375 62.039062 C 117.398438 63.167969 117.230469 64.40625 117.230469 65.71875 C 117.230469 67.03125 117.398438 68.273438 117.734375 69.402344 C 118.070312 70.535156 118.59375 71.539062 119.292969 72.375 C 119.992188 73.210938 120.878906 73.882812 121.925781 74.359375 C 122.972656 74.832031 124.207031 75.074219 125.597656 75.074219 C 126.984375 75.074219 128.21875 74.832031 129.265625 74.359375 C 130.3125 73.882812 131.195312 73.210938 131.894531 72.375 C 132.59375 71.539062 133.117188 70.539062 133.453125 69.402344 C 133.789062 68.269531 133.957031 67.03125 133.957031 65.71875 C 133.957031 64.410156 133.789062 63.167969 133.453125 62.039062 M 161.574219 71.472656 C 161.460938 71.136719 161.140625 71.261719 161.140625 71.261719 C 160.640625 71.453125 160.109375 71.628906 159.546875 71.71875 C 158.972656 71.808594 158.34375 71.851562 157.667969 71.851562 C 156.011719 71.851562 154.695312 71.359375 153.75 70.386719 C 152.804688 69.410156 152.277344 67.835938 152.28125 65.703125 C 152.289062 63.765625 152.753906 62.304688 153.59375 61.195312 C 154.429688 60.089844 155.699219 59.523438 157.394531 59.523438 C 158.808594 59.523438 159.886719 59.683594 161.015625 60.042969 C 161.015625 60.042969 161.285156 60.15625 161.414062 59.804688 C 161.710938 58.972656 161.933594 58.378906 162.253906 57.460938 C 162.34375 57.203125 162.121094 57.09375 162.042969 57.0625 C 161.597656 56.886719 160.550781 56.605469 159.757812 56.484375 C 159.015625 56.371094 158.152344 56.3125 157.1875 56.3125 C 155.75 56.3125 154.464844 56.558594 153.371094 57.046875 C 152.277344 57.535156 151.347656 58.207031 150.613281 59.042969 C 149.878906 59.882812 149.320312 60.882812 148.945312 62.019531 C 148.574219 63.148438 148.386719 64.390625 148.386719 65.703125 C 148.386719 68.546875 149.152344 70.839844 150.667969 72.523438 C 152.183594 74.210938 154.457031 75.066406 157.425781 75.066406 C 159.183594 75.066406 160.984375 74.710938 162.277344 74.199219 C 162.277344 74.199219 162.523438 74.082031 162.414062 73.792969 Z M 167.566406 63.816406 C 167.730469 62.714844 168.035156 61.796875 168.503906 61.082031 C 169.214844 59.996094 170.296875 59.402344 171.816406 59.402344 C 173.339844 59.402344 174.34375 60 175.066406 61.082031 C 175.542969 61.796875 175.753906 62.753906 175.835938 63.816406 Z M 179.097656 61.394531 C 178.804688 60.296875 178.085938 59.1875 177.613281 58.679688 C 176.867188 57.875 176.136719 57.316406 175.414062 57.003906 C 174.46875 56.597656 173.332031 56.328125 172.089844 56.328125 C 170.644531 56.328125 169.332031 56.570312 168.265625 57.074219 C 167.195312 57.574219 166.300781 58.257812 165.59375 59.109375 C 164.890625 59.960938 164.363281 60.972656 164.027344 62.117188 C 163.6875 63.261719 163.515625 64.507812 163.515625 65.820312 C 163.515625 67.15625 163.691406 68.402344 164.042969 69.519531 C 164.394531 70.648438 164.960938 71.644531 165.722656 72.464844 C 166.484375 73.296875 167.464844 73.945312 168.636719 74.398438 C 169.804688 74.847656 171.21875 75.082031 172.847656 75.078125 C 176.195312 75.066406 177.957031 74.320312 178.683594 73.917969 C 178.8125 73.847656 178.933594 73.722656 178.78125 73.363281 L 178.023438 71.242188 C 177.910156 70.925781 177.585938 71.042969 177.585938 71.042969 C 176.757812 71.347656 175.578125 71.902344 172.828125 71.898438 C 171.03125 71.894531 169.699219 71.363281 168.863281 70.535156 C 168.003906 69.6875 167.585938 68.4375 167.511719 66.675781 L 179.105469 66.6875 C 179.105469 66.6875 179.410156 66.683594 179.441406 66.386719 C 179.453125 66.261719 179.839844 64.003906 179.097656 61.394531 M 74.726562 63.816406 C 74.890625 62.714844 75.195312 61.796875 75.664062 61.082031 C 76.375 59.996094 77.457031 59.402344 78.976562 59.402344 C 80.5 59.402344 81.503906 60 82.226562 61.082031 C 82.703125 61.796875 82.914062 62.753906 82.996094 63.816406 Z M 86.253906 61.394531 C 85.964844 60.296875 85.246094 59.1875 84.773438 58.679688 C 84.027344 57.875 83.296875 57.316406 82.574219 57.003906 C 81.628906 56.597656 80.492188 56.328125 79.25 56.328125 C 77.808594 56.328125 76.492188 56.570312 75.425781 57.074219 C 74.355469 57.574219 73.460938 58.257812 72.753906 59.109375 C 72.050781 59.960938 71.523438 60.972656 71.1875 62.117188 C 70.851562 63.261719 70.675781 64.507812 70.675781 65.820312 C 70.675781 67.15625 70.851562 68.402344 71.203125 69.519531 C 71.554688 70.648438 72.121094 71.644531 72.882812 72.464844 C 73.644531 73.296875 74.625 73.945312 75.796875 74.398438 C 76.964844 74.847656 78.378906 75.082031 80.007812 75.078125 C 83.355469 75.066406 85.117188 74.320312 85.84375 73.917969 C 85.972656 73.847656 86.09375 73.722656 85.941406 73.363281 L 85.1875 71.242188 C 85.070312 70.925781 84.746094 71.042969 84.746094 71.042969 C 83.917969 71.347656 82.742188 71.902344 79.988281 71.898438 C 78.191406 71.894531 76.859375 71.363281 76.023438 70.535156 C 75.167969 69.6875 74.746094 68.4375 74.671875 66.675781 L 86.265625 66.6875 C 86.265625 66.6875 86.570312 66.683594 86.601562 66.386719 C 86.613281 66.261719 87 64.003906 86.253906 61.394531 M 49.667969 71.40625 C 49.21875 71.046875 49.152344 70.953125 49 70.722656 C 48.773438 70.363281 48.65625 69.859375 48.65625 69.214844 C 48.65625 68.195312 48.992188 67.460938 49.691406 66.96875 C 49.679688 66.972656 50.6875 66.101562 53.050781 66.132812 C 54.710938 66.152344 56.195312 66.398438 56.195312 66.398438 L 56.195312 71.667969 L 56.199219 71.667969 C 56.199219 71.667969 54.726562 71.984375 53.070312 72.085938 C 50.710938 72.226562 49.660156 71.40625 49.667969 71.40625 M 54.28125 63.261719 C 53.8125 63.226562 53.203125 63.207031 52.472656 63.207031 C 51.480469 63.207031 50.519531 63.332031 49.617188 63.574219 C 48.710938 63.816406 47.898438 64.195312 47.195312 64.699219 C 46.496094 65.199219 45.921875 65.851562 45.515625 66.609375 C 45.105469 67.375 44.898438 68.273438 44.898438 69.28125 C 44.898438 70.308594 45.074219 71.199219 45.425781 71.929688 C 45.78125 72.660156 46.289062 73.269531 46.941406 73.742188 C 47.585938 74.210938 48.378906 74.554688 49.300781 74.765625 C 50.210938 74.972656 51.242188 75.078125 52.371094 75.078125 C 53.558594 75.078125 54.742188 74.980469 55.890625 74.785156 C 57.027344 74.589844 58.425781 74.308594 58.8125 74.21875 C 59.082031 74.152344 59.355469 74.085938 59.625 74.011719 C 59.910156 73.941406 59.890625 73.632812 59.890625 73.632812 L 59.882812 63.03125 C 59.882812 60.707031 59.261719 58.984375 58.039062 57.914062 C 56.824219 56.847656 55.03125 56.308594 52.714844 56.308594 C 51.847656 56.308594 50.449219 56.429688 49.609375 56.597656 C 49.609375 56.597656 47.078125 57.089844 46.035156 57.902344 C 46.035156 57.902344 45.804688 58.046875 45.933594 58.363281 L 46.753906 60.570312 C 46.855469 60.855469 47.132812 60.757812 47.132812 60.757812 C 47.132812 60.757812 47.21875 60.722656 47.324219 60.664062 C 49.554688 59.449219 52.375 59.488281 52.375 59.488281 C 53.628906 59.488281 54.589844 59.738281 55.238281 60.238281 C 55.871094 60.722656 56.195312 61.453125 56.195312 62.996094 L 56.195312 63.488281 C 55.195312 63.34375 54.28125 63.261719 54.28125 63.261719 M 147.78125 57.289062 C 147.871094 57.027344 147.683594 56.902344 147.609375 56.875 C 147.410156 56.796875 146.425781 56.589844 145.664062 56.539062 C 144.210938 56.453125 143.398438 56.695312 142.675781 57.019531 C 141.957031 57.347656 141.160156 57.871094 140.714844 58.464844 L 140.714844 57.054688 C 140.714844 56.859375 140.578125 56.703125 140.382812 56.703125 L 137.410156 56.703125 C 137.21875 56.703125 137.078125 56.859375 137.078125 57.054688 L 137.078125 74.347656 C 137.078125 74.539062 137.238281 74.699219 137.429688 74.699219 L 140.476562 74.699219 C 140.671875 74.699219 140.828125 74.539062 140.828125 74.347656 L 140.828125 65.707031 C 140.828125 64.546875 140.957031 63.390625 141.210938 62.664062 C 141.460938 61.949219 141.804688 61.371094 142.226562 60.957031 C 142.652344 60.546875 143.132812 60.261719 143.660156 60.097656 C 144.199219 59.933594 144.792969 59.878906 145.214844 59.878906 C 145.820312 59.878906 146.488281 60.035156 146.488281 60.035156 C 146.710938 60.0625 146.835938 59.925781 146.910156 59.722656 C 147.109375 59.191406 147.671875 57.605469 147.78125 57.289062 "/> <path fill="#FFF" d="M 119.195312 49.277344 C 118.824219 49.160156 118.488281 49.085938 118.046875 49.003906 C 117.605469 48.921875 117.074219 48.882812 116.472656 48.882812 C 114.375 48.882812 112.722656 49.476562 111.5625 50.644531 C 110.410156 51.804688 109.625 53.574219 109.234375 55.902344 L 109.089844 56.6875 L 106.457031 56.6875 C 106.457031 56.6875 106.140625 56.675781 106.070312 57.023438 L 105.640625 59.433594 C 105.609375 59.664062 105.710938 59.808594 106.015625 59.808594 L 108.578125 59.808594 L 105.980469 74.316406 C 105.777344 75.484375 105.542969 76.445312 105.285156 77.171875 C 105.03125 77.890625 104.785156 78.429688 104.476562 78.824219 C 104.179688 79.199219 103.898438 79.476562 103.414062 79.640625 C 103.015625 79.773438 102.554688 79.835938 102.050781 79.835938 C 101.773438 79.835938 101.398438 79.789062 101.121094 79.734375 C 100.847656 79.679688 100.703125 79.621094 100.496094 79.53125 C 100.496094 79.53125 100.195312 79.417969 100.078125 79.71875 C 99.984375 79.964844 99.300781 81.84375 99.214844 82.074219 C 99.136719 82.304688 99.25 82.484375 99.394531 82.539062 C 99.738281 82.65625 99.992188 82.738281 100.457031 82.847656 C 101.101562 83 101.644531 83.007812 102.152344 83.007812 C 103.21875 83.007812 104.195312 82.855469 105 82.566406 C 105.808594 82.273438 106.515625 81.761719 107.140625 81.074219 C 107.816406 80.328125 108.242188 79.546875 108.648438 78.476562 C 109.046875 77.421875 109.394531 76.113281 109.667969 74.585938 L 112.277344 59.808594 L 116.097656 59.808594 C 116.097656 59.808594 116.417969 59.820312 116.484375 59.46875 L 116.917969 57.058594 C 116.945312 56.828125 116.847656 56.6875 116.539062 56.6875 L 112.832031 56.6875 C 112.851562 56.605469 113.019531 55.296875 113.445312 54.070312 C 113.625 53.550781 113.96875 53.125 114.257812 52.835938 C 114.542969 52.550781 114.867188 52.347656 115.226562 52.230469 C 115.59375 52.109375 116.015625 52.054688 116.472656 52.054688 C 116.820312 52.054688 117.164062 52.09375 117.425781 52.148438 C 117.785156 52.226562 117.921875 52.265625 118.015625 52.292969 C 118.394531 52.40625 118.445312 52.296875 118.523438 52.113281 L 119.40625 49.679688 C 119.5 49.417969 119.273438 49.308594 119.195312 49.277344 M 67.40625 74.347656 C 67.40625 74.539062 67.265625 74.699219 67.074219 74.699219 L 64 74.699219 C 63.804688 74.699219 63.667969 74.539062 63.667969 74.347656 L 63.667969 49.605469 C 63.667969 49.414062 63.804688 49.253906 64 49.253906 L 67.074219 49.253906 C 67.265625 49.253906 67.40625 49.414062 67.40625 49.605469 Z M 67.40625 74.347656 "/></svg>

Next, you’ll have to import the static resource in your component, same as in the previous case, but this time no id reference will be needed.

salesforceAwardsInvitation4.js

import { LightningElement } from 'lwc';import SVG\_LOGO from '@salesforce/resourceUrl/salesforceLogo';export default class SalesforceAwardsInvitation4 extends LightningElement { svgUrl = SVG\_LOGO;}

Finally, you’ll be able to reference the SVG passing the static resource computed URL (svgURL) to the src attribute of the image element.

salesforceAwardsInvitation4.html

<template> <div> <img src={svgUrl} alt="Salesforce Logo"/> <p> Congratulations, you're invited for the annual Salesforce Awards event! Hope to see you there. </p> </div></template>

Take a look at the nodes that are generated by using the image element. We can’t see the included SVG nodes anymore:

Use an SVG as a custom icon in Lightning App Builder or Community Builder

Another possible usage of SVGs in a Lightning Web Component is to use it to define an icon that will be visible in Lightning App Builder and Community Builder. This is done in the same way in Aura components and Lightning Web Components. For that, simply include an .svg file in the component folder and include the SVG code. The name of the .svg file must match the component name. Bear in mind, the component metadata file must be correctly configured so that the component is available for the different builders.

svgIconForBuilders.svg

<svg id="sflogo" xmlns="http://www.w3.org/2000/svg" width="200" height="140" viewBox="0 0 200 140"> <path fill="#00A1E0" d="M 83.226562 15.273438 C 89.679688 8.554688 98.660156 4.382812 108.589844 4.382812 C 121.792969 4.382812 133.308594 11.746094 139.445312 22.675781 C 144.773438 20.292969 150.675781 18.96875 156.882812 18.96875 C 180.695312 18.96875 200 38.441406 200 62.460938 C 200 86.484375 180.695312 105.957031 156.882812 105.957031 C 154.03125 105.957031 151.1875 105.675781 148.390625 105.109375 C 142.988281 114.746094 132.695312 121.257812 120.878906 121.257812 C 115.933594 121.257812 111.257812 120.113281 107.089844 118.082031 C 101.617188 130.960938 88.859375 139.992188 73.988281 139.992188 C 58.503906 139.992188 45.308594 130.195312 40.242188 116.457031 C 38.027344 116.925781 35.734375 117.171875 33.382812 117.171875 C 14.945312 117.171875 0 102.070312 0 83.441406 C 0 70.957031 6.714844 60.058594 16.691406 54.226562 C 14.636719 49.5 13.496094 44.28125 13.496094 38.796875 C 13.496094 17.375 30.890625 0.00390625 52.34375 0.00390625 C 64.9375 0.00390625 76.132812 5.996094 83.226562 15.273438 "/> <path fill="#FFF" d="M 28.96875 72.601562 C 28.84375 72.929688 29.015625 72.996094 29.054688 73.054688 C 29.429688 73.328125 29.8125 73.523438 30.195312 73.742188 C 32.234375 74.824219 34.164062 75.140625 36.175781 75.140625 C 40.277344 75.140625 42.824219 72.960938 42.824219 69.445312 L 42.824219 69.378906 C 42.824219 66.128906 39.953125 64.949219 37.253906 64.097656 L 36.902344 63.984375 C 34.867188 63.324219 33.113281 62.753906 33.113281 61.414062 L 33.113281 61.34375 C 33.113281 60.199219 34.140625 59.355469 35.730469 59.355469 C 37.496094 59.355469 39.59375 59.941406 40.941406 60.6875 C 40.941406 60.6875 41.339844 60.945312 41.484375 60.5625 C 41.5625 60.355469 42.246094 58.515625 42.320312 58.316406 C 42.394531 58.097656 42.257812 57.9375 42.121094 57.855469 C 40.578125 56.917969 38.445312 56.277344 36.242188 56.277344 L 35.832031 56.277344 C 32.078125 56.277344 29.457031 58.546875 29.457031 61.796875 L 29.457031 61.867188 C 29.457031 65.292969 32.347656 66.402344 35.058594 67.179688 L 35.492188 67.3125 C 37.46875 67.917969 39.167969 68.441406 39.167969 69.832031 L 39.167969 69.898438 C 39.167969 71.171875 38.0625 72.117188 36.277344 72.117188 C 35.585938 72.117188 33.378906 72.101562 30.996094 70.59375 C 30.707031 70.425781 30.539062 70.304688 30.316406 70.171875 C 30.199219 70.097656 29.90625 69.96875 29.777344 70.355469 Z M 89.027344 72.601562 C 88.902344 72.929688 89.074219 72.996094 89.113281 73.054688 C 89.488281 73.328125 89.871094 73.523438 90.253906 73.742188 C 92.296875 74.824219 94.222656 75.140625 96.234375 75.140625 C 100.339844 75.140625 102.886719 72.960938 102.886719 69.445312 L 102.886719 69.378906 C 102.886719 66.128906 100.011719 64.949219 97.3125 64.097656 L 96.960938 63.984375 C 94.929688 63.324219 93.171875 62.753906 93.171875 61.414062 L 93.171875 61.34375 C 93.171875 60.199219 94.199219 59.355469 95.789062 59.355469 C 97.554688 59.355469 99.652344 59.941406 101.003906 60.6875 C 101.003906 60.6875 101.398438 60.945312 101.542969 60.5625 C 101.621094 60.355469 102.308594 58.515625 102.378906 58.316406 C 102.457031 58.097656 102.316406 57.9375 102.179688 57.855469 C 100.636719 56.917969 98.507812 56.277344 96.300781 56.277344 L 95.890625 56.277344 C 92.136719 56.277344 89.515625 58.546875 89.515625 61.796875 L 89.515625 61.867188 C 89.515625 65.292969 92.40625 66.402344 95.117188 67.179688 L 95.550781 67.3125 C 97.527344 67.917969 99.230469 68.441406 99.230469 69.832031 L 99.230469 69.898438 C 99.230469 71.171875 98.121094 72.117188 96.339844 72.117188 C 95.644531 72.117188 93.4375 72.101562 91.054688 70.59375 C 90.765625 70.425781 90.59375 70.308594 90.378906 70.171875 C 90.304688 70.121094 89.957031 69.988281 89.835938 70.355469 Z M 130.027344 65.71875 C 130.027344 67.707031 129.660156 69.269531 128.929688 70.375 C 128.207031 71.46875 127.117188 72 125.597656 72 C 124.070312 72 122.988281 71.472656 122.277344 70.375 C 121.558594 69.273438 121.195312 67.707031 121.195312 65.71875 C 121.195312 63.738281 121.558594 62.175781 122.277344 61.082031 C 122.988281 60 124.070312 59.472656 125.597656 59.472656 C 127.117188 59.472656 128.207031 60 128.933594 61.082031 C 129.660156 62.175781 130.027344 63.738281 130.027344 65.71875 M 133.453125 62.039062 C 133.117188 60.902344 132.59375 59.898438 131.894531 59.0625 C 131.195312 58.226562 130.3125 57.554688 129.265625 57.0625 C 128.21875 56.578125 126.984375 56.328125 125.597656 56.328125 C 124.207031 56.328125 122.96875 56.578125 121.921875 57.0625 C 120.875 57.554688 119.992188 58.226562 119.292969 59.0625 C 118.597656 59.902344 118.070312 60.90625 117.734375 62.039062 C 117.398438 63.167969 117.230469 64.40625 117.230469 65.71875 C 117.230469 67.03125 117.398438 68.273438 117.734375 69.402344 C 118.070312 70.535156 118.59375 71.539062 119.292969 72.375 C 119.992188 73.210938 120.878906 73.882812 121.925781 74.359375 C 122.972656 74.832031 124.207031 75.074219 125.597656 75.074219 C 126.984375 75.074219 128.21875 74.832031 129.265625 74.359375 C 130.3125 73.882812 131.195312 73.210938 131.894531 72.375 C 132.59375 71.539062 133.117188 70.539062 133.453125 69.402344 C 133.789062 68.269531 133.957031 67.03125 133.957031 65.71875 C 133.957031 64.410156 133.789062 63.167969 133.453125 62.039062 M 161.574219 71.472656 C 161.460938 71.136719 161.140625 71.261719 161.140625 71.261719 C 160.640625 71.453125 160.109375 71.628906 159.546875 71.71875 C 158.972656 71.808594 158.34375 71.851562 157.667969 71.851562 C 156.011719 71.851562 154.695312 71.359375 153.75 70.386719 C 152.804688 69.410156 152.277344 67.835938 152.28125 65.703125 C 152.289062 63.765625 152.753906 62.304688 153.59375 61.195312 C 154.429688 60.089844 155.699219 59.523438 157.394531 59.523438 C 158.808594 59.523438 159.886719 59.683594 161.015625 60.042969 C 161.015625 60.042969 161.285156 60.15625 161.414062 59.804688 C 161.710938 58.972656 161.933594 58.378906 162.253906 57.460938 C 162.34375 57.203125 162.121094 57.09375 162.042969 57.0625 C 161.597656 56.886719 160.550781 56.605469 159.757812 56.484375 C 159.015625 56.371094 158.152344 56.3125 157.1875 56.3125 C 155.75 56.3125 154.464844 56.558594 153.371094 57.046875 C 152.277344 57.535156 151.347656 58.207031 150.613281 59.042969 C 149.878906 59.882812 149.320312 60.882812 148.945312 62.019531 C 148.574219 63.148438 148.386719 64.390625 148.386719 65.703125 C 148.386719 68.546875 149.152344 70.839844 150.667969 72.523438 C 152.183594 74.210938 154.457031 75.066406 157.425781 75.066406 C 159.183594 75.066406 160.984375 74.710938 162.277344 74.199219 C 162.277344 74.199219 162.523438 74.082031 162.414062 73.792969 Z M 167.566406 63.816406 C 167.730469 62.714844 168.035156 61.796875 168.503906 61.082031 C 169.214844 59.996094 170.296875 59.402344 171.816406 59.402344 C 173.339844 59.402344 174.34375 60 175.066406 61.082031 C 175.542969 61.796875 175.753906 62.753906 175.835938 63.816406 Z M 179.097656 61.394531 C 178.804688 60.296875 178.085938 59.1875 177.613281 58.679688 C 176.867188 57.875 176.136719 57.316406 175.414062 57.003906 C 174.46875 56.597656 173.332031 56.328125 172.089844 56.328125 C 170.644531 56.328125 169.332031 56.570312 168.265625 57.074219 C 167.195312 57.574219 166.300781 58.257812 165.59375 59.109375 C 164.890625 59.960938 164.363281 60.972656 164.027344 62.117188 C 163.6875 63.261719 163.515625 64.507812 163.515625 65.820312 C 163.515625 67.15625 163.691406 68.402344 164.042969 69.519531 C 164.394531 70.648438 164.960938 71.644531 165.722656 72.464844 C 166.484375 73.296875 167.464844 73.945312 168.636719 74.398438 C 169.804688 74.847656 171.21875 75.082031 172.847656 75.078125 C 176.195312 75.066406 177.957031 74.320312 178.683594 73.917969 C 178.8125 73.847656 178.933594 73.722656 178.78125 73.363281 L 178.023438 71.242188 C 177.910156 70.925781 177.585938 71.042969 177.585938 71.042969 C 176.757812 71.347656 175.578125 71.902344 172.828125 71.898438 C 171.03125 71.894531 169.699219 71.363281 168.863281 70.535156 C 168.003906 69.6875 167.585938 68.4375 167.511719 66.675781 L 179.105469 66.6875 C 179.105469 66.6875 179.410156 66.683594 179.441406 66.386719 C 179.453125 66.261719 179.839844 64.003906 179.097656 61.394531 M 74.726562 63.816406 C 74.890625 62.714844 75.195312 61.796875 75.664062 61.082031 C 76.375 59.996094 77.457031 59.402344 78.976562 59.402344 C 80.5 59.402344 81.503906 60 82.226562 61.082031 C 82.703125 61.796875 82.914062 62.753906 82.996094 63.816406 Z M 86.253906 61.394531 C 85.964844 60.296875 85.246094 59.1875 84.773438 58.679688 C 84.027344 57.875 83.296875 57.316406 82.574219 57.003906 C 81.628906 56.597656 80.492188 56.328125 79.25 56.328125 C 77.808594 56.328125 76.492188 56.570312 75.425781 57.074219 C 74.355469 57.574219 73.460938 58.257812 72.753906 59.109375 C 72.050781 59.960938 71.523438 60.972656 71.1875 62.117188 C 70.851562 63.261719 70.675781 64.507812 70.675781 65.820312 C 70.675781 67.15625 70.851562 68.402344 71.203125 69.519531 C 71.554688 70.648438 72.121094 71.644531 72.882812 72.464844 C 73.644531 73.296875 74.625 73.945312 75.796875 74.398438 C 76.964844 74.847656 78.378906 75.082031 80.007812 75.078125 C 83.355469 75.066406 85.117188 74.320312 85.84375 73.917969 C 85.972656 73.847656 86.09375 73.722656 85.941406 73.363281 L 85.1875 71.242188 C 85.070312 70.925781 84.746094 71.042969 84.746094 71.042969 C 83.917969 71.347656 82.742188 71.902344 79.988281 71.898438 C 78.191406 71.894531 76.859375 71.363281 76.023438 70.535156 C 75.167969 69.6875 74.746094 68.4375 74.671875 66.675781 L 86.265625 66.6875 C 86.265625 66.6875 86.570312 66.683594 86.601562 66.386719 C 86.613281 66.261719 87 64.003906 86.253906 61.394531 M 49.667969 71.40625 C 49.21875 71.046875 49.152344 70.953125 49 70.722656 C 48.773438 70.363281 48.65625 69.859375 48.65625 69.214844 C 48.65625 68.195312 48.992188 67.460938 49.691406 66.96875 C 49.679688 66.972656 50.6875 66.101562 53.050781 66.132812 C 54.710938 66.152344 56.195312 66.398438 56.195312 66.398438 L 56.195312 71.667969 L 56.199219 71.667969 C 56.199219 71.667969 54.726562 71.984375 53.070312 72.085938 C 50.710938 72.226562 49.660156 71.40625 49.667969 71.40625 M 54.28125 63.261719 C 53.8125 63.226562 53.203125 63.207031 52.472656 63.207031 C 51.480469 63.207031 50.519531 63.332031 49.617188 63.574219 C 48.710938 63.816406 47.898438 64.195312 47.195312 64.699219 C 46.496094 65.199219 45.921875 65.851562 45.515625 66.609375 C 45.105469 67.375 44.898438 68.273438 44.898438 69.28125 C 44.898438 70.308594 45.074219 71.199219 45.425781 71.929688 C 45.78125 72.660156 46.289062 73.269531 46.941406 73.742188 C 47.585938 74.210938 48.378906 74.554688 49.300781 74.765625 C 50.210938 74.972656 51.242188 75.078125 52.371094 75.078125 C 53.558594 75.078125 54.742188 74.980469 55.890625 74.785156 C 57.027344 74.589844 58.425781 74.308594 58.8125 74.21875 C 59.082031 74.152344 59.355469 74.085938 59.625 74.011719 C 59.910156 73.941406 59.890625 73.632812 59.890625 73.632812 L 59.882812 63.03125 C 59.882812 60.707031 59.261719 58.984375 58.039062 57.914062 C 56.824219 56.847656 55.03125 56.308594 52.714844 56.308594 C 51.847656 56.308594 50.449219 56.429688 49.609375 56.597656 C 49.609375 56.597656 47.078125 57.089844 46.035156 57.902344 C 46.035156 57.902344 45.804688 58.046875 45.933594 58.363281 L 46.753906 60.570312 C 46.855469 60.855469 47.132812 60.757812 47.132812 60.757812 C 47.132812 60.757812 47.21875 60.722656 47.324219 60.664062 C 49.554688 59.449219 52.375 59.488281 52.375 59.488281 C 53.628906 59.488281 54.589844 59.738281 55.238281 60.238281 C 55.871094 60.722656 56.195312 61.453125 56.195312 62.996094 L 56.195312 63.488281 C 55.195312 63.34375 54.28125 63.261719 54.28125 63.261719 M 147.78125 57.289062 C 147.871094 57.027344 147.683594 56.902344 147.609375 56.875 C 147.410156 56.796875 146.425781 56.589844 145.664062 56.539062 C 144.210938 56.453125 143.398438 56.695312 142.675781 57.019531 C 141.957031 57.347656 141.160156 57.871094 140.714844 58.464844 L 140.714844 57.054688 C 140.714844 56.859375 140.578125 56.703125 140.382812 56.703125 L 137.410156 56.703125 C 137.21875 56.703125 137.078125 56.859375 137.078125 57.054688 L 137.078125 74.347656 C 137.078125 74.539062 137.238281 74.699219 137.429688 74.699219 L 140.476562 74.699219 C 140.671875 74.699219 140.828125 74.539062 140.828125 74.347656 L 140.828125 65.707031 C 140.828125 64.546875 140.957031 63.390625 141.210938 62.664062 C 141.460938 61.949219 141.804688 61.371094 142.226562 60.957031 C 142.652344 60.546875 143.132812 60.261719 143.660156 60.097656 C 144.199219 59.933594 144.792969 59.878906 145.214844 59.878906 C 145.820312 59.878906 146.488281 60.035156 146.488281 60.035156 C 146.710938 60.0625 146.835938 59.925781 146.910156 59.722656 C 147.109375 59.191406 147.671875 57.605469 147.78125 57.289062 "/> <path fill="#FFF" d="M 119.195312 49.277344 C 118.824219 49.160156 118.488281 49.085938 118.046875 49.003906 C 117.605469 48.921875 117.074219 48.882812 116.472656 48.882812 C 114.375 48.882812 112.722656 49.476562 111.5625 50.644531 C 110.410156 51.804688 109.625 53.574219 109.234375 55.902344 L 109.089844 56.6875 L 106.457031 56.6875 C 106.457031 56.6875 106.140625 56.675781 106.070312 57.023438 L 105.640625 59.433594 C 105.609375 59.664062 105.710938 59.808594 106.015625 59.808594 L 108.578125 59.808594 L 105.980469 74.316406 C 105.777344 75.484375 105.542969 76.445312 105.285156 77.171875 C 105.03125 77.890625 104.785156 78.429688 104.476562 78.824219 C 104.179688 79.199219 103.898438 79.476562 103.414062 79.640625 C 103.015625 79.773438 102.554688 79.835938 102.050781 79.835938 C 101.773438 79.835938 101.398438 79.789062 101.121094 79.734375 C 100.847656 79.679688 100.703125 79.621094 100.496094 79.53125 C 100.496094 79.53125 100.195312 79.417969 100.078125 79.71875 C 99.984375 79.964844 99.300781 81.84375 99.214844 82.074219 C 99.136719 82.304688 99.25 82.484375 99.394531 82.539062 C 99.738281 82.65625 99.992188 82.738281 100.457031 82.847656 C 101.101562 83 101.644531 83.007812 102.152344 83.007812 C 103.21875 83.007812 104.195312 82.855469 105 82.566406 C 105.808594 82.273438 106.515625 81.761719 107.140625 81.074219 C 107.816406 80.328125 108.242188 79.546875 108.648438 78.476562 C 109.046875 77.421875 109.394531 76.113281 109.667969 74.585938 L 112.277344 59.808594 L 116.097656 59.808594 C 116.097656 59.808594 116.417969 59.820312 116.484375 59.46875 L 116.917969 57.058594 C 116.945312 56.828125 116.847656 56.6875 116.539062 56.6875 L 112.832031 56.6875 C 112.851562 56.605469 113.019531 55.296875 113.445312 54.070312 C 113.625 53.550781 113.96875 53.125 114.257812 52.835938 C 114.542969 52.550781 114.867188 52.347656 115.226562 52.230469 C 115.59375 52.109375 116.015625 52.054688 116.472656 52.054688 C 116.820312 52.054688 117.164062 52.09375 117.425781 52.148438 C 117.785156 52.226562 117.921875 52.265625 118.015625 52.292969 C 118.394531 52.40625 118.445312 52.296875 118.523438 52.113281 L 119.40625 49.679688 C 119.5 49.417969 119.273438 49.308594 119.195312 49.277344 M 67.40625 74.347656 C 67.40625 74.539062 67.265625 74.699219 67.074219 74.699219 L 64 74.699219 C 63.804688 74.699219 63.667969 74.539062 63.667969 74.347656 L 63.667969 49.605469 C 63.667969 49.414062 63.804688 49.253906 64 49.253906 L 67.074219 49.253906 C 67.265625 49.253906 67.40625 49.414062 67.40625 49.605469 Z M 67.40625 74.347656 "/></svg>

When you take a look at the component in the builders, it will look like the following:

Restrictions and compatibility

There are some things that you should keep in mind when working with SVGs in LWC:

• Modern versions of Edge, Google Chrome, Safari and Firefox already support SVG. However, this is not true for older versions of browsers, or Internet Explorer 11. To overcome this, there is a nice JavaScript library that you can use, called svg4everybody. This library solves that problem by adding SVG support to almost all browsers. You can include the library in a static resource and use it in your component as explained here.
• Not all the existing SVG tags are supported by LWC. You can check the list of supported tags here.

Conclusion

As you’ve seen, SVG is a great image format to be used in web development, as SVGs can be scaled without loss of quality, and can be easily modified and animated with code. Lightning Web Components provides built-in support for them, and we’ve seen the different ways in which you can use an SVG in LWC. Remember to check this github repo to see the code for all examples shown.
