Backup and Restore NiFi Registry Templates
Example Backed Up NiFi Flow Excerpt
{
"bucket" : {
"createdTimestamp" : 1566430253392,
"identifier" : "aaa50be8-b994-46b5-a0bb-be245c34b928",
"link" : {
"href" : "buckets/aaa50be8-b994-46b5-a0bb-be245c34b928",
"params" : {
"rel" : "self"
}
},
"name" : "IoT",
"permissions" : {
"canDelete" : true,
"canRead" : true,
"canWrite" : true
}
},
"flow" : {
"bucketIdentifier" : "aaa50be8-b994-46b5-a0bb-be245c34b928",
"bucketName" : "IoT",
"createdTimestamp" : 1566430269976,
"description" : "Created by MiNiFi C2 Flow Designer",
"identifier" : "56902ff0-62ac-4189-9684-765247c885b5",
"link" : {
"href" : "buckets/aaa50be8-b994-46b5-a0bb-be245c34b928/flows/56902ff0-62ac-4189-9684-765247c885b5",
"params" : {
"rel" : "self"
}
},
"modifiedTimestamp" : 1567693783102,
"name" : "raspianjava",
"type" : "Flow",
"versionCount" : 10
Restoring Backed Up NiFi Flows
http://nifi.apache.org/docs/nifi-registry-docs/rest-api/index.html
To restore an Apache NiFi registry flow file.
Create a flow
POST
/buckets/{bucketId}/flows
Creates a flow
Using bucket id, upload a flow via POST and get a new flow id
Create a version of a flow
POST with that bucket id and flow id
/buckets/{bucketId}/flows/{flowId}/versions
Creates the next version of a flow

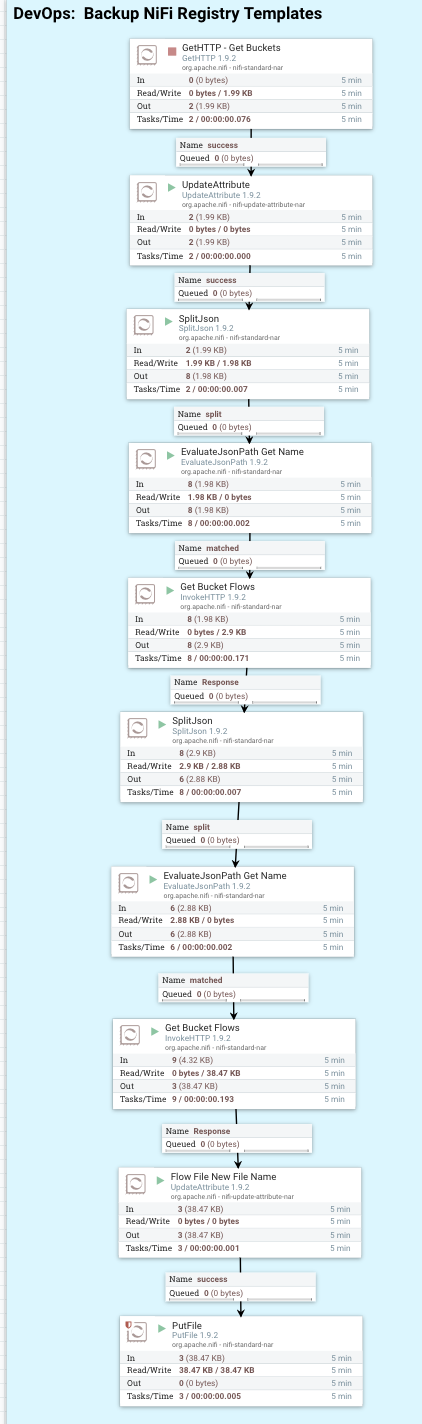

Scripted NiFi Registry Backups for DevOps Processing
You can also backup and restore NiFi Registry using the NiFi Python API or REST API directly.
