Introduction.
Cloud infrastructure management is a critical skill for modern IT professionals and cloud engineers. In this hands-on guide, I'll walk you through the end-to-end deployment and configuration of key Microsoft Azure resources, including Virtual Machines, Microsoft Entra ID security groups, Azure App Services, and SQL Database. Whether you're preparing for the AZ-500 certification, building practical Azure experience, or strengthening your cloud security knowledge, this tutorial provides a structured, step-by-step approach to help you confidently replicate the entire lab in your own Azure environment.
Prepare your bring-your-own-subscription (BYOS)
- In the Azure Portal Search Bar, enter Resource Groups and select Resource groups from the list of results.
- On the Resource Groups page, select Create.
- On the Create a Resource Group page, select your subscription and enter the name rg-alpha. Set the region to East US, choose Review + Create, and then choose Create.
Create App Log Examiners security group
- In the Azure Portal Search Bar, enter Azure Active Directory (or Entra ID) from the list of results.
- On the Default Directory page, select Groups.
- On the Groups page, choose New Group.
- On the New Group page, provide the values in the following table and choose Create.
Deploy and configure WS-VM1
- In the Azure Portal Search Bar, enter Virtual Machines and select Virtual Machines from the list of results.
- On the Virtual Machines page, choose Create and select Azure Virtual Machine.
- On the Basics page of the Create A Virtual Machine wizard, select the following settings and then choose Review + Create.
- Review the settings and select Create.
- Wait for the deployment to complete. Once deployment completes choose Go to resource.
- On the WS-VM1 properties page, choose Networking.
- On the Networking page, select the RDP rule.
- On the RDP rule space, change the Source to My IP address and choose Save.
- This restricts incoming RDP connections to the IP address you’re currently using.
On the Networking page, choose Add inbound port rule.
- On the Add inbound security rule page, configure the following settings and choose Add.
- On the WS-VM1 page, choose Connect.
- On the Native RDP page, choose Download RDP file and then open the file. Opening the RDP file opens the Remote Desktop Connection dialog box.
- On the Windows Security dialog box, choose More Choices and then choose Use a different account.
- Enter the username as .\prime and the password as the secure password you chose in Step 3, and choose OK.
- When signed into the Windows Server virtual machine, right-click on the Start hint and then choose Windows PowerShell (Admin).
- At the elevated command prompt, type the following command and press Enter. Install-WindowsFeature Web-Server -IncludeAllSubFeature -IncludeManagementTools
- When the installation completes run the following command to change to the web server root directory. cd c:\inetpub\wwwroot\
- Run the following command. Wget https://raw.githubusercontent.com/Azure-Samples/html-docs-hello-world/master/index.html -OutFile index.html
Deploy and configure LX-VM2
- In the Azure Portal Search Bar, enter Virtual Machines and select Virtual Machines from the list of results.
- On the Virtual Machines page, choose Create and select Azure Virtual Machine.
- On the Basics page of the Create A Virtual Machine wizard, select the following settings and then choose Review + Create.
- Review the information and choose Create.
- After the VM deploys, open the VM properties page and choose Extensions + Applications under Settings.
- Choose Add and select the Network Watcher Agent for Linux. Choose Next and then choose Review and Create. Choose Create.
Deploy a web app with an SQL Database
- Ensure that you’re signed into the Azure Portal.
- In your browser, open a new browser tab and navigate to https://github.com/Azure/azure-quickstart-templates/tree/master/quickstarts/microsoft.web/web-app-sql-database
- On the GitHub page, choose Deploy to Azure.
- A new tab opens. If necessary, re-sign into Azure with the account that has Global Administrator privileges.
- On the Basics page, select Edit template.
- In the template editor, delete the contents of lines 158 to 174 inclusive and delete the “,” on line 157. Choose Save.
- On the Basics page, provide the following information and choose Next. Please note that a new resource group in Central US region to ensure successful deployment
- Review the information presented and select Create.

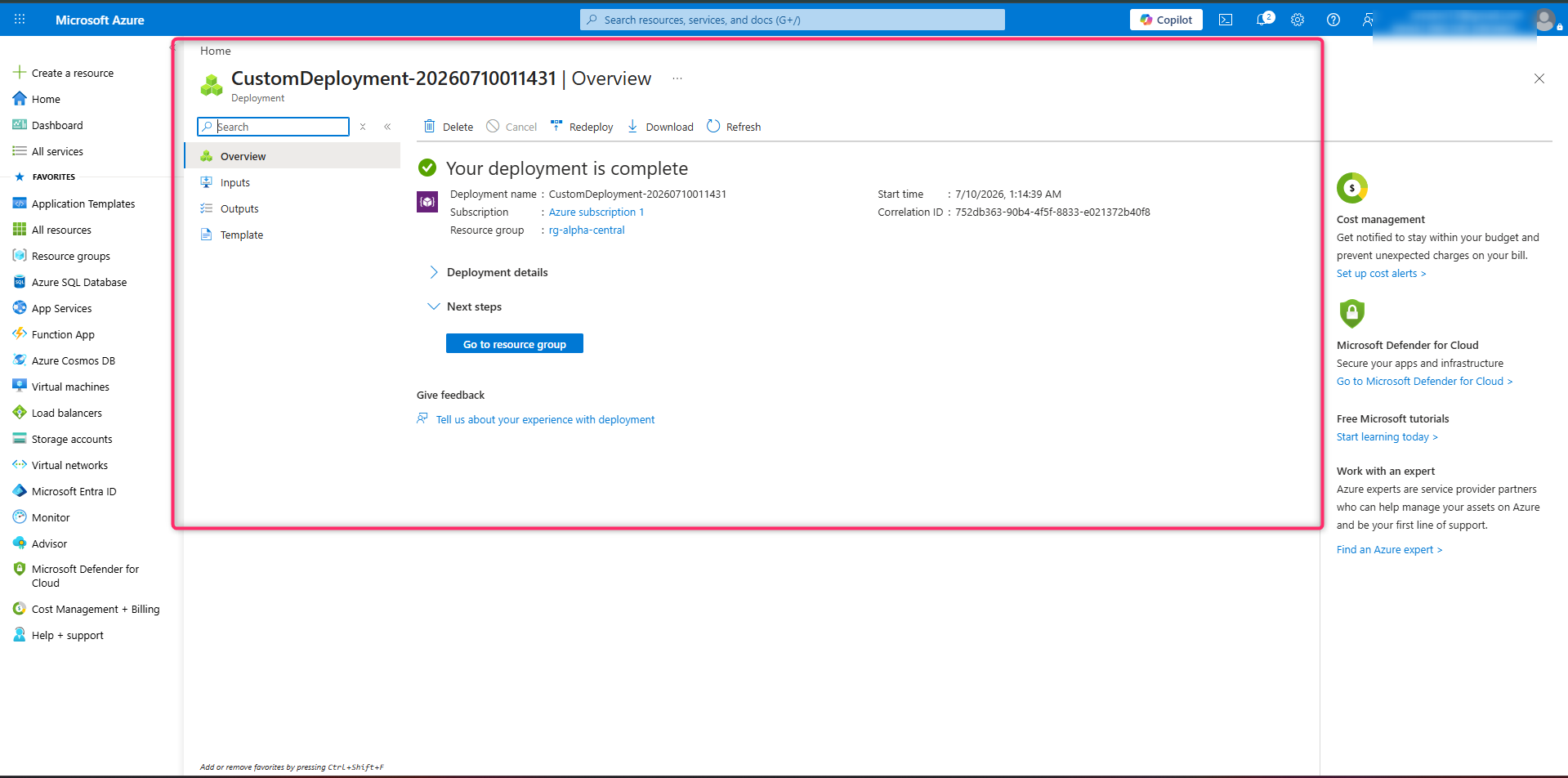

- After the deployment completes, choose Go to resource group.
- Ensure that you’re signed into the Azure Portal.
- In your browser, open a new browser tab and navigate to https://learn.microsoft.com/en-us/samples/azure/azure-quickstart-templates/webapp-basic-linux/
- On the GitHub page, choose Deploy to Azure.
- On the Basics page, provide the following information and choose Next. Please note that the new resource group created in the Central US region was used to ensure successful deplyoment
- Review the information and choose Create.
Closing.
Successfully completing this lab demonstrates how Azure's compute, identity, networking, and application services work together to build secure and scalable cloud environments. Beyond simply deploying resources, these exercises reinforce best practices in infrastructure provisioning, access management, virtual machine configuration, and application deployment.
I hope this guide helps you gain practical Azure experience and serves as a valuable reference throughout your cloud learning journey. If you found this tutorial helpful, consider leaving a comment, sharing it with others in the cloud community, and following me for more hands-on Azure, DevOps, and cloud engineering guides.
