Measuring Energy Usage

Decided to figure out how to measure the energy used by a desktop computer and see if I can figure out a way to identify different workloads.

I have a Mac Studio M1 to run the workload, and an old MacBook laptop to run data collection on, so that it doesn't add to the workload.

First thing we need is a power monitoring plug that has an API. The TP-Link Kasa platform seems like a good place to start. It has a python based API available on GitHub.

% pip3 install python-kasa

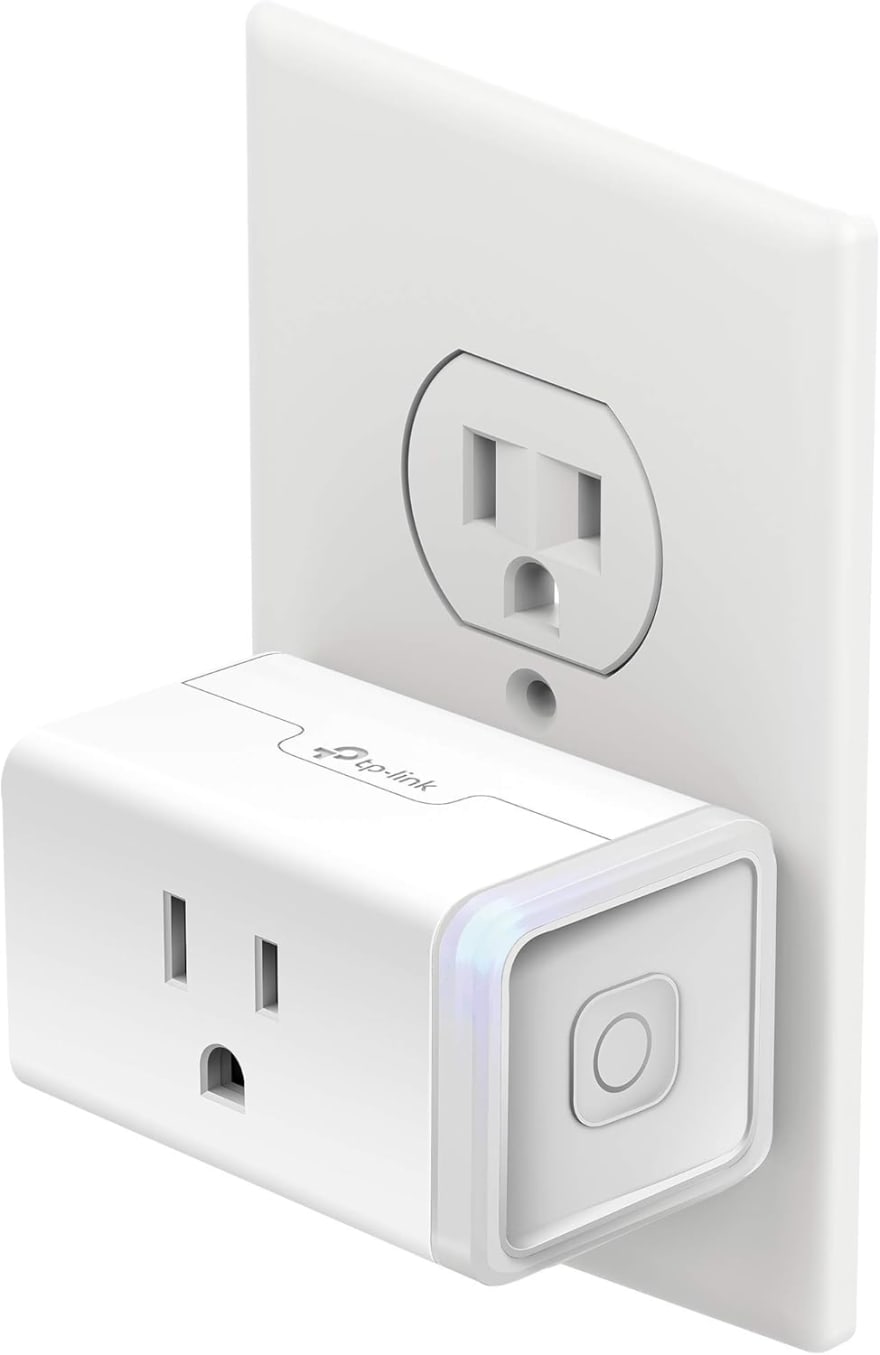

I ordered a Kasa KP115 smart plug from Amazon for $22.99.

Setup the plug using the mobile app, then:

% kasa
No host name given, trying discovery..
Discovering devices on 255.255.255.255 for 3 seconds
== PowerMeter - KP115(US) ==
    Host: 10.0.0.46
    Device state: ON

    == Generic information ==
    Time:         2022-10-31 15:21:56 (tz: {'index': 6, 'err_code': 0}
    Hardware:     1.0
    Software:     1.0.18 Build 210910 Rel.141202
    MAC (rssi):   10:27:F5:9C:37:12 (-49)
    Location:     {'latitude': 36.xxx, 'longitude': -121.xxx}

    == Device specific information ==
    LED state: True
    On since: 2022-10-31 12:35:15

    == Current State ==
    <EmeterStatus power=3.456 voltage=122.48 current=0.049 total=0.002>

    == Modules ==
    + <Module Schedule (schedule) for 10.0.0.46>
    + <Module Usage (schedule) for 10.0.0.46>
    + <Module Antitheft (anti_theft) for 10.0.0.46>
    + <Module Time (time) for 10.0.0.46>
    + <Module Cloud (cnCloud) for 10.0.0.46>
    + <Module Emeter (emeter) for 10.0.0.46>

Next - you have to specify host, or it will crash, and specifying type saves it an extra API call, and you get a single result

% kasa --host 10.0.0.46 --type plug emeter
== Emeter ==
Current: 0.049 A
Voltage: 121.715 V
Power: 3.628 W
Total consumption: 0.002 kWh
Today: 0.002 kWh
This month: 0.002 kWh

Using a csh loop to get a 1 second trace of the data it's clear that the data changes about every 4 seconds.

% while 1
while? kasa --host 10.0.0.46 --type plug | egrep '(Time:|EmeterStatus)'
while? sleep 1
while? end
    Time:         2022-10-31 16:09:34 (tz: {'index': 6, 'err_code': 0}
    <EmeterStatus power=0.0 voltage=122.49 current=0.0 total=0.004>
    Time:         2022-10-31 16:09:35 (tz: {'index': 6, 'err_code': 0}
    <EmeterStatus power=0.0 voltage=122.49 current=0.06 total=0.004>
    Time:         2022-10-31 16:09:36 (tz: {'index': 6, 'err_code': 0}
    <EmeterStatus power=0.0 voltage=122.36 current=0.06 total=0.004>
    Time:         2022-10-31 16:09:38 (tz: {'index': 6, 'err_code': 0}
    <EmeterStatus power=3.68 voltage=122.36 current=0.06 total=0.004>
    Time:         2022-10-31 16:09:39 (tz: {'index': 6, 'err_code': 0}
    <EmeterStatus power=3.68 voltage=122.36 current=0.06 total=0.004>
    Time:         2022-10-31 16:09:40 (tz: {'index': 6, 'err_code': 0}
    <EmeterStatus power=3.68 voltage=122.36 current=0.05 total=0.004>
    Time:         2022-10-31 16:09:41 (tz: {'index': 6, 'err_code': 0}
    <EmeterStatus power=3.68 voltage=122.258 current=0.05 total=0.004>
    Time:         2022-10-31 16:09:42 (tz: {'index': 6, 'err_code': 0}
    <EmeterStatus power=3.253 voltage=122.258 current=0.05 total=0.004>
    Time:         2022-10-31 16:09:43 (tz: {'index': 6, 'err_code': 0}
    <EmeterStatus power=3.253 voltage=122.258 current=0.05 total=0.004>
    Time:         2022-10-31 16:09:45 (tz: {'index': 6, 'err_code': 0}
    <EmeterStatus power=3.253 voltage=122.258 current=0.049 total=0.004>
    Time:         2022-10-31 16:09:46 (tz: {'index': 6, 'err_code': 0}
    <EmeterStatus power=3.253 voltage=122.382 current=0.049 total=0.004>
    Time:         2022-10-31 16:09:47 (tz: {'index': 6, 'err_code': 0}
    <EmeterStatus power=3.253 voltage=122.382 current=0.049 total=0.004>
    Time:         2022-10-31 16:09:48 (tz: {'index': 6, 'err_code': 0}
    <EmeterStatus power=3.675 voltage=122.382 current=0.049 total=0.004>
    Time:         2022-10-31 16:09:49 (tz: {'index': 6, 'err_code': 0}
    <EmeterStatus power=3.675 voltage=122.382 current=0.012 total=0.004>
    Time:         2022-10-31 16:09:50 (tz: {'index': 6, 'err_code': 0}
    <EmeterStatus power=3.675 voltage=122.446 current=0.012 total=0.004>
    Time:         2022-10-31 16:09:52 (tz: {'index': 6, 'err_code': 0}
    <EmeterStatus power=3.675 voltage=122.446 current=0.012 total=0.004>

The output formatting is defined in cli.py

kasa --host 10.0.0.46 --type plug | awk '/Time:|EmeterStatus/{printf("%s %s ", $2, $3)}'; echo
2022-10-31 16:23:11 power=1.017 voltage=122.608

That's all I have time to do for now, to be continued...
