useLayoutEffect – Demystifying React Hooks (Pt. 4)

In this article, we will explore when and how to use React’s useLayoutEffect
hook and how it relates to the useEffect Hook.

If you’d like to clone this down and run it locally, you can find the repo here

Getting Started

• fork and clone
• cd client
• npm i
• npm start

Creating the Problem

Sure, useLayoutEffect is not something you'll use often. It actually took me
longer to think of a use case than to code out the example. It's kinda like
the US Supreme Court's definition of obscenity,
"You know it when you see it."

The React beta docs offer a cool, albeit incredibly specific use case with
"a tooltip that appears next to some element on hover. If there’s enough space, the tooltip should appear above the element, but if it doesn’t fit, it should appear below"...
if you'd like to check that out.

While you likely won't turn to useLayoutEffect often enough to need a snippet,
understanding how it works will help you better understand useEffect, which
you'll use daily as a React 18+ developer. And for the one time in your career
when you need to pull it out, you'll know precisely the right tool for the job.

What is useLayoutEffect?

As every good developer pretends to do before Googling, let's turn to the
docs.

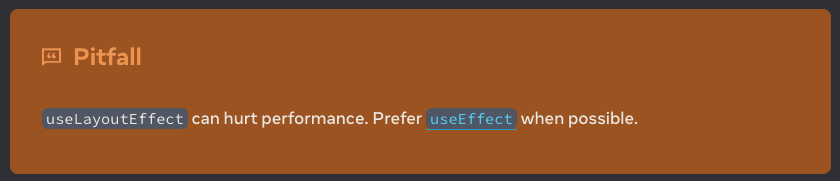

The first thing we see on the page for useLayoutEffect is a bright orange
warning telling us not to use useLayoutEffect.

Got it.

Reading on, we find the following description:

useLayoutEffect is a version of useEffect that fires before the browser repaints the screen.

Sweet.

If you understand useEffect, this is a pretty straightforward explanation of
useLayoutEffect. However, if you've found yourself here and don't have a firm
grasp on useEffect, I'd recommend reading up on
useEffect and
revisiting. And since you didn't take my advice, let's quickly recap
useEffect.

useEffect Recap

useEffect calls an anonymous function after the values in its dependency array
have changed. It is asynchronous and non-blocking. It runs after the browser has
painted the screen and can optionally return a "clean-up" function. Essentially,
useEffect is all the old crusty component lifecycle methods rolled up into one
tidy hook.

useEffect's primary purpose is to asynchronously run
side effects
without blocking
JavaScript's Single Thread,
offering a more performant and responsive application resulting in a more
seamless User Experience.

In plain English, your React App won't wait on useEffect to finish doing its
thing before rendering the page. Your page will render while the useEffect
will run alongside the browser paint, and if your useEffect affects the UI, it
will only rerender what is needed. Fetching data from an API and updating state
is one of the most common use cases for useEffect.

So how does this compare to useLayoutEffect?

useEffect vs. useLayoutEffect

useLayoutEffect's signature is identical, but it is synchronous, blocking, and
runs before the browser paints. So these two are kind of exactly the same but
kind of exactly the opposite.

useEffect(() => {
  // asynchronous, non-blocking, runs after the browser paints
}, [dependencyArray]);

useLayoutEffect(() => {
  // synchronous, blocking, runs before the browser paints
}, [dependencyArray]);

Starter Code

Let's finally dive into the code.

In App.js, you'll see our entire app that aims to simulate a Super Exciting
Live Stream with a chat functionality on the sidebar.

On lines 15 and 16, we're simply initializing a ref called afterChatRef and
a state called messages.

After our imports, we have a setInterval function that counts to a billion
every two milliseconds. React is getting better and better at outsmarting our
clunky code, so this is purely a way to slow down the application. And the
comment is just asking es-lint to cool it with the unused vars warning since
we're not doing anything with sum after incrementing it.

setInterval(() => {
  let sum = 0;
  for (let i = 0; i < 1e9; i++) {
    // eslint-disable-next-line no-unused-vars
    sum += i;
  }
}, 2);

Next, we'll look at our getMessages function on line 19, which gets our data
from a dummy API and sets that data to the messages state.

const getMessages = async () => {
  const res = await axios.get('https://dummyjson.com/users?limit=100');
  setMessages(res.data.users);
};

On line 24, we have a useEffect with an empty dependency array that calls our
function. So the component mounts, the browser paints the virtual DOM, then,
when our useEffect runs, it updates messages which rerenders the page and
causes the DOM to repaint.

useEffect(() => {
  getMessages();
}, []);

Next, we have another useEffect on line 28, whose dependency array contains
messages. Since this hook depends on the value of messages, it doesn't
trigger until the messages object changes. After that happens, this
useEffect scrolls the afterChatRef into view. Practically speaking, it takes
the user to the bottom of the chat. There is no functionality to add new
messages, but as you can imagine, when the user adds a message, state changes,
and our useEffect scrolls us to the bottom.

useEffect(() => {
  afterChatRef.current?.scrollIntoView();
}, [messages]);

Nothing exciting in the JSX. Our "stream" is on the left, and we're
conditionally rendering the messages in a container on the right.

So What's the Problem?

Admittedly, were it not for my function counting to a billion every two
milliseconds, we would use useEffect and not notice the issue. If your machine
is significantly faster than mine, you still may not notice the problem. If
that's the case, open your dev tools (shame on you for not already having them
open), click the Performance tab, click CPU No throttling, and set it to
4x slowdown or even 6x slowdown, depending on how much richer you are than
me.

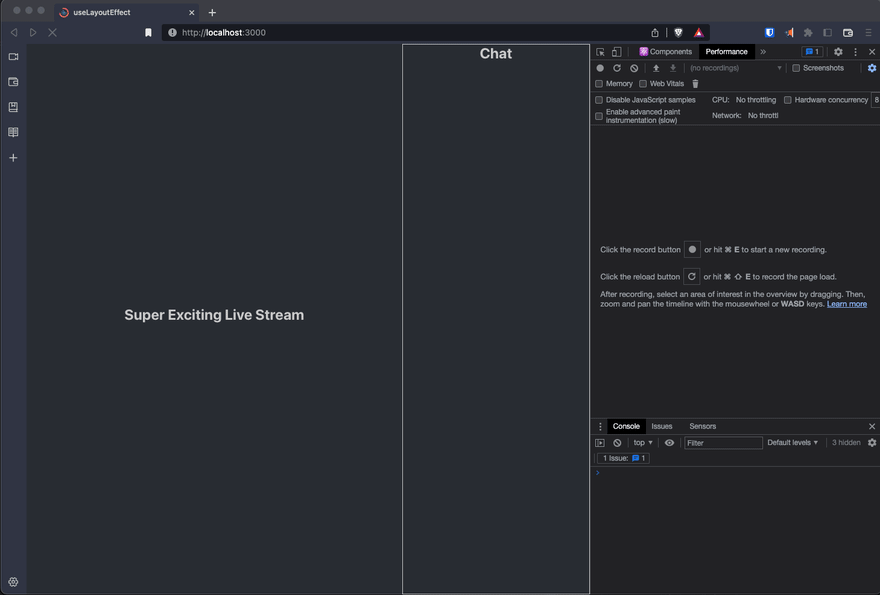

Refresh the page. Nice and slow.

See how the chat loads and hangs at the top for a moment before snapping to the
bottom? Let's reduce the for loop to 1e5 (100,000) instead of 1e9, save,
and refresh. This is closer to how it may look out in the wild. This flicker is
that "obscenity" I was talking about earlier.

Let's refer back to the React doc's tooltip example to see the root issue
they're trying to solve.

You don’t want the user to see the tooltip moving. Call useLayoutEffect to perform the layout measurements before the browser repaints the screen.

You don't want the user to see the tooltip moving. Or, say, to see the chat
flickering before snapping to the bottom?

Implementing useLayoutEffect

This refactor will be significantly less work than previous articles. All we
need to do is import useLayoutEffect from 'react'.

import { useState, useEffect, useLayoutEffect, useRef } from 'react';

And replace our useEffect on line 28 with useLayoutEffect, leaving the
useEffect on line 24 undisturbed.

useLayoutEffect(() => {
  afterChatRef.current?.scrollIntoView();
}, [messages]);

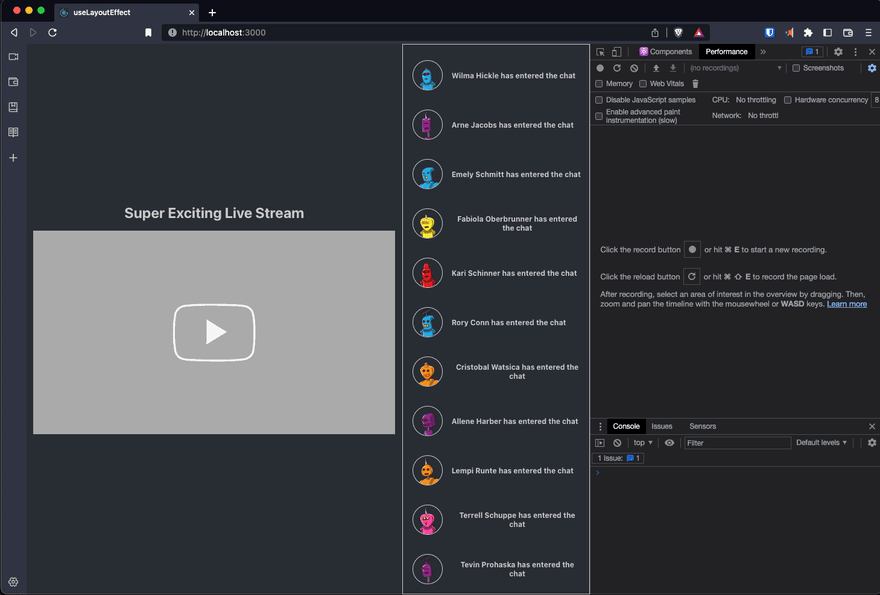

Now, when we save and refresh, voila! Our chat no longer flickers at the top
before scrolling to the bottom.

To demonstrate further, change our arbitrary loop back to 1e9 and throttle
your browser if needed. Refresh.

While painfully slow, you can see the DOM doesn't paint the chat section until
after the useLayoutEffect has scrolled us to the bottom.

Some Cautions

No flicker. So why not always use useLayoutEffect over useEffect? Well, it's
essential to understand what precisely is going on and why we should heed
React's enormous orange warning.

Remember, useLayoutEffect is
synchronous
and blocking. Synchronous means it runs from the top down line-by-line, and
blocking means it is a resource hog and occupies the entire thread until the
function has completed. The docs recommend useEffect over useLayoutEffect
for these very reasons. Because useEffect is asynchronous and non-blocking, it
is the right hook for the job most of the time.

Our chat no longer flickers because, after the value of messages changes,
we're blocking the browser from painting the DOM until the useLayoutEffect
scrolls the chat to the bottom. Because of this blocking behavior, we should
only implement useLayoutEffect when we notice the need. If we go around
useLayoutEffect-ing all over the place, we'll unnecessarily bog down our app
and may as well be writing in vanilla JavaScript.

We should approach useLayoutEffect with the same opt-in mentality as
useCallback or useMemo. Only use it when you notice the need.

Preemptively optimizing our app will often introduce bugs and complicate the
codebase with little benefit. In general, if you don't know whether you should
use useLayoutEffect, you probably shouldn't.

Conclusions

useLayoutEffect is a nifty little hook. Being able to discuss it intelligently
might impress some fellow nerds at a cocktail party and maybe even a hiring
manager or two. Truthfully, you won't use it very often, but if you do, it's
important to acknowledge the tradeoffs and consciously sacrifice.

Just remember, you'll know it when you see it.
