Vue Chart Performance: When ApexCharts, Chart.js and ECharts Aren't Enough

TL;DR

Most Vue charting guides stop at installation and never cover what happens once a chart has to live inside Vue's reactivity system, ref, reactive, and the Composition API's lifecycle hooks. That gap shows up fast under live data: a chart instance is usually a non-reactive object sitting inside a reactive component, so how a library exposes updates decides whether a tick of new data is a cheap redraw or a full re-mount. This list ranks eight Vue chart libraries by how well each actually behaves under live, frequently updating data, not by chart-type count or downloads.

Getting Started: What Makes a Chart Library Work Well Inside Vue's Reactivity Model

Vue's reactivity system tracks two primitives: ref for a single reactive value and reactive for a reactive object, both of which trigger a re-render when their contents change. The Composition API pairs this with lifecycle hooks, onMounted to run code once a component's DOM exists, and onUnmounted to clean it up, which is where most chart libraries actually get instantiated, since a chart needs a real DOM element to draw into.

The complication is that a chart instance, whatever library it comes from, is typically a plain JavaScript class object. It isn't reactive on its own, and Vue has no way to know that changing a data array should trigger the chart to redraw unless the library explicitly wires that connection. Some libraries do this by watching props and calling their own internal update methods. Others hand you the raw instance and expect you to call chart.update(), updateSeries(), or setOption() yourself. That difference, whether updates are cheap and targeted or force the whole chart to re-render, is what separates a chart that holds up under a live feed from one that starts stuttering the moment updates get frequent.

To keep this concrete, picture a small team building a live operations dashboard in Vue 3 using <script setup>: one chart tracking a metric that updates roughly once a second. That's the running scenario behind each entry below.

The Best Vue Chart Libraries for Live Data

1. SciChart

SciChart doesn't ship an official Vue package. That's worth stating plainly rather than glossing over, since every other entry on this list has one. What SciChart provides instead is an official boilerplate in its examples repository (ABTSoftware/SciChart.JS.Examples, under BoilerPlates/vue) and a community-maintained wrapper, vue-scichart, built by an independent contributor and explicitly labeled a work in progress.

The reason this is worth including at the top of the list rather than skipping it: SciChart's integration pattern sidesteps the exact bottleneck the rest of this list runs into. Instead of routing live updates through Vue's reactivity layer at all, you instantiate the WebGL surface directly inside onMounted, tear it down in onUnmounted, and feed it new data through SciChart's own DataSeries API (methods like appendRange) rather than through a reactive prop. Because the chart never depends on Vue re-rendering to receive new data, the update path is decoupled from however busy the rest of the component tree gets. For the live ops dashboard scenario above, that means the chart's update rate isn't capped by how efficiently Vue's virtual DOM can diff a changing prop; it's capped by the GPU-accelerated rendering engine underneath.

Pros:

• WebGL rendering handles real-time streaming and multi-million-point datasets without frame drops
• Updates bypass Vue's reactivity system entirely, so chart update frequency isn't limited by component re-render cost
• 70+ chart types with a full theming and annotation API

• Official GitHub boilerplate provides a working, current starting point
  Cons:

• No official Vue component package; integration is manual rather than a drop-in wrapper

• The community vue-scichart package is explicitly a work in progress, not a finished, first-party product

• More setup effort upfront than a library with a maintained official wrapper
  Pricing: Free Community Edition for non-commercial, educational, and evaluation use, no sign-up or credit card required, with the build needing an update every 6 months. Commercial licensing is per-developer, quoted through SciChart's sales team based on platform and tier.

2. Apache ECharts (via vue-echarts)

vue-echarts is the closest thing on this list to working with Vue's reactivity rather than around it. The library exposes an option prop, and because that prop can itself be a Vue ref or reactive object, changing a value inside it triggers ECharts' own internal diffing engine to figure out what actually changed and redraw only that. A separate update-options prop controls whether new option data merges with the existing chart or replaces it outright, which matters for the live-ops-dashboard case: merging is the cheaper, more targeted path for a chart that's ticking every second rather than being rebuilt from scratch.

Theming uses Vue's provide/inject pattern via a THEME_KEY, which is a genuinely idiomatic Vue approach rather than a bolted-on config object.

Pros:

• option prop reactivity works naturally with Vue's ref/reactive primitives
• update-options gives explicit control over merge versus replace behavior on live updates
• Widest chart type coverage on this list, including maps, treemaps, and calendar heatmaps

• Backed by the Apache Software Foundation with active maintenance
  Cons:

• Canvas/SVG rendering still hits a CPU or memory ceiling at very high point counts or update rates (WebGL needs the separate echarts-gl add-on)

• The option object can get large and deeply nested for complex charts

• Some community discussion and edge-case documentation is only available in Chinese
  Pricing: Free and open-source under the Apache 2.0 license, no paid tier.

3. Chart.js (via vue-chartjs)

vue-chartjs wraps Chart.js as a Vue component, and the correct reactive-update pattern runs the opposite way from how it looks coming from raw Chart.js. Passing a new data object, replacing the prop rather than mutating it, is what vue-chartjs's own internal watcher picks up, and it re-renders the chart automatically. Pushing a new point into the existing data array in place doesn't trigger that watcher: Vue's reactivity won't see the in-place mutation, so nothing happens unless you also call chart.update() yourself.

Handled correctly, Chart.js's Canvas rendering holds up reasonably well for the live-ops-dashboard scenario; a single metric updating once a second is well within its comfort zone. It starts to strain once you're driving several such charts simultaneously or pushing updates several times a second.

Pros:

• One of the largest communities among chart libraries, meaning deep Stack Overflow and plugin coverage
• vue-chartjs closely mirrors Chart.js's own API, minimal translation layer to learn
• Canvas rendering avoids the DOM-node cost of SVG-based alternatives

• Small core bundle keeps load times light
  Cons:

• Easy to mutate the data array in place expecting a reactive update, and get nothing without an explicit chart.update() call

• Default styling needs custom work to look distinctive

• Screen-reader accessibility requires an added plugin
  Pricing: Free and open-source under the MIT license, no paid tier.

4. ApexCharts (via vue3-apexcharts)

ApexCharts' official Vue 3 plugin passes series and options as props, and mutating those props reactively does update the chart automatically: the plugin watches both internally and calls the right update method for you. An open issue on the vue3-apexcharts repository once asked for exactly this behavior through the Composition API; that issue has since been closed, so the straightforward Vue instinct, change a ref and let the template re-render, is also the correct one here.

For the live-ops-dashboard scenario, that means no extra step is required for the common case. A template ref to the chart component is still available for calling updateSeries() or appendData() directly, useful when you want more granular control than a full prop replacement, but it's no longer necessary just to get updates working.

Pros:

• Official Vue 3 plugin maintained by the ApexCharts team
• Strongest built-in interactivity of the SVG-based options here: zoom, pan, brush, annotations, with no custom event handling
• Polished, presentation-ready default styling

• Clear instance-method API once you know to use it via a template ref
  Cons:

• Passing an entirely new series array on every tick still triggers a fuller redraw than calling appendData(); very frequent updates benefit from the instance-method path

• Still SVG-based, so the same point-count ceiling applies at high volumes or fast streaming

• Licensing has shifted to a dual community/commercial model depending on use case
  Pricing: Free under a community license for most standard use. A commercial or OEM license applies once an organization crosses ApexCharts' published revenue threshold or embeds the library in a product other people configure, per apexcharts.com.

5. D3.js

D3 isn't a chart library in the same sense as the rest of this list; it's a toolkit for binding data to DOM elements, and there's no dedicated Vue wrapper because none is really needed. The established Vue 3 pattern is a composable: a function that takes a ref pointing at a DOM element, runs D3's selection and binding logic inside onMounted, and re-runs the relevant parts inside a watch callback whenever the underlying data changes.

This gives you full control over exactly what re-renders and when, which is both D3's biggest strength for the live-ops-dashboard case and its highest cost. Nothing happens automatically. You're responsible for deciding what a "cheap update" looks like for your specific chart, D3 won't decide that for you the way ECharts' internal diffing does.

Pros:

• Complete control over what updates and how, since you write the update logic yourself
• No wrapper library to learn; works directly with Vue's own ref/watch/onMounted primitives
• Unmatched flexibility for genuinely custom or non-standard visualizations

• Massive existing ecosystem of examples and community code
  Cons:

• No pre-built chart components; every chart is assembled from primitives

• Reactive update behavior is entirely your own responsibility to implement well

• Steepest learning curve on this list
  Pricing: Free and open-source under the ISC license, no paid tier.

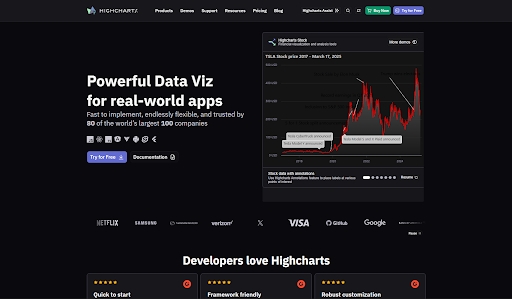

6. Highcharts (via highcharts-vue)

Highcharts

highcharts-vue is Highcharts' own official Vue wrapper, and it follows a similar prop-reactivity model to ECharts: you pass a configuration object, and the wrapper watches it for changes. Highcharts also ships a Boost module that switches internally to WebGL rendering for larger datasets, which matters directly for anything beyond the modest, single-metric live-ops-dashboard scenario used throughout this list; without Boost enabled, Highcharts' default SVG rendering runs into the same per-point DOM cost as any other SVG library once point counts climb.

Pros:

• Official, actively maintained Vue wrapper from the Highcharts team
• Mature, long-established API with extensive chart types, including stock and Gantt charts
• Boost module gives a real path to better performance on larger datasets without switching libraries

• Strong enterprise documentation and support options
  Cons:

• Paid license required for any company use, including internal prototypes and evaluations, not just shipped commercial products; free tier is personal/educational only

• Without Boost enabled, standard SVG rendering hits the same DOM-node ceiling as other SVG libraries

• Configuration objects can get large for complex chart setups
  Pricing: Free for personal and educational use only. Any internal company use, including prototypes, requires a paid license, priced through Highcharts directly.

7. trading-vue-js

trading-vue-js is a Vue-native library built specifically for candlestick and financial charting, drawing indicators and overlays directly on top of price data. Because it's Vue-native rather than a wrapper around a JS-first library, its update model is built around Vue's own reactivity from the start rather than bolted on afterward. One caveat that matters for this list specifically: it only supports Vue 2, so it isn't a direct fit for the Vue 3 <script setup> scenario used throughout the rest of this article without a compatibility layer or fork.

The other thing worth flagging plainly: the main repository is explicitly marked not actively maintained, and that includes no movement toward Vue 3 support. For a narrow, purpose-built use case like a trading dashboard on an existing Vue 2 codebase, it may still be worth evaluating, but the Vue-version ceiling and the maintenance status are both real factors for a live-updating production chart, not a footnote.

Pros:

• Vue-native reactivity model, no wrapper layer between Vue and the chart
• Purpose-built for candlestick, OHLC, and technical-indicator overlays

• Genuinely hackable, supports drawing custom overlays directly on the price data
  Cons:

• Only supports Vue 2; no official Vue 3 compatibility

• Main repository is explicitly marked as not actively maintained

• Narrow use case, not a general-purpose charting option

• Smaller community than the other entries on this list
  Pricing: Free and open-source, no paid tier.

8. Plotly.js (via vue3-plotly)

Plotly covers scientific, statistical, and 3D chart types that none of the other entries here handle natively, including surface plots, contour charts, and full 3D scatter among them. vue3-plotly wraps it for Vue 3 with a props-based API similar to the other wrapper-based options on this list, though the wrapper itself hasn't been updated in roughly three years.

For the live-ops-dashboard scenario, Plotly is a reasonable but not standout choice; its partial WebGL acceleration covers some series types, but not comprehensively, so a single fast-updating metric chart works fine while a dense array of them starts to show the CPU-bound parts of the rendering pipeline.

Pros:

• Broadest scientific and 3D chart type coverage on this list
• Familiar to teams already using Plotly in Python, useful for cross-language consistency

• Community wrapper follows a similar reactive-props pattern to ECharts and Highcharts
  Cons:

• Larger bundle size than the other options here

• Only partial WebGL acceleration, not comprehensively GPU-accelerated

• vue3-plotly is a community wrapper, not officially maintained by the Plotly team, and hasn't been updated in about three years
  Pricing: Free and open-source under the MIT license, no paid tier.

Where Should You Start

The libraries above split into two real categories: those that work with Vue's reactivity system through props and internal diffing ECharts, Highcharts, and ApexCharts, plus, to a lesser extent, Plotly, and those that either hand you full control (D3) or bypass Vue's reactivity for the update path entirely (SciChart). Which one fits depends on where your project sits on data volume and update frequency. A dashboard refreshing every few seconds can use any of them comfortably. A chart tracking a fast, continuous stream is where the difference between a prop-driven update and a direct instance-method call stops being a style preference and starts being the reason a chart holds up or drops frames.

If your Vue application needs to handle real-time streaming data, high update frequencies, or large datasets without the rendering ceiling that SVG and standard Canvas approaches eventually hit, SciChart's free Community Edition is the fastest way to see whether a WebGL-based, reactivity-independent update path actually solves the problem. Start with the official Vue boilerplate in the SciChart.js Examples repository for a working starting point, or explore the broader getting started guide for setup across other frameworks.

FAQs

Does SciChart have an official Vue component package?

Not currently. SciChart provides an official Vue boilerplate example in its GitHub examples repository, and there's a community-maintained wrapper called vue-scichart, explicitly labeled a work in progress. The standard integration pattern is to instantiate SciChart directly inside Vue's onMounted hook rather than through a dedicated component.

Does mutating the series prop update an ApexCharts chart in Vue?

Yes. ApexCharts' official Vue 3 plugin watches the series and options props internally and updates the chart automatically when they change, so reactively mutating a bound ref is enough for the common case. A template ref and updateSeries()/appendData() are still available for more granular, high-frequency updates, but they're not required just to get prop reactivity working.

What's the correct way to reactively update a Chart.js chart in Vue?

Pass a new data object rather than mutating the existing one; that's what vue-chartjs's own internal watcher picks up and re-renders automatically. Pushing a new point into the existing array in place won't be caught by Vue's reactivity, so the chart won't update unless you also call chart.update() yourself.

Should I use the Composition API or the Options API for Vue chart components?

The Composition API is generally the better fit for chart components specifically, since lifecycle hooks like onMounted and onUnmounted map cleanly onto when a chart instance needs to be created and destroyed, and watch gives explicit control over exactly when a chart should redraw.

When does a chart's rendering become the bottleneck instead of Vue's reactivity?

Once update frequency and data volume climb far enough, several updates a second, or datasets in the tens of thousands of points and up, the bottleneck shifts from how efficiently Vue triggers an update to how quickly the underlying rendering technology, SVG, Canvas, or WebGL, can actually draw the new frame. At that point, switching update patterns within the same library stops helping.

Is D3 a good choice for a Vue project that needs live-updating charts?

It can be, but D3 gives you no built-in reactive update behavior; you write the composable and the update logic yourself using Vue's own ref, watch, and lifecycle hooks. That's ideal for a genuinely custom visualization and unnecessary overhead for a standard line or bar chart.

Is trading-vue-js still a safe choice for a new project?

Worth evaluating carefully, and only for a Vue 2 codebase: it has no official Vue 3 support. Its Vue-native reactivity model and purpose-built candlestick and indicator support are genuine strengths, but its main repository is explicitly marked as not actively maintained, which matters more for a production financial dashboard than for a prototype.
