General aspects about sensors
Android devices tend to be accompanied with a series of sensors that make the device to interact with the environment that surrounds it.
And that’s already great to have a range of possibilities about what we can do in our applications,these sensors allow the terminal to have a knowledge of the environment that surrounds you,but the sensors are nothing more than electronic parts that capture information from outside and it is the application which should transform this information into data to work them.
The activities who works with sensors must implement the interface SensorEventListener that will force us to implement the methods onAccuracyChanged() y onSensorChanged() .
The method onAccuracyChanged() will be executed when the precision of a sensor change , while onSensorChanged() will do it every time there is a change in one of the sensors.
Building an accelerometer app

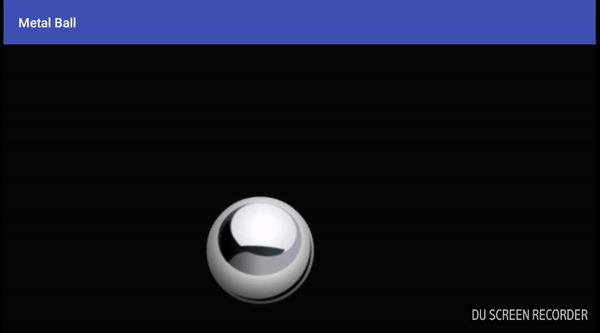

The topic of sensors in android is tremendously big and it can’t be covered at all in one article, so for this occasion we will be build an accelerometer app, metallball 💥.
But first a little bit about this sensor in specific.
Accelerometer

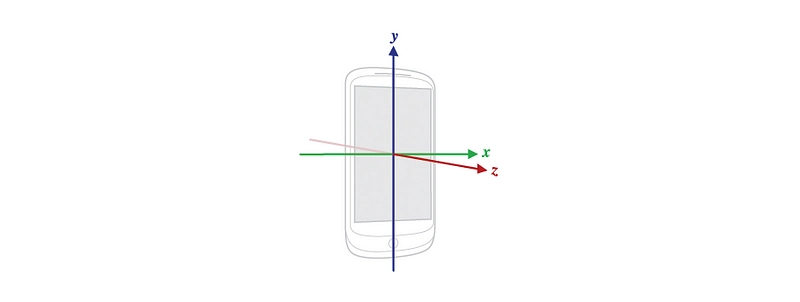

With this kind of sensor it’s possible to determinate the orientation of the terminal in the real world 🌎 , considering as coordinate axis the middle point of the device.
The accelerometer calculates the linear acceleration in each of the 3 axes (x, y, z); each axis has its own accelerometer, so that the data can be received individually.
The app code
In the MainActivity file you access to the vibration service, for that reason don't forget to copy this into the AndroidManifest file.
<uses-permission android:name="android.permission.VIBRATE" />
Here is the full code of the app, If you have questions, post it to be able to answer.
package com.projects.enzoftware.metalball | |
import android.app.Service | |
import android.bluetooth.BluetoothClass | |
import android.content.Context | |
import android.content.pm.ActivityInfo | |
import android.graphics.Bitmap | |
import android.graphics.BitmapFactory | |
import android.graphics.Canvas | |
import android.graphics.Point | |
import android.hardware.Sensor | |
import android.hardware.SensorEvent | |
import android.hardware.SensorEventListener | |
import android.hardware.SensorManager | |
import android.os.Build | |
import android.support.v7.app.AppCompatActivity | |
import android.os.Bundle | |
import android.os.Vibrator | |
import android.view.* | |
class MetalBall : AppCompatActivity() , SensorEventListener { | |
private var mSensorManager : SensorManager ?= null | |
private var mAccelerometer : Sensor ?= null | |
var ground : GroundView ?= null | |
override fun onCreate(savedInstanceState: Bundle?) { | |
requestWindowFeature(Window.FEATURE_NO_TITLE) | |
super.onCreate(savedInstanceState) | |
// get reference of the service | |
mSensorManager = getSystemService(Context.SENSOR_SERVICE) as SensorManager | |
// focus in accelerometer | |
mAccelerometer = mSensorManager!!.getDefaultSensor(Sensor.TYPE_ACCELEROMETER) | |
// setup the window | |
requestedOrientation = ActivityInfo.SCREEN_ORIENTATION_LANDSCAPE | |
window.setFlags(WindowManager.LayoutParams.FLAG_FULLSCREEN, | |
WindowManager.LayoutParams.FLAG_FULLSCREEN) | |
if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.HONEYCOMB){ | |
window.decorView.systemUiVisibility = View.SYSTEM_UI_FLAG_LAYOUT_STABLE | |
View.SYSTEM_UI_FLAG_LAYOUT_HIDE_NAVIGATION | |
View.SYSTEM_UI_FLAG_LAYOUT_FULLSCREEN | |
View.SYSTEM_UI_FLAG_HIDE_NAVIGATION | |
View.SYSTEM_UI_FLAG_FULLSCREEN | |
View.SYSTEM_UI_FLAG_IMMERSIVE | |
} | |
// set the view | |
ground = GroundView(this) | |
setContentView(ground) | |
} | |
override fun onAccuracyChanged(sensor: Sensor?, accuracy: Int) { | |
} | |
override fun onSensorChanged(event: SensorEvent?) { | |
if (event != null) { | |
ground!!.updateMe(event.values[1] , event.values[0]) | |
} | |
} | |
override fun onResume() { | |
super.onResume() | |
mSensorManager!!.registerListener(this,mAccelerometer, | |
SensorManager.SENSOR_DELAY_GAME) | |
} | |
override fun onPause() { | |
super.onPause() | |
mSensorManager!!.unregisterListener(this) | |
} | |
class DrawThread (surfaceHolder: SurfaceHolder , panel : GroundView) : Thread() { | |
private var surfaceHolder :SurfaceHolder ?= null | |
private var panel : GroundView ?= null | |
private var run = false | |
init { | |
this.surfaceHolder = surfaceHolder | |
this.panel = panel | |
} | |
fun setRunning(run : Boolean){ | |
this.run = run | |
} | |
override fun run() { | |
var c: Canvas ?= null | |
while (run){ | |
c = null | |
try { | |
c = surfaceHolder!!.lockCanvas(null) | |
synchronized(surfaceHolder!!){ | |
panel!!.draw(c) | |
} | |
}finally { | |
if (c!= null){ | |
surfaceHolder!!.unlockCanvasAndPost(c) | |
} | |
} | |
} | |
} | |
} | |
} | |
class GroundView(context: Context?) : SurfaceView(context), SurfaceHolder.Callback{ | |
// ball coordinates | |
var cx : Float = 10.toFloat() | |
var cy : Float = 10.toFloat() | |
// last position increment | |
var lastGx : Float = 0.toFloat() | |
var lastGy : Float = 0.toFloat() | |
// graphic size of the ball | |
var picHeight: Int = 0 | |
var picWidth : Int = 0 | |
var icon:Bitmap ?= null | |
// window size | |
var Windowwidth : Int = 0 | |
var Windowheight : Int = 0 | |
// is touching the edge ? | |
var noBorderX = false | |
var noBorderY = false | |
var vibratorService : Vibrator ?= null | |
var thread : MetalBall.DrawThread?= null | |
init { | |
holder.addCallback(this) | |
//create a thread | |
thread = MetalBall.DrawThread(holder, this) | |
// get references and sizes of the objects | |
val display: Display = (getContext().getSystemService(Context.WINDOW_SERVICE) as WindowManager).defaultDisplay | |
val size:Point = Point() | |
display.getSize(size) | |
Windowwidth = size.x | |
Windowheight = size.y | |
icon = BitmapFactory.decodeResource(resources,R.drawable.ball) | |
picHeight = icon!!.height | |
picWidth = icon!!.width | |
vibratorService = (getContext().getSystemService(Service.VIBRATOR_SERVICE)) as Vibrator | |
} | |
override fun surfaceChanged(holder: SurfaceHolder?, format: Int, width: Int, height: Int) { | |
} | |
override fun surfaceDestroyed(holder: SurfaceHolder?) { | |
} | |
override fun surfaceCreated(holder: SurfaceHolder?) { | |
thread!!.setRunning(true) | |
thread!!.start() | |
} | |
override fun draw(canvas: Canvas?) { | |
super.draw(canvas) | |
if (canvas != null){ | |
canvas.drawColor(0xFFAAAAA) | |
canvas.drawBitmap(icon,cx,cy,null) | |
} | |
} | |
override public fun onDraw(canvas: Canvas?) { | |
if (canvas != null){ | |
canvas.drawColor(0xFFAAAAA) | |
canvas.drawBitmap(icon,cx,cy,null) | |
} | |
} | |
fun updateMe(inx : Float , iny : Float){ | |
lastGx += inx | |
lastGy += iny | |
cx += lastGx | |
cy += lastGy | |
if(cx > (Windowwidth - picWidth)){ | |
cx = (Windowwidth - picWidth).toFloat() | |
lastGx = 0F | |
if (noBorderX){ | |
vibratorService!!.vibrate(100) | |
noBorderX = false | |
} | |
} | |
else if(cx < (0)){ | |
cx = 0F | |
lastGx = 0F | |
if(noBorderX){ | |
vibratorService!!.vibrate(100) | |
noBorderX = false | |
} | |
} | |
else{ noBorderX = true } | |
if (cy > (Windowheight - picHeight)){ | |
cy = (Windowheight - picHeight).toFloat() | |
lastGy = 0F | |
if (noBorderY){ | |
vibratorService!!.vibrate(100) | |
noBorderY = false | |
} | |
} | |
else if(cy < (0)){ | |
cy = 0F | |
lastGy = 0F | |
if (noBorderY){ | |
vibratorService!!.vibrate(100) | |
noBorderY= false | |
} | |
} | |
else{ noBorderY = true } | |
invalidate() | |
} | |
} |
Conclusion
If you found this helpful, click the <3 below. Follow me for more articles on technology.
Here is the link to the full source code 💥 :
