Building a MCP Client in Google Apps Script

#mcp #appsscript #googleworkspace #vertexai

The Model Context Protocol (MCP) is an open standard that allows AI assistants and tools to interact securely. While there are official SDKs for Node.js and Python, you might sometimes need a lightweight connection from a Google Workspace environment.

In this post, we’ll build a minimal MCP client using Google Apps Script’s UrlFetchApp.

Understanding the Protocol

MCP uses JSON-RPC 2.0 for communication. A typical session lifecycle involves:

  1. Initialization : Handshake to exchange capabilities.
  2. Tool Discovery : Listing available tools.
  3. Tool Execution : Calling specific tools to perform actions.

This implementation assumes you have an MCP server exposed via HTTP. I’m using the Google Workspace Developer Tools MCP Server for this example, https://workspace-developer.goog/mcp.

The Code

Here is the McpClient class that handles the handshake and method calls.

/**
 * A simple MCP Client for Google Apps Script.
 * Uses UrlFetchApp to communicate via JSON-RPC 2.0.
 */
class McpClient {
  constructor(url) {
    this.url = url;
    this.sessionId = null;
    this.requestId = 1;
  }

  /**
   * Initializes the session and captures the session ID.
   */
  initialize() {
    const response = this.sendRequest("initialize", {
      protocolVersion: "2024-11-05",
      capabilities: {
        roots: { listChanged: false },
        sampling: {},
      },
      clientInfo: {
        name: "AppsScriptClient",
        version: "1.0.0",
      },
    });

    this.sendNotification("notifications/initialized");
    return response;
  }

  /**
   * Lists available tools.
   */
  listTools() {
    return this.sendRequest("tools/list", {});
  }

  /**
   * Calls a specific tool.
   * @param {string} name
   * @param {Object} args
   */
  callTool(name, args) {
    return this.sendRequest("tools/call", {
      name: name,
      arguments: args || {},
    });
  }

  /**
   * Closes the session.
   */
  close() {
    if (!this.sessionId) return;

    const options = {
      method: "delete",
      headers: {
        "MCP-Session-Id": this.sessionId,
      },
      muteHttpExceptions: true,
    };

    UrlFetchApp.fetch(this.url, options);
    this.sessionId = null;
  }

  /**
   * Sends a JSON-RPC request.
   */
  sendRequest(method, params) {
    const payload = {
      jsonrpc: "2.0",
      id: String(this.requestId++),
      method: method,
    };
    if (params !== undefined) {
      payload.params = params;
    }

    const options = {
      method: "post",
      contentType: "application/json",
      headers: this._getHeaders(),
      payload: JSON.stringify(payload),
      muteHttpExceptions: true,
    };

    const response = UrlFetchApp.fetch(this.url, options);

    // Capture session ID from initialization response if not already set
    if (!this.sessionId && method === "initialize") {
      const respHeaders = response.getHeaders();
      // Headers might be case-insensitive or not, check both standard casing
      this.sessionId =
        respHeaders["MCP-Session-Id"] || respHeaders["mcp-session-id"];
    }

    const contentType = response.getHeaders()["Content-Type"] || "";

    let json;

    if (contentType.includes("text/event-stream")) {
      const content = response.getContentText();
      const lines = content.split("\n");
      for (const line of lines) {
        if (line.startsWith("data: ")) {
          try {
            const data = JSON.parse(line.substring(6));
            if (
              data.id === payload.id ||
              data.result !== undefined ||
              data.error !== undefined
            ) {
              json = data;
              break;
            }
          } catch (e) {
            // ignore parse errors for keep-alive or malformed lines
          }
        }
      }
      if (!json) {
        throw new Error("No valid JSON-RPC response in event stream");
      }
    } else {
      json = JSON.parse(response.getContentText());
    }

    if (json.error) {
      throw new Error(`MCP Error ${json.error.code}: ${json.error.message}`);
    }

    return json.result;
  }

  /**
   * Sends a JSON-RPC notification (no id, no response expected).
   */
  sendNotification(method, params) {
    const payload = {
      jsonrpc: "2.0",
      method: method,
      params: params,
    };

    const options = {
      method: "post",
      contentType: "application/json",
      headers: this._getHeaders(),
      payload: JSON.stringify(payload),
      muteHttpExceptions: true,
    };

    UrlFetchApp.fetch(this.url, options);
  }

  /**
   * Helper to construct headers.
   */
  _getHeaders() {
    const headers = {
      Accept: "application/json, text/event-stream",
      "MCP-Protocol-Version": "2024-11-05",
    };

    if (this.sessionId) {
      headers["MCP-Session-Id"] = this.sessionId;
    }
    return headers;
  }
}
Enter fullscreen mode Exit fullscreen mode

And here is how you can use it:

/**
 * A simple MCP Client for Google Apps Script.
 * Uses UrlFetchApp to communicate via JSON-RPC 2.0.
 */
function runMcpClientDemo() {
  // Replace with your MCP server URL
  const SERVER_URL = "https://workspace-developer.goog/mcp";
  const client = new McpClient(SERVER_URL);

  // 1. Initialize
  console.log("Initializing...");
  const initResult = client.initialize();
  console.log("Capabilities:", JSON.stringify(initResult, null, 2));

  // 2. List Tools
  console.log("Listing Tools...");
  const tools = client.listTools();
  console.log("Available Tools:", JSON.stringify(tools, null, 2));

  // 3. Call Tool
  if (tools.tools && tools.tools.length > 0) {
    const toolName = tools.tools[0].name;
    const result = client.callTool(toolName, { query: "Apps Script" });
    console.log("Result:", JSON.stringify(result, null, 2));
  }

  // 4. Close Session
  console.log("Closing session...");
  client.close();
}
Enter fullscreen mode Exit fullscreen mode

1. Initialization (Handshake)

The session starts with an initialize request. The client sends its protocol version and capabilities. The server responds with its own.

9:59:38 AM    Info    Initializing...
9:59:38 AM    Info    Capabilities: {
  "protocolVersion": "2024-11-05",
  "capabilities": {
    "experimental": {},
    "prompts": {
      "listChanged": false
    },
    "resources": {
      "subscribe": false,
      "listChanged": false
    },
    "tools": {
      "listChanged": false
    }
  },
  "serverInfo": {
    "name": "Google Workspace Developers",
    "version": "unknown"
  },
  "instructions": "First, use the search_workspace_docs tool..."
}
Enter fullscreen mode Exit fullscreen mode

2. Listing Tools

Once initialized, we can see what the server offers using tools/list.

9:59:38 AM    Info    Available Tools: {
  "tools": [
    {
      "name": "search_workspace_docs",
      "title": "Search Google Workspace Documentation",
      "description": "Searches the latest official Google Workspace doc...",
      "inputSchema": {
        "properties": {
          "query": {
            "description": "The query to search.",
            "maxLength": 100,
            "minLength": 5,
            "title": "Query",
            "type": "string"
          }
        },
        "required": [
          "query"
        ],
        "title": "search_toolArguments",
        "type": "object"
      },
      "outputSchema": {
        "$defs": {
          "SearchResult": {
            "properties": {
              "title": {
                "description": "The title of the search result.",
                "title": "Title",
                "type": "string"
              },
              "url": {
                "description": "The URL of the search result.",
                "title": "Url",
                "type": "string"
              }
            },
            "required": [
              "title",
              "url"
            ],
            "title": "SearchResult",
            "type": "object"
          }
        },
        "properties": {
          "results": {
            "description": "The search results.",
            "items": {
              "$ref": "#/$defs/SearchResult"
            },
            "title": "Results",
            "type": "array"
          },
          "summary": {
            "description": "The summary of the search results.",
            "title": "Summary",
            "type": "string"
          }
        },
        "required": [
          "results",
          "summary"
        ],
        "title": "SearchResponse",
        "type": "object"
      },
      "annotations": {
        "readOnlyHint": true,
        "destructiveHint": false,
        "idempotentHint": true,
        "openWorldHint": true
      }
    },
Enter fullscreen mode Exit fullscreen mode

3. Calling Tools

To use a capability, we send a tools/call request with the tool name and arguments.

const toolName = tools.tools[0].name;
const result = client.callTool(toolName, { query: "Apps Script" });
console.log("Result:", JSON.stringify(result, null, 2));
Enter fullscreen mode Exit fullscreen mode

And the result looks like this:

10:03:47 AM   Info    Result: {
  "content": [
    {
      "type": "text",
      "text": "{\n "results": [\n {\n ..."
    }
  ],
  "structuredContent": {
    "results": [
      {
        "title": "Google Apps Script overview",
        "url": "https://developers.google.com/apps-script/overview"
      },
      // ...OMITTED
      {
        "title": "Manifests",
        "url": "https://developers.google.com/apps-script/concepts/manifests"
      }
    ],
    "summary": "Apps Script enhances Google Workspace. It adds..."
  },
  "isError": false
}
Enter fullscreen mode Exit fullscreen mode

Integrating with Vertex AI

One of the most powerful uses of MCP is giving LLMs access to your tools. Since MCP uses JSON Schema for tool definitions, we can easily adapt them for Vertex AI function calling.

/**
 * Demonstrates using MCP tools with Vertex AI.
 */
function runVertexAiAgent() {
  const SERVER_URL = "https://workspace-developer.goog/mcp";
  const PROJECT_ID = "YOUR_PROJECT_ID";
  const LOCATION = "global";
  const MODEL_ID = "gemini-3-flash-preview";

  const client = new McpClient(SERVER_URL);
  client.initialize();

  // 1. Adapt MCP tools for Vertex AI
  const tools = client.listTools();
  const functionDeclarations = tools.tools.slice(0, 1).map((tool) => ({
    name: tool.name,
    description: tool.description,
    parameters: tool.inputSchema,
  }));

  // 2. Call the Model using Vertex AI Advanced Service
  const model =
    `projects/${PROJECT_ID}/locations/${LOCATION}` +
    `/publishers/google/models/${MODEL_ID}`;

  const payload = {
    contents: [
      {
        role: "user",
        parts: [
          {
            text: "How do I call Gemini from Apps Script in two sentences.",
          },
        ],
      },
    ],
    tools: [{ functionDeclarations }],
    // Model is constrained to always predicting function calls only.
    toolConfig: { functionCallingConfig: { mode: "ANY" } },
  };

  const url = `https://aiplatform.googleapis.com/v1/${model}:generateContent`;
  const options = {
    method: "post",
    contentType: "application/json",
    headers: { Authorization: `Bearer ${ScriptApp.getOAuthToken()}` },
    payload: JSON.stringify(payload),
    muteHttpExceptions: true,
  };

  const response = UrlFetchApp.fetch(url, options);
  const json = JSON.parse(response.getContentText());
  const content = json.candidates[0].content;
  const part = content.parts[0];

  // 3. Execute Tool Call
  if (part.functionCall) {
    const fn = part.functionCall;
    console.log(fn);
    const result = client.callTool(fn.name, fn.args);

    // 4. Call the Model again with the tool result
    payload.contents.push(content);
    payload.contents.push({
      role: "function",
      parts: [
        {
          functionResponse: {
            name: fn.name,
            response: { name: fn.name, content: result },
          },
        },
      ],
    });

    console.log("Payload now contains tool result");
    console.log(payload.contents);

    // Remove tools
    delete payload.tools;

    options.payload = JSON.stringify(payload);
    const response2 = UrlFetchApp.fetch(url, options);
    const answer = JSON.parse(response2.getContentText()).candidates[0].content
      .parts[0].text;
    console.log(answer);
  }

  // 5. Use it in a loop for agentic behavior
  // TODO(developer): Implement agent loop
}
Enter fullscreen mode Exit fullscreen mode

OAuth Scopes

To use Vertex AI, you must explicitly add the cloud-platform scope to your appsscript.json. If you use UrlFetchApp, you also need script.external_request.

{
  "timeZone": "America/Denver",
  "dependencies": {
    "enabledAdvancedServices": [
      {
        "userSymbol": "VertexAI",
        "version": "v1",
        "serviceId": "aiplatform"
      }
    ]
  },
  "exceptionLogging": "STACKDRIVER",
  "runtimeVersion": "V8",
  "oauthScopes": [
    "https://www.googleapis.com/auth/cloud-platform",
    "https://www.googleapis.com/auth/script.external_request"
  ]
}
Enter fullscreen mode Exit fullscreen mode

Apps Script recently released a built-in Vertex AI Advanced Service. You can use that instead of UrlFetchApp for a cleaner experience, but the REST API approach shown above works everywhere.

Vertex AI MCP Tool Calling

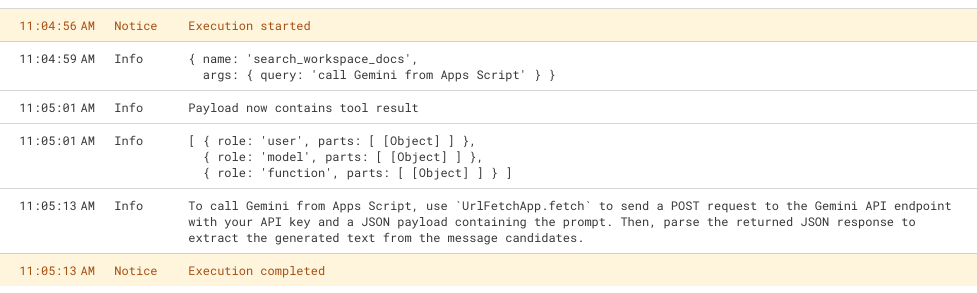

Here is what the code looks like to call the MCP server from Vertex AI in Apps Script.

  1. The initial Vertex AI call contains the tool definitions from the MCP tools/list call.
  2. The model then returns the function calls and params.
  3. Another Vertex AI call is made with the tool result(now without allowing tools).
  4. Gemini via the Vertex AI summarizes the content (user, model, tool) into another output.

Vertex AI Tool Call from MCP Server in Apps Script

Vertex AI Tool Call from MCP Server in Apps Script

Summary

This simple wrapper allows Google Apps Script to act as an MCP Client, enabling you to integrate your Workspace automation directly with the growing ecosystem of MCP servers.

Further Reading

Top comments (0)
