Deploying a Sample React App to ECS

#docker #aws #react

Objective

To create & deploy a sample react application.

Prerequisites

  • MacOS Catalina
  • Have the necessary modules for react installed
  • Have docker installed
  • Have awscli installed

Creating the react app

Create a react app in terminal.

$ create-react-app sample-react-ecs-app
// if not working, try $ npx create-react-app sample-react-ecs-app
$ cd sample-react-ecs-app/
$ touch Dockerfile
$ tree -I node_modules
.
├── Dockerfile
├── README.md
├── package.json
├── public
│   ├── favicon.ico
│   ├── index.html
│   └── manifest.json
├── src
│   ├── App.css
│   ├── App.js
│   ├── App.test.js
│   ├── index.css
│   ├── index.js
│   ├── logo.svg
│   └── serviceWorker.js
└── yarn.lock
Enter fullscreen mode Exit fullscreen mode

The contents of Dockerfile is as below:

// Dockerfile
FROM node:11-alpine as builder
WORKDIR /app
COPY package.json .
COPY yarn.lock .
RUN yarn install
COPY . .
RUN yarn build

FROM nginx:1.15-alpine
COPY --from=builder /app/build /usr/share/nginx/html
EXPOSE 80
Enter fullscreen mode Exit fullscreen mode

Build the image.

$ docker image build -t sample-react-ecs-app:latest .
Sending build context to Docker daemon  181.6MB
Step 1/10 : FROM node:11-alpine as builder
...
...
...
Successfully built 9a110f83b860
Successfully tagged sample-react-ecs-app:latest
Enter fullscreen mode Exit fullscreen mode

Check the image.

$ docker images | grep sample-react-ecs-app
sample-react-ecs-app                  latest              9a110f83b860        5 minutes ago       16.6MB
Enter fullscreen mode Exit fullscreen mode

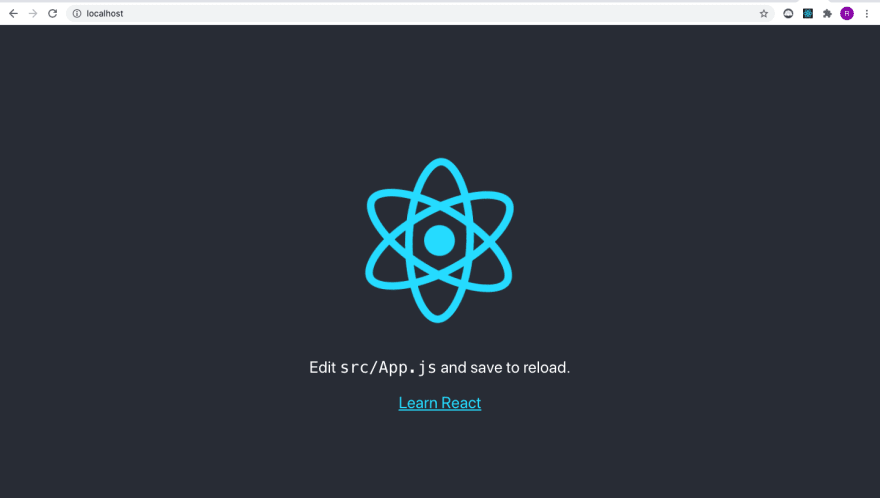

Run the server, and in localhost:80, you should be able to access the following page.

$ docker container run --rm -p 80:80 sample-react-ecs-app:latest
172.17.0.1 - - [20/Sep/2020:06:23:55 +0000] "GET / HTTP/1.1" 200 2247 "-" "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_5) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/85.0.4183.102 Safari/537.36" "-"
Enter fullscreen mode Exit fullscreen mode

Alt Text

Configurations in ECS

Open the ECS in your AWS console.

Alt Text

Create a new repository.

Alt Text

We will name the repository sample-react-ecs-app.

Alt Text

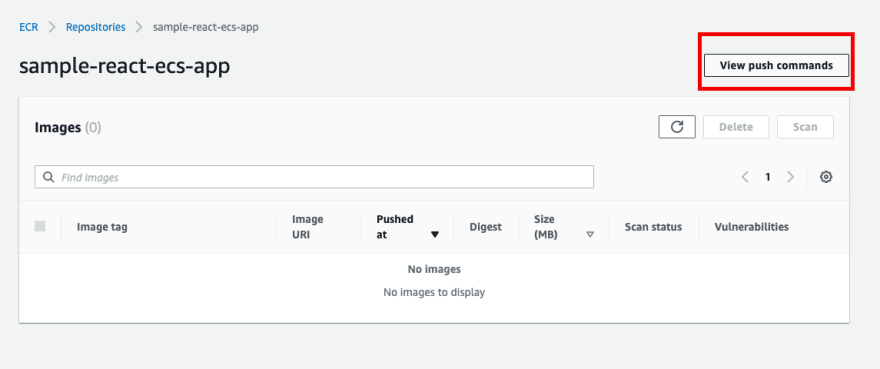

Open the repository page and click view push commands.

Alt Text

$ aws ecr get-login-password --region ap-northeast-1 | docker login --username AWS --password-stdin xxxxxxxxx.dkr.ecr.ap-northeast-1.amazonaws.com
Login Succeeded
$ docker tag sample-react-ecs-app:latest xxxxxxxxxx.dkr.ecr.ap-northeast-1.amazonaws.com/sample-react-ecs-app:latest
$ docker push xxxxxxxxxx.dkr.ecr.ap-northeast-1.amazonaws.com/sample-react-ecs-app:latest
The push refers to repository [xxxxxxxxxx.dkr.ecr.ap-northeast-1.amazonaws.com/sample-react-ecs-app]
83f5a6793760: Pushed
a521e1bbddf5: Pushed
bf381a670956: Pushed
a61993362baf: Pushed
f1b5933fe4b5: Pushed
latest: digest: sha256:eca276a688f71fbf03d0044354ab5d693cd9090d2497b9e0c3d37ef2bd25ca2b size: 1363
Enter fullscreen mode Exit fullscreen mode

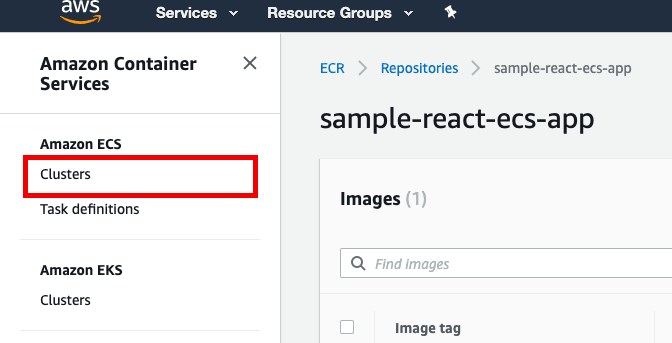

You should see your own container in the ECS repository.

Next, we will create the cluster.

Alt Text

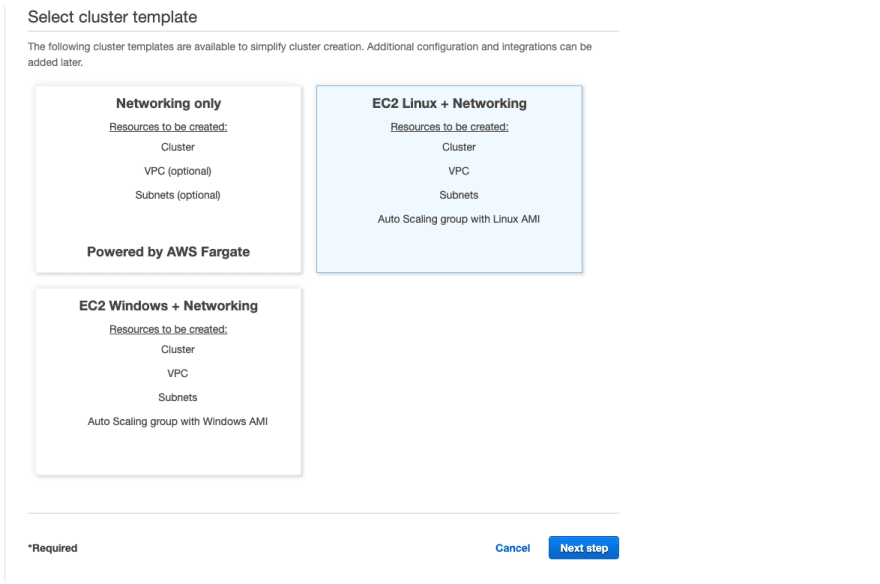

We will select the EC2 Linux + Network version.

Alt Text

We will name the cluster sample-react-ecs-app-cluster.

Alt Text

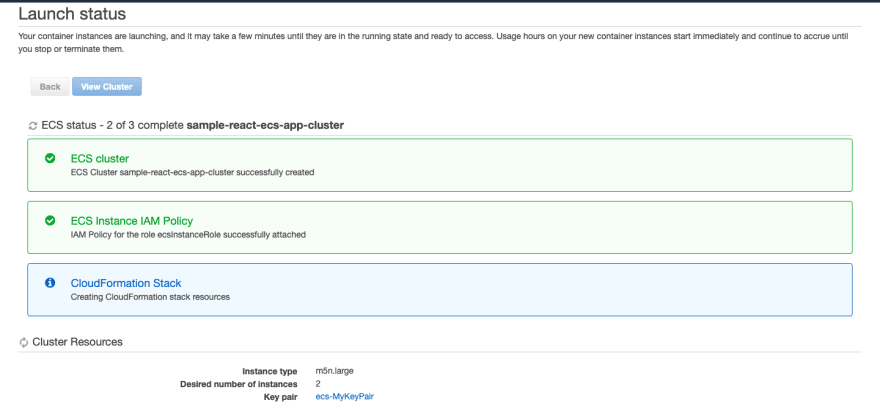

We can see the cluster newly created in the AWS console.

Alt Text

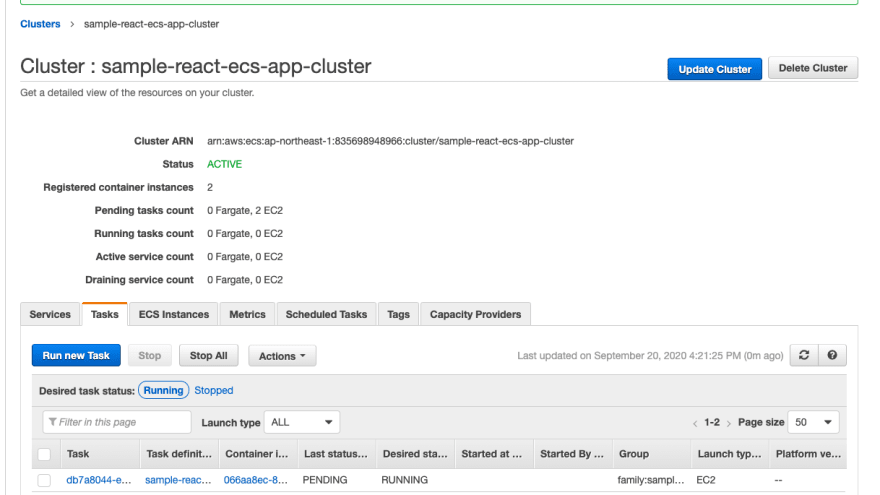

The situation of the clusters can be found in the cluster page.

Alt Text

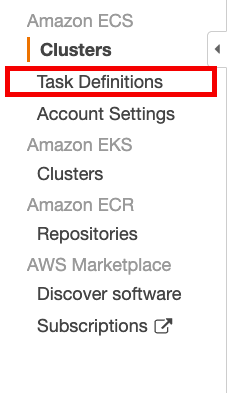

Now we will click on the task definitions.

Alt Text

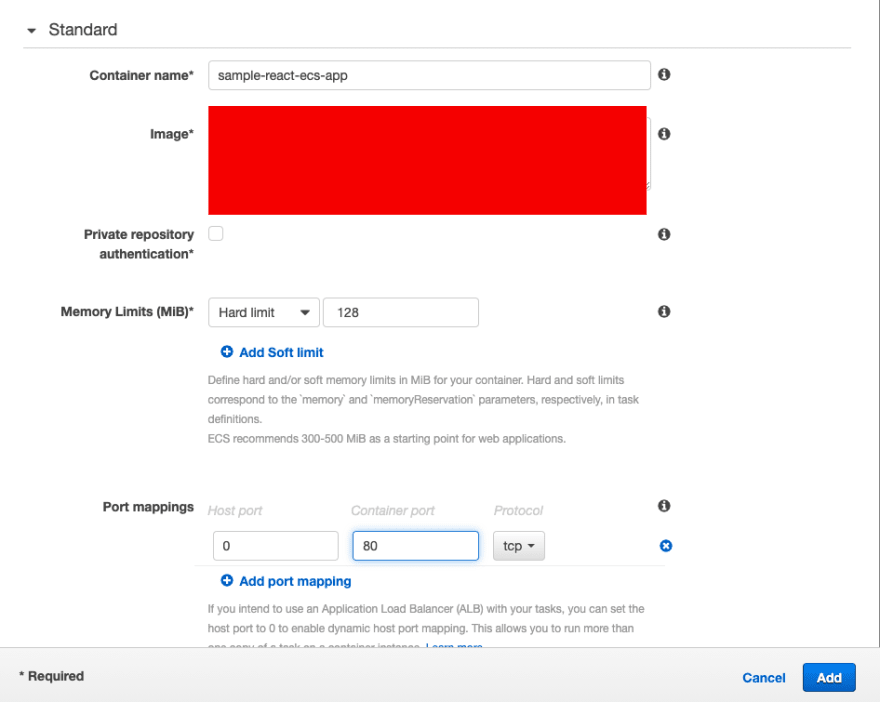

We will add the task as below, called sample-react-ecs-app-task.

Alt Text

Alt Text

Now we will run the tasks on our cluster.

Alt Text

Now the tasks are running on the cluster.

Alt Text

And our sample website is running on the port 32768.

Alt Text

I skipped on some parts, and I hope to update this article as much as possible.

References

Sorry, only Japanese available.

AWS ECRとECSの入門(EC2編) ~ ECSのEC2版を使ってReactのDockerアプリケーションをAWS上で稼働させる方法 ~
