Node.js animated: Event Loop

Andrew Hu on November 05, 2022

We have all heard about JavaScript and Node.js being single-threaded, but what does it mean in practical terms? It means that JavaScript can do on...

Read full post

Tyler Hawkins • Nov 10 '22

For anyone interested, I gave a conference talk on this a couple months ago: https://www.youtube.com/watch?v=KKM_4-uQpow&ab_channel=UtahJS

It's "A Deep Dive into the Node.js Event Loop", complete with tons of code examples so you can see these concepts in action. Here's the GitHub repo as well: github.com/thawkin3/nodejs-event-l...

Bento Julio • Apr 24 '23

Woh Tyler, Your explanation about the topic is one of the best i ever heard, You helped me put together two important concepts that are the task queue and the phases, Thank you Tyler.

Tyler Hawkins • Apr 27 '23

Thanks Bento! That's very kind of you.

Debajyoti Majumder • Nov 11 '23

Amazing Talk. Thank you Tyler.

Tyler Hawkins • Nov 12 '23

Thanks Debajyoti! Glad you liked it.

Yosef Aweke • Jun 23 '24

it is great explanation. thanks man

Deepak Sharma • Nov 6 '22

How does nodejs know which task should be handled by libuv ?

Andrew Hu Node Doctors • Nov 6 '22 • Edited

Not an exhaustive list:

I/O requests (network requests, file system operations, etc.)
setTimeout, setImmediate, setInterval,
close callbacks (e.g. socket.on('close', () => {})

Redacted on 8/11/2023

Tony Miller • Nov 7 '22

It's not even close to how it actually works. There's no "event queue" (or in other words there are multiple and not exactly queues). "the event loop" has no relation to Node, it's libuv thing, the only relation is that libuv was extracted from early version of Node, process.nextTick never reaches "the event loop" (the one in libuv), Node doesn't run anything in it's single thread while libuv is busy with the query. If it is a single query and there are not timers and setImmediate-s then the whole thing will be blocked on epoll in linux case waiting on that query to return. If there are timeouts then it'll poll that epoll with timeout of 0 and move onto timeouts.

Go to libuv, look at file operations API and compare it to Node's file operation API.

Tony Miller • Nov 7 '22

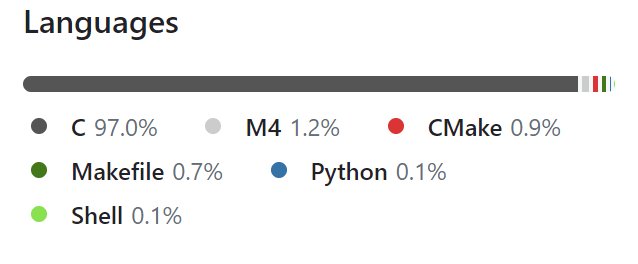

For demonstration purposes I wrote a very simple and primitive http server using raw libuv - github.com/tnymlr/hello-libuv/blob...

Node does very similar thing with the difference that it's running V8 in those handlers.

You JS code runs in libuv handlers with the exception of the entry file, the entry file runs before the event loop has even started.

Andrew Hu Node Doctors • Nov 7 '22 • Edited

Thank you for your valuable feedback. It is a simplified version of this complex mechanism and we couldn't capture all the details as you mentioned. Would you like to connect on Twitter to improve the animations?

Deepak Sharma • Nov 6 '22

Thanks sir.

Madza • Nov 8 '22

Great article, learned a few things 👍✨💯

Almir Muminovic • Nov 8 '22

Does Node works like this:

I've learned how javascript works in background, with example of GEC (Global Execution Context),

Call stack is populated with GEC:
1) console.log("Starting Node js"),
2) db.query()...
3) console.log("Before query results")
Call stack is populated with GEC (this means we cannot handle async code) till we reached console.log("Before query results").

In this animation call stack is populated line by line, and it's empty after each line, for example if we have setTimeout function with 0ms instead of query as 2nd line, even it's async operation it would execute first, before second console.log because call stack is empty after each line.

Bobby • Nov 8 '22

Well done!

Dhruv Joshi • Nov 9 '22

Helpful and interesting to read! Thanks!

Juber Nunes • Nov 6 '22

Very well explained, rich in details. Thanks @fabriziolallo and @andrewhu368

Peter Witham • Nov 7 '22

Thank you for explaining this, it helped me understand far more than other explanations in the past. Appreciate it.

Asther Marie Moreno • Nov 8 '22

Thanks a bunch!!! 🫶🏻

Gustavo Scarpim • Nov 9 '22

Nice!

jinacker • Nov 8 '22

I have learned many things from this article. Thank you.

Nandhakumar • Nov 6 '22

Hey bro,
Loved the way you explained using GIFs.

Could you please share what tool you used to generate these GIFs?

Andrew Hu Node Doctors • Nov 6 '22

Keynote on Mac

Nandhakumar • Nov 6 '22

Thanks Bro!

Raí B. Toffoletto • Nov 7 '22

Great animation to explain the concept! Kudos 🎉🎉

Varshith V Hegde • Nov 7 '22

Awesome explanation ✨

Bryan Solon • Nov 7 '22

Now I really know how this works. Thank you very much. I really appreaciate it. Very informative and also using visuals to really show its flow, which is very intuitive.

Maciej Wakuła • Nov 7 '22

Great explanation with graphics and narrowed scope. Love it

tkumark • Nov 7 '22

Once db.query is sent to libuv how does it manage the connection to the database and does it use the 4 threads in the threadpool. If there are of slow I/O (http reqeuest to another service or db calls) how is that manged in libuv?

Fabrizio Lallo Node Doctors • Nov 7 '22

Every OS supports different types of async I/O (file, networking, etc..), and Libuv provides an abstraction layer over different I/O OS implementations.
So under the hood Libuv simply use the networking I/O implemented by the OS to connect to the database server. Threadpool is used for complex and high intensive CPU I/O types in order not to block the Event Loop. So, tasks like DNS lookup, crypto functions and others, are executed in the threadpool.

Sanjay Pasari • Nov 7 '22

Thanks @fabriziolallo for sharing animated guide for Node.js in detail.

炽翎 • Nov 28 '22

Which tool do you use to make animation?

IIIT Guwahati Student • Apr 9 '23

How does libuv process promises ?
Does it create seperate thread for each promise ?
What exactly takes place during promise resolution?
How are instructions of promise resolution executed?
Could you please explain.
Thanks ...

Maciej Wakuła • Apr 15 '23 • Edited

Node is single-threaded, there is no way to run multiple threads (though i/o is multithreaded). Any call made runs unless "paused-until-resumed". Bad thing you can do is to run long-lasting "for" loop without "pause" because then node cannot do anything until your loop is finished. I can often see this problem when connection to a server (DB, queue, Kafka, etc.) is killed as not responding to health check - because long loop is running.
When you "paused-until-resumed" then node (or any similar engine) runs other tasks (ex. response to health check). It will be back to your paused-promise when done with other tasks.

I have published an post (probably not yet finished) about that: dev.to/adderek/asynchronous-proces...

peninah98 • Sep 8 '23

Thank you so much for the best article!
It really impressive, but I have a little confusion which I need to get it's clear picture!

Callstack is stack and we have queue , which data structure do WEB APIs use to keep track of asynchronous tasks?

Fantasycheese • Nov 6 '22 • Edited

latentflip.com/loupe
For people who want to see all these in action with your own code.
This tool is for browser event loop but ideas are identical.
Pretty crazy stuff if you ask me.
