Jenkins: import a job to another server

We have an old Jenkins with a bunch of iOS jobs which needs to be copied to a new Jenkins instance.

Documentation suggests to:

Move a job from one installation of Jenkins to another by simply copying the corresponding job directory.

I.e. the first solution is just to copy a whole jobs directory or copy a per-project job’s catalog.

Disadvantage (or advantage – depends on an exact task) of such approach is that with a job’s directory a whole its history, artifacts, logs etc will be copied as well.

Another solution is to use the Jenkins CLI and allows to copy a full job’s configuration – but it will be created “from scratch”.

Jenkins CLI

Go to Manage Jenkins > Jenkins CLI and download the CLI’s jar-file:

Download:

$ sudo wget -O /usr/local/bin/jenkins-cli.jar https://jenkins.example.com/jnlpJars/jenkins-cli.jar
Enter fullscreen mode Exit fullscreen mode

Check it – in -auth pass your user:pass or user:api_token, in -s – Jenkin’s host URL, here it’s running locally using Jenkin’s own CLI file:

root@jenkins:/backups# java -jar /data/jenkins/war/WEB-INF/jenkins-cli.jar -auth user:pass -s http://localhost:8080/ version
2.89.4
Enter fullscreen mode Exit fullscreen mode

Now import the Unit Test job from the iOS Projectname directory into the Projectname_Unit_Test_job.xml file:

root@jenkins:/backups# java -jar /data/jenkins/war/WEB-INF/jenkins-cli.jar -auth user:pass -s http://localhost:8080/ get-job 'iOS Projectname/Unit Test' > Projectname_Unit_Test_job.xml
Enter fullscreen mode Exit fullscreen mode

Check the file’s content:

root@jenkins:/backups# head Projectname_Unit_Test_job.xml
<?xml version='1.0' encoding='UTF-8'?>
<project>
<actions/>
<description>Runs test, and delivers feedback to slack</description>
<keepDependencies>false</keepDependencies>
<properties>
<com.coravy.hudson.plugins.github.GithubProjectProperty plugin="github@1.29.3">
<projectUrl>https://github.com/Projectname-dev/Projectname-iOS/</projectUrl>
<displayName></displayName>
</com.coravy.hudson.plugins.github.GithubProjectProperty>
Enter fullscreen mode Exit fullscreen mode

And export it to the iOS Projectname on a new Jenkins server: read the file’s content using the cat and then pass data to the CLI via pipe |:

root@jenkins:/backups# cat Projectname_Unit_Test_job.xml | java -jar /data/jenkins/war/WEB-INF/jenkins-cli.jar -auth user:pass -s https://ci.example.com create-job 'iOS Projectname/Unit Test'
Enter fullscreen mode Exit fullscreen mode

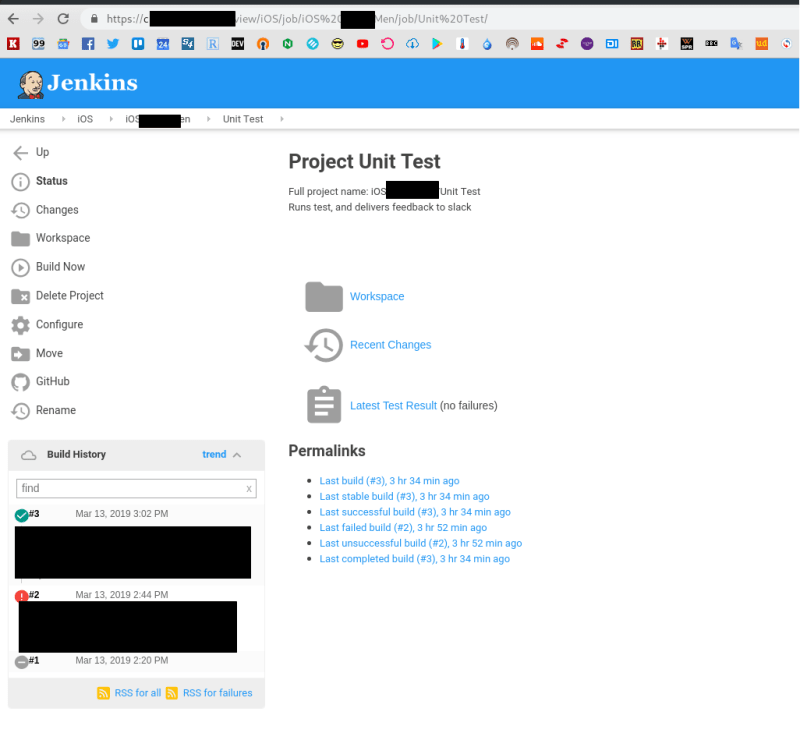

Check it:

Done.
