ESP Embedded Rust: Multithreading with FreeRTOS Bindings

Introduction

In the Rust ESP std ecosystem, different levels of abstraction allow for different levels of access. In last week's post, the different levels of Rust layers in the ESP std ecosystem were explained in detail. One of those layers was the esp-idf-sys which is the first layer on top of the existing ESP-IDF framework. The esp-idf-sys provides (unsafe) bindings to the underlying ESP-IDF framework which also includes FreeRTOS interfaces.

In this post, I'll be demonstrating how to access the lower-level esp-idf-sys crate that provides a direct interface (via bindings) to the ESP-IDF framework. As such, I'll be creating a multitasking application using FreeRTOS interfaces from the ESP-IDF framework. The FreeRTOS interfaces will be Rust interfaces imported from the esp-idf-sys crate.

If you found this post useful, and if Embedded Rust interests you, stay in the know by subscribing to The Embedded Rustacean newsletter:

Subscribe Now to The Embedded Rustacean

📚 Knowledge Pre-requisites

To understand the content of this post, you need the following:

• Basic knowledge of coding in Rust.

• Familiarity with multitasking in FreeRTOS and its functions.

💾 Software Setup

All the code presented in this post is available on the apollolabs ESP32C3 git repo. Note that if the code on the git repo is slightly different, it was modified to enhance the code quality or accommodate any HAL/Rust updates.

Additionally, the full project (code and simulation) is available on Wokwi here.

🛠 Hardware Setup

Materials

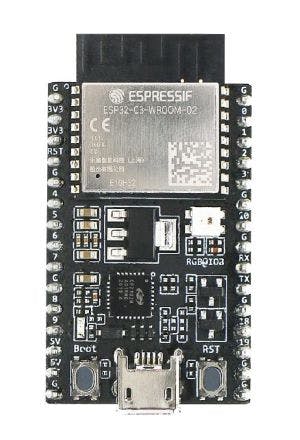

• ESP32-C3-DevKitM



👨‍🎨 The Application

The main goal of this post is to demonstrate the usage of the ESP IDF FFI functions in Rust. Note that the post is not as much about the technical details of how FreeRTOS multitasking works and more about how to leverage the underlying layers in the Espressif Rust framework. For the reader interested in learning more about FreeRTOS, the ESP FreeRTOS documentation is a recommended starting point.

As a short description, the application in this post will have two tasks run in parallel, in addition to main. To demonstrate multitasking, each task is going to print its own message after some delay. As such, only two tasks are going to be defined and created.

👨‍💻 Code Implementation

📥 Crate Imports

In this implementation the crates required are as follows:

• The std::sync to import synchronization primitives.

• The esp_idf_hal crate to import the FreeRtos delay abstraction.

• std::ffi::CString is imported to provide a type that represents a C-compatible null-terminated string.

• The esp_idf_sys crate importing the necessary FFI function interfaces.

use esp_idf_hal::delay::FreeRtos;
use esp_idf_sys::{self as _};
use esp_idf_sys::xTaskCreatePinnedToCore;
use std::ffi::CString;

📝 Define the Tasks

To define new tasks there is a xTaskCreatePinnedToCore() function that exists within the FreeRTOS core for ESP32. As the function's name implies, we are allowed to choose which processor core to pin the task to. Keep in mind, that this is an FFI function coming from C made compatible with Rust, so its parameters have to be Rust-compatible types. Also, the function needs to be wrapped in an unsafe block since the Rust compiler cannot guarantee its safety (it doesn't mean the function is necessarily unsafe). Moving on, xTaskCreatePinnedToCore() takes seven parameters in the following order:

1. This is an Option containing the name of the function to run as a parallel task.

2. A string describing the task. This is mainly for debugging and could be the same as the task identifier. This would be a Rust equivalent of a C-style string.

3. An integer value representing the stack size for the task. The value represents the number of bytes needed.

4. A pointer to any parameter being passed to the new task. We won't be passing anything here so this will be the Rust equivalent of a C NULL.

5. The priority of the task. I'm going to be setting it to 0 for both.

6. A task handle to keep track of the created task. It's a handle that can be used to invoke the task. Similar to the 4th parameter, we won't be passing anything here so this will be the Rust equivalent of a C NULL as well.

7. The ID of the processor core to run the task on. Core indices start from 0. For a two-core processor, the numbers will be 0 and 1.

Following the above, we define two tasks, task1 and task2 as follows:

unsafe {
    xTaskCreatePinnedToCore(
        Some(task1),
        CString::new("Task 1").unwrap().as_ptr(),
        1000,
        std::ptr::null_mut(),
        10,
        std::ptr::null_mut(),
        1,
    );
}

unsafe {
    xTaskCreatePinnedToCore(
        Some(task2),
        CString::new("Task 2").unwrap().as_ptr(),
        1000,
        std::ptr::null_mut(),
        9,
        std::ptr::null_mut(),
        1,
    );
}

👨‍💻 Create the Functions

We still have to create the functions that we created tasks for. We named the functions task1 and task2 . These functions need to adhere to the C calling convention. As a result, the extern "C" is used to achieve that. Normally using FreeRTOS in C the task function definition has the following signature:

void task1( void * pvParameters ){
  for(;;){
    // Code will go here
  }
}

Note that the function takes a single argument which is a C void pointer type. The name pvParameters itself is irrelevant and could be anything. Given the above, to create our tasks this translates to the following in Rust:

unsafe extern "C" fn task1(_: *mut core::ffi::c_void) {
    loop {
        println!("Task 1 Entered");
        FreeRtos::delay_ms(1000);
    }
}
unsafe extern "C" fn task2(_: *mut core::ffi::c_void) {
    loop {
        println!("Task 2 Entered");
        FreeRtos::delay_ms(2000);
    }
}

In each of the functions as soon as we enter, a message is printed indicating which task has been entered. A few things to note:

• *mut core::ffi::c_void is the equivalent Rust type to a C void pointer.

• Both tasks have infinite loops inside them. However, using the FreeRtos abstraction we can block the task. This hands execution back to the kernel to run the next task with the highest priority.

• task1 is executed every 1 second and task2 is executed every 2 seconds.

🔄 The Main Loop

There still remains the main thread that we can print statements from. As such, I add another loop and println statement to print a message from the main thread every 500 ms.

loop {
    println!("Hello From Main");
    FreeRtos::delay_ms(500);
}

That's it for code!

📱Full Application Code

Here is the full code for the implementation described in this post. You can additionally find the full project and others available on the apollolabs ESP32C3 git repo. Also, the Wokwi project can be accessed here.

use esp_idf_hal::delay::FreeRtos;
use esp_idf_sys::{self as _};
use esp_idf_sys::{esp, vTaskDelay, xPortGetTickRateHz, xTaskCreatePinnedToCore, xTaskDelayUntil};
use std::ffi::CString;

unsafe extern "C" fn task1(_: *mut core::ffi::c_void) {
    loop {
        println!("Task 1 Entered");
        FreeRtos::delay_ms(1000);
    }
}

unsafe extern "C" fn task2(_: *mut core::ffi::c_void) {
    loop {
        println!("Task 2 Entered");
        FreeRtos::delay_ms(2000);
    }
}

fn main() -> anyhow::Result<()> {
    // It is necessary to call this function once. Otherwise some patches to the runtime
    // implemented by esp-idf-sys might not link properly. See https://github.com/esp-rs/esp-idf-template/issues/71
    esp_idf_sys::link_patches();

    unsafe {
        xTaskCreatePinnedToCore(
            Some(task1),
            CString::new("Task 1").unwrap().as_ptr(),
            1000,
            std::ptr::null_mut(),
            10,
            std::ptr::null_mut(),
            1,
        );
    }

    unsafe {
        xTaskCreatePinnedToCore(
            Some(task2),
            CString::new("Task 2").unwrap().as_ptr(),
            1000,
            std::ptr::null_mut(),
            9,
            std::ptr::null_mut(),
            1,
        );
    }
    loop {
        println!("Hello From Main");
        FreeRtos::delay_ms(500);
    }
}

Conclusion

This post showed how to leverage the ESP IDF framework Rust FFI bindings. In the demonstration, a multitasking application was created on the ESP32C3. The application leveraged the FreeRTOS core FFI bindings in the esp-idf-sys crate. Have any questions? Share your thoughts in the comments below 👇.
