12 simple steps to build a neumorphic login page with Bonita UI Designer

The interface style known as neumorphic (a combination of skeumorphic and realistic design) has been gaining in popularity, and I think we'll see it being used more and more in 2020.

One important aspect of neumorphism is about selecting the proper color palettes, and 3 shades of the same color are required for this.

i) Light Shadow should be done by using a light color. For example, rgba(255,255,255,1),

ii) The Main background and Element color should be in the mid-range. For example, rgba(235,245,252,1) for the background and element,

iii) Dark Shadow should be done by using a dark color. For instance, rgba(0,0,0,0.1).

Below are the 12 simple steps I followed to implement a login page using the Bonita UI Designer, inspired by https://neumorphism.io/.

First, create a new application page in UI Designer.

Step: 1
In the UI Designer whiteboard, drag & drop a container widget, give the CSS class name as “logo-box” and set the column width to 6. We will put our company logo in this container.

Step: 2
Inside the logo-box, place the logo and title as you want. Here I am using an image widget for the logo and a text widget for the company’s name. I have added the Bonitasoft logo in UI Designer as an image asset.

Now, set the properties as given below for the image widget:

Width = 12;
Source Type = Asset;
Asset Name = bonitasoftLogo.png

You can download the Bonitasoft logo from this link.

Set the properties as given below for the text widget:

Width = 12;
CSS classes = bonita;
Text = Bonita<span class=”soft”>soft</span> ;
Alignment = center

Note: Since the company logo and the title can be different, I suggest you write your own CSS for this part.

Step: 3
In the whiteboard outside the logo-box, drag & drop a form container widget next to the logo-box, give the CSS class name as “login-form” and set the column width to 6. We will use this form container to implement our login form.

Step: 4
Inside the login-form, create a title using title widget and set the properties as:

Width = 12; Text = Login; Title level = Level 2; Alignment = center

Step: 5
Below the title, drag & drop a new container, give the CSS class name as “input-container” and set the column width to 12.

Step: 6
Inside the input-container, drag & drop an input widget and set the properties as:

Width = 12; CSS classes = input-widget; Label = Username;
Placeholder = username@address.com (you can put whatever email address you want to);
Type = Email

Step: 7
Below the username, drag & drop another input widget and set the properties as:

Width = 12; CSS classes = input-widget; Label = Password
Placeholder = ……… ; Type = Password

Step: 8
Below the password widget, drag & drop a button widget and set the properties as:

Width = 12; CSS classes = input-widget; Label = Sign in;
Alignment = center;
Style = default;

Step: 9
Now, outside the input-container, drag & drop a container, give the CSS class name as “forget-password” and set the column width to 12.

Step: 10
Inside the forget-password container, drag & drop a text widget and set the properties as:

Width = 6; Text = Forgot password?; Alignment = right

Step: 11
Just to the right to the text widget, drag & drop a Link widget and set the properties as:

Widget = 6; Text = Click here; Alignment = left; Style = link

Step: 12
Go to Assets > style.css and write the CSS below:

.logo-box {
    height: 100vh;
    position: relative;
    text-align: center;
    background: rgba(235,245,252,1);
}
.logo-box img {
   width: 40%;
   margin: 0 auto;
   padding: 15% 0 0;
}
.bonita{
    font-size: 4em;
    color: #0A4561;
}
.bonita .soft {
    color: #B52A2A;
}
.login-form {
    height: 100vh;
    position: relative;
    padding: 40px 40px 60px;
    background: rgba(235,245,252,1);
    text-align: center;
}
.input-container {
    text-align: left;
    padding: 40px 40px 60px;
    margin-top: 40px;
    box-shadow: -5px -5px 10px  rgba(255,255,255,0.8),
                 5px 5px 15px rgba(0,0,0,0.1);
    border-radius: 10px;
}
.login-form h2 {
    color: #0A4561;
    font-weight: 500;
    text-transform: uppercase;
    letter-spacing: 6px;
}

.input-container .input-widget {
    margin-top: 20px;
}
.input-container .input-widget label {
    display: block;
    color: #868686;
    margin-bottom: 5px;
    font-size: 18px;
}
.input-container .input-widget input,
.input-container .input-widget button {
    width: 100%;
    height: 50px;
    background: rgba(235,245,252,1);
    border: none;
    outline: none;
    border-radius: 40px;
    padding: 5px 15px;
    font-size: 18px;
    color: #32a3b1;
    box-shadow: inset -2px -2px   6px rgba(255,255,255,1),
                inset 2px 2px 6px rgba(0,0,0,0.1);
}
.input-container .input-widget input::placeholder {
    color: #bdcada;
    font-size: 18px;
}

.input-container .input-widget button {
    margin-top: 20px;
    box-shadow: -2px -2px 6px rgba(255,255,255,1),
          2px 2px 6px rgba(0,0,0,0.1);
}
.input-container .input-widget button:active{
    color: #006c9c;
    margin-top: 20px;
    box-shadow: inset -2px -2px 6px rgba(255,255,255,1),
  inset 2px 2px 6px rgba(0,0,0,0.1);
    outline: none;
}
.forget-password .component {
    margin-top: 30px;
    padding-right: 0;
    color: #0A4561;
}
.forget-password a {
    padding: 0;
    color: #B52A2A;
    text-decoration: none;
}

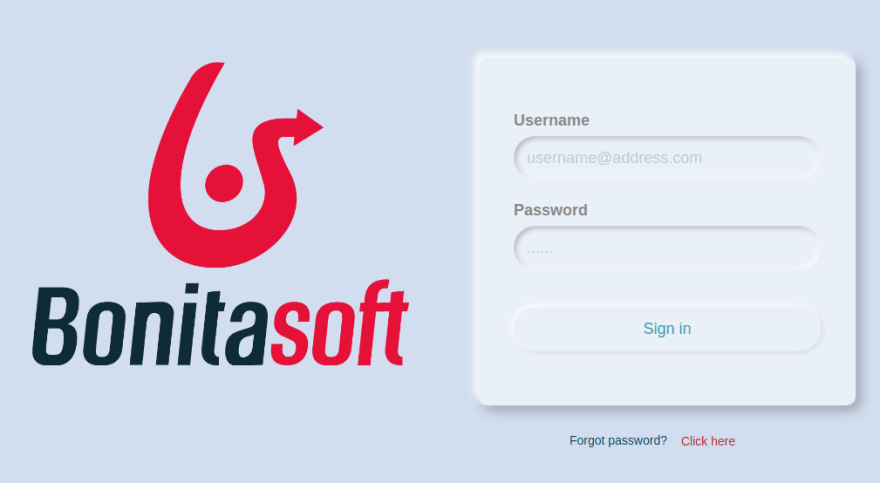

Finally, save the page and click on the preview. We will see a beautiful neumorphic login page as shown below;

Note: For a responsive page, Bonita Subscription users can define the size of the elements based on different screen sizes by clicking screen size icons to the top-right corner in the UI Designer.

Similarly, Bonita Community users can create a responsive login page by following the tutorial here.

I would love to know if you are into neumorphism as well. What are the colors you use? Please share your tips and examples.

And remember, have fun with Bonita!
