Introduction
This is Part 2 of the series "The Data Foundation for AWS Modernization." Part 1 set out the lens: migration is not the goal but the entry point, and putting FSx for ONTAP at the data foundation lets you re-choose the compute. This part takes that entry point through AWS Transform, the core of modernization, and verifies hands-on that the data area lands on FSx for ONTAP as part of the migration on AWS. Migration from an on-premises VMware environment will come separately; the idea here is to start modernizing from the tightly coupled EC2 × EBS configuration by decoupling the data store.
Until now, when you migrated servers with AWS Transform (MGN), every disk was placed on Amazon EBS. If the source was not ONTAP and you wanted the data area on Amazon FSx for NetApp ONTAP (FSx for ONTAP below), you needed a "two-step migration" — migrate to EBS first, then move the data — or a third-party block storage migration tool.
With the update of 30 August 2026, FSx for ONTAP can now be chosen directly as the MGN target storage type.
- AWS Transform announces general availability of Amazon FSx for NetApp ONTAP support: https://aws.amazon.com/about-aws/whats-new/2026/09/aws-transform-fsx-netapp-ontap-support/
That looked useful, so I tried it hands-on straight away.
The source in this test was not an on-premises VMware environment but an EC2 instance already on AWS (Amazon Linux 2023). Using that EC2 as the source, I ran the new path that migrates the data area (EBS) directly to an FSx for ONTAP iSCSI LUN.
Running it for real turned up several pitfalls that reading the documentation alone does not reveal.
Besides sorting out what this new feature can and cannot do, this article records the traps I actually stepped on during the test — errors hidden behind a successful job, and an unexpected capacity spike.
Here are the highlights up front, especially the traps to watch for.
- Only data volumes can be targeted. Boot is always Amazon EBS.
- What became GA is "the MGN target storage type". It is a different thing from presenting FSx for ONTAP as a VMware datastore (the Amazon EVS side).
- In MGN's phases, "SNAPSHOT" was a volume Snapshot done as a metadata operation, and "LAUNCH" was the creation of a FlexClone (about 44 seconds for 8 GiB).
- [Trap 1] Finalize is not just clean-up; it is the step where physical capacity temporarily peaks (about 2x). That 2x, though, is a measured peak, not a sizing guideline: the official guidance is to provision 3x the migration data as SSD capacity (see below).
-
[Trap 2] Even when the job status becomes
COMPLETED, a failed final snapshot (fallback) or the creation of an unbootable target can be hiding behind it.
Test Assumptions and Scope
The test was run with the following environment and scope.
(Region: ap-northeast-1 / Source: Amazon EC2 (AL2023) / ONTAP: 9.18.1P3D1)
[What was run]
The whole flow: agent installation → replication → test launch → cutover → Finalize → teardown.
[Out of scope for this article (not verified)]
- Migration with VMware as the source (no vCenter was prepared, so EC2 stood in as the source)
- FSx for ONTAP as an Amazon EVS datastore (a different feature)
- Durations at production-scale data volumes (the test used a tiny 16 GiB environment, dominated by fixed overhead)
- Windows sources, and access over SMB / NFS
- Post-migration optimization with
lun move start
The Shape of the Configuration

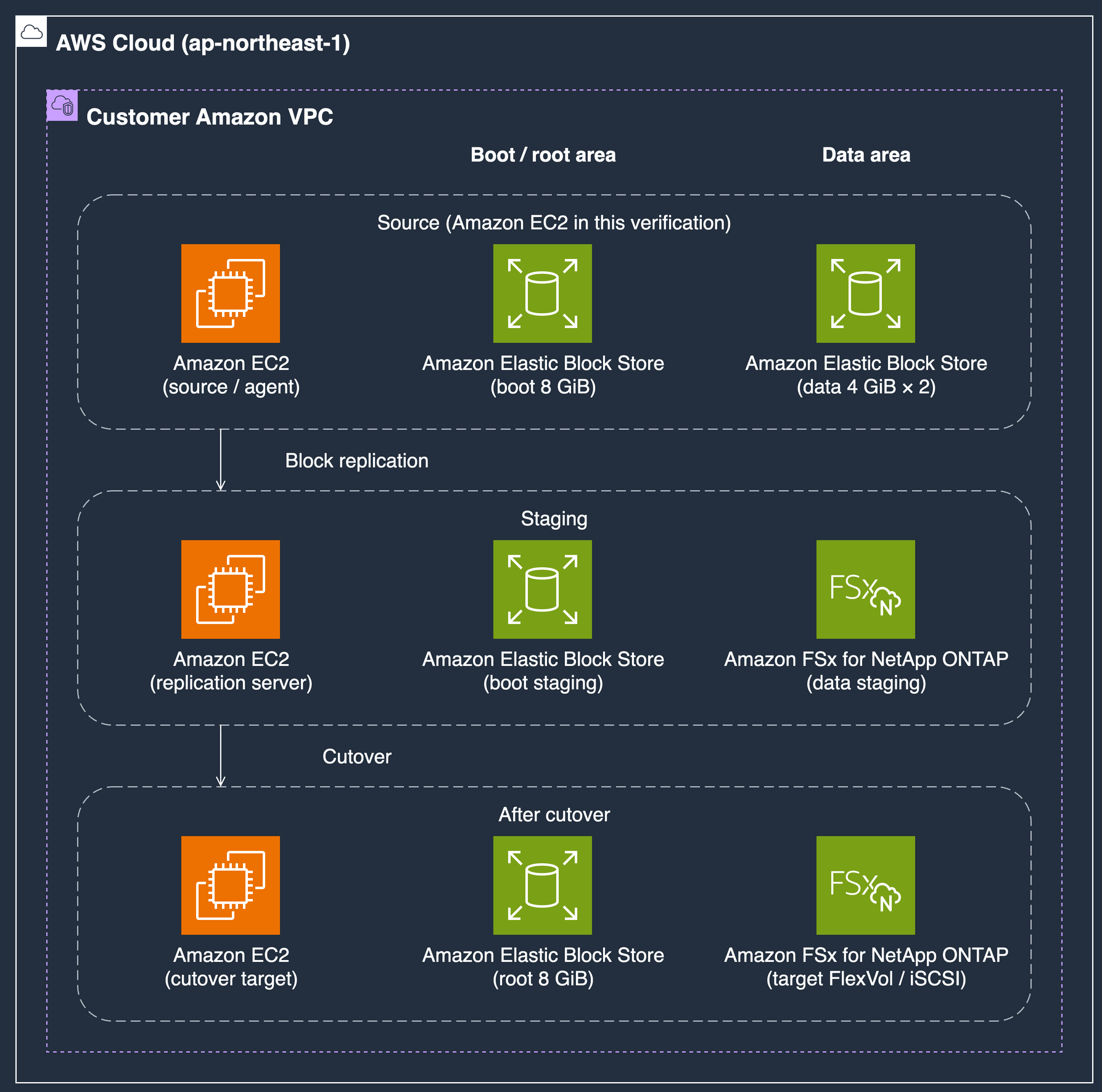

Figure 1: three EC2 instances and where each volume goes: the boot column is EBS in all three rows, and only the data column changes to FSx for ONTAP from staging on (dark theme)

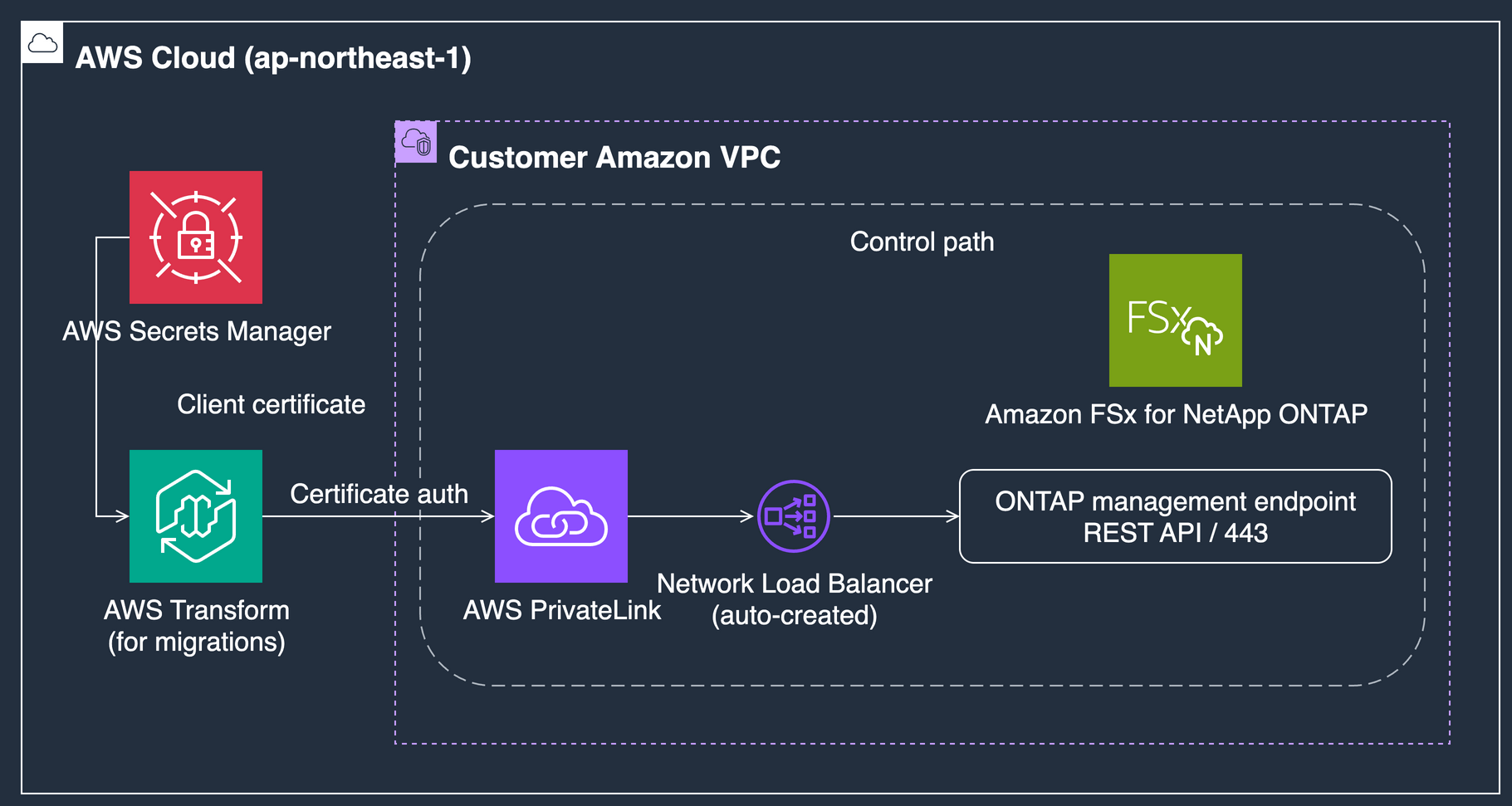

Figure 2: the control path, from AWS Transform to the ONTAP management endpoint (dark theme)
The point is that the boot area and the data area go to different places. The boot column stays Amazon EBS in all three rows, and only the data column changes to FSx for ONTAP from the staging row on. The target instance boots from EBS and receives the data over iSCSI. The source in this test was EC2, but the lower two rows of the configuration are the same whether the source is a VMware datastore or on-premises block storage.
For the control path in Figure 2, the official blog says a PrivateLink connection is established automatically, but in practice a Network Load Balancer (NLB) and a VPC endpoint service are created inside your VPC. They incur hourly and LCU charges.
| Layer | Normal operation (replicating) | After cutover |
|---|---|---|
| Source EC2 | Running. The agent keeps sending blocks | Can be stopped |
| Replication server EC2 | MGN launches it automatically | Terminated by Finalize |
| Amazon EBS | Boot staging | Becomes the target's root volume |
| FSx for ONTAP | Staging FlexVol and LUN | Target FlexVol (FlexClone) |
| Network Load Balancer | Running | Remains after Finalize (manual deletion needed) |
Table 1: each layer after cutover: the one that needs manual deletion is the Network Load Balancer
The Most Important Distinction: What Became GA Is the MGN Target
Mix this up and you will evaluate the wrong product. It is easily confused with "FSx for ONTAP can be used as a VMware datastore".
| Question | Current support |
|---|---|
| Can FSx for ONTAP be used as the MGN target storage type? | Yes (GA with this release) |
| Is FSx for ONTAP presented as a VMware datastore? | No. The datastore is a separate feature on the Amazon EVS side |
| Can the boot disk also go on FSx for ONTAP? | No. Boot is always Amazon EBS |
| Can EBS and FSx for ONTAP be mixed within one server? | No. All data volumes use the same type |
| Can you migrate agentlessly? | No. Agent-based replication only |
| Which protocol do clients connect with? | iSCSI. The data is placed as LUNs inside a FlexVol |
Table 2: questions and current support: the agentless path is not supported
The Known limitations in the MGN documentation state Agent-based replication only. If you were planning around vCenter's agentless path, the plan has to change. The path depends on whether you leave VMs for EC2, or keep the VMs and move only the storage out.
Figure 3: the FSx for ONTAP settings in the replication template. Only the SVM ID and the Secret ARN are specified, and the note states that boot goes to EBS
Environments This Configuration Suits
Whether a migration fits depends on the shape of the workload, not on the product of the source storage.
- The boot / root area and the data area are separate, and the data area is on block storage
- You want capabilities such as Snapshot and thin provisioning on the data area after migration
- You want to turn "migrate, then move the data" into a single step
- You already run ONTAP and want the same mechanisms (Snapshot / FlexClone / SnapMirror) after migration
Most of these apply whatever the source storage is. Even when the source is ONTAP, however, permissions, quotas and Snapshot policies are not migrated and need to be set up again.
Environments Where Another Option Fits Better for Now
- Boot and data sit on the same volume
- You cannot install an agent (agentless is not supported)
- The source is Windows and you want to move the data as SMB shares
- File-level migration is enough and block-level replication is not needed (a file transfer such as AWS DataSync is sufficient)
- The source is ONTAP and you want to take the volumes as they are (SnapMirror takes fewer steps)
A Mini Glossary
| Term | Meaning | Where it appears in this article |
|---|---|---|
| SVM | A logical server inside the file system | Where MGN creates the FlexVol and LUN |
| FlexVol | A volume that holds data. LUNs live inside it too | MGN creates one for staging and one for the target |
| LUN | A unit of block storage, exposed over iSCSI | One source disk becomes one LUN |
| Snapshot | A point-in-time image inside a volume | MGN's SNAPSHOT phase creates it |
| FlexClone | A writable clone made from a Snapshot | The target FlexVol is one |
| Split | Detaching a FlexClone from its parent and materializing it | Finalize runs it |
The Procedure and the Measured Time for Each Step
The entry point is the AWS Transform workspace. MGN runs the migration itself, but it is AWS Transform that handles everything from planning to landing zone and network as a single job.
| # | Step | Measured |
|---|---|---|
| 1 | Initialize MGN | Done from the console. The CLI failed (see below) |
| 4 | Install the agent | Failed once (see below) |
| 5 | Initial full sync (16 GiB / 3 disks) | 226 seconds |
| 6 | Test launch | SNAPSHOT 43 seconds, CONVERSION about 4 minutes 30 seconds |
| 7 | Cutover (correct order) | MGN job 649 seconds; 817 seconds from issuing it to confirming boot |
| 9 | Finalize | Split under 60 seconds; about 33 minutes until clean-up completed |
(n=1 measurements at 16 GiB / 3 disks. Fixed overhead dominates, so they cannot be used as a basis for RTO.)
Snapshot and FlexClone: What AWS Transform's Phase Names Refer To
I lined up the ONTAP side by timestamp to see which ONTAP operation each AWS Transform phase name corresponds to.
| AWS Transform phase | Corresponding ONTAP operation |
|---|---|
| SNAPSHOT | Creating a volume Snapshot of the staging FlexVol |
| LAUNCH | Creating a FlexClone from that Snapshot |
The SNAPSHOT phase is not a plain data copy but a metadata operation (44 seconds for 8 GiB). The target volume is a clone with is_flexclone: true.
What matters most is that a FlexClone uses almost no physical capacity when it is created.
Measured just before Finalize, the target volume's logical size was 7.91 GiB while its physical consumption was only 35.5 MiB. Capacity planning has to look at physical values, not logical ones.
Finalize Is Not Clean-up; It Is Where Capacity Peaks
Running Finalize starts a split of the FlexClone (the operation that detaches it and makes it independent), which materializes the data.
| Elapsed from T0 | Observed change |
|---|---|
| Immediately | Lifecycle CUTOVER, replication DISCONNECTED
|
| About 3 minutes | FlexClone split starts. Physical consumption rising from 35.5 MiB → 3.94 GiB |
| About 4 minutes | Split completes. Physical consumption 8.57 GiB |
| About 13 minutes | Staging FlexVol deleted, replication server EC2 terminated |
There was a gap of about 9 minutes between the split completing and the staging volume being deleted.
During those 9 minutes, physical capacity holds twice the migrated data.
If you run Finalize while the aggregate's free space is below the migrated data size, it is likely to get stuck here. Keep in mind that Finalize is a capacity risk, not an availability risk.
The Sizing Guideline Is the Official "3x", Not the Measured "2x"
That peak in physical consumption (about 2x the migrated data) is a single value I observed in a 16 GiB environment. It shows how far physical capacity momentarily grew during Finalize, which is a different question from how much to provision the file system.
The official documentation gives 3x the migration data as the SSD capacity to provision (MGN: FSx for ONTAP configuration, Step 2, "Storage capacity"). The 3x breaks down into three consumers that hold capacity at the same time during migration:
- The replicated data (staging)
- The converted volumes used for launch (the target FlexClone)
- The original volumes pending deletion (the staging FlexVol)
The reason the official figure is 3x even though I measured about 2x is that volume deletion is a background operation, so the freed capacity is not available immediately after deletion. Hence the guidance to provision the headroom up front. The documentation also recommends keeping SSD utilization at or below 80% throughout the migration.
If you read this article and conclude "it measured 2x, so size at 2x", you fall below the official guideline (3x) and are more likely to hit a capacity shortfall during Finalize. Base the provisioned figure on the official 3x, not on the measured peak.
Four Places I Stumbled
1. A Failed Final Snapshot Behind a Successful Job
To measure downtime, I shut down the source OS and then ran cutover. The job returned COMPLETED and the target LAUNCHED. It looked like a success, but the job log recorded this:
09:14:21 SNAPSHOT_START
09:19:22 SNAPSHOT_FAIL timed out after 300 seconds
09:19:23 USING_PREVIOUS_SNAPSHOT
The final sync did not complete, and the job fell back to the previous snapshot. The cause was my procedure: shutting down the OS also stopped the replication agent, and taking the crash-consistent snapshot timed out.
The correct procedure is to stop only the application's writes and run cutover with the OS and the agent still running. "Stop writes on the source" in the official documentation does not mean shutting down the OS.
In this test there were no recent writes, so the data matched, but doing this in a real environment loses the latest data written after the snapshot it fell back to. What makes this risky is that it does not show up in the job status (status or launchStatus) at all. By the API's design, the job returns COMPLETED as long as processing finishes, even after a fallback.
Lesson: After cutover, always check event in describe-job-log-items. A COMPLETED job is not evidence that the final sync succeeded.
2. Two Unbootable Targets: NVMe Device Names Re-enumerated
I ran cutover in the correct order twice, and both produced instances that would not boot (a UEFI shell reboot loop). The job log showed no abnormal events, and the status was COMPLETED.
Examining the boot EBS volume of an unbootable instance, the 8 GiB boot volume held the contents of a 4 GiB data disk. The boot and data disk assignment had been swapped.
The cause: when the source was stopped and restarted as part of the test, NVMe device names were re-enumerated and the boot disk moved from /dev/nvme0n1 to /dev/nvme1n1. MGN's staging-type assignment appears to be keyed on the device name, and it is not re-evaluated after the name moves.
The official best practices say not to restart the source before cutover in the first place. If a restart does happen, check the disk assignment with a command like the one below and redo the test launch.
# Check which device is treated as the boot disk, and its assignment
aws mgn get-replication-configuration --source-server-id "$SRC" \
--query 'replicatedDisks[?isBootDisk==`true`].[deviceName,stagingDiskType]' --output table
3. No Repair API, and Three Contradicting Errors
I called UpdateReplicationConfiguration to fix the disk assignment, but whatever parameters I passed, it returned contradicting errors, and the API could not fix it.
In the end I deleted the source server and reinstalled the agent, which turned out to be unnecessary: rerunning the installer is the documented procedure.
Rerunning the installer re-establishes the list of replicated disks and their mapping against the actual machine. To avoid losing launch template customizations, try rerunning the installer before deleting anything.
4. The Installer's Hint Did Not Match the Real Cause
When the agent installation failed, the installer displayed Are kernel linux headers installed correctly?. Reading the log closely, the real cause was lack of space in /tmp.
On Amazon Linux 2023, /tmp is tmpfs; on a t3.small it has only 955 MiB, which does not meet the installer's requirement (1 GB or more free).
sudo env TMPDIR=/var/tmp/mgn-build TEMP=/var/tmp/mgn-build TMP=/var/tmp/mgn-build \
./aws-replication-installer-init --region ap-northeast-1 --no-prompt
Pointing it at /var/tmp like this works around it. The installer's hint is not necessarily the real cause, so check the error code in the log.
Shrink the Leftover Capacity After Finalize to Keep Costs Down
The SSD capacity you provisioned at 3x for the migration is excessive once the migration is done. Leave it as is, and you keep paying for capacity you are not using. Here is what to keep in mind on cost.
Why the Leftover Is Billed
FSx for ONTAP storage has two tiers. The SSD tier (primary) is billed on the capacity you provision — you pay for the GiB you reserve, not for the bytes you actually use (Amazon FSx for NetApp ONTAP Pricing). The other tier, the capacity pool, is billed only for what you consume.
Right after migration, of the SSD capacity reserved at 3x the migration data, the reserved amount stays even after the staging and pending-deletion volumes are gone. Even when the real data drops back to 1, if the SSD tier is still reserved at 3, you keep paying for the 2 of unused capacity.
What to Do: On Second-Generation, Decrease SSD Capacity After Migration
Second-generation file systems (the Single-AZ 2 / Multi-AZ 2 deployment types) let you decrease SSD capacity after migration completes (File system storage capacity and IOPS). The documentation itself lists "after a large-scale data migration where temporary extra capacity was used" as a typical case for decreasing capacity. The steps and constraints:
-
First-generation (
Single-AZ 1/Multi-AZ 1) can increase but not decrease. If your plan is to reserve a large amount temporarily for migration, choosing second-generation is the safer choice on cost. - Each decrease is in steps of at least 9% of the current capacity, down to a size where SSD utilization stays at or below 80% after the decrease.
- During the decrease operation you are billed for both the existing and the new size (for example, decreasing 10 TiB → 5 TiB is billed at 15 TiB during the operation, 5 TiB after). The decrease can take from a few hours to a few weeks.
- After changing SSD capacity, IOPS, or throughput, you must wait a 6-hour cooldown before the next change.
- A decrease operation pauses while a FlexClone exists. The MGN target volume is already independent after the Finalize split, so it qualifies; but with a FlexClone still present from before or during Finalize, the decrease will not progress. Run the decrease after Finalize completes.
Alternative: Stand Up a Migration-Only File System and Move to Production with SnapMirror
The decrease has constraints. First-generation cannot shrink; even second-generation has the 9% step, the 80% ceiling and the 6-hour cooldown, is billed at both sizes during the operation, and can take weeks. So another design is to separate the migration landing spot and the production home from the start.
- Stand up a migration-only file system provisioned at 3x. Make it the ATX (MGN) migration target.
- Run through Finalize and let the target volume become independent.
- Stand up a separate production file system at the minimum size that fits the real data.
- Replicate the volume from the migration-only to the production file system with NetApp SnapMirror. SnapMirror is block-level replication that carries the deduplicated and compressed state and the snapshots across intact. It supports in-Region replication between two FSx for ONTAP file systems (Replicating your data using NetApp SnapMirror).
- Switch clients to the production file system and delete the migration-only file system in full.
This alternative helps when you use first-generation, or when you want to shrink substantially after migration. The decrease is an operation that shrinks a file system and is unavailable on first-generation; SnapMirror moves the contents to a separate file system and so is not bound by the generation. Delete the migration-only side and billing stops along with the whole 3x reservation. AWS also presents SnapMirror as a way to migrate from first-generation to second-generation (Migrating SQL Server FCI Storage from FSx for ONTAP Gen 1 to Gen 2).
It does add steps, though. You go through cluster peering → SVM peering → creating the SnapMirror relationship → initialize → final update → break → mount, and the migration-only and production file systems run in parallel for a while, so both are billed during that time. In this article the alternative was only checked against the documentation and not run on real hardware (not verified). Which of the decrease and SnapMirror is cheaper and faster depends on data size, generation and the shrink ratio, so estimate it for your own conditions.
Cost Measures Beyond the Decrease
- Tier infrequently accessed data to the capacity pool. A volume's tiering policy moves unused data to the cheaper tier. The lower the SSD utilization, the smaller the size you can decrease to.
- Reduce throughput capacity after migration too. You provision it high for speed during migration, and throughput is also billed. The documentation states you can reduce throughput after migration completes (MGN: FSx for ONTAP configuration, "Throughput capacity"). During an SSD decrease operation, however, changing SSD, IOPS, and throughput at once is constrained, so do them one at a time with the cooldown in between.
- Delete the NLB and the VPC endpoint service. This is separate from capacity, but left alone they keep incurring hourly and LCU charges (see the teardown checklist below).
Teardown Checklist
Finalize does not finish the clean-up. The correct teardown order for leaving nothing behind is as follows (steps 1–7 depend on each other).
- Terminate the target and source EC2 instances
- Delete the MGN source server
- Reject the VPC endpoint connection, then delete the endpoint service
- Delete the NLB and its target group (important: charges continue until you delete them by hand)
- Delete the target FlexVol with
fsx delete-volume - Delete the SVM with
fsx delete-storage-virtual-machine - Delete the ONTAP
security login
The staging EBS volumes are deleted automatically with a delay, but the target's root EBS volume has no DeleteOnTermination and must be deleted manually.
Initializing AWS Transform from the CLI: Create the IAM Roles First
If running aws mgn initialize-service from the API or CLI fails, the cause is that the IAM roles have not been created.
Initializing from the console creates the IAM roles for you, but on the CLI path you need to create eight roles (including AWSApplicationMigrationFsxProxyRole for FSx for ONTAP) and attach their policies first.
Closing
With this GA, a migration now finishes with the data area already on FSx for ONTAP as iSCSI LUNs, and the step of moving the data afterwards is gone.
Any server whose boot and data are separate fits the same shape, whatever the original storage.
On the other hand, watch for the configuration spanning two kinds of storage, the physical capacity spike during Finalize, and MGN-specific traps such as "a job status of COMPLETED does not mean the final sync succeeded". Plan capacity as a round trip: provision the 3x SSD capacity the documentation calls for, then, once migration is done, hand back the surplus with a second-generation capacity decrease to bring the cost down.
I hope this test record helps anyone migrating servers with separate boot and data to EC2 while considering FSx for ONTAP as the home for the data area.
Resources
- AWS What's New: AWS Transform announces general availability of Amazon FSx for NetApp ONTAP support
- MGN: FSx for ONTAP configuration
- MGN: Best practices for AWS Transform MGN
- FSx for ONTAP: Using Amazon Elastic VMware Service with FSx for ONTAP
- Verification report (GitHub): the test environment configuration, the measured teardown procedure, and the list of feedback sent to AWS, all omitted from this article
All test environments have been deleted. The figures are single measurements under a specific environment and conditions, and vary with data size and configuration. The configuration details are in the verification report above.
This article is Part 2 of the series "The Data Foundation for AWS Modernization." The Japanese original is on hatenablog.
Top comments (1)
