Playing with GPX tracks in Elixir and PostGIS

Lately, I've been thinking about the idea of creating a web app for storing and visualizing my cycle rides. Most of the popular activity trackers, allow exporting your activities as GPX files. We can use those files to import activity to the other service, for example to the one that we will build in a moment.

In this blog post, I would like to present my findings on how to store and visualize GPX tracks using Elixir/Phoenix, PostgreSQL and a little bit of JavaScript. The plan is to parse the GPX file and extract track data. Save it in PostgreSQL as a geometry type, which comes with PostGIS. Finally, visualize track using an interactive web map.

GitHub repo containing code used in this blogpost

GPX intro

GPX (GPS Exchange Format) is an XML data format, designed to share GPS data between software applications. You can find more info about the format on the official website.

GPX can be used to describe the following data:

  • waypoints - individual points without relation to each other
  • routes - an ordered list of points, representing a series of turns leading to a destination
  • tracks - an ordered list of points, describing a path, for example, a raw output of GPS recording of single trip

Below we can examine an example GPX file. It contains tracks data, which were recorded during an activity.

<!-- my_activity.xml -->

<?xml version="1.0" encoding="UTF-8"?>
<gpx creator="StravaGPX" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.topografix.com/GPX/1/1 http://www.topografix.com/GPX/1/1/gpx.xsd" version="1.1" xmlns="http://www.topografix.com/GPX/1/1">
  <metadata>
    <time>2020-02-02T10:37:13Z</time>
  </metadata>
  <trk> <!-- representation of a track -->
    <name>Gdynia</name>
    <trkseg> <!-- track segment -->
      <trkpt lat="54.5198480" lon="18.5396990"> <!-- track point -->
        <ele>10.2</ele> <!-- point elevation -->
        <time>2020-02-02T10:37:13Z</time> <!-- time of the recording  -->
      </trkpt>

      <trkpt lat="54.5198540" lon="18.5397300">
        <ele>10.2</ele>
        <time>2020-02-02T10:37:14Z</time>
      </trkpt>

      <!-- more track points  -->
    </trkseg>
  </trk>
</gpx>

To parse GPX files in Elixir, I’ve created GpxEx package. It’s still work in progress but it supports parsing tracks. After reading a file, you can convert it to Elixir structs.

{:ok, gpx_doc} = File.read("./my_track.gpx")
{:ok, gpx} = GpxEx.parse(gpx_doc)

%GpxEx.Gpx{
  tracks: [
    %GpxEx.Track{
      name: "Track's name",
      segments: [
        %GpxEx.TrackSegment{
          points: [
            %GpxEx.TrackPoint{
              ele: 10.2,
              lat: 54.519848,
              lon: 18.539699,
              time: "2020-02-02T10:37:13Z"
            },
            %GpxEx.TrackPoint{
              ele: 10.2,
              lat: 54.519854,
              lon: 18.53973,
              time: "2020-02-02T10:37:14Z"
            }
          ]
        }
      ]
    }
  ]
}

PostGIS intro

What is PostGIS and why do we need it? PostgreSQL supports the XML data type natively. Why not use that? We could save the GPX file straight away and skip the whole parsing part and adding the extra extension.

Doing all of that, we would lose many benefits that are provided by PostGIS. PostGIS is a spatial database extension that adds support for geographic objects. After converting tracks to geo type and storing them in Postgres, we will be able to run location queries and spatial functions. For example, we will be able to:

  • find all tracks near a certain location
  • calculate track's distance
  • convert a track to the format used by web maps (GeoJSON, TopoJSON, KML, etc)

Intial project setup

In this tutorial I'm using the following versions:

  • Elixir 1.10
  • Phoenix 1.4.14
  • PostgreSQL 12.2
  • PostGIS 3.0

Let's start by creating a fresh Phoenix project.

mix phx.new gpx_phoenix
cd gpx_phoenix
mix ecto.create

PostGIS in Phoenix framework

We need to add PostGIS support in Phoenix application. To do that, we can use geo and geo_postgis packages.

defp deps do
  # other deps
  {:geo, "~> 3.3"},
  {:geo_postgis, "~> 3.3"}
end

First, we need to pass new PostGIS extensions to postgrex. We have to create new file, for example lib/gpx_phoenix/postgrex_extensions.ex. It has to be defined only once during compilation, hence it needs to be done outside of any module or function.

# lib/gpx_phoenix/postgrex_extensions.ex

Postgrex.Types.define(
  GpxPhoenix.PostgresTypes,
  [Geo.PostGIS.Extension] ++ Ecto.Adapters.Postgres.extensions(),
  json: Jason
)

After defining the above types, we need to specify them in our Repo config.

# config/config.exs

config :gpx_phoenix, GpxPhoenix.Repo,
  types: GpxPhoenix.PostgresTypes

The last step is to enable PostGIS in PostgreSQL.

defmodule GpxPhoenix.Repo.Migrations.EnablePostgisExtension do
  use Ecto.Migration

  def up do
    execute "CREATE EXTENSION IF NOT EXISTS postgis"
  end

  def down do
    execute "DROP EXTENSION IF EXISTS postgis"
  end
end

Tracks context

In this section, we are creating Tracks context. We have to generate migration which will create tracks table with two columns. geom column will hold the geometry of each track. We can create it using the AddGeometryColumn function provided by PostGIS.

-- AddGeometryColumn(table_name, column_name, srid, type, dimension);
SELECT AddGeometryColumn('tracks', 'geom', 3857, 'MULTILINESTRINGZ', 3);
  • The sird stands for spatial reference system identifier which defines the coordinate system. We are going to use Pseudo-Mercator (EPSG:3857) used for rendering most of the popular web maps.
  • The type specifies geometry type, eg 'MULTILINESTRINGZ', 'POLYGON', 'POINT'.
  • The last argument is the dimension. We want to store 3 dimensions, x and y coordinates along with elevation (z).

We are defining geom as MULTILINESTRINGZ because it plays nicely with the way how GPX format. GPX track can contain multiple segments, and each segment contains multiple points. Each point has (lat, lon) coordinates and can also hold elevation.

A linestring is a path between locations, an ordered series of two or more points. A "Z" dimension adds height information to each point. A MultiLineStringZ is a collection of linestringZ

# priv/repo/migrations/20200316162637_create_tracks_table.exs

defmodule GpxPhoenix.Repo.Migrations.CreateTracksTable do
  use Ecto.Migration

  def up do
    create table(:tracks) do
      add(:name, :string)

      timestamps()
    end

    execute("SELECT AddGeometryColumn('tracks', 'geom', 3857, 'MULTILINESTRINGZ', 3);")
  end

  def down do
    drop table(:tracks)
  end
end

In track’s schema, we have to use Geo.PostGIS.Geometry type which was added by geo_postigs package. We have to remember that we specified our geometry type as MULTILINESTRINGZ and the database will enforce that.

# lib/gpx_phoenix/tracks/track.ex

defmodule GpxPhoenix.Tracks.Track do
  use Ecto.Schema
  import Ecto.Changeset

  schema "tracks" do
    field(:name, :string)
    field(:geom, Geo.PostGIS.Geometry)

    timestamps()
  end

  @doc false
  def changeset(track, attrs) do
    track
    |> cast(attrs, [:name, :geom])
    |> validate_required([:name, :geom])
  end
end

Tracks context with basic CRUD functions.

# lib/gpx_phoenix/tracks/tracks.ex

defmodule GpxPhoenix.Tracks do
  @moduledoc """
  The Tracks context.
  """

  import Ecto.Query, warn: false
  alias GpxPhoenix.Repo

  alias GpxPhoenix.Tracks.Track

  def get_track!(id), do: Repo.get!(Track, id)

  def list_tracks, do: Repo.all(Track)

  def create_track(attrs \\ %{}) do
    %Track{}
    |> Track.changeset(attrs)
    |> Repo.insert()
  end

  def change_track(%Track{} = track), do: Track.changeset(track, %{})
end

Tracks importer

Now we can focus on track importer module. It will be responsible for parsing GPX and creating a new track record. We will parse GPX file using GpxEx package which we have to add to our dependencies.

# mix.exs

defp deps do
  # other deps
  {:gpx_ex, git: "git@github.com:caspg/gpx_ex.git", tag: "0.1.0"}
end

Before saving parsed GPX file to the database, we have to convert it to our geometry type, which is Geo.MultiLineStringZ. When creating Geo type, we have to use the same srid value as we used during creating geom column.

# lib/gpx_phoenix/tracks/import_track.ex

defmodule GpxPhoenix.Tracks.ImportTrack do
  alias GpxPhoenix.Tracks.Track

  @spec call(gpx_doc: String.t()) :: {:error, %Ecto.Changeset{}} | {:ok, %Track{}}

  def call(gpx_doc) do
    gpx_doc
    |> GpxEx.parse()
    |> get_first_track()
    |> build_track_geometry()
    |> create_track()
  end

  defp get_first_track({:ok, %GpxEx.Gpx{tracks: [track | _]}}), do: {:ok, track}

  defp build_track_geometry({:ok, %GpxEx.Track{segments: segments} = track}) do
    multilinez_coordinates = convert_segments_to_mulitlinez(segments)

    track_geometry = %Geo.MultiLineStringZ{
      coordinates: multilinez_coordinates,
      srid: 3857
    }

    {:ok, track, track_geometry}
  end

  defp convert_segments_to_mulitlinez(segments) do
    Enum.map(segments, fn segment ->
      Enum.map(segment.points, fn point ->
        {point.lon, point.lat, point.ele}
      end)
    end)
  end

  defp create_track({:ok, %GpxEx.Track{name: name}, track_geometry}) do
    GpxPhoenix.Tracks.create_track(%{name: name, geom: track_geometry})
  end
end

Let's import some example Gpx files. Here are three tracks I recorded during my rides https://github.com/caspg/gpx_phoenix/tree/master/gpx_files. We can import them using Elixir console.

iex -S mix

iex(1)> {:ok, gpx_doc} = File.read("./gpx_files/gdansk-elblag.gpx")
iex(2)> GpxPhoenix.Tracks.ImportTrack.call(gpx_doc)

# same for othe files

Converting track to GeoJSON

GeoJSON format is designed to represent geographical objects and is based on the JSON. It is commonly used in web mapping applications. We can convert our geometry to GeoJSON using PostGIS function.

# lib/gpx_phoenix/tracks/tracks.ex

defmodule GpxPhoenix.Tracks do
  import Ecto.Query, warn: false
  alias GpxPhoenix.Repo
  alias GpxPhoenix.Tracks.Track

  # ...other functions

  def get_geom_as_geojson!(%{id: id}) do
    query =
      from(t in Track,
        where: t.id == ^id,
        select: fragment("ST_AsGeoJSON(?)::json", t.geom)
      )

    Repo.one!(query)
  end
end

Tracks controller

Let's create tracks_controller, tracks_view and corresponding templates. tracks_controller will have two standard CRUD actions and one action, geojson, for fetching track's GeoJSON asynchronously.

defmodule GpxPhoenixWeb.Router do
  # omitted code

 scope "/", GpxPhoenixWeb do
    pipe_through :browser

    get "tracks", TracksController, :index
    get "tracks/:id", TracksController, :show
    get "tracks/:id/geojson", TracksController, :geojson
  end
end
# lib/gpx_phoenix_web/controllers/tracks_controller.ex

defmodule GpxPhoenixWeb.TracksController do
  use GpxPhoenixWeb, :controller

  def index(conn, _params) do
    tracks = GpxPhoenix.Tracks.list_tracks()
    render(conn, "index.html", tracks: tracks)
  end

  def show(conn, %{"id" => id} = _params) do
    track = GpxPhoenix.Tracks.get_track!(id)
    render(conn, "show.html", track: track)
  end

  def geojson(conn, %{"id" => id} = _params) do
    geojson = GpxPhoenix.Tracks.get_geom_as_geojson!(%{id: id})

    json(conn, geojson)
  end
end
# lib/gpx_phoenix_web/views/tracks_view.ex

defmodule GpxPhoenixWeb.TracksView do
  use GpxPhoenixWeb, :view
end
# lib/gpx_phoenix_web/templates/tracks/index.html.eex

<ul>
  <%= for track <- @tracks do %>
    <li>
      <%= link(track.name, to: Routes.tracks_path(@conn, :show, track.id)) %>
    </li>
  <% end %>
</ul>
# lib/gpx_phoenix_web/templates/tracks/show.html.eex

<h2><%= @track.name %></h2>

Interactive web map

We can use Leaflet.js to render an interactive web map. Before writing any JavaScript code we have to include Leaflet CSS and Leaflet JavaScript files. To make things simpler we can include those files in the show template.

We also need an HTML element that will serve as a container for our map and will hold track-id as a data attribute. We are going to use a track-id to fetch correct GeoJSON.

# lib/gpx_phoenix_web/templates/tracks/show.html.eex

<h2><%= @track.name %></h2>

<div id="track-map" data-track-id="<%= @track.id %>" style="height: 500px; margin-top: 50px;"></div>

<link rel="stylesheet" href="https://unpkg.com/leaflet@1.6.0/dist/leaflet.css" />
<script src="https://unpkg.com/leaflet@1.6.0/dist/leaflet.js"></script>

The only thing that’s left is to create an actual map and render our track on it. Leaflet allows for adding GeoJSON layers. There is also a handy function that will make sure our track fits the map. In this example, I’m using OpenStreetMap as a free tiles provider. In a production app, we should look for some commercial provider.

// assets/js/app.js

function renderMap() {
  const trackMap = document.getElementById('track-map')

  if (!trackMap) {
    return
  }

  // create leaflet map object
  const map = L.map(trackMap)

  L.tileLayer('https://{s}.tile.openstreetmap.org/{z}/{x}/{y}.png', {
    attribution:
      '&copy <a href="https://www.openstreetmap.org/copyright">OpenStreetMap</a> contributors'
  }).addTo(map)

  const trackId = trackMap.dataset.trackId

  // fetch geojson and add it to the map as new layer
  fetch(`/tracks/${trackId}/geojson`)
    .then(res => res.json())
    .then(geojson => {
      const geojsonLayer = L.geoJSON(geojson).addTo(map)

      // handy function that makes sure our track will fit the map
      map.fitBounds(geojsonLayer.getBounds())
    })
}

renderMap()

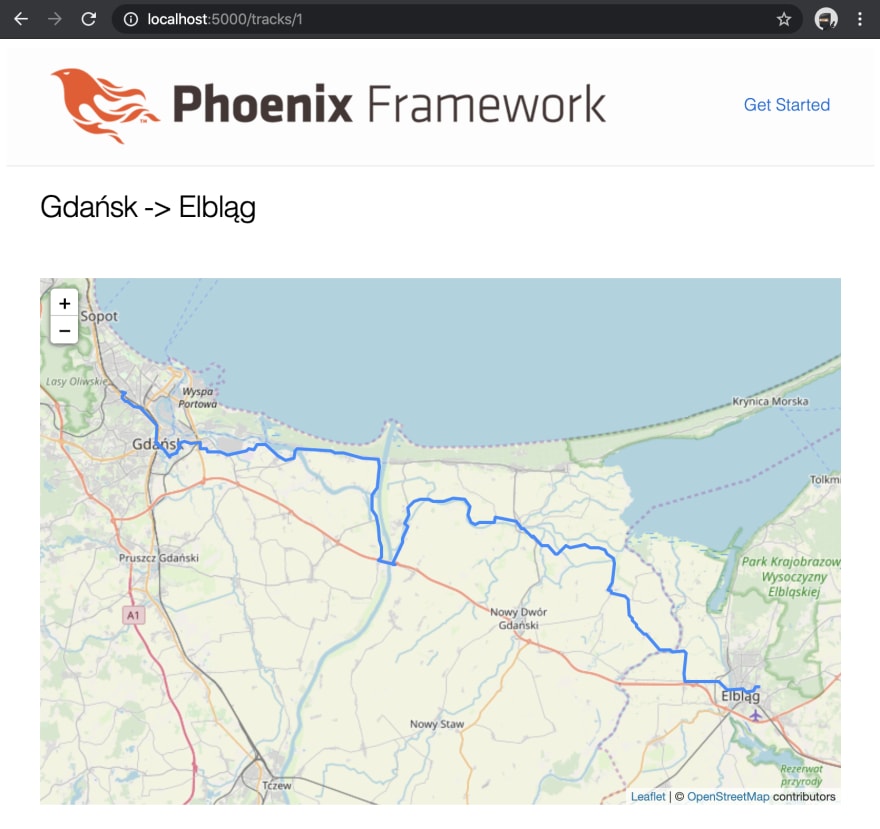

Finally, we can see our tracks on the interactive map. In case you are wondering, yes, there is Hel in Poland.

Track 1

Track 2
