How I Fixed Layout Thrashing and Accelerated DOM Renders with DocumentFragments

#devchallenge #bugsmash #webdev #opensource

Summer Bug Smash: Clear the Lineup 🐛🛹

This is a submission for DEV's Summer Bug Smash: Clear the Lineup powered by Sentry.

The Performance Bug 🐛

In an existing interface panel handling heavy log payloads or continuous stream updates, the application was performing direct DOM appends inside a continuous loop.

// UNOPTIMIZED CRASH CODE
heavyPayload.forEach(item => {
  uiConsole.innerHTML += `<p>${item}</p>`; // <-- The Culprit!
});

Why this kills app performance:
Every single time innerHTML += executes inside a loop, the browser is forced to re-parse the entire HTML string, destroy the existing DOM nodes inside that parent container, and rebuild them from scratch. In loops handling hundreds of entries, this causes severe Layout Thrashing, creates CPU spikes, and locks up the main thread during scrolling.

The Optimization Fix 🛠️
I eliminated this execution bottleneck by refactoring the pipeline to construct the DOM updates completely in virtual memory before committing them to the document tree.
Here is the code change applied to stabilize the layout cycle:

//THE FIX: Isolated Virtual Memory Pipeline
const fragment = document.createDocumentFragment();

heavyPayload.forEach(item => {
  const p = document.createElement('p');
  p.textContent = item; // Secure text nodes prevent XSS injection vectors
  fragment.appendChild(p); // Held in memory; zero layout changes triggered
});

// The Definitive Fix Event: Exactly one paint/reflow event occurs here
uiConsole.innerText = "";
uiConsole.appendChild(fragment);

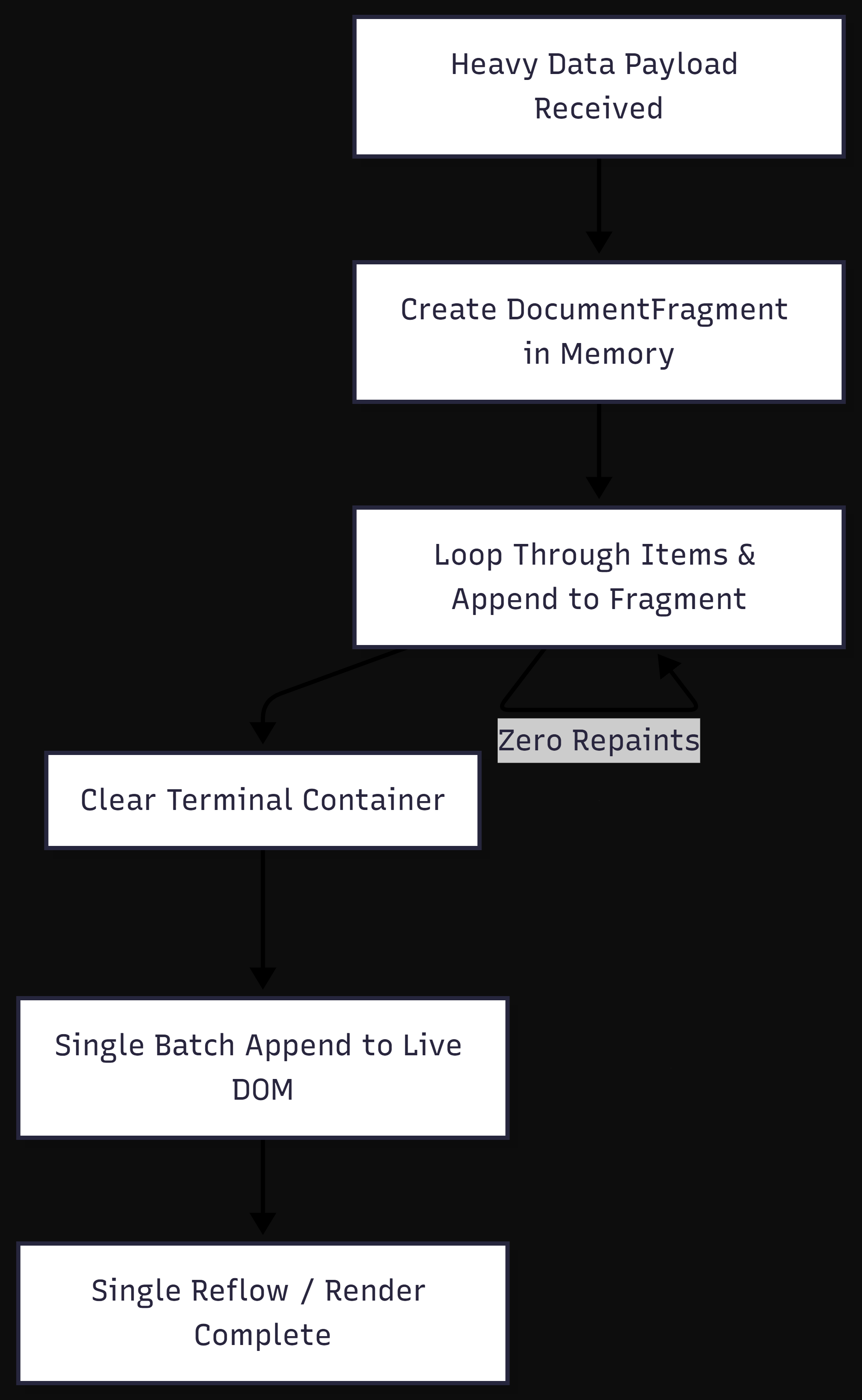

📊 Lifecycle Flowchart
Here is the execution flow showing how the application optimizes rendering while keeping memory usage under control:

(https://dev-to-uploads.s3.us-east-2.amazonaws.com/uploads/articles/szkbgnhr6c2arzdduvmo.png)

graph TD
    A[Heavy Data Payload Received] --> B[Create DocumentFragment in Memory]
    B --> C[Loop Through Items & Append to Fragment]
    C -->|Zero Repaints| C
    C --> D[Clear Terminal Container]
    D --> E[Single Batch Append to Live DOM]
    E --> F[Single Reflow / Render Complete]

Deep Technical Breakdown: Why DocumentFragments Win 👑
When you update the live DOM inside a loop, you force the browser’s rendering engine to repeatedly trigger recalculate styles, layout, and repaint phases.
By anchoring the batch insertion to a DocumentFragment, we create a lightweight document object that exists entirely outside the active rendering tree. Because DocumentFragment is detached from the main DOM, appending elements to it has zero impact on page performance, layout recalculations, or frame rates. When we finally pass the fragment to appendChild(), the fragment's entire child structure is inserted in a single atomic reflow operation.

The Lessons Learned 🧠
By implementing a virtual container via DocumentFragment, we cleanly break the dependency between high-frequency loop processing and the browser's painting hardware.
The Moral: Never push changes to live UI elements iteratively if you can hold them in your loop's back-pocket first. Your users' CPU fans will thank you!

🚀 Technical Links
Live CodePen Demo: Clear the Lineup: Smashing O(N) Layout Thrashing in Dynamic UI Buffers https://codepen.io/editor/CoderDecoding/pen/019f92fe-f9ac-7b32-9d25-08fa7ccc7785

GitHub Repository: dom-performance-refactor https://github.com/CoderDecoding/dom-performance-refactor/tree/main
