微服务模块架构图

fangdajiang profile image 小猫先生 Updated on ・2 min read

Eureka 原理

配置文档
Eureka 原理

Eureka 架构图

Eureka 架构图

网关

gateway

ZUUL

路由配置
Netflix 使用 Zuul 做如下事情:

  • 认证鉴权
  • 审查
  • 压力测试
  • 金丝雀测试
  • 动态路由
  • 服务迁移
  • 负载剪裁
  • 安全
  • 静态应答处理

配置中心 Config

  • 介绍:聊聊 Spring Cloud Config
  • Spring Cloud Config 项目
    -提供 服务端 和 客户端 支持
    -集中式 管理分布式环境下的应用配置
    -基于 Spring 环境,无缝 与 Spring 应用集成
    -可用于 任何 语言开发的程序
    -默认实现基于 git 仓库,可以进行 版本管理
    -可替换 自定义实现

  • Spring Cloud Config Server 作为配置中心服务端
    -拉取配置时更新 git 仓库副本,保证是最新结果
    -支持数据结构丰富,yml, json, properties 等
    -配合 eureke 可实现服务发现,配合 cloud bus 可实现配置推送更新
    -配置存储基于 git 仓库,可进行版本管理
    -简单可靠,有丰富的配套方案

  • 访问方式

/{application}/{profile}[/{label}]
/{application}-{profile}.yml
/{profile}.properties
/{application}-{profile}.properties
/{label}/{application}-{profile}.properties
/{label}/{application}-{profile}.yml
/{label}/{application}
  • 如何管理下图中的各种配置? unconfiged staff
  • 解决方案 solution
  • 架构图 Config Server Config Server with Cloud Bus

Ribbon

client side load balancer,配置文档

Feign

declarative REST client

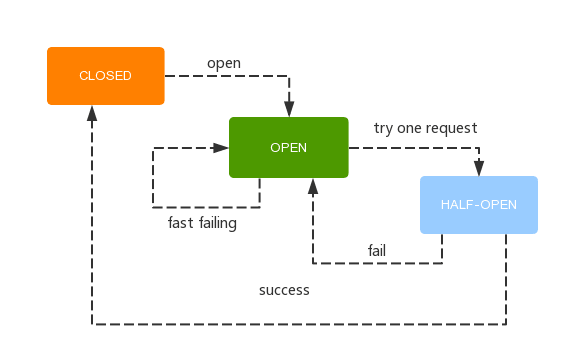

Hystrix 断路器 / 熔断器原理

配置文档 Turbine Turbine 配置1.x
Hystrix

分布式服务跟踪系统示意图

(来源:分布式服务跟踪及 Spring Cloud 的实现
分布式服务跟踪系统示意图

数据收集 Zipkin

数据收集

Sleuth

数据流转

数据流转

  • Trace + Span trace span

ELK 技术栈

ELK stack interaction with different applications based on Log file
ELK

Stream 架构图

配置与开发文档
Stream
