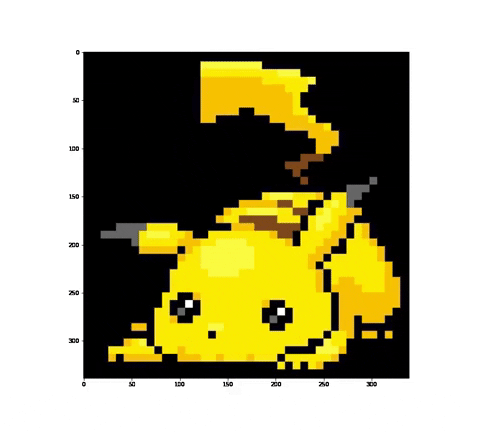

Hi, I'll start with showing what I'm trying to achieve (I couldn't come up with a shorter title).
We have two images, the second one slowly replaces the first (horizontally).
To do this we'll need to prepare two images with the same shape (I won't show how to scale them in python).
This method can be used to make any number of images transition (with a little bit of work).
First things first. Let's load two images.
# We'll need them later import numpy as np import matplotlib.pylab as plt from PIL import Image image1 = np.array(Image.open('image1.png').convert('RGB')) image2 = np.array(Image.open('image2.png').convert('RGB'))
Both images are of shape: (339, 339, 3)
Firstly, let's flatten our images, we'll take advantage of that later.
fimage1 = image1.reshape((-1,3)) fimage2 = image2.reshape((-1,3))
To create animation we'll need to know how each frame will look. In my case I wanted to define a frame by a given part (
perc) of pixels of the second image. For example if
perc=0.1 then first 0.1 pixels are from second image, and 0.9 are from first.
Fade is a function that will do that. Given two flattened images, the original shape of the image and perc, it will concatenate the two images and return the image to the original shape.
def fade(shape, fimage1, fimage2, perc): i = int(fimage1.shape * perc) return np.concatenate((fimage2[:i], fimage1[i:, :])).reshape(shape)
- shape: tuple, shape of the original image
- fimage1: array, image flattened to shape (-1, 3)
- fimage2: same as fimage2
- perc: float, part of image2 to show
Here are some images that I generated with it:
I won't go into details on how to create animations in Matplotlib, here's my code.
fig = plt.figure(figsize=(12, 10.8)) # Depends on aspect of your images ax = plt.axes() pic = ax.imshow(np.zeros(image1.shape)) # Create empty image of the same shape as image to plot frames = 150 # Number of frames to generate def init(): pic.set_array(np.zeros(image1.shape)) return [pic] # This funtion generates i-th frame. def animate(i): pic.set_array(fade(image1.shape, fimage1, fimage2, i/frames)) return [pic] anim = animation.FuncAnimation(fig, animate, init_func=init, frames=frames, blit=True) anim.save('animaton.mp4', fps=60, extra_args=['-vcodec', 'libx264']) plt.show()
animation.mp4 should generate, depending on number of frames.
