Ceph Cluster monitoring using Prometheus and Grafana

ingoleajinkya profile image Ajinkya Ingole Updated on ・6 min read

What is Ceph?

Ceph is open source, software-defined storage maintained by RedHat. It’s capable of block, object, and file storage. The clusters of Ceph are designed in order to run on any hardware with the help of an algorithm called CRUSH (Controlled Replication Under Scalable Hashing). This algorithm ensures that all the data is properly distributed across the cluster and data quickly without any constraints. Replication, Thin provisioning, Snapshots are the key features of the Ceph storage.

Ceph object storage is accessible through Amazon Simple Storage Service (S3) and OpenStack Swift Representational State Transfer (REST)-based application programming interfaces (APIs), and a native API for integration with software applications.

Ceph block storage makes use of a Ceph Block Device, which is a virtual disk that can be attached to bare-metal Linux-based servers or virtual machines. The Ceph Reliable Autonomic Distributed Object Store (RADOS) provides block storage capabilities, such as snapshots and replication. The Ceph RADOS Block Device is integrated to work as a back end with OpenStack Block Storage.

What is Prometheus?

Prometheus is a free software application used for event monitoring and alerting.It records real-time metrics in a time series database (allowing for high dimensionality) built using a HTTP pull model, with flexible queries and real-time alerting.The project is written in Go and licensed under the Apache 2 License, with source code available on GitHub, and is a graduated project of the Cloud Native Computing Foundation, along with Kubernetes and Envoy.

Prometheus collects metrics from monitored targets by scraping metrics HTTP endpoints on these targets. Since Prometheus also exposes data in the same manner about itself, it can also scrape and monitor its own health.

What is Grafana?

Grafana is an open source solution for running data analytics, pulling up metrics that make sense of the massive amount of data & to monitor our apps with the help of cool customizable dashboards.

Grafana connects with every possible data source, commonly referred to as databases such as Graphite, Prometheus, Influx DB, ElasticSearch, MySQL, PostgreSQL etc.

Grafana being an open source solution also enables us to write plugins from scratch for integration with several different data sources.

The tool helps us study, analyse & monitor data over a period of time, technically called time series analytics.

Ceph Deployment

Deploying highly available Ceph cluster is pretty straightforward and easy. I am assuming that you are familiar with setting up the Ceph cluster. If not then refer the official document or following commands.

Configure Ceph repo:

sudo vim /etc/yum.repos.d/ceph.repo
[ceph]
name=Ceph packages for $basearch
baseurl=https://download.ceph.com/rpm-nautilus/el7/$basearch
enabled=1
priority=1
gpgcheck=1
gpgkey=https://download.ceph.com/keys/release.asc

[ceph-noarch]
name=Ceph noarch packages
baseurl=https://download.ceph.com/rpm-nautilus/el7/noarch
enabled=1
priority=1
gpgcheck=1
gpgkey=https://download.ceph.com/keys/release.asc

[ceph-source]
name=Ceph source packages
baseurl=https://download.ceph.com/rpm-nautilus/el7/SRPMS
enabled=0
priority=1
gpgcheck=1
gpgkey=https://download.ceph.com/keys/release.asc

Installing ceph-deploy

sudo yum install ceph-deploy -y

Create a directory

 mkdir ceph-cluster
 cd ceph-cluster

Create the cluster:

 ceph-deploy new node1 node2 node3

Install Ceph packages:

 ceph-deploy install node1 node2 node3

Deploy the initial monitors and gather the keys

 ceph-deploy mon create-initial

Create admin

ceph-deploy admin node1 node2 node3

Create Mgr

ceph-deploy mgr create node1

Create Osds

ceph-deploy osd create --data /dev/xvdb node1
ceph-deploy osd create --data /dev/xvdb node2
ceph-deploy osd create --data /dev/xvdb node3

Check your cluster's status

sudo ceph -s

you should see something like:

alt text

Installing Prometheus

Run the following command to download and install Prometheus.

sudo wget https://github.com/prometheus/prometheus/releases/download/v2.8.1/prometheus-2.8.1.linux-amd64.tar.gz

Add a Prometheus user.

sudo useradd --no-create-home --shell /bin/false prometheus

Create needed directories.

sudo mkdir /etc/prometheus
sudo mkdir /var/lib/prometheus

Change the owner of the above directories.

sudo chown prometheus:prometheus /etc/prometheus
sudo chown prometheus:prometheus /var/lib/prometheus

Now go to Prometheus downloaded location and extract it.

sudo tar -xvzf prometheus-2.8.1.linux-amd64.tar.gz

Rename it as per your preference.

sudo mv prometheus-2.8.1.linux-amd64 prometheuspackage

Copy “prometheus” and “promtool” binary from the “prometheuspackage” folder to “/usr/local/bin”.

sudo cp prometheuspackage/prometheus /usr/local/bin/
sudo cp prometheuspackage/promtool /usr/local/bin/

Change the ownership to Prometheus user.

sudo chown prometheus:prometheus /usr/local/bin/prometheus
sudo chown prometheus:prometheus /usr/local/bin/promtool

Copy “consoles” and “console_libraries” directories from the “prometheuspackage” to “/etc/prometheus folder”

sudo cp -r prometheuspackage/consoles /etc/prometheus
sudo cp -r prometheuspackage/console_libraries /etc/prometheus

Change the ownership to Prometheus user

sudo chown -R prometheus:prometheus /etc/prometheus/consoles
sudo chown -R prometheus:prometheus /etc/prometheus/console_libraries

Now we will create the prometheus.yml file.

sudo vim /etc/prometheus/prometheus.yml

Add the following configuration to the file.

global:
  scrape_interval: 10s

scrape_configs:
  - job_name: 'prometheus_master'
    scrape_interval: 5s
    static_configs:
      - targets: ['localhost:9283']

---{copy the port no. which you get after firing command ceph mgr services}---

Change the ownership of the file.

sudo chown prometheus:prometheus /etc/prometheus/prometheus.yml

Configure the Prometheus Service File.

sudo vim /etc/systemd/system/prometheus.service

Copy the following content to the file.

[Unit]
Description=Prometheus
Wants=network-online.target
After=network-online.target

[Service]
User=prometheus
Group=prometheus
Type=simple
ExecStart=/usr/local/bin/prometheus \
--config.file /etc/prometheus/prometheus.yml \
--storage.tsdb.path /var/lib/prometheus/ \
--web.console.templates=/etc/prometheus/consoles \
--web.console.libraries=/etc/prometheus/console_libraries

[Install]
WantedBy=multi-user.target

Reload the systemd service.

sudo systemctl daemon-reload

Start the Prometheus service.

sudo systemctl start prometheus

Check service status.

systemctl status prometheus

Use the following Url to access UI.

http://Server-IP:9090/graph

Then you can see the following interface.

alt text

Installing grafana

Create a repo file.

vim /etc/yum.repos.d/grafana.repo

Add the following contents to file:

[grafana]
name=grafana
baseurl=https://packages.grafana.com/oss/rpm
repo_gpgcheck=1
enabled=1
gpgcheck=1
gpgkey=https://packages.grafana.com/gpg.key
sslverify=1
sslcacert=/etc/pki/tls/certs/ca-bundle.crt
sudo vim /etc/yum.repos.d/grafana.repo

Enter the following command:

sudo yum install grafana -y

Continue with following commands to install the free type and urw fonts.

sudo yum install fontconfig
sudo yum install freetype*
sudo yum install urw-fonts

Check the status of the service.

sudo systemctl status grafana-server

If service is not active, start it using the following command:

sudo systemctl start grafana-server

Enable Grafana service on system boot

sudo systemctl enable grafana-server.service

Use the following URL to access the Grafana web interface.

http://Your Server IP or Host Name:3000/

Then you can see the following interface.

alt text

Enabeling dashboard service on ceph cluster

Mgr enable dashboard

ceph mgr module enable dashboard --force

Mgr enable Prometheus

 ceph mgr module enable prometheus --force

Edit the ceph.conf

 vim ceph-deploy/ceph.conf

Add:
­

[mon]
        mgr initial modules = dashboard

alt text

Check Mgr Services:
alt text
---{update the file /etc/prometheus/prometheus.yml with the obtained port no. as target port no. }---

As you have successfully installed prometheus and grafana for ceph monitoring

Let us begin the grafana setup now
1. Login to grafana with default username and password as admin
2. Click on to create a datasource
3. Select Prometheus
alt text
4. Enter url of prometheus

alt text
5. Click on Import and enter ceph-cluster grafana dashboard id "7056"
6. Choose Name and Ceph Prometheus data source

alt text

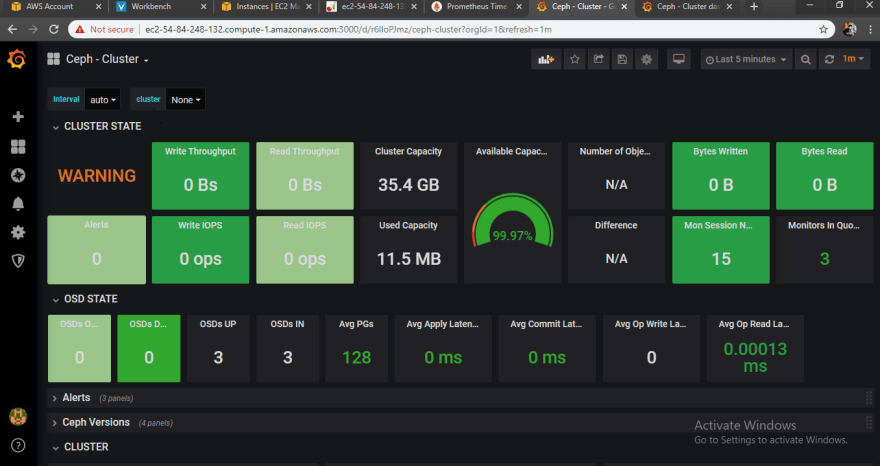

Finally we have successfully integrated our Ceph Cluster with Prometheus and Grafana!

alt text

Using this you can monitor your ceph cluster!
