In-Depth Guide: Setting Up a NAT Gateway in AWS Using CloudFormation

Introduction

Managing network traffic and ensuring secure internet access for resources in AWS is a critical aspect of cloud architecture. A Network Address Translation (NAT) Gateway plays a pivotal role in this. In this comprehensive guide, we'll explore what a NAT Gateway is, its features, and step-by-step instructions on setting it up in AWS using CloudFormation.

What is a NAT Gateway?

A NAT (Network Address Translation) Gateway in AWS allows resources within a private subnet to access the internet or other AWS services, while preventing the Internet from initiating a connection with those resources. It's used to provide internet traffic to EC2 instances in a private subnet in a secure manner.

Key Features of NAT Gateway

  • Security: It allows instances in a private subnet to initiate outbound IPv4 traffic to the internet, while not allowing inbound traffic from the internet.
  • High Availability: AWS NAT Gateway is designed to be highly available within an Availability Zone.
  • Bandwidth Scaling: Automatically scales its bandwidth up to 45 Gbps without any manual intervention.
  • No Need for Patching: Being a managed service, it does not require any patch management.

Prerequisites

  • An AWS account
  • Basic knowledge of AWS VPC, subnets, and CloudFormation

Step-by-Step Setup Using CloudFormation

Step 1: Understanding the Architecture

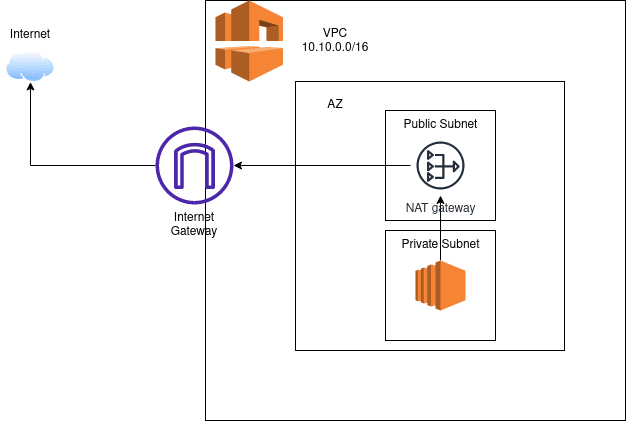

The architecture involves a VPC with both public and private subnets. The NAT Gateway is placed in the public subnet, providing outbound internet access to instances in the private subnet.

Step 2: Writing the CloudFormation Template

Create a file named nat-gateway.yaml. This CloudFormation script creates the necessary components:

  • VPC (MyVPC): This acts as the networking backbone.
  • Subnets (PublicSubnet and PrivateSubnet): For segregating resources. The NAT Gateway resides in the public subnet.
  • Internet Gateway (InternetGateway): To provide access to the internet for the public subnet.
  • Elastic IP (NatGatewayEIP): A static IPv4 address used by the NAT Gateway for sending traffic.
  • NAT Gateway (NatGateway): The managed NAT service.
  • Route Tables and Associations: To route traffic appropriately from the private subnet to the NAT Gateway and from the public subnet to the internet.
AWSTemplateFormatVersion: '2010-09-09'
Description: 'CloudFormation Template for NAT Gateway Setup'

Resources:
  MyVPC:
    Type: AWS::EC2::VPC
    Properties:
      CidrBlock: 10.0.0.0/16
      EnableDnsSupport: true
      EnableDnsHostnames: true

  PublicSubnet:
    Type: AWS::EC2::Subnet
    Properties:
      VpcId: !Ref MyVPC
      CidrBlock: 10.0.1.0/24
      MapPublicIpOnLaunch: true

  PrivateSubnet:
    Type: AWS::EC2::Subnet
    Properties:
      VpcId: !Ref MyVPC
      CidrBlock: 10.0.2.0/24

  InternetGateway:
    Type: AWS::EC2::InternetGateway

  AttachGateway:
    Type: AWS::EC2::VPCGatewayAttachment
    Properties:
      VpcId: !Ref MyVPC
      InternetGatewayId: !Ref InternetGateway

  NatGatewayEIP:
    Type: AWS::EC2::EIP
    DependsOn: AttachGateway
    Properties:
      Domain: vpc

  NatGateway:
    Type: AWS::EC2::NatGateway
    Properties:
      AllocationId: !GetAtt NatGatewayEIP.AllocationId
      SubnetId: !Ref PublicSubnet

  RouteTable:
    Type: AWS::EC2::RouteTable
    Properties:
      VpcId: !Ref MyVPC

  PublicRoute:
    Type: AWS::EC2::Route
    DependsOn: AttachGateway
    Properties:
      RouteTableId: !Ref RouteTable
      DestinationCidrBlock: 0.0.0.0/0
      GatewayId: !Ref InternetGateway

  PrivateRoute:
    Type: AWS::EC2::Route
    DependsOn: NatGateway
    Properties:
      RouteTableId: !Ref RouteTable
      DestinationCidrBlock: 0.0.0.0/0
      NatGatewayId: !Ref NatGateway

  AssociatePublicSubnet:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      SubnetId: !Ref PublicSubnet
      RouteTableId: !Ref RouteTable

  AssociatePrivateSubnet:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      SubnetId: !Ref PrivateSubnet
      RouteTableId: !Ref RouteTable
Enter fullscreen mode Exit fullscreen mode

Step 3: Deploying the Template

To deploy this template, navigate to the AWS CloudFormation console, choose 'Create stack', and upload the nat-gateway.yaml file. Follow the prompts to create the stack. You can also use the AWS CLI to deploy the stack.

aws cloudformation create-stack --stack-name my-nat-gateway --template-body file://nat-gateway.yaml
Enter fullscreen mode Exit fullscreen mode

Conclusion

You have successfully created a NAT Gateway in your AWS environment using CloudFormation. This setup will enable your instances in a private subnet to securely access the internet while maintaining the security and privacy of your resources. The power of CloudFormation allows you to easily replicate this setup in different environments or regions, ensuring consistency and efficiency in your cloud infrastructure.
