How To Generate and Store Map Previews in Ruby with Appwrite

We will leverage OpenStreetMap tile server to generate a map preview and Ruby Appwrite SDK to save it to Appwrite Storage. Our code will be deployed as an Appwrite cloud function to be used with other . Let's grab your keyboard (and mouse) and get started.

Table of Contents

  1. Appwrite Cloud Function
  2. OpenStreetMap Tile Server
  3. Ruby Appwrite SDK
  4. Code Packaging
  5. Testing

☁️ Appwrite Cloud Function

First, you need to install Appwrite on your local machine. I believe their documentation has a straightforward explanation of the single-step installation process. All you have to to is to execute a Docker command (you can get Docker here):


docker run -it --rm \
    --volume /var/run/docker.sock:/var/run/docker.sock \
    --volume "$(pwd)"/appwrite:/usr/src/code/appwrite:rw \
    --entrypoint="install" \
Enter fullscreen mode Exit fullscreen mode


docker run -it --rm ^
    --volume //var/run/docker.sock:/var/run/docker.sock ^
    --volume "%cd%"/appwrite:/usr/src/code/appwrite:rw ^
    --entrypoint="install" ^
Enter fullscreen mode Exit fullscreen mode

After that, you can run Appwrite and create a project. Then:

  1. Navigate to "Functions" from the side navbar
  2. Click "Add Function"
  3. Enter a function name
  4. Select "Ruby 3.0" for "Runtimes"
  5. Click Create

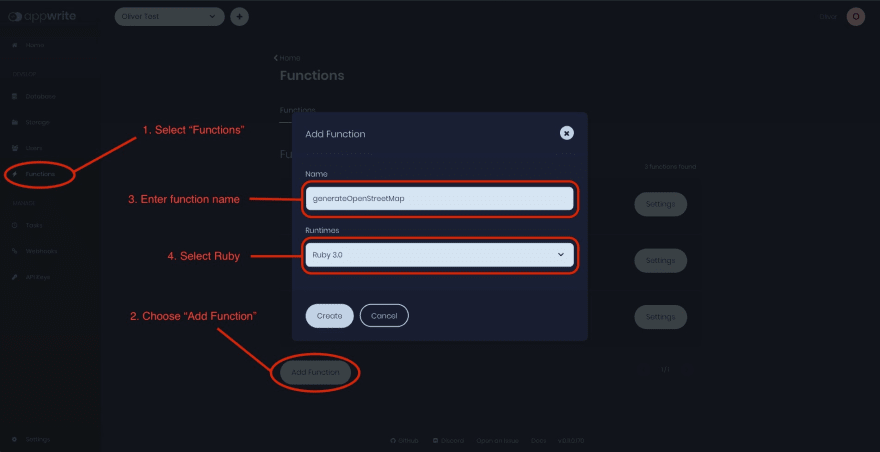

Create a Cloud Function

You should see your newly created function on Functions page after completing the steps above:

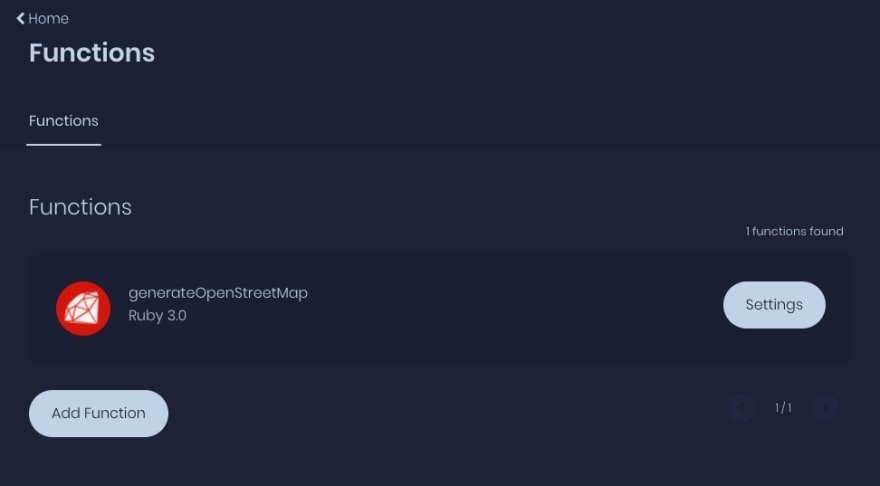

Function created

📍 OpenStreetMap Tile Server

Once you have the cloud function container up and running, let's write some code.

We're going to fetch a map tile (256px × 256px PNG file) by latitude and longitude from OpenStreetMap slippy map application hosted at To achieve this, we have to make a request to the correct route (i.e. /zoom/x/y.png) based on OpenStreetMap's file naming conventions. How can we convert latitude and longitude into x and y?

Luckily, OpenStreetMap Wiki already provides us with the implementation for it in various programming languages. You can check out the wiki for a detailed explanation. Here's the Ruby version:

def get_tile_number(lat_deg, lng_deg, zoom)
  lat_rad = lat_deg/180 * Math::PI
  n = 2.0 ** zoom
  x = ((lng_deg + 180.0) / 360.0 * n).to_i
  y = ((1.0 - Math::log(Math::tan(lat_rad) + (1 / Math::cos(lat_rad))) / Math::PI) / 2.0 * n).to_i

  {:x => x, :y =>y}
Enter fullscreen mode Exit fullscreen mode

The function above should help us calculate x and y from latitude, longitude, and zoom level. We can then make a request to OpenStreetMap tile server and download the PNG file:

require 'down'

def fetch_map_preview(latitude, longitude, zoom)
  tile = get_tile_number(latitude, longitude, zoom)
  api_url = "{zoom}/#{tile[:x]}/#{tile[:y]}.png"
  # Rename the file for easier programmatical access
  file_name = "#{latitude}_#{longitude}_#{zoom}.png", File::CREAT), destination: "./#{file_name}")

Enter fullscreen mode Exit fullscreen mode

💎 Ruby Appwrite SDK

Once we can download map tiles, we're ready to store them in Appwrite Storage. Ruby Appwrite SDK should be the gem for this task 😉 (excuse my pun).

Let's initialize an Appwrite Client. Since we're going to deploy our code as a cloud function, we can take advantage of Appwrite environment variables to set the client's properties. We can easily save an image file by invoking create_file() on an instance of Appwrite::Storage:

require 'appwrite'

def save_image(file)
  client =

    .set_endpoint(ENV['APPWRITE_ENDPOINT']) # Your API Endpoint
    .set_project(ENV['APPWRITE_FUNCTION_PROJECT_ID']) # Your project ID available by default
    .set_key(ENV['APPWRITE_API_KEY']) # Your secret API key

  storage =

  response = storage.create_file(file:;

  puts response
Enter fullscreen mode Exit fullscreen mode

Now, we only need to put them together and parse the arguments passed to our cloud function. They can be accessed (as strings) through the environment variable APPWRITE_FUNCTION_DATA:

require 'json'

map_preview_image = fetch_map_preview(data["latitude"], data["longitude"], data["zoom_level"])
# Remove the downloaded image after it's uploaded to Appwrite
Enter fullscreen mode Exit fullscreen mode

📦 Code Packaging

Once our code is functionally complete, we can build and package it before deployment. Let's handle the dependencies before packaging our code. Run this command inside your project folder:

docker run --rm -v $(pwd):/app -w /app --env GEM_HOME=./.appwrite appwrite/env-ruby-3.0:1.0.0 bundle install
Enter fullscreen mode Exit fullscreen mode

Make sure your project's folder structure look like this:

├── .appwrite/
├── Gemfile
├── Gemfile.lock
├── main.rb
├── ...
Enter fullscreen mode Exit fullscreen mode

Now, let's compress our project's directory with tar:

$ tar -zcvf ../generate-open-street-map.tar.gz .
Enter fullscreen mode Exit fullscreen mode

🚀 Testing

It's time to deploy our code package to test it:

  1. Navigate back to our function on Appwrite Console.
  2. Click "Settings" then "Deploy Tag" to deploy our code

You should then see the popup window below:

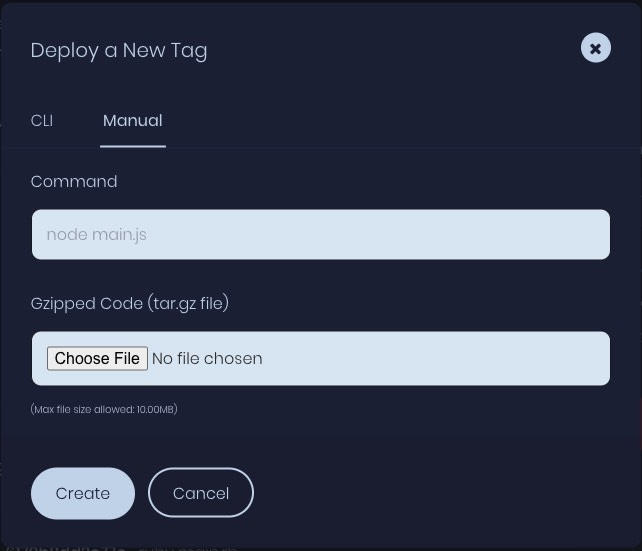

Deploy code

  1. Enter the command to run your code (i.e. ruby main.rb)
  2. Upload our code package (i.e. generate-open-street-map.tar.gz) and click "Create"

There's only one last step before we can run our code: add the necessary environment variables.

  • APPWRITE_ENDPOINT: Navigate to Home > Settings

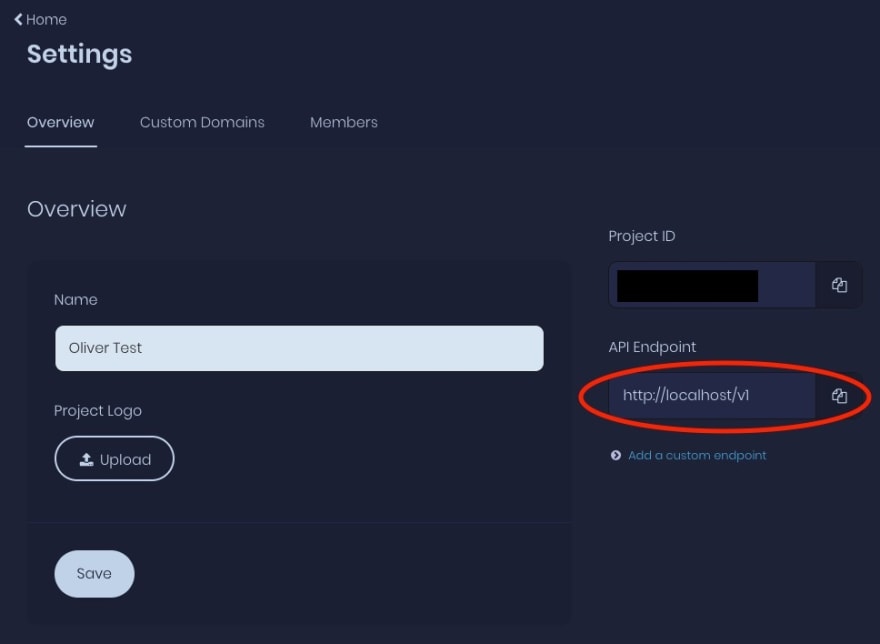

API Endpoint

  • APPWRITE_API_KEY: Navigate to Home > API Keys (ensure files.write permission is enabled)

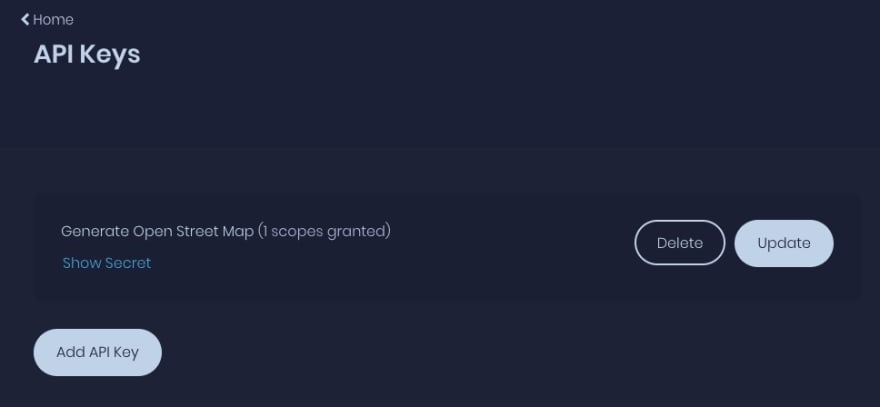

API Keys

Finally, we can pass data to our cloud function and execute it:

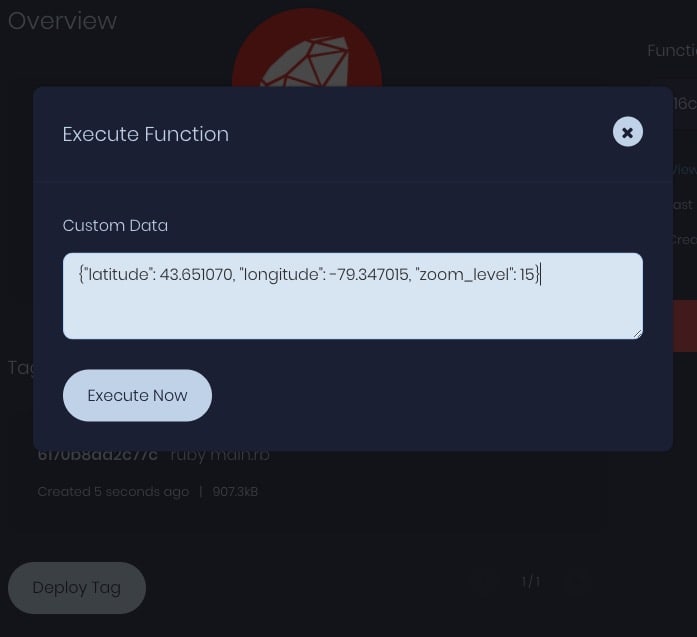

Supply function data

If you've followed all the steps above, you should see a new image file in your Appwrite Storage 🥳:

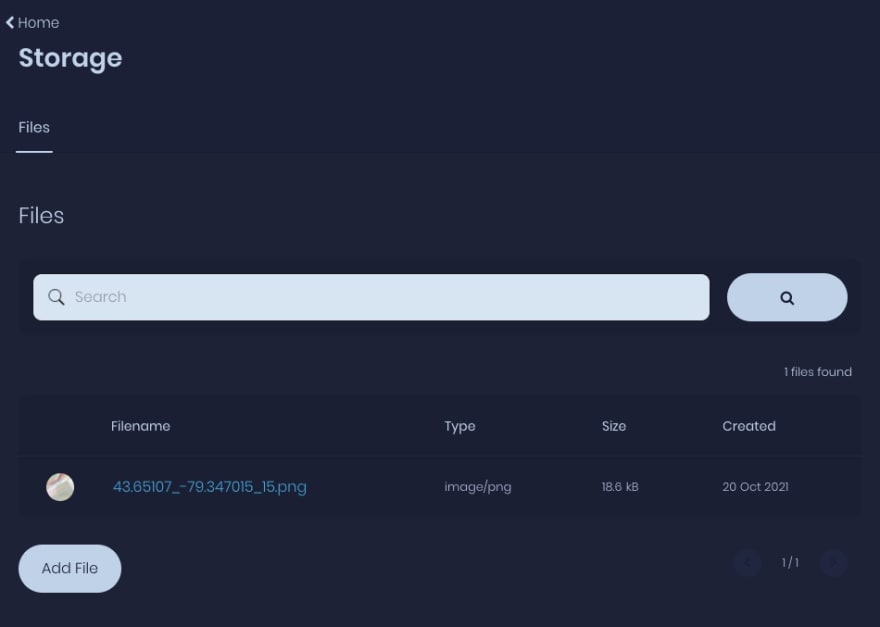

Map image file

Additional Resources

Appwrite Docs:
Ruby Appwrite SDK:
OpenStreetMap Wiki:
