WebApp performance monitoring by performance.mark with metadata

I’ve created performance-mark-metadata. This library provide performance.mark with custom meta data.

This library inspired by User Timing API Level 3 proposal. This proposal will add details as metadata to performance.mark.

Currently, Performance.mark() API can not add metadata to marking.

Supports

Old browser need to Performance.mark() polyfill.

• nicjansma/usertiming.js: UserTiming polyfill

Install

Install with npm:

npm install performance-mark-metadata

Example

	import { PerformanceMetadataMarker } from "performance-mark-metadata";
	const marker = new PerformanceMetadataMarker();
	const metadata = {
	details: { key: "value" }
	};
	const markerName = "name";
	// mark with metadata
	marker.mark(markerName, metadata);
	performance.getEntriesByName(markerName).forEach(entry => {
	// get metadata for entry
	const result = marker.getEntryMetadata(entry);
	/*
	{
	details: { key: "value" }
	};
	*/
	assert.strictEqual(result, metadata, "should get same metadata");
	});

view raw block1.js hosted with ❤ by GitHub

Usage in Node.js

Node.js 8.5.0 introduce perf_hooks module. You can use this library by passing require("perf_hooks").performance to PerformanceMetadataMarker constructor arguments.

	import { PerformanceMetadataMarker } from "performance-mark-metadata";
	const nodePerformanceHook = require("perf_hooks");
	const performance = nodePerformanceHook.performance;
	const marker = new PerformanceMetadataMarker({
	performance
	});
	marker.mark("name", {
	details: { key: "value" }
	});

view raw block2.js hosted with ❤ by GitHub

UseCase

This example show actual usage.

• See https://azu.github.io/performance-mark-metadata

You want to found performance problem on viewing the site. You can analyze the problem by using performance-mark-metadata.

It is useful for Real user monitoring(RUM). In development, you can use browser’s development tools, but it is difficult about RUM.

Mark points

• Mark current Frame Per Seconds(FPS)
• Mark each action like “onClick”

Record FPS

	const { PerformanceMetadataMarker } = require("performance-mark-metadata");
	const marker = new PerformanceMetadataMarker();
	const FpsEmitter = require("fps-emitter");
	const fps = new FpsEmitter();
	fps.on("update", function(FPS) {
	// mark current FPS
	marker.mark("FPS", {
	details: {
	FPS: FPS
	}
	});
	});

view raw block3.js hosted with ❤ by GitHub

and record action

	// heavy task
	const heavyTaskButton = document.getElementById("js-button");
	heavyTaskButton.addEventListener("click", () => {
	marker.mark("Heavy Action");
	// ... heavy task ...
	})

view raw block4.js hosted with ❤ by GitHub

After that, you can get FPS and action logs.

	const logData = performance.getEntriesByType("mark").map(entry => {
	const meta = marker.getEntryMetadata(entry);
	return {
	type: entry.name,
	timeStamp: entry.startTime,
	meta: meta
	};
	});

view raw block5.js hosted with ❤ by GitHub

Analytics

You can get the log data and analyze the log data.

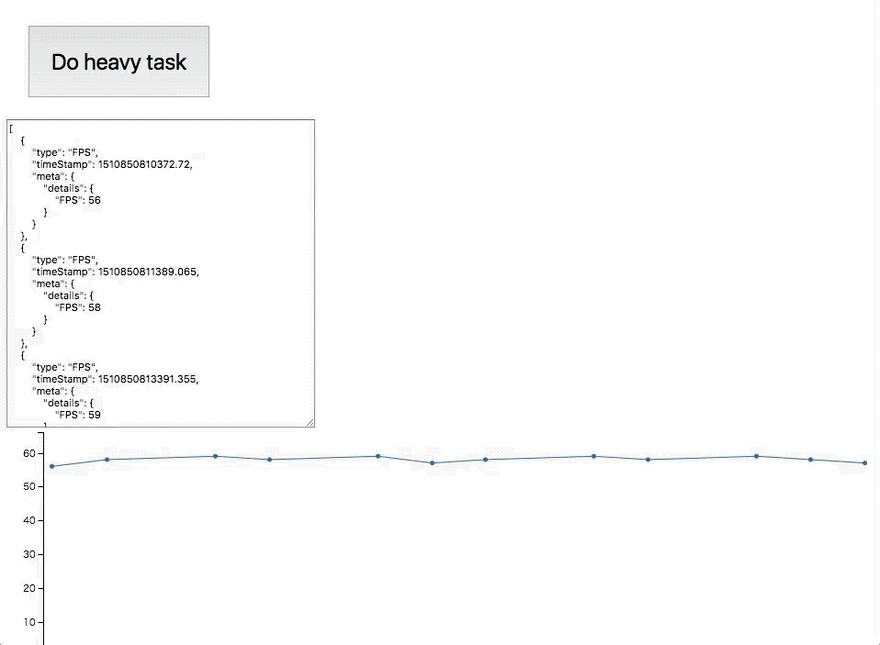

For example, visualize the log data by using C3.js.

https://azu.github.io/performance-mark-metadata/

You can found the relationship between “FPS” and “Heavy Task”. As a result, You can found that the performance problem is caused by “Heavy Task”.

• Example: https://azu.github.io/performance-mark-metadata/
• Repository: azu/performance-mark-metadata: performance.mark with custom meta data.

Welcome to ⭐️ and Pull Request!

Comments

[Adrian B.G.]

Can it be used to gather sample data from users and centralize it? Also can it be used w/o nodejs? For a static website for example.

[azu]

Can it be used to gather sample data from users and centralize it?

Yes, But you should prepare own logging system and post data to the logging system.
For example, API Gateway + Lambda + S3(Post serialized JSON data from a browser to lambda via API Gateway, and save it to S3).

Also can it be used w/o nodejs?

Yes, It is work on modern browser.

• Performance.mark()

Logging backend could be implemented in any language. It just treat log data like json.
