I Built a Full HTTP Client Extension for VS Code — Here's Everything I Learned

DotFetch v1.2.0 — A deep dive into building a professional REST client inside VS Code with Auth, Retry Logic, JSON Highlighting, and a modular ES Modules architecture."
tags: vscode, typescript, javascript, webdev

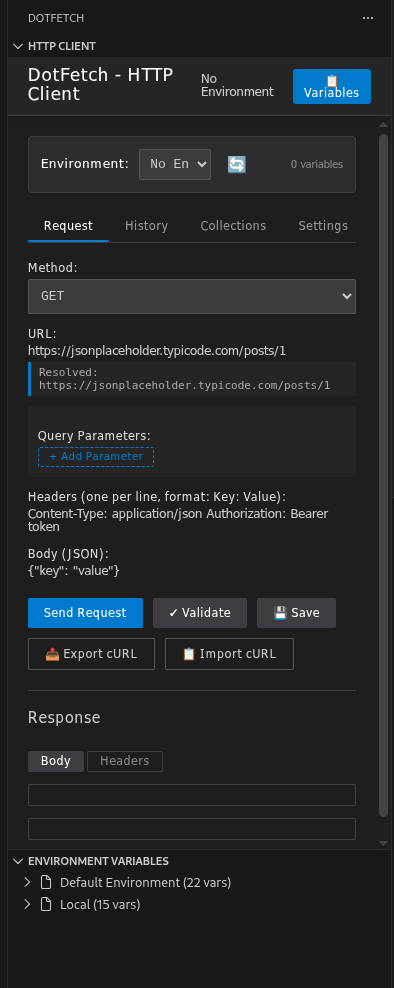

cover_image: https://raw.githubusercontent.com/kareem2099/DotFetch/main/media/screenshot-main.png

I've been building DotFetch — a VS Code extension that replaces Postman/Insomnia for developers who live inside their editor. Version 1.2.0 just dropped, and I want to share the interesting engineering decisions behind it.

🔗 GitHub | VS Code Marketplace | Open VSX

---

What is DotFetch?

An HTTP client that lives inside your VS Code sidebar. No context switching, no separate app. Just open the panel and fire requests.

Features shipped in v1.2.0:
✅ Basic Auth (RFC 7617) + Bearer Token (RFC 6750)
✅ JSON Syntax Highlighting
✅ Request Templates
✅ Auto Retry with Linear Backoff
✅ History Search & Filter
✅ Collection Export to JSON
✅ Modular ES Modules architecture

---

🎥 See it in action (60-second Demo)

Problem 1: VS Code Webviews are sandboxed

The biggest surprise when building a VS Code extension with a Webview: you can't use window.prompt(), window.alert(), or window.confirm() reliably. They're blocked in the webview sandbox.

I learned this the hard way when building the Template save feature:

// ❌ This silently does nothing in VS Code webviews
const name = window.prompt('Template name:', defaultName);

The fix? Build a proper modal and communicate via postMessage:

// ✅ Show a real modal instead
function saveAsTemplate() {
    const modal = document.getElementById('template-modal');
    const nameInput = document.getElementById('template-name');

    if (modal) { modal.classList.add('modal-visible'); }
    if (nameInput) {
        nameInput.value = defaultName;
        nameInput.focus();
        nameInput.select();
    }
}

function confirmSaveAsTemplate() {
    const name = document.getElementById('template-name').value.trim();
    if (!name) {
        vscode.postMessage({ type: 'notify', level: 'error', text: 'Enter a name' });
        return;
    }
    // ... save logic
}

Rule of thumb: Never use browser dialogs in a VS Code webview. Always build custom modals.

---

Problem 2: The 2000-line script.js monster

After shipping 5 features, media/script.js hit 2000+ lines and was growing fast. I decided to refactor before adding more features — best decision I made.

The Architecture

src/webview/
├── state.js         ← Single shared state object
├── api.js           ← vscode.postMessage wrapper
├── ui.js            ← Tabs, modals, previews, query params
├── auth.js          ← T201, T202
├── highlighting.js  ← T203 JSON highlighting
├── collections.js   ← Collections + Templates (T204)
├── history.js       ← History management
├── curl.js          ← cURL import/export
├── request.js       ← sendRequest, loadForm, save
└── main.js          ← Entry point + message handler

The Shared State Pattern

Instead of scattering state across files, I centralized everything:

// src/webview/state.js
export const state = {
    queryParams: [],
    history: [],
    collections: {},
    expandedCollections: new Set(),
    currentRequest: null,
    settings: { timeout: 10000 },
    environments: [],
    isRequestInProgress: false,
    isUpdatingPreview: false,
    previewTimeout: null,
    authConfig: { type: 'none', username: '', password: '', token: '' }
};

Every module imports state and mutates it directly. Simple, predictable, no prop drilling.

The API Wrapper

// src/webview/api.js
let _vscode = null;

export function initApi(vscode) {
    _vscode = vscode;
}

export function post(message) {
    _vscode.postMessage(message);
}

export function notify(level, text) {
    _vscode.postMessage({ type: 'notify', level, text });
}

Now any module can call notify('error', 'Something went wrong') without knowing about VS Code internals.

esbuild bundles it all

The key insight: esbuild takes the ES Modules source and bundles it into a single media/script.js that VS Code can load.

// package.json
{
  "scripts": {
    "esbuild-base": "esbuild ./src/extension.ts --bundle --outfile=out/extension.js --external:vscode --format=cjs --platform=node && esbuild ./src/webview/main.js --bundle --outfile=media/script.js --format=iife --platform=browser"
  }
}

Result: media/script.js went from 2000 lines hand-written to 49.6 KB bundled — and each source file is clean and focused.

---

Problem 3: Implementing Auto Retry the Right Way

The retry logic lives in extension.ts (Node.js side), not the webview. Here's the full retry loop:

private async handleRequest(webviewView: vscode.WebviewView, message: any) {
    const startTime = Date.now();
    const maxRetries = Math.min(Math.max(parseInt(message.retryCount) || 0, 0), 5);
    const retryableCodes = ['ECONNREFUSED', 'ENOTFOUND', 'ETIMEDOUT', 'ECONNABORTED'];

    let lastError: any = null;

    for (let attempt = 0; attempt <= maxRetries; attempt++) {
        // Notify UI about retry progress
        if (attempt > 0) {
            webviewView.webview.postMessage({
                type: 'retryAttempt',
                attempt,
                total: maxRetries
            });

            // Linear backoff: wait attempt * 1000ms
            await new Promise(resolve => setTimeout(resolve, attempt * 1000));
        }

        this.abortController = new AbortController();

        try {
            const response = await axios({ /* ... */ });

            // Success — send response and exit loop
            webviewView.webview.postMessage({
                type: 'response',
                // ...
                attempts: attempt + 1  // Let the UI know how many attempts it took
            });
            return;

        } catch (error: unknown) {
            lastError = error;

            // Don't retry if user cancelled
            if (error instanceof Error && error.name === 'CanceledError') {
                webviewView.webview.postMessage({
                    type: 'error',
                    error: 'Request cancelled',
                    cancelled: true
                });
                return;
            }

            // Only retry on network errors, not HTTP errors
            const isRetryable = axios.isAxiosError(error) &&
                error.request &&        // Request was made
                !error.response &&      // But no response received
                retryableCodes.includes((error as any).code || '');

            if (!isRetryable || attempt >= maxRetries) { break; }
        }
    }

    // All attempts failed — send descriptive error
    let errorMessage = buildErrorMessage(lastError, maxRetries);
    webviewView.webview.postMessage({ type: 'error', error: errorMessage });
}

Key decisions:

• Only retry on network-level errors (no response), not HTTP errors (4xx, 5xx). A 404 should not be retried.
• Linear backoff (attempt * 1000ms) not exponential — simpler and sufficient for transient failures.
• Max 5 retries, configurable per request.
• The UI shows Retry 1/2... in the Send button during retries.

---

Problem 4: XSS-safe JSON Syntax Highlighting

I wanted pretty colored JSON without importing a library. The trick is to escape HTML first, then apply highlighting:

// src/webview/highlighting.js
export function syntaxHighlightJson(json) {
    if (typeof json !== 'string') {
        json = JSON.stringify(json, null, 2);
    }

    // CRITICAL: Escape HTML BEFORE adding spans
    // Otherwise injected HTML in JSON values becomes XSS
    json = json
        .replace(/&/g, '&')
        .replace(/</g, '&lt;')
        .replace(/>/g, '&gt;');

    return json.replace(
        /("(\\u[a-zA-Z0-9]{4}|\\[^u]|[^\\"])*"(\s*:)?|\b(true|false|null)\b|-?\d+(?:\.\d*)?(?:[eE][+\-]?\d+)?)/g,
        (match) => {
            let cls = 'json-number';
            if (/^"/.test(match)) {
                cls = /:$/.test(match) ? 'json-key' : 'json-string';
            } else if (/true|false/.test(match)) {
                cls = 'json-boolean';
            } else if (/null/.test(match)) {
                cls = 'json-null';
            }
            return `<span class="${cls}">${match}</span>`;
        }
    );
}

And the CSS (VS Code dark theme colors):

.json-key     { color: #9cdcfe; }  /* Light blue */
.json-string  { color: #ce9178; }  /* Orange */
.json-number  { color: #b5cea8; }  /* Light green */
.json-boolean { color: #569cd6; }  /* Blue */
.json-null    { color: #569cd6; }  /* Blue */

The colors match VS Code's own JSON editor — intentional.

---

Problem 5: Auth without exposing credentials in logs

Basic Auth encoding happens in the browser (webview side), not in the extension. This prevents credentials from appearing in VS Code's output channel:

// src/webview/auth.js
export function buildAuthHeader() {
    if (state.authConfig.type === 'basic' && state.authConfig.username) {
        // btoa() runs in the webview — never touches extension.ts logs
        const encoded = btoa(`${state.authConfig.username}:${state.authConfig.password}`);
        return `Authorization: Basic ${encoded}`;
    }
    if (state.authConfig.type === 'bearer' && state.authConfig.token) {
        return `Authorization: Bearer ${state.authConfig.token}`;
    }
    return null;
}

The auth header is injected into the headers string before sending to extension.ts:

// src/webview/request.js
const authHeader = buildAuthHeader();
if (authHeader) {
    const hasAuthHeader = finalHeaders.toLowerCase().includes('authorization:');
    if (!hasAuthHeader) {
        finalHeaders = finalHeaders.trim()
            ? `${finalHeaders.trim()}\n${authHeader}`
            : authHeader;
    }
}

By the time extension.ts sees the headers, they're already encoded. The logger never sees the raw credentials.

---

The .vscodeignore trick that matters

Before shipping, make sure your .vscodeignore excludes node_modules:

node_modules/**
src/**
**/*.map
**/*.ts
out/test/**
out/logger.js
out/environmentTree.js
out/environmentManager.js
out/utils/**

!out/extension.js
!package.json
!README.md
!CHANGELOG.md
!LICENSE
!media/**/*

With esbuild bundling node_modules into out/extension.js, you don't need to ship node_modules at all. My package went from 250+ files to ~15 files.

---

What's next for v1.3.0

• GraphQL support — dedicated query editor
• Response diffing — compare two responses side by side
• Import from Postman collections — migrate existing work
• WebSocket support — for real-time API testing

---

Try it out

VS Code / Cursor:

ext install FreeRave.dotfetch

VSCodium / Open VSX:

https://open-vsx.org/extension/freerave/dotfetch

Or build from source:

git clone https://github.com/kareem2099/DotFetch.git
cd DotFetch
npm install
npm run compile
# Press F5 in VS Code to launch Extension Development Host

If you find bugs or have feature requests, open an issue on GitHub. PRs are welcome! 🚀

---

Built with TypeScript, esbuild, and a lot of VS Code webview debugging.
