Deploy a Docker App to App Services on Azure.

This article is a walkthrough on how to "dockerize" a node js app and host via azure app service.

Azure app service is a fully managed service which enables you to build and host web apps, mobile back ends, and RESTful APIs in the programming language of your choice without managing infrastructure. This is a Platform as a Service (PAAS) because the job of managing infrastructures is not on the users.

This walkthrough is divided into 2 parts:

  • Creating a Docker image (with a node app) and pushing to a registry (Azure Container Registry).
  • Hosting the image via Azure app service.

The following tools are needed:

  • An Azure account
  • Docker and a terminal.

Part 1: Dockerize a Node js app and push to Azure Container Registry

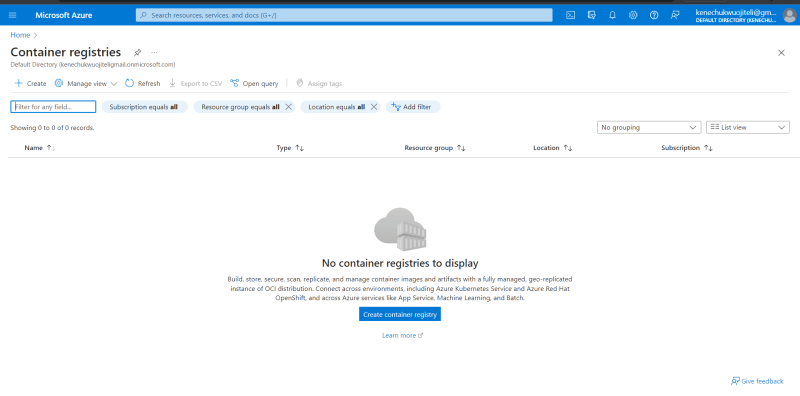

  • Login to your azure account and navigate to container registries to create a container registry (this is where our docker image will be stored) by clicking on create container registry.

ACR

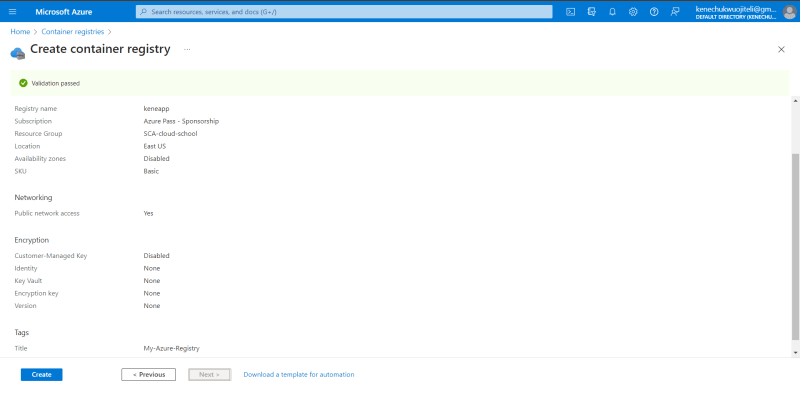

  • Complete the necessary details before clicking create (a summary of mine).

Summary of ACR

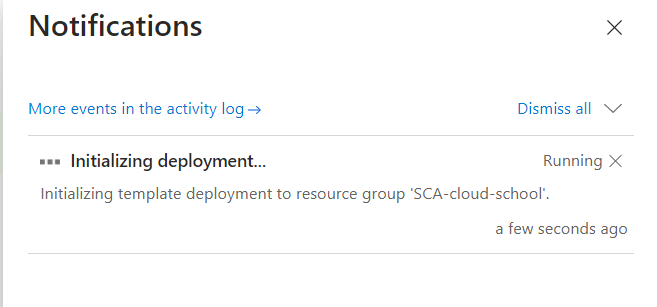

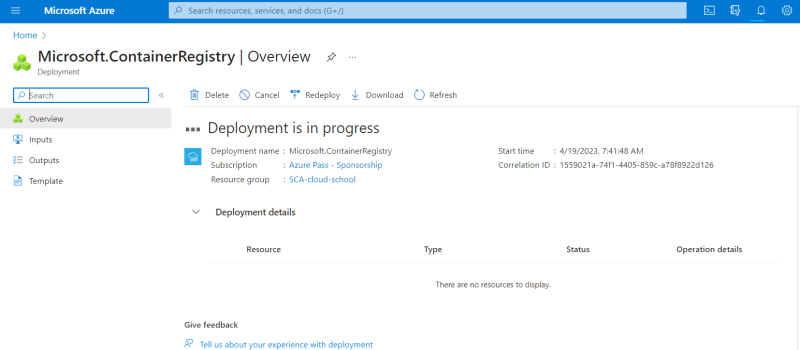

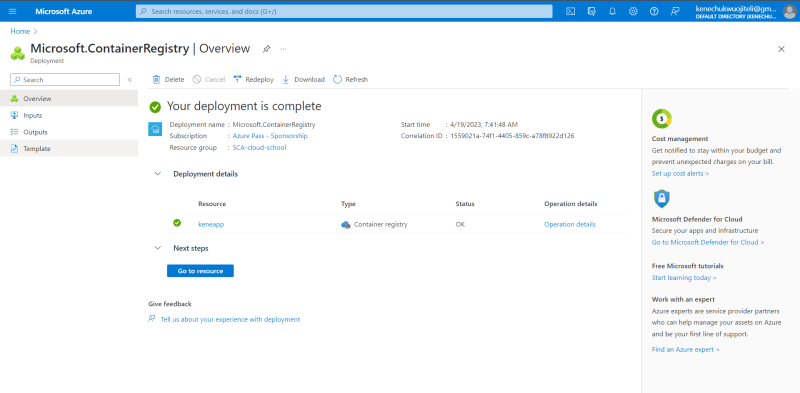

  • Progress of ACR being initialized and on the way to getting created and finally successful creation.

Initialize ACR

ACR in Progress

ACR completed

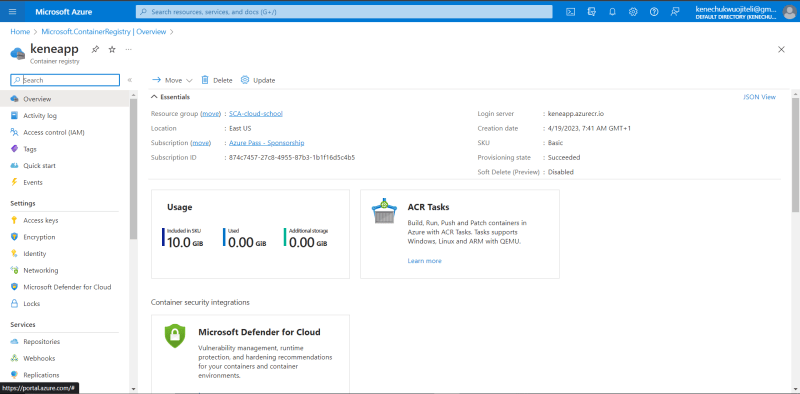

  • Navigating to my Container Registry dashboard.

ACR dashboard

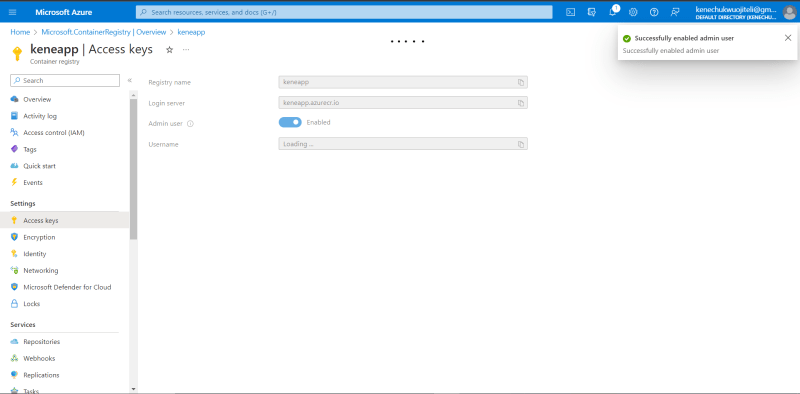

  • On the LHS, navigate to Settings => Access keys and enable admin user, the details will be used to login to ACR via your terminal on your local machine.

Enable admin user

  • Navigate to your project directory via terminal and login using the details from the step above docker login <login server> --username <username> --password <password>

Establish a connection with ACR

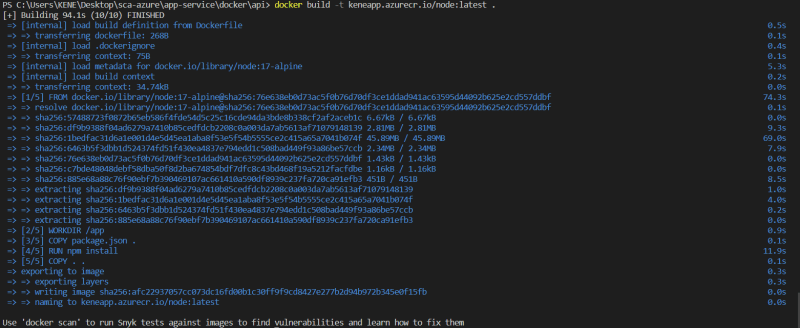

  • Build docker image using this command docker build -t <name>:<tag> . where . is the current directory.

Build docker image

  • Check the image exists using docker images command ( this lists all available images).

List docker image(s)

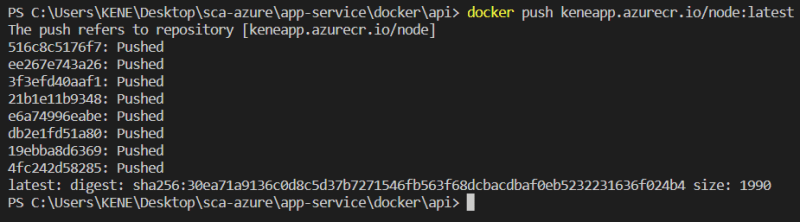

  • Push the image to ACR using docker push <name>:<tag>

Pushing image to ACR

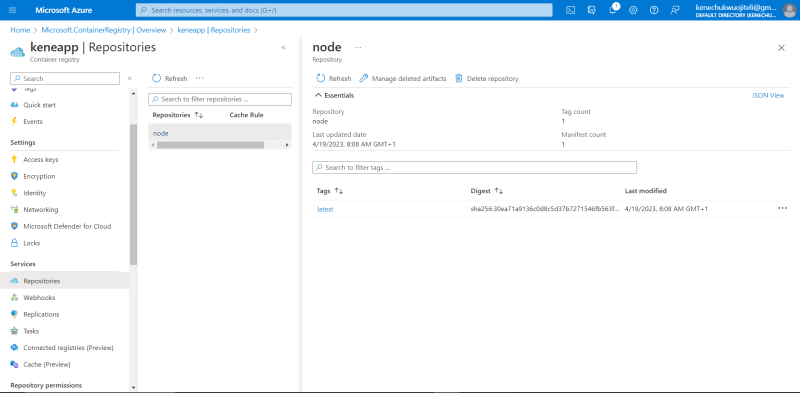

  • On azure portal, navigate to your container registry => repositories to view pushed image.

View Image on Repositories

Part 2: Hosting my docker app on app service

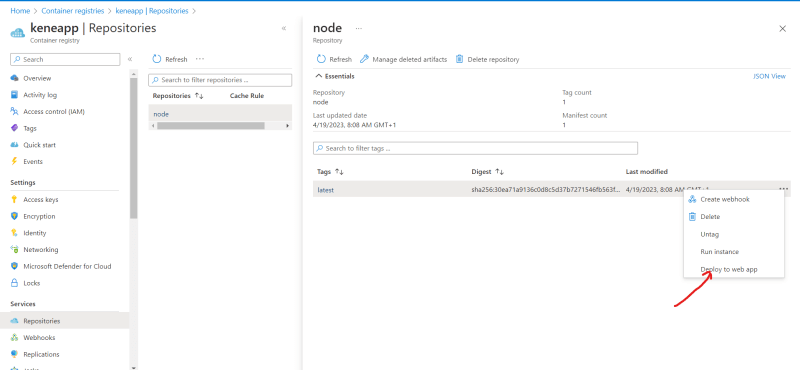

  • On the image click the options icon and choose deploy to web app.

Deploy to web app

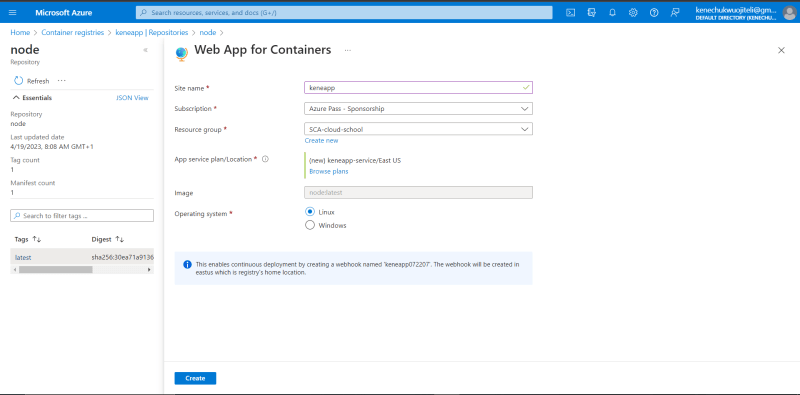

  • Details for my app service where my docker image is the source, then click create.

App service details

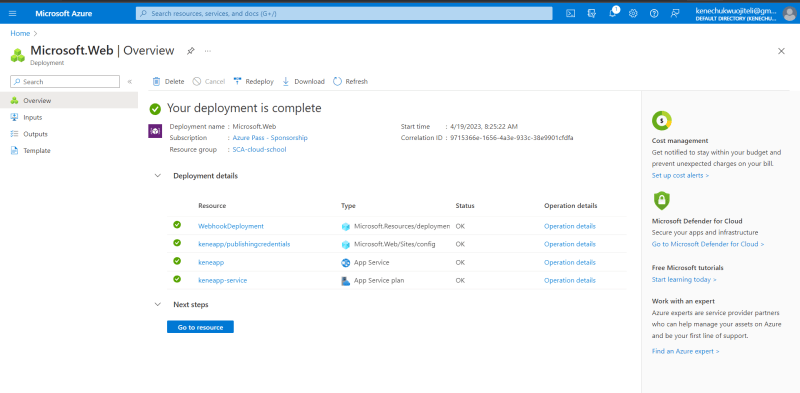

  • Deployment is completed. App service deployment

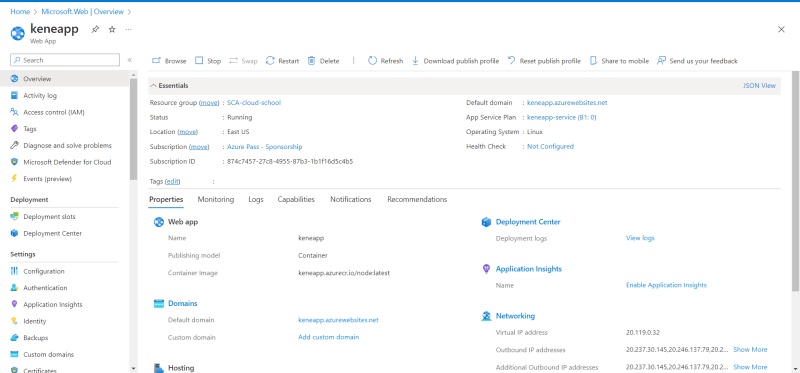

  • Navigate to just created app service.

App service

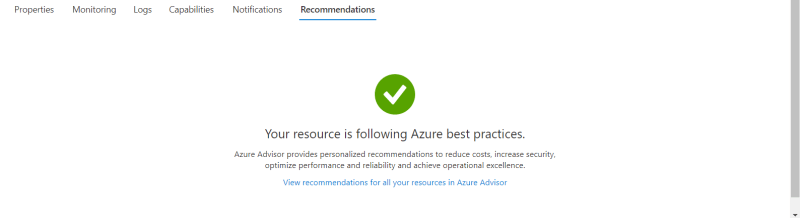

  • Following azure's best practices.

Add port to configurations

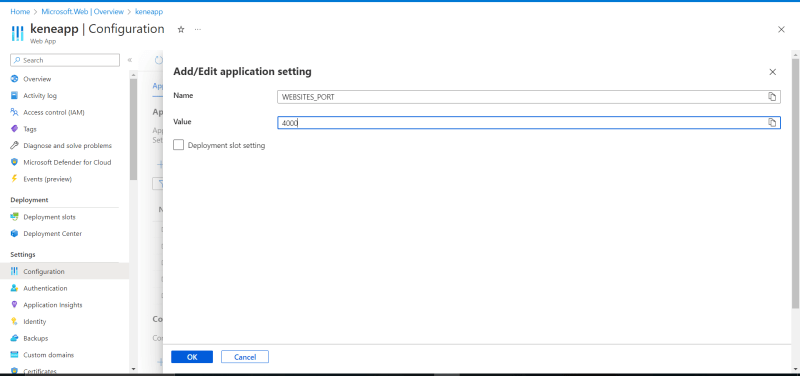

  • Adding port as a variable to Configurations

Add port 4000

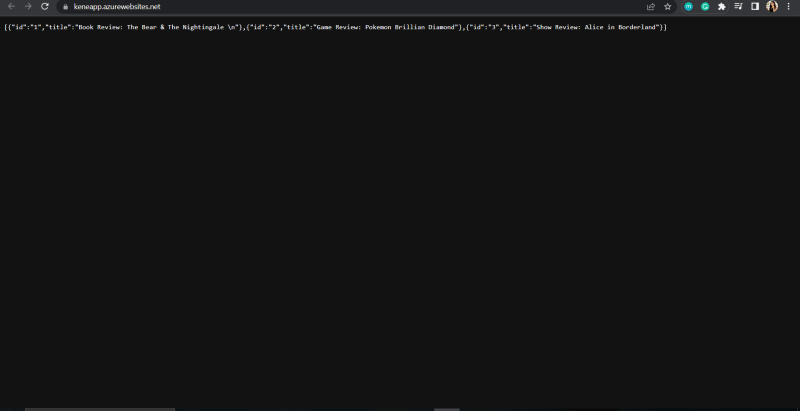

  • Access the app via default domain on browser

Default domain

To avoid incurring charges, I cleaned up my resources.

Visit my Github repo to view code.
