Table Designer

madsstoumann profile image Mads Stoumann ・2 min read

I've been working on a Generic Table Designer-tool on and off for almost a year. It's not something I've prioritized that much — a few hours per month.

I wanted to create a component, where the configuration is just a bunch of keywords in a data-table-attribute, example:

<table data-table="border col-lines row-zebra shadow editable etc.">
Enter fullscreen mode Exit fullscreen mode

Then, in CSS, I'll use the same list of attributes for styling, using the contains-selector:

[data-table*="row-zebra"] tr:nth-child(even) td {
  --td-bgc: var(--zebra-row);
}
Enter fullscreen mode Exit fullscreen mode

In JavaScript, I use includes() to check for the keys needed, example:

const editable = table.dataset.includes('editable');
Enter fullscreen mode Exit fullscreen mode

The color-palette of a table is generated from a single custom property, --h, which is the hue in hsl(). Using different saturation and lightness-values to shade or tint the root color, we can easily create tables with different look'n'feel:

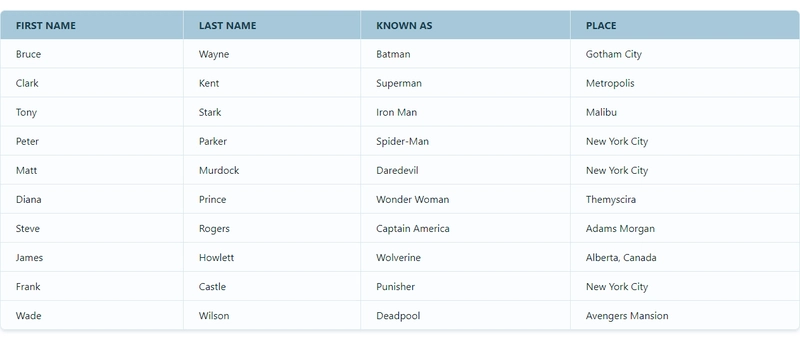

From this:
127.0.0.1_5500_docs_table_index.html (3)

To this:
127.0.0.1_5500_docs_table_index.html (2)

Or this:
127.0.0.1_5500_docs_table_index.html (1)


I'm not done with the JavaScript — I'm only working on this in my spare-time! — but when it's ready, it will add keyboard-navigation, sorting, column resizing, column toggle on/off, search/filtering, pagination, table-data from an endpoint, export to csv — and much more. It will also be possible to edit cells.

For now, the CSS-version is (almost) done. I've uploaded the initial version to Codepen, where you can play around with the various options, using a simple editor-interface. I've included some "presets" as well, to get you started.


Here it is — open it on Codepen in fullscreen to use it properly:

Let me know what you think! Should I create a repo for this? Any features missing?

Thanks for reading!
