This article presents a simple admin dashboard generated by the AppSeed platform in Flask Framework. The product is published on Github under the MIT license and can be used for hobby or commercial products. The app provides a simple set of features,
out of the box and might be a good foundation for your next project. Thanks for reading!
In case you want to start faster your next admin dashboard project check out this index with Open Source Admin Dashboards already coded with authentication, database, and deploy scripts - Provided by AppSeed.
- UI-Ready - Flat HTML already converted to Jinja2 templates
- SQLite, PostgreSQL, SQLAlchemy ORM
- Modular design with Blueprints
- Session-Based authentication (via flask_login)
- Deployment scripts: Docker, Gunicorn / Nginx
- Flask Dashboard Black - the product page
- Flask Dashboard Black - LIVE demo
- Flask Dashboard Black - source code, published on Github
A basic introduction of terms for newcomers. In case you are familiar with the information presented in this section, please jump to the next section, and set up the environment.
What is Flask
Flask is a lightweight WSGI web application framework. It is designed to make getting started quick and easy, with the ability to scale up to complex applications. It began as a simple wrapper around Werkzeug and Jinja and has become one of the most popular Python web application frameworks.
A dashboard is a set of pages that are easy to read and offer information to the user in real time regarding his business. A dashboard usually consists of graphical representations of the current status and trends within an organization. Having a well-designed dashboard will give you the possibility to act and make informed decisions based on the data that your business provides - definition provided by Creative-Tim - Free Dashboard Templates.
Black Dashboard is a beautiful Bootstrap4 Admin Dashboard with a huge number of components built to fit together and look amazing. If you are looking for a tool to manage and visualize data about your business, this dashboard is the thing for you. It combines colors that are easy on the eye, spacious cards, beautiful typography, and graphics.
As mentioned, the product is built on top of Flask, a popular Python Web Framework. To build the app, Python3 should be installed properly in the workstation. If you are not sure if Python is properly installed, please open a terminal and type
python --version. The full-list with dependencies and tools required to build the app:
- Python3 - the programming language used to code the app
- Git - used to clone the source code from the Github repository
If you are a little bit unsure how to set up the environment, might be a good idea to spare a few minutes and read the full documentation provided for this app: Flask Dashboard Black Docs.
Check Python (using the terminal)
$ # Check Python version $ python --version Python 3.7.2 # <--- All good
Check GIT command tool (using the terminal)
$ # Check git $ git --version $ git version 2.10.1.windows.1 # <--- All good
The code-base generated by the AppSeed platform respects the best practices and tries to keep things as simple as possible. Like all other apps provided by the platform, Flask Dashboard Black comes only with a basic set of features, easy to extend by the anyone that has a basic programming knowledge.
< PROJECT ROOT > # application root folder | |--- app/__init__.py # application constructor |--- app/base/ # base blueprint |--- app/base/static/assets # Img, CSS, Janascript files |--- app/base/templates # Jinja2 files (layouts, login pages) | |---<errors> # Dir - Error pages: 404, 500 | |---<login> # Dir - Login and Registration pages | |---<site_template> # Dir - Components: footer, sidebar, header | | |--- app/home/ # home blueprint |--- app/home/templates # Jinja2 files (Pages): index, icons, tables | |---- index.html # Main dashboard page | |---- maps.html # Maps page | |---- profile.html # Profile Page | |---- tables.html # UI Tables | |---- icons.html # Ui Icons | |--- .env # store env variables |--- config.py # app configuration profiles: Debug, Production | |--- requirements.txt # Requirements for development - SQLite storage |--- requirements-pgsql.txt # Requirements for production - Pgsql Database | |--- run.py # bootstrap the app | |-----------------------------
The first step is to pull the source code in our workstation. This can be done by download the ZIP archive of the code or using GIT to clone the project locally (the recommended way).
$ # Get the code $ git clone https://github.com/app-generator/flask-black-dashboard.git $ cd flask-black-dashboard
If GIT is properly installed in our system, the dashboard source code is now available in the
flask-black-dashboard directory. Once we have the source code, the next step is to install the modules (aka dependencies). Usually, an application requires a set of modules used to implement the dashboard and our app is not an exception.
$ # Virtualenv modules installation (Unix based systems) $ virtualenv --no-site-packages env $ source env/bin/activate $ $ # Install modules - SQLite Database $ pip3 install -r requirements.txt
If all goes well, the dependencies listed in the
requirements.txt are installed and ready to be used by the application. The next step is to update the environment where the app runs with a few variables used by Flask Framework.
$ # Set the FLASK_APP environment variable $ export FLASK_APP=run.py $ $ # Set up the DEBUG environment $ export FLASK_ENV=development
The first variable
FLASK_APP informs Flask what file to execute first (the entry point). The second variable
FLASK_ENV is optional, but recommended if we want to DEBUG our application and collect runtime information when something is not working as expected.
Well, let's see something nice on the screen
The last step, is to start the app. This can be done with one single command, using the server provided by the Flask Framework:
$ # Start the application (development mode) $ # --host=0.0.0.0 - expose the app on all network interfaces (default 127.0.0.1) $ # --port=5000 - specify the app port (default 5000) $ flask run --host=0.0.0.0 --port=5000 $ $ # Access the dashboard in browser: http://127.0.0.1:5000/
By default, the app starts on port
5000. In case this port is already in use by another process, just execute the flask command with another value as the argument for the
$ # Start the dashboard on port 9999 $ flask run --port=999 $ $ # Access the app in the browser: http://127.0.0.1:9999/
If all goes well, we should see the login screen (the application redirects guests to the login page). Please create a new user using the registration page, and authenticate. Some nice pages should be visible on the screen :

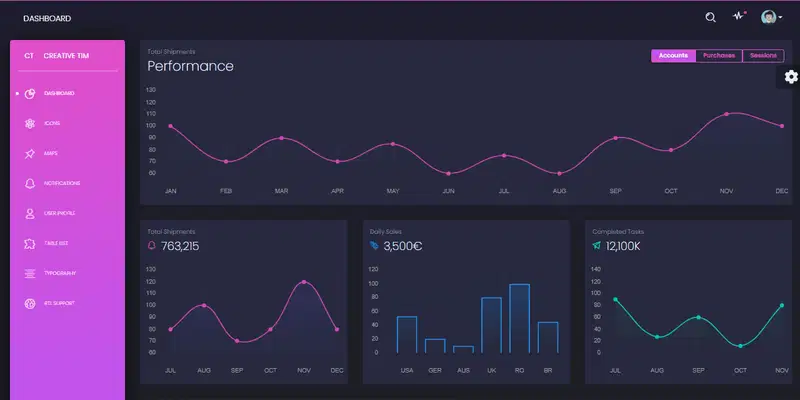

Flask Dashboard Black - Main Dashboard Page

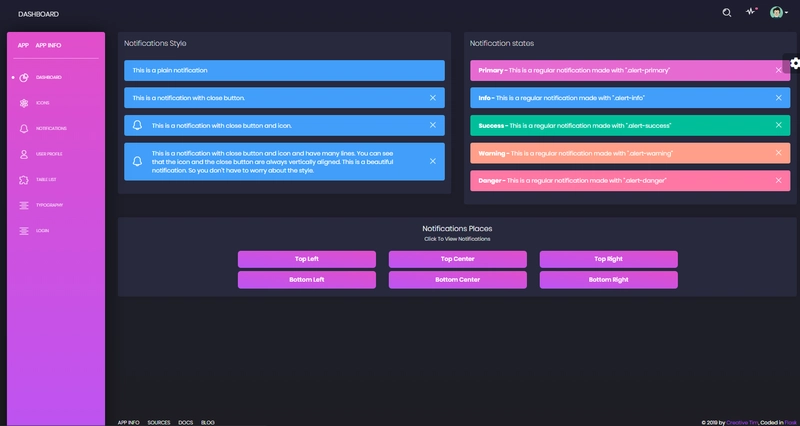

Flask Dashboard Black - UI Kit Notifications
Flask Dashboard Black - User profile page
- Read the full documentation - Flask Dashboard Black
- Click on the LIVE DEMO using the default credentials
- Browse for more open-source admin dashboards - index provided by AppSeed
- Join the AppSeed community on Discord
Thank you! AMA in the comments .. <('_')> ..
