Public Solving: Making an autopilot navigator

Disclaimer: This was by far the hardest one so far for me. I'm sure the solution could be enhanced.

Now that we set the tone with the disclaimer, let's look at the puzzle for today.

You can find the puzzle here.

Apparently, Santa gets very tired after a long night, and the elves decide to make an autopilot for the sled.

They have mapped out Santa's positions compared to the Northpole, but they need some help determining the best route.

The maps they made look like this:

Enter fullscreen mode Exit fullscreen mode

You can see the N represents the Northpole and the S where Santa is.

The goal for today is to determine the direction Santa should move in. This can only be one step.
Then we must update the map with Santa in this new direction.

This is what the completed solution will look like;

Public Solving: Making a autopilot navigator

Thinking about the solution

First, I thought about determining what movement we should do.

I think it's fair to assume we can break the map up into rows and columns.
Each one going from zero to {X}

In the example above, we can say the Northpole is at X = 4 and Y = 1.

And Santa is at X = 8 and Y = 3

Our first action should thus be up-left. This can be seen as one step!

Then to navigate the map, we have to convert this string value (up-left) to the new coordinates for Santa and move him to those.
Then we need to remove the old Santa position.

Building the find direction method

Let's start by building the find direction method.
This has one property being the map.

I decided to create a new function called findPosition. It takes the map and a character we are looking for, N or S.

The map itself is broken up in rows, and each row has the columns like this.

    [ '#', '#', '#' ],
    [ '#', 'S', '#' ],
    [ '#', 'N', '#' ]
Enter fullscreen mode Exit fullscreen mode

The function looks like this:

const findPosition = (map, character) => {
  return map.reduce((out, row, i) => {
    const find = row.indexOf(character);
    if (find !== -1) {
      out = [i, find];
    return out;
  }, []);
Enter fullscreen mode Exit fullscreen mode

What happens is that we reduce the map and have the rows. I Also add the I there to determine the current row index.

Then I use the indexOf to determine if this row has the character we are looking for.
If yes, we return the row (I) and the index of the character (find).

Let's try it out on the array I said above, and find the N character:

const northPole = findPosition(map, 'N');
// [ 2, 1 ]
Enter fullscreen mode Exit fullscreen mode

Perfect as the N is at X = 1 and Y = 2.

Then we can do the same to find Santa.

const santa = findPosition(map, 'S');
Enter fullscreen mode Exit fullscreen mode

Then we need to find what Santa needs to move on the x and y axes.

For this purpose, I introduced a findAction method. This method accepts Santa, Northpole and the axis.

const findAction = (santa, northPole, axis) => {
  if (santa[axis] === northPole[axis]) return;

  return santa[axis] < northPole[axis]
    ? axis === 0
      ? 'down'
      : 'right'
    : axis === 0
    ? 'up'
    : 'left';
Enter fullscreen mode Exit fullscreen mode

If Santa and the Nortpole are equal for this axis, we can return right away as we are alright there.
If now, we must see if it's a positive or negative position and if the axis is x or y.

Then we can return both values and filter out the empty ones.

export const findDirection = (map) => {
  const northPole = findPosition(map, 'N');
  if (!northPole.length) return null;
  const santa = findPosition(map, 'S');
  const yAction = findAction(santa, northPole, 0);
  const xAction = findAction(santa, northPole, 1);
  return [xAction, yAction].filter(Boolean);
Enter fullscreen mode Exit fullscreen mode

Moving Santa on the map

Now that we know the direction/movement, we can actually move Santa on the map.

First, we have to determine Santa on the map again.

const santa = findPosition(map, 'S');
Enter fullscreen mode Exit fullscreen mode

I then duplicate the position for the new movement.

const movement = [...santa];
Enter fullscreen mode Exit fullscreen mode

And then, we need to loop over each direction and perform a particular action.

direction.forEach((dir) => {
    switch (dir) {
      case 'left':
      case 'right':
      case 'up':
      case 'down':
    return movement;
Enter fullscreen mode Exit fullscreen mode

This uses a simple switch case, and if the direction is left, for instance, we take 1 of the position for the X-axis.

This can take up to two differences as we can have ['top', 'left] as the options.

Once this is updated, the movement array has the new position for Santa.

We can then simply remove the S character from the map by replacing it with a # character.

map[santa[0]][santa[1]] = '#';
Enter fullscreen mode Exit fullscreen mode

And then we set S to the new position:

map[movement[0]][movement[1]] = 'S';
Enter fullscreen mode Exit fullscreen mode

And there we go!
Santa is now in a new position.

The function will auto loop and return the new position, where the whole process starts again.

Just one more thing to do:

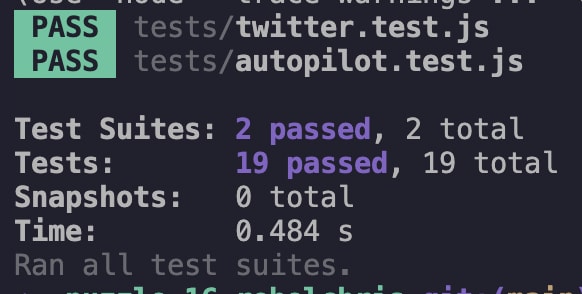

Run the test!

Autopilot movement in JavaScript

Thank you for reading, and let's connect!

Thank you for reading my blog. Feel free to subscribe to my email newsletter and connect on Facebook or Twitter

Top comments (2)

lexlohr profile image
Alex Lohr

And even though I just got my booster vaccine, there are a few minor improvements I could think of:

const findPosition = (map, character) =>
    .map((line, y) => [line.indexOf(character), y])
    .find(([x]) => x > -1)

// Use actions[y][x] instead of findAction
const actions = {
  '-1': { '-1': 'up-left', '0': 'up', '1': 'up-right' },
  '0': { '-1': 'left', '0': '', '1': 'right' },
  '1': { '-1': 'down-left', '0': 'down', '1': 'down-right' }

const findDirection((map) => {
  const [nx, my] = findPosition(map, 'N') || []
  if (nx === undefined) return null;
  const [sx, sy] = findPosition(map, 'S')
  const x = Math.sign(nx - sx)
  const y = Math.sign(ny - sy)
  return actions[y][x]
Enter fullscreen mode Exit fullscreen mode
dailydevtips1 profile image
Chris Bongers

Nice must be the power of that booster!
Love how you did this actions search table, really clean :D
