Dynamic Customization of Kubernetes add-ons using Sveltos: Runtime Data Generation

Sveltos is an open-source platform that allows users to deploy add-ons on tens of managed Kubernetes clusters. By following this tutorial, you can discover how to expand Sveltos using your own controller to dynamically obtain/generate information during runtime and transmit it back to Sveltos, which can then utilize it to personalize addons.

If you are new to Sveltos, we recommend reading the deploy Kubernetes add-ons and the Sveltos events before proceeding.

Deploy Sveltos in the management cluster

Our management cluster is a Kind cluster that is running on a laptop. To deploy Sveltos on this management cluster, we followed the instructions

kubectl apply -f https://raw.githubusercontent.com/projectsveltos/sveltos/main/manifest/manifest.yaml

kubectl apply -f https://raw.githubusercontent.com/projectsveltos/sveltos/main/manifest/default-classifier.yaml

Google Cloud Storage Buckets

When a new production cluster is created, we want to dynamically create a Google Bucket for it and grant a service account permissions to upload files to it. To automate this process, and demo Sveltos extensions, we developed a controller that can create and delete Google Storage Buckets as instructed. You can find this controller on Github.

The controller is responsible for managing instances of CRD bucket.v1alpha1.demo.projectsveltos.io, creating a Bucket on Google Cloud Storage, and granting service accounts the objectCreator permission on it.

To deploy the controller in the management cluster, please refer to the instructions in the README as you need to fetch some information from Google Cloud in order to give the controller permission to create buckets on Google Cloud Storage.

Instruct Sveltos

Before posting the necessary Sveltos ClusterProfile, we need to grant Sveltos permission to create bucket instance in the management clusters.

kubectl edit clusterrole addon-manager-role-extra

and edit rules by adding

rules:
- apiGroups:
  - "demo.projectsveltos.io"
  resources:
  - buckets
  verbs:
  - "*"

The following YAML instructions are used to deploy add-ons using Sveltos:

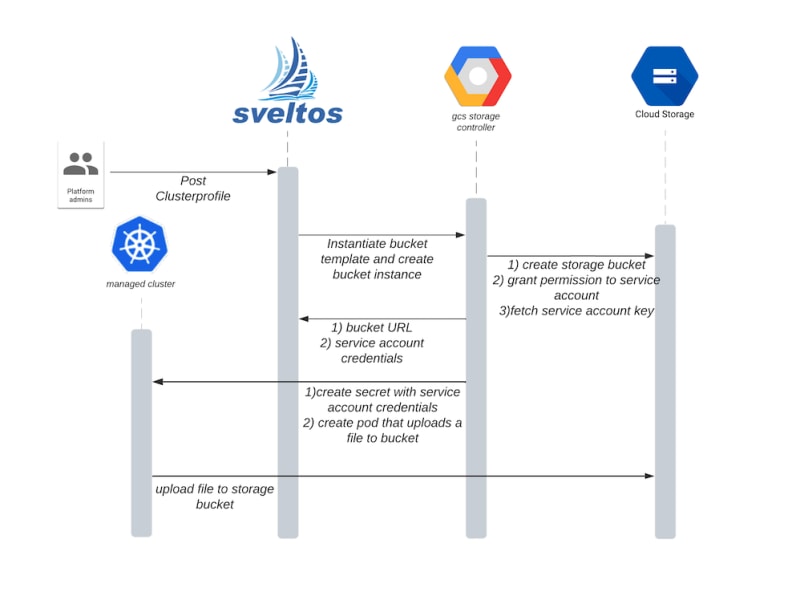

1. The content of the ConfigMap bucket in the default namespace is deployed by Sveltos on the management cluster (deploymentType: Local). The contents of this ConfigMap is an instance of the Bucket CRD, which is expressed as a template. Before deploying it to the management cluster, Sveltos instantiates the template by setting the namespace to be the same as the namespace of the managed cluster where Sveltos deploys add-ons defined in this ClusterProfile.
2. The content of the ConfigMap uploader in the default namespace is deployed by Sveltos on the managed cluster (deploymentType: Remote). The contents of this ConfigMap is a Pod instance expressed as a template. Sveltos instantiates the template using information from the bucket instance created in the previous step. This Pod then uploads a file to the newly created bucket on Google Cloud Storage.

apiVersion: config.projectsveltos.io/v1alpha1
kind: ClusterProfile
metadata:
  name: deploy-resources
spec:
  clusterSelector: env=production
  templateResourceRefs:
  - resource:
      apiVersion: demo.projectsveltos.io/v1alpha1
      kind: Bucket
      name: sveltos-demo-bucket
    identifier: Bucket
  policyRefs:
  - deploymentType: Local
    kind: ConfigMap
    name: bucket
    namespace: default
  - deploymentType: Remote
    kind: ConfigMap
    name: uploader
    namespace: default
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: bucket
  namespace: default
  annotations:
    projectsveltos.io/template: "true"
data:
  bucket.yaml: |
    apiVersion: demo.projectsveltos.io/v1alpha1
    kind: Bucket
    metadata:
      name: sveltos-demo-bucket
      namespace: {{ .Cluster.metadata.namespace }}
    spec:
      bucketName: "sveltos-demo-{{ .Cluster.metadata.name }}"
      location: us-central1
      serviceAccount: serviceAccount:[e-mail]
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: uploader
  namespace: default
  annotations:
    projectsveltos.io/template: "true"
data:
  secret.yaml: |
    apiVersion: v1
    kind: Secret
    metadata:
      name: gcs-credentials
      namespace: default
      annotations:
        bucket: {{ (index .MgtmResources "Bucket").status.bucketURL }}
    type: Opaque
    data:
      service-account.json: {{ (index .MgtmResources "Bucket").status.serviceAccountCredentials }}
  pod.yaml: |
    apiVersion: v1
    kind: Pod
    metadata:
      name: create-and-upload-to-gcs
      namespace: default
      annotations:
        bucket: {{ (index .MgtmResources "Bucket").status.bucketURL }}
    spec:
      containers:
      - name: uploader
        image: google/cloud-sdk:slim
        command: ["bash"]
        args:
          - "-c"
          - |
            echo "Hello world" > /tmp/hello.txt
            gcloud auth activate-service-account --key-file=/var/run/secrets/cloud.google.com/service-account.json
            gsutil cp /tmp/hello.txt gs://{{ (index .MgtmResources "Bucket").spec.bucketName }}
        volumeMounts:
          - name: gcp-sa
            mountPath: /var/run/secrets/cloud.google.com/
            readOnly: true
      volumes:
        - name: gcp-sa
          secret:
            secretName: gcs-credentials

After posting it a Bucket instance is created in the management cluster by Sveltos.

kubectl get bucket -A
NAMESPACE   NAME                  BUCKET NAME                                BUCKET URL
default     sveltos-demo-bucket   sveltos-demo-sveltos-management-workload   https://storage.googleapis.com/sveltos-demo-sveltos-management-workload

The gcs-storage-controller processes this instance and creates a bucket on Google Cloud Storage.

To verify the bucket has been created on Google Cloud Storage

gsutil iam get gs://<BUCKET NAME>

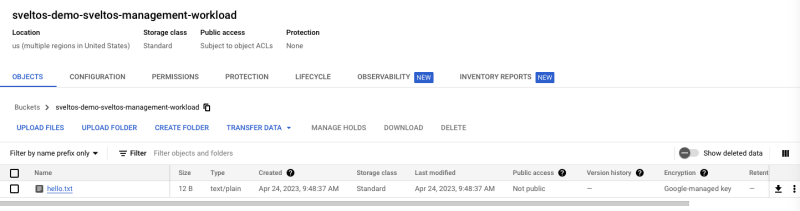

Sveltos has also deployed a Pod in the managed cluster and has passed this Pod with a secret containing the credentials to access the bucket (this information was provided to Sveltos by the gcs controller we developed). This pod has then uploaded a file to the Google Storage Bucket just created.

Summary:

This post is a tutorial on extending Sveltos, focusing on using a new controller that can allocate a storage bucket from Google Cloud and deploy a pod in the managed cluster to upload a file to that bucket, all using a single YAML configuration. The information generated by this new controller is used by Sveltos to customize at runtime, the add-ons deployed in a managed Kubernetes cluster.

Whenever you need to generate extra information and pass it along to managed cluster, using this scheme you can extend Sveltos by simply writing your own controller.
