Campus Mapping From Satellite to Smart Navigation

A beginner-friendly, step-by-step guide to digitally mapping a campus using open-source tools and satellite imagery — no field visit required.

What Is Campus Mapping?

Campus mapping is the process of creating a detailed, accurate digital map of a university, college, school, or any educational institution's premises. Think of it as drawing a bird's-eye view of an entire campus — every building, road, pathway, sports field, parking area, and open space — and converting it into a digital format that can be displayed on a screen, shared online, or integrated into a mobile application.
In simple terms, a campus map tells you: "Where am I?" and "How do I get there?" It is an intelligent, interactive representation of a physical space.
Unlike a hand-drawn sketch, a digital campus map is built using real geographic data, measurement tools, and mapping software. This makes it accurate, scalable, and highly useful for real-world applications.

Why Is Campus Mapping Important?

For Students:
• New students can navigate the campus confidently on their very first day.
• Finding classrooms, labs, libraries, cafeterias, and restrooms becomes effortless.
• Students can plan the shortest or most accessible route between two locations.
• It reduces confusion and saves time during busy academic schedules.
For Institutions:
• Administration can plan infrastructure development and identify space usage.
• Emergency services can navigate quickly during crisis situations.
• Campus security can monitor zones and manage access control.
• Event organizers can plan crowd movement, parking, and logistics.
For This Hackathon Project:
This project demonstrates how GIS (Geographic Information System) technology can solve real-world navigation problems, even without physically visiting the campus. It showcases your ability to collect, process, and visualize geographic data — a highly valuable skill in today's data-driven world.

2. Objective

The primary objective of this project is to create a complete, accurate, and usable digital map of a campus using freely available online tools and satellite imagery — entirely without a physical visit to the site.
Specific Goals:

1. Identify and digitize all major structures on campus, including buildings, roads, pathways, and open areas.
2. Label each map element with descriptive information such as building names, facility types, and usage.
3. Organize map data in a structured, layered format that is clean and easy to read.
4. Create an interactive or static map that can help users navigate the campus.
5. Demonstrate the practical use of GIS tools such as QGIS for real-world mapping tasks.
6. Serve as a prototype that can be extended into a full-featured navigation application. By the end of this project, the team aims to deliver a digital campus map that is practically useful, visually clear, and technically sound — demonstrating how modern geospatial tools can bridge the gap between physical spaces and digital representation.

3. Data Collection (Without a Physical Visit)

One of the most interesting aspects of this project is that all the geographic data was collected entirely online — no physical survey, GPS device, or field visit was required. This was made possible through a combination of satellite imagery, crowd-sourced maps, and web-based tools.
Primary Data Source: Google Maps Satellite View
Google Maps provides a highly detailed satellite view of almost every location on Earth. By switching to satellite mode, you can clearly see:
• Building footprints and rooftop shapes
• Internal and external roads and pathways
• Open spaces such as lawns, courtyards, and grounds
• Sports facilities and parking zones
• Campus boundaries and perimeter walls
How to Use Google Maps for Data Collection:
Step 1: Open Google Maps in a web browser and search for the name of the campus.
Step 2: Switch from the default map view to Satellite view using the layer toggle.
Step 3: Zoom in gradually until individual buildings and roads are clearly visible.
Step 4: Visually observe and identify major structures, roads, open areas, and boundaries.
Step 5: Take screenshots of different sections of the campus to use as reference images while drawing the map.
Secondary Data Source: OpenStreetMap (OSM)
OpenStreetMap is a free, open-source world map created and maintained by volunteers. It often contains pre-drawn building outlines and road networks for university campuses, which can be directly imported into QGIS as a base layer. This significantly reduces manual drawing time and improves positional accuracy.

4. Map Elements

Every geographic map, including a campus map, is built from three fundamental types of spatial elements. Understanding these three components is essential to creating a well-structured digital map.

Element Type What It Represents Campus Examples
📍 Points Single, specific locations on the map Library entrance, ATM, cafeteria, main gate, notice board
📏 Lines Linear features connecting two locations Roads, walkways, bicycle paths, fencing, drainage
🗺 Areas (Polygons) Enclosed regions or zones on the map Campus boundary, buildings, parking lots, playgrounds, gardens

Points
A point represents a single, specific location. On a campus map, points are used to mark individual facilities — the main entrance gate, a particular building's entrance, a water cooler, or a bike stand. In GIS software, a point is represented as a single pair of coordinates (latitude and longitude). Points are best used when the exact shape or size of a feature is not important — only its location matters.
Lines
A line (or polyline) represents a path or connection between two or more points. Roads, walkways, bicycle tracks, and fences are all represented as lines. In GIS, a line is defined by a series of connected coordinate points. Lines help users understand how to move from one location to another, making them the backbone of any navigation map.
Areas (Polygons)
A polygon (area) represents a closed region with a defined boundary. Buildings, parking lots, sports fields, gardens, and the overall campus boundary are all mapped as polygons. In GIS, a polygon is formed by connecting multiple coordinate points in a loop. Polygons communicate the shape, size, and extent of a feature, which is critical for spatial understanding.

5. Map Creation Process

Creating a campus map is a systematic process that follows a clear sequence of steps. Each step builds on the previous one, gradually converting raw satellite imagery into a fully labeled digital map. Below is a detailed explanation of each step in the process.
Step 1: Locate the Campus on Google Maps
Open your web browser and navigate to maps.google.com. In the search bar, type the full name of the campus, for example: "ABC Engineering College, City Name." Google Maps will center the view on the campus location. Verify that you have found the correct institution before proceeding.
Step 2: Switch to Satellite View
In the bottom-left corner of Google Maps, click on the small map thumbnail labeled "Satellite." This switches the display from the standard schematic map to a real-world aerial photograph taken by satellites. Satellite view allows you to see the actual physical layout of the campus in great detail.
Step 3: Zoom In and Observe the Layout
Use the zoom controls (or scroll wheel) to zoom in progressively until individual buildings, roads, and open spaces are clearly distinguishable. At the right zoom level, you should be able to see rooftops of buildings, the outline of roads, footpaths between buildings, sports courts, and the outer boundary wall or fence. Take your time to study the overall layout before beginning to draw.
Step 4: Take Reference Screenshots
Before opening any mapping software, take multiple screenshots of different sections of the campus from satellite view. These screenshots serve as a visual reference guide while you are digitizing the map. Save them in a dedicated folder on your computer.
Step 5: Open QGIS and Set Up Your Project
Launch QGIS on your computer. Create a new project and set the Coordinate Reference System (CRS) to WGS 84 (EPSG:4326), which is the standard geographic coordinate system used worldwide. This ensures that your map aligns correctly with real-world coordinates.
Step 6: Add a Base Map Layer
In QGIS, use the QuickMapServices plugin to load a Google Satellite or OpenStreetMap base layer. This brings the same satellite imagery directly into QGIS, allowing you to trace over it with precision. Your drawn features will automatically align with the real-world geography.
Step 7: Create Separate Layers for Each Element Type
In QGIS, create three separate vector layers: one for Points (buildings, entrances), one for Lines (roads, pathways), and one for Polygons (buildings, areas, boundaries). Keeping them in separate layers makes the map organized, easy to edit, and visually manageable.
Step 8: Trace the Campus Boundary
Start with the outermost boundary of the campus. Using the polygon drawing tool in QGIS, carefully trace along the perimeter wall or fence visible in the satellite imagery. This polygon defines the overall extent of the campus and serves as the container for all other features.
Step 9: Digitize Buildings and Structures
One by one, trace each building visible on the satellite image using the polygon tool. Follow the rooftop edges carefully. Each building becomes its own polygon. Try to maintain accuracy by zooming in as much as possible while tracing.
Step 10: Digitize Roads and Pathways
Using the line drawing tool, trace all roads and walkways inside the campus. Draw the centre line of each road. Include both vehicular roads and pedestrian pathways. Roads typically appear as wider grey or brown bands, while footpaths are narrower.
Step 11: Mark Points of Interest
Use the point tool to mark individual locations such as the main entrance, library, cafeteria, medical center, administrative office, ATM, parking entry, and any other important spots. Place each point at the most accurate location visible on the satellite image.
Step 12: Label All Features
For every feature drawn — polygons, lines, and points — add descriptive attributes in the layer's attribute table. For each building polygon, add the building name, type (academic, administrative, residential), and number of floors if known. For roads, add the type (main road, service lane, footpath). For points, add the facility name and type.

6. Tools Used

This project was completed using a combination of free, open-source, and widely available tools. Each tool plays a specific role in the map creation workflow.
Google Maps (maps.google.com)
Role: Primary Reference and Satellite Imagery Source
Google Maps is used at the very beginning of the project to locate the campus, switch to satellite view, and observe the physical layout. It serves as the visual reference from which all mapping work is based. Its high-resolution satellite imagery is updated regularly, making it one of the most reliable sources for remote mapping.
💡 Free to use; no account required for basic satellite view. Available on all browsers and devices.
QGIS (Quantum GIS)
Role: Primary Mapping and Digitization Software
QGIS is a professional, free, and open-source GIS (Geographic Information System) desktop application. It is the core tool used in this project for digitizing features, creating layers, adding attributes, and producing the final map. QGIS supports all three types of spatial features — points, lines, and polygons — and allows you to add basemap imagery directly inside the software using plugins.
💡 Free and open-source. Available on Windows, macOS, and Linux. Download at: qgis.org
OpenStreetMap (openstreetmap.org)
Role: Supplementary Base Data
OpenStreetMap (OSM) is a collaborative, open-source world map maintained by millions of contributors globally. It often contains pre-drawn outlines for university campuses, road networks, and building footprints. In QGIS, OSM data can be loaded directly as a background layer, reducing the amount of manual tracing needed and improving overall positional accuracy.
💡 Completely free. Data is available for download or can be viewed live as a background layer in QGIS.
QuickMapServices Plugin (QGIS Plugin)
Role: Loading Basemap Imagery in QGIS
The QuickMapServices plugin for QGIS allows users to load various online basemaps — including Google Satellite and OpenStreetMap — directly inside the QGIS workspace. This makes it possible to trace over satellite imagery without needing to import screenshots manually.
💡 Free QGIS plugin. Install via: Plugins > Manage and Install Plugins > Search 'QuickMapServices'.

7. Digitization

Digitization is the process of converting real-world physical features — buildings, roads, open spaces — into digital vector data that a computer can understand, store, and display. It is the technical heart of any GIS mapping project.
What Happens During Digitization?
When you draw a building polygon in QGIS over a satellite image, you are translating the visual representation of that building into a set of geographic coordinates. Each corner of the polygon corresponds to a real latitude-longitude coordinate on Earth. This makes the digital feature geographically accurate and measurable.
The Digitization Workflow in QGIS:

1. Enable Editing Mode: Before drawing, click the pencil/toggle button in QGIS to enable editing mode on the selected layer. This unlocks the layer for new feature creation.
2. Select the Drawing Tool: Choose the appropriate tool — point, line, or polygon — depending on the type of feature you want to digitize.
3. Trace the Feature: Click on the map at key points to define the shape of the feature. For a building, click at each corner of the rooftop. QGIS connects the dots automatically.
4. Close and Save: For polygons, right-click to close the shape. A dialog box appears asking you to enter attribute data (like the building's name). Fill in the details and click OK.
5. Repeat for All Features: Continue this process for every building, road, pathway, boundary, and area until all visible features are digitized.
6. Save the Layer: Regularly save your work. QGIS saves vector layers in formats such as GeoJSON or Shapefile (.shp), which are standard geographic data formats. Precision and Accuracy in Digitization: Accuracy is essential in digitization. To improve precision, always zoom in as far as possible before drawing features. Use the snapping tool in QGIS to ensure that lines and polygon boundaries connect exactly, without gaps or overlaps. Small errors in digitization can lead to misrepresented distances and incorrect navigation paths.

8. Data Organization

Drawing features on the map is only half the work. The other half — and equally important — is organizing the data associated with those features in a structured and consistent manner.
Attribute Tables
In QGIS, every feature layer has an associated attribute table — similar to a spreadsheet — where each row represents one feature and each column represents a data field. For our campus map, the following attributes are maintained for each type of feature:

Feature Type Attribute Field Example Value
Building (Polygon) Name Main Academic Block
Building (Polygon) Type Academic / Administrative / Hostel
Road (Line) Name Main Campus Road
Road (Line) Road Type Vehicular / Pedestrian / Bicycle
Point of Interest Name Central Library
Point of Interest Facility Type Library / Cafeteria / Medical / ATM
Campus Boundary Name Outer Campus Boundary
Parking Area Capacity 50 vehicles

Best Practices for Data Organization:
• Use consistent and descriptive names for all features — avoid abbreviations that may be unclear.
• Capitalize feature names properly (e.g., "Central Library" not "central library").
• Use a standard naming convention for all layers (e.g., campus_buildings, campus_roads, campus_points).
• Avoid storing duplicate features. Each building should appear only once in the buildings layer.
• Keep the number of layers manageable — group similar features together.
• Regularly back up your QGIS project files and data folders.

9. Challenges Faced

Like any real-world project, campus mapping came with its own set of challenges. Recognizing these challenges is important — it shows critical thinking, honesty, and an understanding of the limitations of remote mapping.
Challenge 1: Inability to Physically Visit the Campus
Problem: Without being present on-site, it is impossible to verify information that is not visible from a satellite image — such as a building's exact name, the function of a particular room, the number of floors, or unofficial walkways used by students. All identification had to rely on satellite imagery and publicly available information.
Solution: Cross-reference satellite images with the institution's official website, Google Maps Street View (where available), and any existing campus brochures or maps published online.
Challenge 2: Difficulty Identifying Buildings from Satellite Images
Problem: Many buildings look very similar when viewed from above — they are rectangular grey or white shapes on a satellite image, with very few distinguishing visual features. It can be challenging to determine which building is the library, which is the administrative block, and which is a hostel.
Solution: Look for size differences (larger buildings are often academic blocks), position clues (buildings near the main entrance are often administrative), visible signage on rooftops, or parking patterns around buildings.
Challenge 3: Outdated or Low-Resolution Satellite Imagery
Problem: Google Maps satellite imagery is not always up-to-date. Newer buildings, recent construction, or demolitions may not be visible. In some rural or semi-urban areas, the satellite resolution may also be lower, making it difficult to trace precise boundaries.
Solution: Compare with other sources such as OpenStreetMap, Bing Maps, or the institution's official aerial photographs if available. Note discrepancies in the project report.
Challenge 4: Maintaining Geometric Accuracy
Problem: When tracing buildings and roads by clicking manually on a screen, slight inaccuracies are inevitable. A polygon corner that is off by a few pixels may translate to a real-world positional error of several meters.
Solution: Use QGIS's snapping and vertex editing tools to refine imprecise shapes. Enable snapping to ensure adjacent features connect precisely without gaps or overlaps.
Challenge 5: Learning Curve of GIS Software
Problem: For beginners, QGIS can feel overwhelming at first. Managing coordinate systems, layers, attribute tables, and plugins simultaneously requires time and patience to learn.
Solution: Follow structured tutorials on the official QGIS documentation website (docs.qgis.org) and YouTube. Start with simple tasks and gradually advance to complex operations.

10. Conclusion

Campus mapping is far more than an academic exercise — it is a practical, technology-driven solution to a problem that affects thousands of students, staff, and visitors every day. A well-designed campus map removes confusion, saves time, improves accessibility, and contributes meaningfully to the overall experience of everyone who uses a campus.
This project has demonstrated that accurate and useful campus maps can be created entirely through remote means — using freely available tools like Google Maps, QGIS, and OpenStreetMap — without the need for expensive equipment or physical surveys. This makes digital campus mapping accessible to students and developers everywhere, regardless of their resources or location.
What we have built in this hackathon is a prototype — a foundation upon which a fully functional, real-time campus navigation system could be developed. The digital map layers created in QGIS can be exported to web formats (GeoJSON, KML) and integrated into mobile applications, web platforms, or indoor navigation systems.
Real-World Applications of Campus Mapping:
• Mobile campus navigation apps for students and visitors
• Accessibility maps highlighting ramps, elevators, and barrier-free routes
• Emergency response systems for campus security personnel
• Infrastructure planning tools for university administration
• Interactive virtual campus tours for prospective students
• Smart campus energy management by mapping utility zones
• Integration with QR code systems for physical-digital location linking

In conclusion, this project has successfully shown how geospatial technology — once confined to the domain of professional surveyors and engineers — is now accessible to students and beginners through open-source tools. Campus mapping is a powerful entry point into the world of GIS, data visualization, and smart city solutions. The skills and methods learned here are directly transferable to urban planning, disaster management, logistics, agriculture, and many other fields that rely on spatial data.

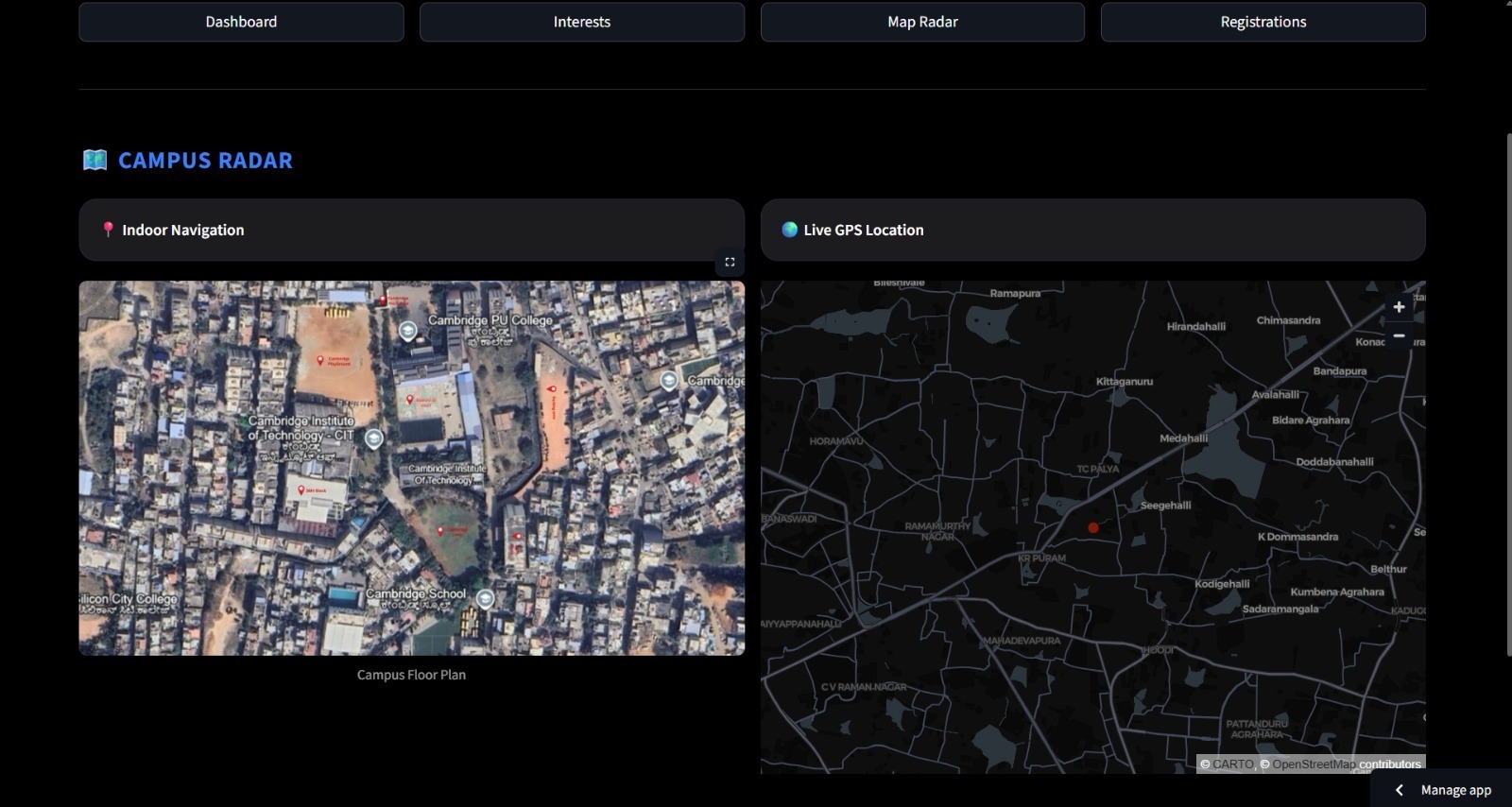

(https://dev-to-uploads.s3.amazonaws.com/uploads/articles/vsuzu7ebe1jwh9ls90a6.jpeg)
