Create a Real Browser Extension (Chrome, Firefox, Chromium based)

In this post we will create a real browser extension. By "real" i mean this is not just a demo, if you work a little bit more on it you can publish this as your first extension :)

Goal

We will create a browser extension to help people with visual impairments or other conditions to browse the web easier

This extension will have tools which will give the ability to the users to change font size, colours etc

Requirements / Tools

  • basic knowledge of js, html
  • a code editor (tip: if you are student you can have all jetbrains software for free)

My setup:

  • OS: Fedora Linux
  • Browser: Firefox
  • IDE: WebStorm

I'm also using web-ext, it's a cli tool to help you in the development of your extension

example: web-ext run will launch a new firefox window with a new temporary profile so you can test the extension
and if you make any changes in the source it will automatically reload the extension for you

for now web-ext supports only firefox but it will make your life so much easier

How Extensions Work

There 3 + 1 "places" in the browser where an extension exists

  • background: as its name says this part run in the background, there is no UI, from here you can do some cool things like modify http requests

  • content: this is how you can inject your js, css etc in the websites you visit

  • popup: this put an icon on the right of the address bar and when you click it it can show a popup

  • options: this is a html page where the user can change the settings of the extension

File structure

This is example of my personal preference, the extension will have similar file structure
file structure

Manifest file

All extensions need to have the manifest.json, this is the file with all the information about the extension

You must add the basic information of the extension like name, version etc

{
  "name": "Accessibility Helper",
  "version": "1.0.0",
  "description": "Accessibility Helper",
  "homepage_url": "https://github.com/chr314/accessibility-extension",
  "author": "Aslanov Christoforos",
  "manifest_version": 2,
  "icons": {
    "16": "assets/icon.16.jpg",
    "48": "assets/icon.48.jpg",
    "128": "assets/icon.128.jpg"
  },
Enter fullscreen mode Exit fullscreen mode

Here we need to add the permissions we will use

<all_urls> means that the extension have access to all web pages, you can add custom like https://*.example.com/*

Also we will use the tabs permission to access the current tab

Be careful to not add permissions you don't need

  "permissions": [
    "<all_urls>",
    "tabs"
  ],
Enter fullscreen mode Exit fullscreen mode

browser_action manages what will open when you click on the extension icon right to the address bar

  "browser_action": {
    "default_title": "Accessibility Helper",
    "default_popup": "src/popup/popup.html",
    "default_icon": {
      "16": "assets/icon.16.jpg",
      "48": "assets/icon.48.jpg",
      "128": "assets/icon.128.jpg"
    }
  },
Enter fullscreen mode Exit fullscreen mode

In content_scripts you can set what will be injected in the web pages

you can also inject css the same way as js

  "content_scripts": [
    {
      "matches": [
        "<all_urls>"
      ],
      "js": [
        "src/content/script.js"
      ]
    }
  ]
}
Enter fullscreen mode Exit fullscreen mode

The fun part (Coding)

As we saw in the manifest.json the popup is a simple html page

The logic in our case is very simple

The popup is the control panel, when you click a action button, a message is sent to the content of the current tab to alter the page

chrome.tabs.query() is used to get the current tab and the chrome.tabs.sendMessage() is to send the message

don't worry the chrome namespace is supported in firefox too, for Firefox and Edge you can also use the browser namespace with some advantages like promises

example: if you click the font increase button, the object {action: 'font-size-increase'} is sent as message to the current tab and then the content script will receive the message and do the appropriate action

In the content script using chrome.runtime.onMessage.addListener() we can listen for the messages

Here we see how our message to increase the font size is handled

chrome.runtime.onMessage.addListener(msg => {
    if (msg.action === "font-size-decrease") {
        changeFontSize(-1);
    }
    if (msg.action === "font-size-increase") {
        changeFontSize(1);
    }
});

function changeFontSize(change) {
    let elements = document.querySelectorAll("*");
    let newFontSizes = [];
    for (let x = 0; x < elements.length; x++) {
        newFontSizes.push((parseFloat(window.getComputedStyle(elements[x]).getPropertyValue('font-size')) + change) + 'px');
    }
    for (let x = 0; x < elements.length; x++) {
        elements[x].style.fontSize = newFontSizes[x];
    }
}
Enter fullscreen mode Exit fullscreen mode

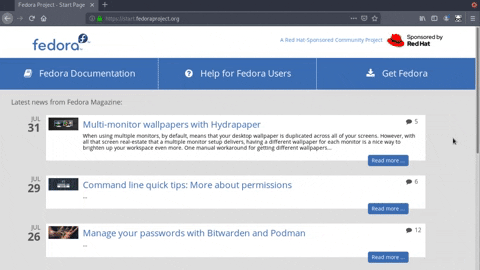

Result

gif

Source Code

For now this extension have 3 tools font size, grayscale, invert colours

You can contribute and add more tools :)

Accessibility Helper Browser Extension

This was created for the tutorial on dev.to

This is a browser extension to help people with visual impairments or other conditions to browse the web easier

This extension have tools which give the ability to the users to change font size, colours etc

gif
