Call API's With Kotlin-Coroutines In Your Android Application

Before Getting Started I Suggest You Understand What's Actually A Coroutine Jobs Are, Which I Have Discussed In The Previous Blog In This Series. And Make Sure That You Have Included Coroutines Dependency If It's Not Included:

implementation 'org.jetbrains.kotlinx:kotlinx-coroutines-android:1.5.0'

-> Until The Previous Blogs In This Series I Have Shown The Usage And Purpose Of The Kotlin-Coroutines When You Are Getting Started With It, It's Time For Building Something With It😈.

• Let's Build An Android Application With Kotlin-Coroutines In Which We'll Be Using API To Show The Random Images Of Cat😺.

Pre-requisites Before Moving To Further:

-> Make Sure That You Have Added Volley Library Dependency From Which We'll Be Networking[You Can Use Retrofit Too]

dependencies {
    ...
    implementation("com.android.volley:volley:1.2.0")
}

-> Make Sure You Have Added Coil Library Dependency From Which We'll Be Loading Cat Images😺:

dependencies {
    ...
    implementation("io.coil-kt:coil:1.3.0")
}

-> And Of Course Kotlin-Coroutines Dependency Too:

dependencies {
    ...
    implementation 'org.jetbrains.kotlinx:kotlinx-coroutines-android:1.5.0'
}

-> And Make Sure You Have Added Internet Permission In Your Manifest File So That We Can Make A Network Request Successfully:

<uses-permission android:name="android.permission.INTERNET"/>

Designing The Layout

• We'll Be Adding An ImageView And A Button In Our XML File || Layout File.

• In Our ImageView, We'll Be Showing The Cat Images Though Coil After Making the API Request Through Volley.

• And When Button Will Be Clicked We'll Call Our API Again So That Another Random Image Of Cats😺 Can Be Show In Our ImageView Respectively.

Adding An ImageView:

• Depending On Your Root Layout You Can Change Those Attributes:

<ImageView
            android:id="@+id/apiImageView"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_marginStart="10dp"
            android:layout_marginTop="25dp"
            android:layout_marginEnd="10dp"
            app:layout_constraintEnd_toEndOf="parent"
            app:layout_constraintStart_toStartOf="parent"
            app:layout_constraintTop_toTopOf="parent" />

Adding A Button:

• Depending On Your Root Layout You Can Change Those Attributes:

<com.google.android.material.button.MaterialButton
            android:id="@+id/apiBtn"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_marginTop="15dp"
            android:fontFamily="casual"
            android:text="Call API Again"
            android:textAllCaps="false"
            android:textStyle="bold"
            app:layout_constraintEnd_toEndOf="@+id/apiImageView"
            app:layout_constraintStart_toStartOf="@+id/apiImageView"
            app:layout_constraintTop_toBottomOf="@+id/apiImageView" />

Your Final Layout Code May Look Like This:

<?xml version="1.0" encoding="utf-8"?>
<ScrollView xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:fillViewport="true"
    tools:context=".FirstFragment">

    <androidx.constraintlayout.widget.ConstraintLayout
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        tools:ignore="ScrollViewSize">

        <ImageView
            android:id="@+id/apiImageView"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_marginStart="10dp"
            android:layout_marginTop="25dp"
            android:layout_marginEnd="10dp"
            app:layout_constraintEnd_toEndOf="parent"
            app:layout_constraintStart_toStartOf="parent"
            app:layout_constraintTop_toTopOf="parent" />

        <com.google.android.material.button.MaterialButton
            android:id="@+id/apiBtn"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_marginTop="15dp"
            android:fontFamily="casual"
            android:text="Call API Again"
            android:textAllCaps="false"
            android:textStyle="bold"
            app:layout_constraintEnd_toEndOf="@+id/apiImageView"
            app:layout_constraintStart_toStartOf="@+id/apiImageView"
            app:layout_constraintTop_toBottomOf="@+id/apiImageView" />
    </androidx.constraintlayout.widget.ConstraintLayout>
</ScrollView>

• Well, That's All For Layout. I Highly Recommend To Play Around With The Layout FIle According To Your Imagination.

Crafting Our Application[Logic]:

• First Things First, Let's Assign A Variable Which We'll Use Further For Requesting:

private lateinit var requestQueue: RequestQueue

Now, We'll be Creating A Function Named apiCall() In Which We'll Be Passing imageView As A Parameter:

private fun apiCall(imageView: ImageView) {

}

• Let's Launch A Coroutine By Implementing lifecycleScope Scope Through IO Dispatcher As We Are Working With Networking Stuff:

 private fun apiCall(imageView: ImageView) {
        lifecycleScope.launch(Dispatchers.IO) {

        }
}

• Moment We Are Waiting For, Simply Request API As You Do In Regular. I'm Gonna Use Volley As I Mentioned Earlier, BTW I'm Using This API Which Is In JSON Format-> https://thatcopy.pw/catapi/rest/:

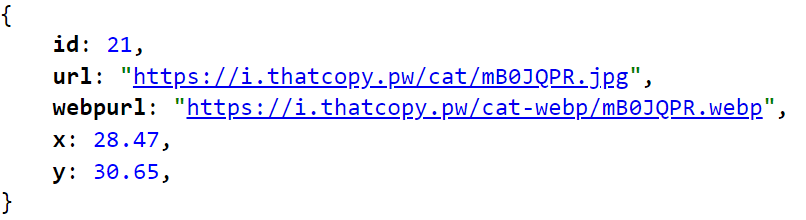

-> As You Can See That Cat Image's URL Is Set To url Key:

• This Is How Your API Request May Look Like:

private fun apiCall(imageView: ImageView) {
        lifecycleScope.launch(Dispatchers.IO) {
            val apiUrl = "https://thatcopy.pw/catapi/rest/"
            val jsonObjectRequest = JsonObjectRequest(Request.Method.GET, apiUrl, null, {
                val imageURL=it.getString("url") // -> Will Get Our Cat Image URL
                imageView.load(imageURL)
            }, {
                Log.d("API Request Error", "${it.printStackTrace()}")
            })
        }
    }

• After Implementing All Those Request Stuff Let's Add Our jsonObjectRequest Variable To requestQueue Variable So That We Can Move Further And Your apiCall() Function SHould Look Like This Now:

private fun apiCall(imageView: ImageView) {
        lifecycleScope.launch(Dispatchers.IO) {
            val apiUrl = "https://thatcopy.pw/catapi/rest/"
            val jsonObjectRequest = JsonObjectRequest(Request.Method.GET, apiUrl, null, {
                val imageURL=it.getString("url") // -> Will Get Our Cat Image URL
                imageView.load(imageURL)
            }, {
                Log.d("API Request Error", "${it.printStackTrace()}")
            })
            requestQueue.add(jsonObjectRequest) // -> Added jsonObjectRequest To requestQueue
        }
    }

• Now, For Loading Image, I Have Created Another Function Named loadImage() In Which I Have Launched A Coroutine With apiCall() Function For Networking With API Through Main Dispatcher So That We Can Work With Main Thread:

private fun loadImage(imageView: ImageView){
        lifecycleScope.launch(Dispatchers.Main){
            apiCall(imageView)
        }
    }

Main Stuff⚡

• Let's Call loadImage() Function In Main Thread In Which We Have Already Made API Request Through apiCall() Function:

loadImage(view.apiImageView)

• Also, We Have To Call loadImage() Function When Button Is Clicked So That We Can Call API Again And Show Cat Images😺:

view.apiBtn.setOnClickListener {
            loadImage(view.apiImageView)
        }

At Last

• We'll Add Volley In Our requestQueue Variable Which We Have Created Earlier And Added jsonObjectRequest:

requestQueue = Volley.newRequestQueue(this.context)

Your Final Kotlin File May Look Like This:

package com.example.name

import android.os.Bundle
import android.util.Log
import androidx.fragment.app.Fragment
import android.view.LayoutInflater
import android.view.View
import android.view.ViewGroup
import android.widget.ImageView
import androidx.lifecycle.lifecycleScope
import coil.load
import com.android.volley.Request
import com.android.volley.RequestQueue
import com.android.volley.toolbox.JsonObjectRequest
import com.android.volley.toolbox.Volley
import kotlinx.android.synthetic.main.fragment_first.view.*
import kotlinx.coroutines.*

class FirstFragment : Fragment() {
    private lateinit var requestQueue: RequestQueue
    override fun onCreateView(
        inflater: LayoutInflater, container: ViewGroup?,
        savedInstanceState: Bundle?
    ): View? {
        val view = inflater.inflate(R.layout.fragment_first, container, false)
        requestQueue = Volley.newRequestQueue(this.context)
        loadImage(view.apiImageView)
        view.apiBtn.setOnClickListener {
            loadImage(view.apiImageView)
        }
        return view
    }

    private fun apiCall(imageView: ImageView) {
        lifecycleScope.launch(Dispatchers.IO) {
            val apiUrl = "https://thatcopy.pw/catapi/rest/"
            val jsonObjectRequest = JsonObjectRequest(Request.Method.GET, apiUrl, null, {
                val imageURL=it.getString("url") // -> Will Get Our Cat Image URL
                imageView.load(imageURL)
            }, {
                Log.d("API Request Error", "${it.printStackTrace()}")
            })
            requestQueue.add(jsonObjectRequest) // -> Added jsonObjectRequest To requestQueue
        }
    }
    private fun loadImage(imageView: ImageView){
        lifecycleScope.launch(Dispatchers.Main){
            apiCall(imageView)
        }
    }
}

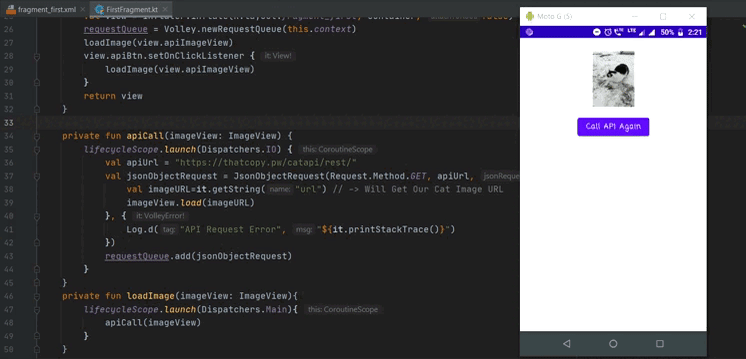

• Launch The Application After Successful Build:

• As You Can See That It's Working Like Charm⚡.

Playaround With Coroutines And Other API's😉

Well That's All For Now🙌

Bye🤗
