I would like to introduce middy-store, a new library I built over the last couple of months. I've been pondering this idea for a while, going back to this feature request I opened more than a year ago. middy-store is a middleware for Middy that automatically stores and loads payloads from and to a Store like Amazon S3 or potentially other services.
Motivation

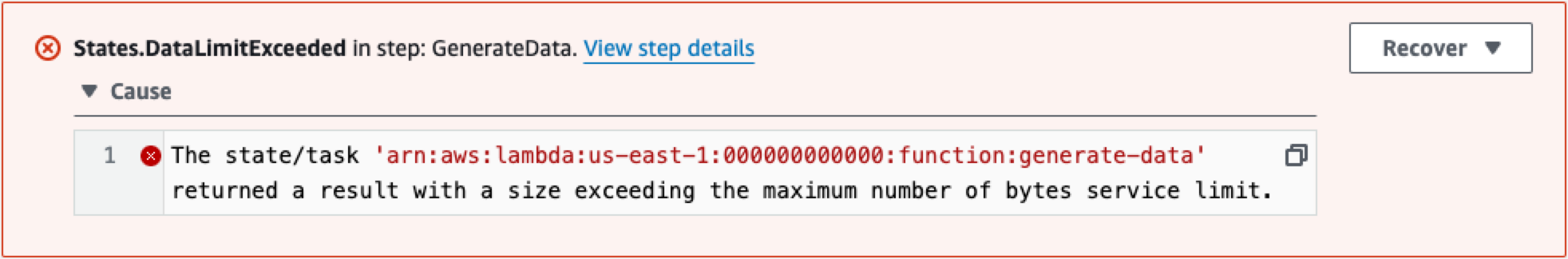

AWS services have certain limits that one must be aware of. For example, AWS Lambda has a payload limit of 6MB for synchronous invocations and 256KB for asynchronous invocations. AWS Step Functions allows for a maximum input or output size of 256KB of data as a UTF-8 encoded string. If you exceed this limit when returning data, you will encounter the infamous States.DataLimitExceeded exception.
The usual workaround for this limitation is to check the size of your payload and save it temporarily in persistent storage such as Amazon S3. Then, you return the object URL or ARN for S3. The next Lambda checks if there is a URL or ARN in the input and loads the payload from S3. As one can imagine, this results in a lot of boilerplate code to store and load the payload from and to Amazon S3, which has to be repeated in every Lambda.
This becomes even more cumbersome when you only want to save part of the payload to S3 and leave the rest as is. For example, when working with Step Functions, the payload could contain control flow data for states like Choice or Map, which has to be accessed directly. This means the first Lambda saves a partial payload to S3, and the next Lambda has to load the partial payload from S3 and merge it with the rest of the payload. This requires ensuring that the types are consistent across multiple functions, which is, of course, very error-prone.
How it works
middy-store is a middleware for Middy. It's attached to a Lambda function and is called twice during a Lambda invocation: before and after the Lambda handler() runs. It receives the input before the handler runs and receives the output from the handler after it has finished.
Let's start at the end with the output after a successful invocation to make it easier to follow: middy-store receives the output (the payload) from the handler() function and checks the size. To calculate the size, it stringifies the payload, if it is an object, and uses Buffer.byteLength() to calculate the UTF-8 encoded string size. If the size is larger than a certain configurable threshold, the payload is stored in a Store like Amazon S3. The reference to the stored payload (e.g., an S3 URL or ARN) is then returned as the output instead of the original output.
Now let's look at the next Lambda function (e.g. in a state machine), which will receive this output as its input. This time we are looking at the input before the handler() is invoked: middy-store receives the input to the handler and searches for a reference to a stored payload. If it finds one, the payload is loaded from the Store and returned as the input to the handler. The handler uses the payload as if it was passed directly to it.
Here's an example to illustrate how middy-store works:
/* ./src/functions/handler1.ts */
export const handler1 = middy()
.use(
middyStore({
stores: [new S3Store({ /* S3 options */ })],
})
)
.handler(async (input) => {
// Return 1MB of random data as a base64 encoded string as output
return randomBytes(1024 * 1024).toString('base64');
});
/* ./src/functions/handler2.ts */
export const handler2 = middy()
.use(
middyStore({
stores: [new S3Store({ /* S3 options */ })],
})
)
.handler(async (input) => {
// Print the size of the input
return console.log(`Size: ${Buffer.from(input, "base64").byteLength / 1024 / 1024} MB`);
});
/* ./src/workflow.ts */
// First Lambda returns a large output
// It automatically uploads the data to S3
const output1 = await handler1({});
// Output is a reference to the S3 object: { "@middy-store": "s3://bucket/key"}
console.log(output1);
// Second Lambda receives the output as input
// It automatically downloads the data from S3
const output2 = await handler2(output1);
What's a Store?
In general, a Store is any service that allows you to store and load arbitrary payloads, like Amazon S3 or other persistent storage systems. Databases like DynamoDB can also act as a Store. The Store receives a payload from the Lambda handler, serializes it (if it's an object), and stores it in persistent storage. When the next Lambda handler needs the payload, the Store loads the payload from the storage, deserializes and returns it.
middy-store interacts with a Store through a StoreInterface interface, which every Store has to implement. The interface defines the functions canStore() and store() to store payloads, and canLoad() and load() to load payloads.
interface StoreInterface<TPayload = unknown, TReference = unknown> {
name: string;
canLoad: (args: LoadArgs<unknown>) => boolean;
load: (args: LoadArgs<TReference | unknown>) => Promise<TPayload>;
canStore: (args: StoreArgs<TPayload>) => boolean;
store: (args: StoreArgs<TPayload>) => Promise<TReference>;
}
canStore()serves as a guard to check if the Store can store a given payload. It receives the payload and its byte size and checks if the payload fits within the maximum size limits of the Store. For example, a Store backed by DynamoDB has a maximum item size of 400KB, while an S3 store has effectively no limit on the payload size it can store.store()receives a payload and stores it in its underlying storage system. It returns a reference to the payload, which is a unique identifier to identify the stored payload within the underlying service. For example, the Amazon S3 Store uses an S3 URI in the formats3://<bucket>/<key>as a reference, while other Amazon services might use ARNs.canLoad()acts like a filter to check if the Store can load a certain reference. It receives the reference to a stored payload and checks if it's a valid identifier for the underlying storage system. For example, the Amazon S3 Store checks if the reference is a valid S3 URI, while a DynamoDB Store would check if it's a valid ARN.load()receives the reference to a stored payload and loads the payload from storage. Depending on the Store, the payload will be deserialized into its original type according to the metadata that was stored alongside it. For example, a payload of typeapplication/jsonwill get parsed back into a JSON object, while a plain string of typetext/plainwill remain unaltered.
Single and Multiple Stores
Most of the time, you will only need one Store, like Amazon S3, which can effectively store any payload. However, middy-store lets you work with multiple Stores at the same time. This can be useful if you want to store different types of payloads in different Stores. For example, you might want to store large payloads in S3 and small payloads in DynamoDB.
middy-store accepts an Array<StoreInterface> in the options to provide one or more Stores. When middy-store runs before the handler and finds a reference in the input, it will iterate over the Stores and call canLoad() with the reference for each Store. The first Store that returns true will be used to load the payload with load().
On the other hand, when middy-store runs after the handler and the output is larger than the maximum allowed size, it will iterate over the Stores and call canStore() for each Store. The first Store that returns true will be used to store the payload with store().
Therefore, it is important to note that the order of the Stores in the array is important.
References
When a payload is stored in a Store, middy-store will return a reference to the stored payload. The reference is a unique identifier to find the stored payload in the Store. The value of the identifier depends on the Store and its configuration. For example, the Amazon S3 Store will use an S3 URI by default. However, it can also be configured to return other formats like an ARN arn:aws:s3:::<bucket>/<key>, an HTTP endpoint https://<bucket>.s3.us-west-1.amazonaws.com/<key>, or a structured object with the bucket and key.
The output from the handler after middy-store will contain the reference to the stored payload:
/* Output with reference */
{
"@middy-store": "s3://bucket/key"
}
middy-store embeds the reference from the Store in the output as an object with a key "@middy-store". This allows middy-store to quickly find all references when the next Lambda function is called and load the payloads from the Store before the handler runs. In case you are wondering, middy-store recursively iterates through the input object and searches for the "@middy-store" key. That means the input can contain multiple references, even from different Stores, and middy-store will find and load them.
Selecting a Payload
By default, middy-store will store the entire output of the handler as a payload in the Store. However, you can also select only a part of the output to be stored. This is useful for workflows like AWS Step Functions, where you might need some of the data for control flow, e.g., a Choice state.
middy-store accepts a selector in its storingOptions config. The selector is a string path to the relevant value in the output that should be stored.
Here's an example:
const output = {
a: {
b: ['foo', 'bar', 'baz'],
},
};
export const handler = middy()
.use(
middyStore({
stores: [new S3Store({ /* S3 options */ })],
storingOptions: {
selector: '', /* select the entire output as payload */
// selector: 'a'; /* selects the payload at the path 'a' */
// selector: 'a.b'; /* selects the payload at the path 'a.b' */
// selector: 'a.b[0]'; /* selects the payload at the path 'a.b[0]' */
// selector: 'a.b[*]'; /* selects the payloads at the paths 'a.b[0]', 'a.b[1]', 'a.b[2]', etc. */
}
})
)
.handler(async () => output);
await handler({});
The default selector is an empty string (or undefined), which selects the entire output as a payload. In this case, middy-store will return an object with only one property, which is the reference to the stored payload.
/* selector: '' */
{
"@middy-store": "s3://bucket/key"
}
The selectors a, a.b, or a.b[0] select the value at the path and store only this part in the Store. The reference to the stored payload will be inserted at the path in the output, thereby replacing the original value.
/* selector: 'a' */
{
a: {
"@middy-store": "s3://bucket/key"
}
}
/* selector: 'a.b' */
{
a: {
b: {
"@middy-store": "s3://bucket/key"
}
}
}
/* selector: 'a.b[0]' */
{
a: {
b: [
{ "@middy-store": "s3://bucket/key" },
'bar',
'baz'
]
}
}
A selector ending with [*] like a.b[*] acts like an iterator. It will select the array at a.b and store each element in the array in the Store separately. Each element will be replaced with the reference to the stored payload.
/* selector: 'a.b[*]' */
{
a: {
b: [
{ "@middy-store": "s3://bucket/key" },
{ "@middy-store": "s3://bucket/key" },
{ "@middy-store": "s3://bucket/key" }
]
}
}
Size Limit
middy-store will calculate the size of the entire output returned from the handler. The size is calculated by stringifying the output, if it's not already a string, and calculating the UTF-8 encoded size of the string in bytes. It will then compare this size to the configured minSize in the storingOptions config. If the output size is equal to or greater than the minSize, it will store the output or a part of it in the Store.
export const handler = middy()
.use(
middyStore({
stores: [new S3Store({ /* S3 options */ })],
storingOptions: {
minSize: Sizes.STEP_FUNCTIONS, /* 256KB */
// minSize: Sizes.LAMBDA_SYNC, /* 6MB */
// minSize: Sizes.LAMBDA_ASYNC, /* 256KB */
// minSize: 1024 * 1024, /* 1MB */
// minSize: Sizes.ZERO, /* 0 */
// minSize: Sizes.INFINITY, /* Infinity */
// minSize: Sizes.kb(512), /* 512KB */
// minSize: Sizes.mb(1), /* 1MB */
}
})
)
.handler(async () => output);
await handler({});
middy-store provides a Sizes helper with some predefined limits for Lambda and Step Functions. If minSize is not specified, it will use Sizes.STEP_FUNCTIONS with 256KB as the default minimum size. The Sizes.ZERO (equal to the number 0) means that middy-store will always store the payload in a Store, ignoring the actual output size. On the other hand, Sizes.INFINITY (equal to Math.POSITIVE_INFINITY) means that it will never store the payload in a Store.
Stores
Currently, there is only one Store implementation for Amazon S3, but I'm planning to implement a Store backed by DynamoDB and DAX. DynamoDB, with its Time-To-Live (TTL) feature, provides a great option for short-term payloads that only need to exist during the execution of a workflow like Step Functions.
Amazon S3
The middy-store-s3 package provides a store implementation for Amazon S3. It uses the official @aws-sdk/client-s3 package to interact with S3.
import { middyStore } from 'middy-store';
import { S3Store } from 'middy-store-s3';
const handler = middy()
.use(
middyStore({
stores: [
new S3Store({
config: { region: "us-east-1" },
bucket: "bucket",
key: () => randomUUID(),
format: "arn",
}),
],
}),
)
.handler(async (input) => {
return { /* ... */ };
});
The S3Store only requires a bucket where the payloads are being stored. The key is optional and defaults to randomUUID(). The format configures the style of the reference that is returned after a payload is stored. The supported formats include arn, object, or one of the URL formats from the amazon-s3-url package. It's important to note that S3Store can load any of these formats; the format config only concerns the returned reference. The config is the S3 client configuration and is optional. If not set, the S3 client will resolve the config (credentials, region, etc.) from the environment or file system.
Custom Store
A new Store can be implemented as a class or a plain object, as long as it provides the required functions from the StoreInterface interface.
Here's an example of a Store to store and load payloads as base64 encoded data URLs:
import { StoreInterface, middyStore } from 'middy-store';
const base64Store: StoreInterface<string, string> = {
name: "base64",
/* Reference must be a string starting with "data:text/plain;base64," */
canLoad: ({ reference }) => {
return (
typeof reference === "string" &&
reference.startsWith("data:text/plain;base64,")
);
},
/* Decode base64 string and parse into object */
load: async ({ reference }) => {
const base64 = reference.replace("data:text/plain;base64,", "");
return Buffer.from(base64, "base64").toString();
},
/* Payload must be a string or an object */
canStore: ({ payload }) => {
return typeof payload === "string" || typeof payload === "object";
},
/* Stringify object and encode as base64 string */
store: async ({ payload }) => {
const base64 = Buffer.from(JSON.stringify(payload)).toString("base64");
return `data:text/plain;base64,${base64}`;
},
};
const handler = middy()
.use(
middyStore({
stores: [base64Store],
storingOptions: {
minSize: Sizes.ZERO, /* Always store the data */
}
}),
)
.handler(async (input) => {
/* Random text with 100 words */
return `Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat, sed diam voluptua. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit amet. Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat, sed diam voluptua. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit amet.`;
});
const output = await handler(null, context);
/* Prints: { '@middy-store': 'data:text/plain;base64,IkxvcmVtIGlwc3VtIGRvbG9yIHNpdC...' } */
console.log(output);
This example is the perfect way to try middy-store, because it doesn't rely on external resources like an S3 bucket. You will find it in the repository at examples/custom-store and should be able to run it locally.
Contributions and Feedback
I've been tinkering with the API design for a while, and it's definitely not stable yet. I would love to get feedback on the current state as well as suggestions for changes or improvements. If you are eager to contribute to this project, please go ahead and submit feature requests or pull requests.
