Windows 上,本機用 Docker 安裝 GitLab

本篇要解決的問題

有時公司會使用自架的 Git Server,而不是直接使用現有的 GitHub、GitLab,本篇是使用 Docker,在本機安裝 GitLab,再加上 GitLab Runner,這樣就可以有自己的版控功能,也可以寫檔案做自動化測試。

跟一般教學文不同的是,大部份自架 GitLab,都會講到怎麼裝上 SSL。

但 August 實測後發現,本機產生的憑證會一直有問題,即便用的是 OpenSSL,也沒有辦法推拉專案,所以本篇不會有裝 SSL 的部份。

如果有知道怎麼在本機 Docker 裝 SSL 的棒油,歡迎留言提供方式。


準備好 docker-compose.yml

新增一個名為「gitlab」的資料,裡面新增三個資料夾,以及一個 yml 檔,如下:

gitlab
  ├─config
  ├─data
  ├─logs
  └─docker-compose.yml
Enter fullscreen mode Exit fullscreen mode

docker-compose.yml 的內容:

services:
  gitlab:
    image: gitlab/gitlab-ce
    container_name: gitlab-docker
    hostname: "gitlab.enrf"
    restart: always
    environment:
      GITLAB_OMNIBUS_CONFIG: |
        external_url "http://192.168.11.111:8807"
        letsencrypt['enable'] = false
    volumes:
      - "C:/Docker/gitlab/gitlab/config:/etc/gitlab"
      - "C:/Docker/gitlab/gitlab/logs:/var/log/gitlab"
      - "C:/Docker/gitlab/gitlab/data:/var/opt/gitlab"
    ports:
      - "8807:8807"
      - "8808:22"
Enter fullscreen mode Exit fullscreen mode

external_url 'https://192.168.11.111:8807',這邊的 IP 請改成自己的 IP,因為目標是建起來後,同網域的大家都可以使用,所以填寫的是 192.168 開頭的。

Port 的部份,因為 August 本機的 80、22 都被別的程式佔用了,所以改用別的 Port。

開啟終端機,執行:

docker-compose up -d
Enter fullscreen mode Exit fullscreen mode

執行完後,當看到 Container 被建起來了,大概還要再等 5 分鐘,網站才打得開。

打開瀏覽器,網址輸入我們寫在 docker-compose.yml 上的,像這邊的範例就是:http://192.168.11.127:8807

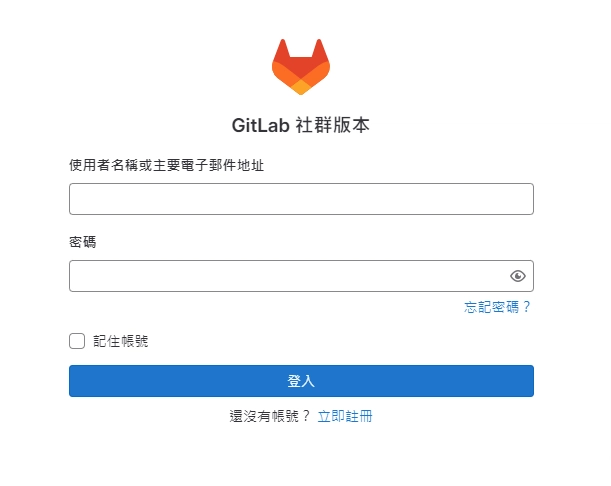

GitLab 登入頁面.png


找出管理員預設密碼

看到了 GitLab 架好後,問題來了,GitLab 預設會提供一組管理員的帳號,登入這個帳號的帳密是什麼?

預設帳號是:root。

密碼的部份,我們的資料夾裡,剛有開了一個「config」的空資料夾,當 GitLab 安裝好,會看到裡面多了很多檔案,其中有一個叫:

initial_root_password

打開這個檔案,就會看到預設密碼:



安裝 GitLab Runner

GitLab Runner 要另外安裝,不直接裝在 GitLab 的專案裡。

新開名為「gitlab-runner」的資料夾,裡面放一個 docker-compose.yml 的檔案。

docker-compose.yml 的內容:

services:
  gitlab-runner:
    image: "gitlab/gitlab-runner:latest"
    container_name: "gitlab-runner"
    restart: always
    volumes:
      - "/var/run/docker.sock:/var/run/docker.sock"
      - "D:/Docker/gitlab-runner/gitlab-runner/config:/etc/gitlab-runner"
    environment:
      - "CI_SERVER_URL={GitLab URL}"L
      - "REGISTRATION_TOKEN={Runner 註冊 token}"
Enter fullscreen mode Exit fullscreen mode

有二個地方要修改。

第一個,CI_SERVER_URL 要填寫的是我們 GitLab 的網址,像本篇的範例就是填:http://192.168.11.111:8807。

第二個,REGISTRATION_TOKEN,這要從 GitLab 後台建立 Runner 時取得,步驟如下。

1 登入管理員帳號後,照下圖的順序點擊:


接著會開始填寫 Runner 的資料,都選好、填好後,點擊「創建執行器」,下一個畫面,就會看到 token:


把 token 貼上 docker-compose.yml 上,然後開啟終端機,執行:

docker-compose up -d
Enter fullscreen mode Exit fullscreen mode

執行完後,Container 上就會看到 gitlab-runner 正在運行。

接著終端機上繼續輸入以下並執行:

docker-compose exec gitlab-runner gitlab-runner register
Enter fullscreen mode Exit fullscreen mode

執行後,會需要回答幾個問題。

URL、token,因為我們在運行 docker-compose 時都先填了,所以可以直接按下 Enter 確認。

後續的題目,因為 August 這邊只是為了測試 Runner 能不能執行,所以都先簡單回答:

Enter an executor: docker
Enter the default Docker image: alpine:latest
Enter fullscreen mode Exit fullscreen mode

建立成功時,會顯示一個訊息:

Configuration (with the authentication token) was saved in "/etc/gitlab-runner/config.toml"
Enter fullscreen mode Exit fullscreen mode

意思就是 Runner 的 config 檔已經建立在 /etc/gitlab-runner/config.toml 裡。

我們所在的 gitlab-runner 資料夾,也會看到這個檔案,打開來會看到內容。


測試 Runner

為了測試 Runner 有沒有活跳跳,我們建一個專案來測試。

建專案時可以直接用 GitLab 提供的範本,這邊 August 選用「Pages/Plain HTML」這個。

建好後,把專案 clone 到我們本機,因為是範本建立的,所以本身就會有一個「.gitlab-ci.yml」,這個檔就是觸發我們 Runner 用的。

範本裡的這個檔案,原本的寫法是把專案架成靜態頁面,因為我們沒有做其他配置,所以執行起來一定會失敗。

幾年前 August 有寫一篇,是怎麼用 GitLab 來架靜態頁的方法,有興趣的朋友再自行研究囉:

GitLab Pages:3 + 3 個步驟讓 GitLab 專案產生靜態頁

這邊是為了測試,我們簡單的用個 tidy 來測試 html,把 .gitlab-ci.yml 的內容改成以下:

stages:
  - test

test_job:
  image: alpine:latest
  stage: test
  before_script:
    - apk update
    - apk add tidyhtml
  script:
    - echo "Running basic test..."
    - find . -name "*.html" | xargs tidy -q -e
  tags:
    - runner
Enter fullscreen mode Exit fullscreen mode

tags 寫 runner,是 August 在建立 Runner 時,有寫要認這個 tag 才會執行 Runner。

修改好後,推上 GitLab。

進到 GitLab 後台的專案裡,左側導覽列點擊「建置」>「流水線」,專案通過、失敗,都會看到圖示:


以上,便是怎麼在 Windows 的本機,用 Docker 安裝 GitLab,以及 GitLab Runner。

最後祝大家母親節快樂~
